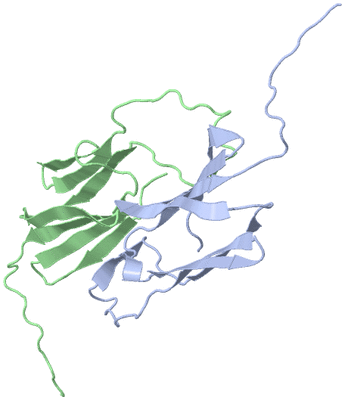

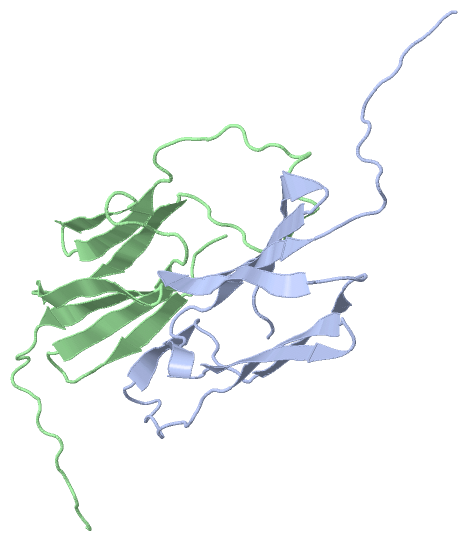

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

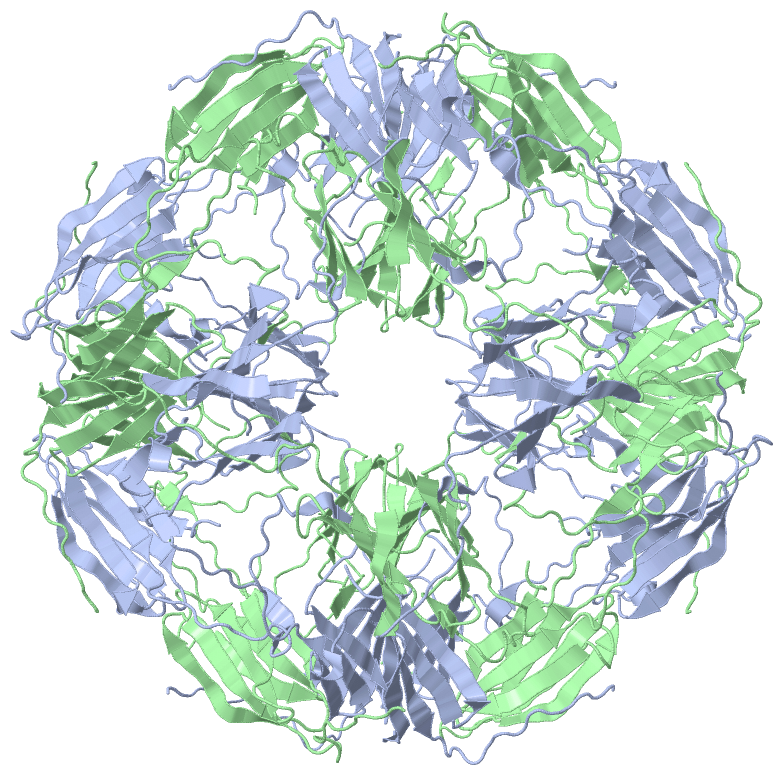

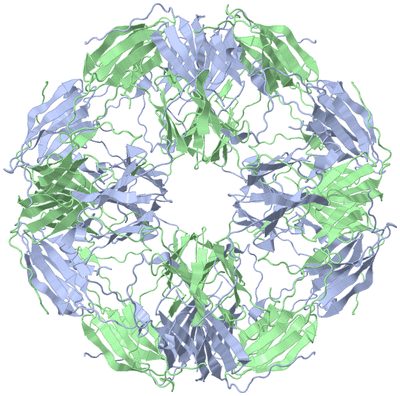

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  SMALL HEAT SHOCK PROTEIN AGSA FROM SALMONELLA TYPHIMURIUM: C-TERMINAL TRUNCATED CONSTRUCT

Authors :  N. Mani, K. Suguna
Date :  29 Apr 15  (Deposition) - 20 Apr 16  (Release) - 20 Apr 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  4.10
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (12x)
Keywords :  Small Heat Shock Protein, Chaperone, Oligomer, Crystallin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Mani, S. Bhandari, R. Moreno, L. Hu, B. V. Prasad, K. Suguna
Multiple Oligomeric Structures Of A Bacterial Small Heat Shock Protein
Sci Rep V. 6 24019 2016
PubMed-ID: 27053150  |  Reference-DOI: 10.1038/SREP24019

(-) Compounds

Molecule 1 - AGGREGATION SUPPRESSING PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Fragment: UNP RESIDUES 1-147
    Gene: AGSA
    Organism Scientific: SALMONELLA ENTERICA SUBSP. ENTERICA SEROVAR TYPHIMURIUM
    Organism Taxid: 90371
    Strain: LT2

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (12x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4ZJA)

(-) Sites  (0, 0)

(no "Site" information available for 4ZJA)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4ZJA)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Glu A:112 -His A:113
2Glu B:112 -His B:113

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ZJA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ZJA)

(-) Exons   (0, 0)

(no "Exon" information available for 4ZJA)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:106

               SCOP domains ---------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeee..eeeeeee....hhh.eeeeee..eeeeee............eeee......eeeeee.....eeeeeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 4zja A  40 ATPAYDLQKRDANNYLLTVSVPGWKEEELEIETVGGNLNITGKHTEETVEDQTHWIYRGIRKADFQLSFSLPEHAKVNNAKLEQGLLLVEIYQEIPESEKPKKIAI 145
                                    49        59        69        79        89        99       109       119       129       139


Chain B from PDB  Type:PROTEIN  Length:106

               SCOP domains ---------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeee.....eeeeeee........eeeeee..eeeeee..............ee......eeeeee.....eeeeeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 4zja B  40 ATPAYDLQKRDANNYLLTVSVPGWKEEELEIETVGGNLNITGKHTEETVEDQTHWIYRGIRKADFQLSFSLPEHAKVNNAKLEQGLLLVEIYQEIPESEKPKKIAI 145
                                    49        59        69        79        89        99       109       119       129       139
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4ZJA)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4ZJA)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4ZJA)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4zja)

  Sites
(no "Sites" information available for 4zja)

  Cis Peptide Bonds
    Glu A:112 - His A:113   [ RasMol ]
    Glu B:112 - His B:113   [ RasMol ]
