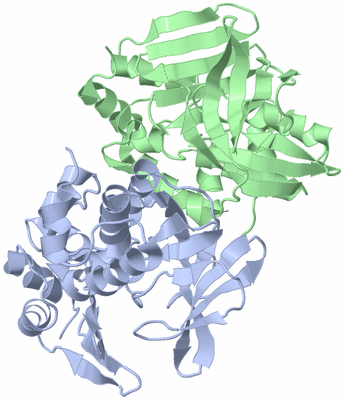

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

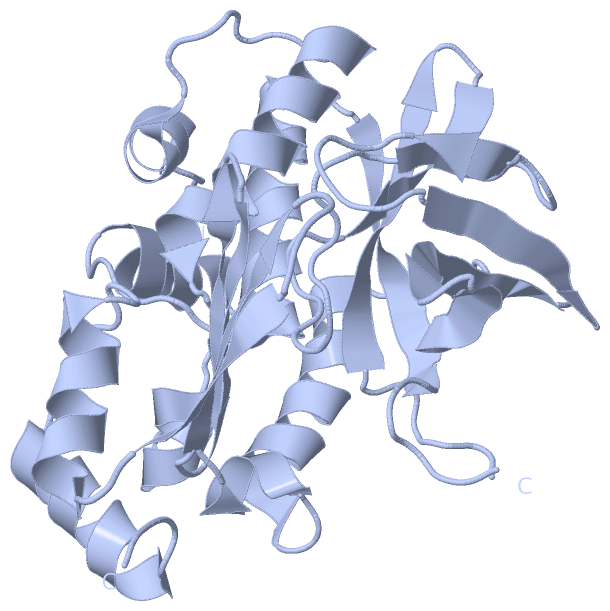

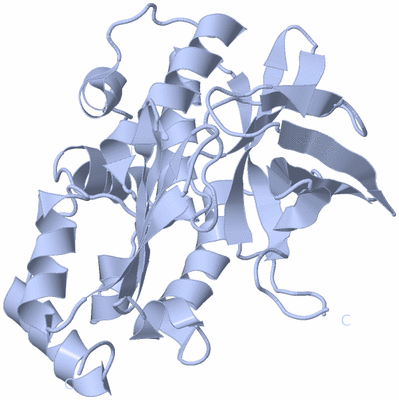

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

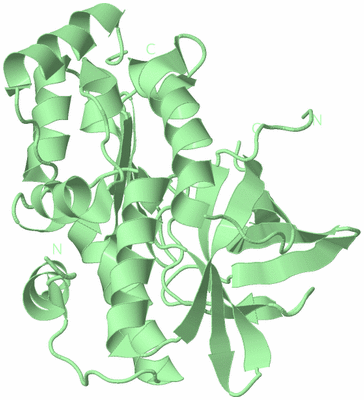

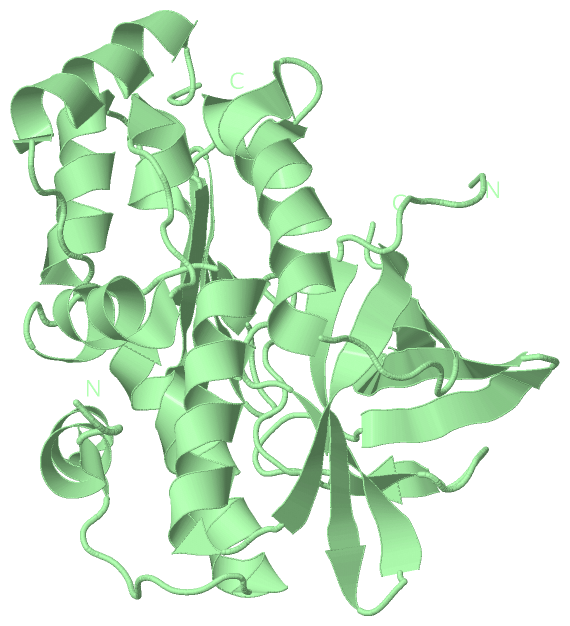

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

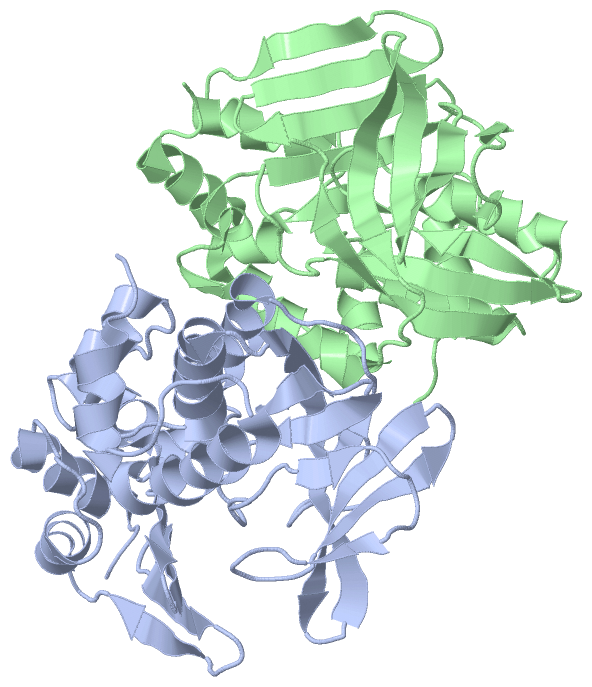

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MESORHIZOBIUM LOTI ARYLAMINE N-ACETYLTRANSFERASE F42W MUTANT

Authors :  X. M. Xu, A. Haouz, P. Weber, I. Li De La Sierra-Gallay, X. Kubiak, J. - F. Rodrigues-Lima
Date :  05 Dec 13  (Deposition) - 21 Jan 15  (Release) - 25 Feb 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.84
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  A,B  (1x)
Keywords :  Nat, Arylamine N-Acetyltransferase, Acetyltransferase, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Xu, I. Li De La Sierra-Gallay, X. Kubiak, R. Duval, A. F. Chaffotte, J. M. Dupret, A. Haouz, F. Rodrigues-Lima
Insight Into Cofactor Recognition In Arylamine N-Acetyltransferase Enzymes: Structure Of Mesorhizobium Lot Arylamine N-Acetyltransferase In Complex With Coenzyme A.
Acta Crystallogr. , Sect. D V. 71 266 2015
PubMed-ID: 25664736  |  Reference-DOI: 10.1107/S139900471402522X

(-) Compounds

Molecule 1 - ARYLAMINE N-ACETYLTRANSFERASE
    Chains: A, B
    EC Number: 2.3.1.5
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: MLR4870
    Mutation: YES
    Organism Scientific: MESORHIZOBIUM LOTI
    Organism Taxid: 266835
    Strain: MAFF303099

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4NV8)

(-) Sites  (0, 0)

(no "Site" information available for 4NV8)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4NV8)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Asp B:160 -Asp B:161

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4NV8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4NV8)

(-) Exons   (0, 0)

(no "Exon" information available for 4NV8)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:270

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhh.......hhhhhhhhhhhhhhhh.eehhhhhhh.....hhhhhhhhhh......hhhhhhhhhhhhhhhh..eeeeeeeee............eeeeeeee..eeeee............ee.....ee......eeeeee..eeeeeeee..eeeeeeee.....hhhhhhhhhhhhhhh..hhhhh..eeeeee..eeeeee..eeeeee....eeeee..hhhhhhhhhhh.......hhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4nv8 A   5 PPFDLDAYLARIGYTGPRNASLDTLKALHFAHPQAIPWENIDPFLGRPVRLDLAALQDKIVLGGRGGYCFEHNLLFMHALKALGFEVGGLAARVLWGQSEAITARSHMLLRVELDGRTYIADVGFGGLTLTAPLLLEPGREQKTPHEPFRIVEADDHFRLQAAIGGDWRSLYRFDLQPQYEVDYSVTNYFLSTSPTSHFLSSVIAARAAPDRRYALRGNRLSIHHLGGRTEQTEIATAADLADTLQGLLGIIIPDRTAFEAKVRETKIVE 275
                                    14        24        34        44        54        64        74        84        94       104|      115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275
                                                                                                                             104|
                                                                                                                              106


Chain B from PDB  Type:PROTEIN  Length:268

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhh.......hhhhhhhhhhhhhhhh.eehhhhhhh.....hhhhhhhhhh......hhhhhhhhhhhhhhhh..eeeeeeeee..........eeeeeeee..eeeee............ee.....ee......eeeeee..eeeeeeee..eeeeeeee.....hhhhhhhhhhhhhhh..hhhhh..eeeeee..eeeeee..eeeeee....eeeee..hhhhhhhhhhh.......hhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4nv8 B   5 PPFDLDAYLARIGYTGPRNASLDTLKALHFAHPQAIPWENIDPFLGRPVRLDLAALQDKIVLGGRGGYCFEHNLLFMHALKALGFEVGGLAARVLWGDAITARSHMLLRVELDGRTYIADVGFGGLTLTAPLLLEPGREQKTPHEPFRIVEADDHFRLQAAIGGDWRSLYRFDLQPQYEVDYSVTNYFLSTSPTSHFLSSVIAARAAPDRRYALRGNRLSIHHLGGRTEQTEIATAADLADTLQGLLGIIIPDRTAFEAKVRETKIVE 275
                                    14        24        34        44        54        64        74        84        94      |107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267
                                                                                                                          101|
                                                                                                                           105
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4NV8)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4NV8)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4NV8)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
