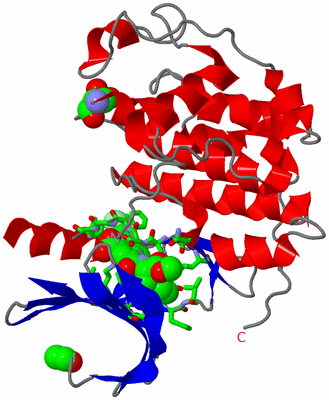

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  MODULATING THE INTERACTION BETWEEN CDK2 AND CYCLIN A WITH A QUINOLINE-BASED INHIBITOR

Authors :  T. O. Fischmann, A. W. Hruza
Date :  08 Nov 13  (Deposition) - 27 Nov 13  (Release) - 08 Jan 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.85
Chains :  Asym./Biol. Unit :  A
Keywords :  Cell Cycle, Inhibition, Cyclin-Dependent Kinase, Cancer, Atp-Binding, Cell Division, Mitosis, Nucleotide-Binding, Phosphorylation, Transferase, Serine/Threonine-Protein Kinase, Transferase- Transferase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Deng, G. W. Shipps, L. Zhao, M. A. Siddiqui, J. Popovici-Muller, P. J. Curran, J. S. Duca, A. W. Hruza, T. O. Fischmann, V. S. Madison, R. Zhang, C. W. Mcnemar, T. W. Mayhood, R. Syto, A. Annis, P. Kirschmeier, E. M. Lees, D. A. Parry, W. T. Windsor
Modulating The Interaction Between Cdk2 And Cyclin A With A Quinoline-Based Inhibitor.
Bioorg. Med. Chem. Lett. V. 24 199 2014
PubMed-ID: 24332088  |  Reference-DOI: 10.1016/J.BMCL.2013.11.041

(-) Compounds

Molecule 1 - CYCLIN-DEPENDENT KINASE 2
    Chains: A
    EC Number: 2.7.11.22
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Cell Line: SF9
    Expression System Taxid: 7108
    Fragment: CDK2
    Gene: CDK2, CDKN2
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: CELL DIVISION PROTEIN KINASE 2, P33 PROTEIN KINASE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 3)

Asymmetric/Biological Unit (3, 3)
No.NameCountTypeFull Name
12KD1Ligand/Ion6-(3-CHLOROPHENYL)-2-{[(2S)-3-(4-HYDROXYPHENYL)-1-METHOXY-1-OXOPROPAN-2-YL]CARBAMOYL}QUINOLINE-4-CARBOXYLIC ACID
2ACE1Mod. Amino AcidACETYL GROUP
3CSD1Mod. Amino Acid3-SULFINOALANINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREVAL A:18 , ALA A:31 , LYS A:33 , LEU A:55 , LEU A:58 , VAL A:64 , LEU A:78 , PHE A:80 , GLU A:81 , PHE A:82 , LEU A:83 , GLN A:131 , LEU A:134 , ALA A:144 , ASP A:145 , PHE A:146 , GLY A:147 , LEU A:148BINDING SITE FOR RESIDUE 2KD A 301

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4NJ3)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Pro A:253 -Pro A:254

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4NJ3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4NJ3)

(-) Exons   (0, 0)

(no "Exon" information available for 4NJ3)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:282

               SCOP domains d4nj3a_ A: Cyclin-dependent PK, CDK2                                                                                                                                                                                                                                                       SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeeeeeee...eeeeeeee.....eeeeeeee...hhhhhhhhhhh.........eeeeeee..eeeeeee...eehhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh.......hhh.eee.....eee...............hhhhhh......hhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh........hhhhh.............hhhhhh...hhhhhhhhhhhh........hhhhhhhhhhhh........... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4nj3 A   0 xMENFQKVEKIGEGTYGVVYKARNKLTGEVVALKKIRLDPSTAIREISLLKELNHPNIVKLLDVIHTENKLYLVFEFLHQDLKKFMDASALTGIPLPLIKSYLFQLLQGLAFCHSHRVLHRDLKPQNLLINTEGAIKLADFGLAREVVTLWYRAPEILLGcKYYSTAVDIWSLGCIFAEMVTRRALFPGDSEIDQLFRIFRTLGTPDEVVWPGVTSMPDYKPSFPKWARQDFSKVVPPLDEDGRSLLSQMLHYDPNKRISAKAALAHPFFQDVTKPVPHLRL 298
                            |        9        19        29        45        55        65        75        85        95       105       115       125       135       145    || 166       176|      186       196       206       216       226       236       246       256       266       276       286       296
                            |                                    38|                                                                                                      150|            177-CSD
                            0-ACE                                 45                                                                                                       162
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4NJ3)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4NJ3)

(-) Gene Ontology  (65, 65)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    2KD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ACE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CSD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Pro A:253 - Pro A:254   [ RasMol ]
