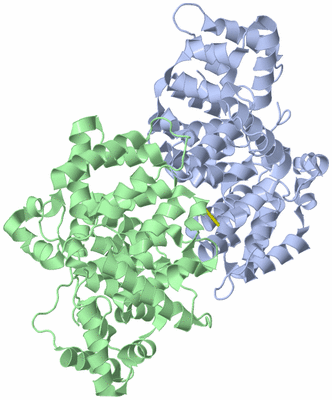

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF APO-ANNEXIN (SM)1

Authors :  A. Hofmann
Date :  23 Aug 13  (Deposition) - 26 Feb 14  (Release) - 18 Feb 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Annexin, Calcium-Binding Protein, Metal Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Y. Leow, C. Willis, A. Osman, L. Mason, A. Simon, B. J. Smith, R. B. Gasser, M. K. Jones, A. Hofmann
Crystal Structure And Immunological Properties Of The First Annexin From Schistosoma Mansoni: Insights Into The Structural Integrity Of The Schistosomal Tegument.
Febs J. V. 281 1209 2014
PubMed-ID: 24428567  |  Reference-DOI: 10.1111/FEBS.12700

(-) Compounds

Molecule 1 - ANNEXIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: ANNEXIN (SM)1, SMP_074150.1
    Organism Common: BLOOD FLUKE
    Organism Scientific: SCHISTOSOMA MANSONI
    Organism Taxid: 6183

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4MDU)

(-) Sites  (0, 0)

(no "Site" information available for 4MDU)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:175 -B:175

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4MDU)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4MDU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4MDU)

(-) Exons   (0, 0)

(no "Exon" information available for 4MDU)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:357

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhh..................hhhhhhhhhhhhh.....hhhhhhhhhh..hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh...hhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.......hhhhhh.hhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhh..hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4mdu A   7 SEFGITRSLIHSFDPHGKHYRPTIKPTTGFSASADAERLHRSMKGPGTNELAIINILARRTNYERQEICQSYKSLYKQDLKDDLKSDTSGDFRKVLCQLIVDTPYMLAKSLYYAMKGLGTNDRVLIEIFTTLWNDEMKAVADAYKQVLKDKGSEESERSLVTDMKKETCGDYEYALLSLVQAERDDIPILQLKAIPDKGVNSIINHELAEADAKDLYASGAGRVGTSERRITRVICNRTPYQLYLTSEIYFKMYGKTLLEHIESETSGDYRKLLVAVLRYAIDRPSLIAEWLHDSMAGLGTKDYALMRLLITRSEIDLQDIMDAYESIYGKSLLNAVKDDTSGDYRRTLCVLMGEIY 363
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356


Chain B from PDB  Type:PROTEIN  Length:360

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhh..................hhhhhhhhhhhhhh....hhhhhhhhhh..hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh.......hhhhhh.hhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4mdu B   6 ISEFGITRSLIHSFDPHGKHYRPTIKPTTGFSASADAERLHRSMKGPGTNELAIINILARRTNYERQEICQSYKSLYKQDLKDDLKSDTSGDFRKVLCQLIVDTPYMLAKSLYYAMKGLGTNDRVLIEIFTTLWNDEMKAVADAYKQVLKDKGSEESERSLVTDMKKETCGDYEYALLSLVQAERDDIPILQLKAIPDKGVNSIINHELAEADAKDLYASGAGRVGTSERRITRVICNRTPYQLYLTSEIYFKMYGKTLLEHIESETSGDYRKLLVAVLRYAIDRPSLIAEWLHDSMAGLGTKDYALMRLLITRSEIDLQDIMDAYESIYGKSLLNAVKDDTSGDYRRTLCVLMGEIYNQ 365
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4MDU)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4MDU)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4MDU)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4mdu)

  Sites
(no "Sites" information available for 4mdu)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4mdu)


(-) Still Images

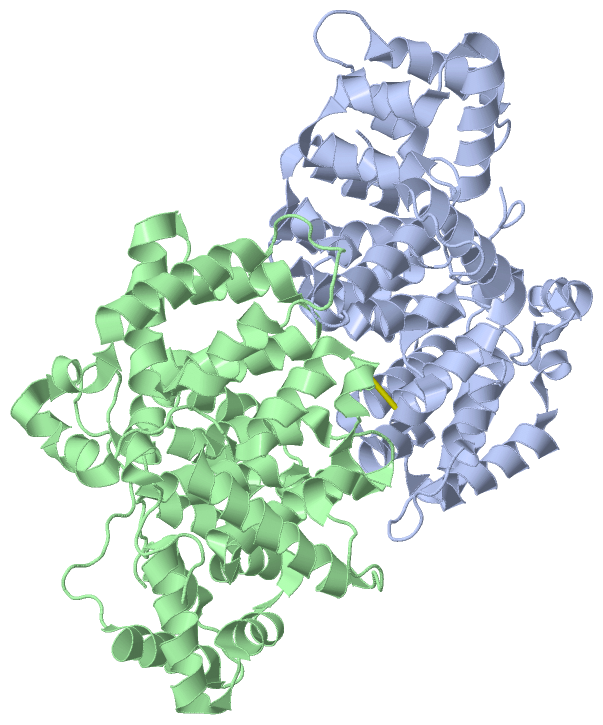

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
