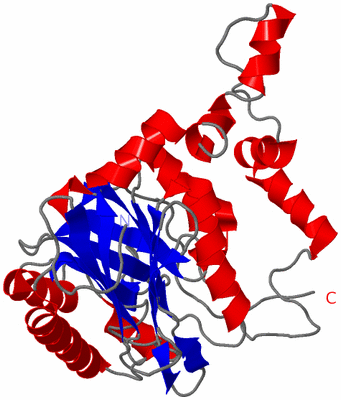

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

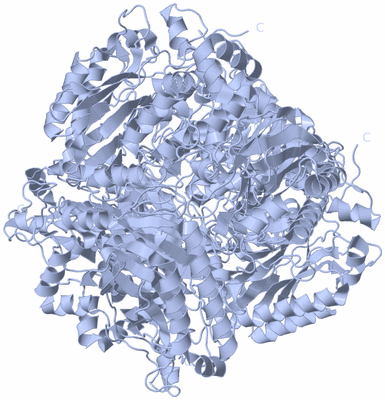

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  THE E142D MUTANT OF THE AMIDASE FROM GEOBACILLUS PALLIDUS

Authors :  B. T. Sewell, B. W. Weber, S. W. Kimani, D. A. Cowan, R. Hunter, G. A. Vente J. C. Gumbart, R. N. Thuku, A. Varsani
Date :  26 Jun 13  (Deposition) - 21 Aug 13  (Release) - 12 Feb 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.10
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (6x)
Keywords :  Alpha-Beta-Beta-Alpha Sandwich, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. W. Weber, S. W. Kimani, A. Varsani, D. A. Cowan, R. Hunter, G. A. Venter, J. C. Gumbart, B. T. Sewell
The Mechanism Of The Amidases: Mutating The Glutamate Adjacent To The Catalytic Triad Inactivates The Enzyme Due To Substrate Mispositioning.
J. Biol. Chem. V. 288 28514 2013
PubMed-ID: 23946488  |  Reference-DOI: 10.1074/JBC.M113.503284

(-) Compounds

Molecule 1 - ALIPHATIC AMIDASE
    Chains: A
    EC Number: 3.5.1.4
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21 (2DE)
    Expression System Taxid: 562
    Gene: AMI, AMIE
    Mutation: YES
    Organism Scientific: BACILLUS SP.
    Organism Taxid: 1409
    Strain: RAPC8
    Synonym: ACYLAMIDE AMIDOHYDROLASE

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (6x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4LF0)

(-) Sites  (0, 0)

(no "Site" information available for 4LF0)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4LF0)

(-) Cis Peptide Bonds  (5, 5)

Asymmetric Unit
No.Residues
1Ile A:79 -Pro A:80
2Thr A:103 -Gly A:104
3His A:110 -Pro A:111
4Cys A:139 -Pro A:140
5Tyr A:194 -Pro A:195

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4LF0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4LF0)

(-) Exons   (0, 0)

(no "Exon" information available for 4LF0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:340

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeeee........hhhhhhhhhhhhhhhhhhhhhhh..eeeee...........hhhhhhhhh....hhhhhhhhhhhhhh..eeeeeeeee..........eeeeeee.....eeeeee...................ee.hhh.eeeeee.hhhhhhhhhhhhhhh...eeeeee.....hhhhhhhhhhhhhhhhh.eeeeee.eee....eee...eee.....eeee.......eeeeeeehhhhhhhhhhh...hhhhhhh..hhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhh................. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4lf0 A   1 MRHGDISSSHDTVGIAVVNYKMPRLHTKAEVIENAKKIADMVVGMKQGLPGMDLVVFPEYSTMGIMYDQDEMFATAASIPGEETAIFAEACKKADTWGVFSLTGEKHEDHPNKAPYNTLVLINNKGEIVQKYRKIIPWCPIDGWYPGDTTYVTEGPKGLKISLIVCDDGNYPEIWRDCAMKGAELIVRCQGYMYPAKEQQIMMAKAMAWANNTYVAVANATGFDGVYSYFGHSAIIGFDGRTLGECGTEENGIQYAEVSISQIRDFRKNAQSQNHLFKLLHRGYTGLINSGEGDRGVAECPFDFYRTWVLDAEKARENVEKITRSTVGTAECPIQGIPNE 340
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4LF0)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4LF0)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4LF0)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4lf0)

  Sites
(no "Sites" information available for 4lf0)

  Cis Peptide Bonds
    Cys A:139 - Pro A:140   [ RasMol ]
    His A:110 - Pro A:111   [ RasMol ]
    Ile A:79 - Pro A:80   [ RasMol ]
    Thr A:103 - Gly A:104   [ RasMol ]
    Tyr A:194 - Pro A:195   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

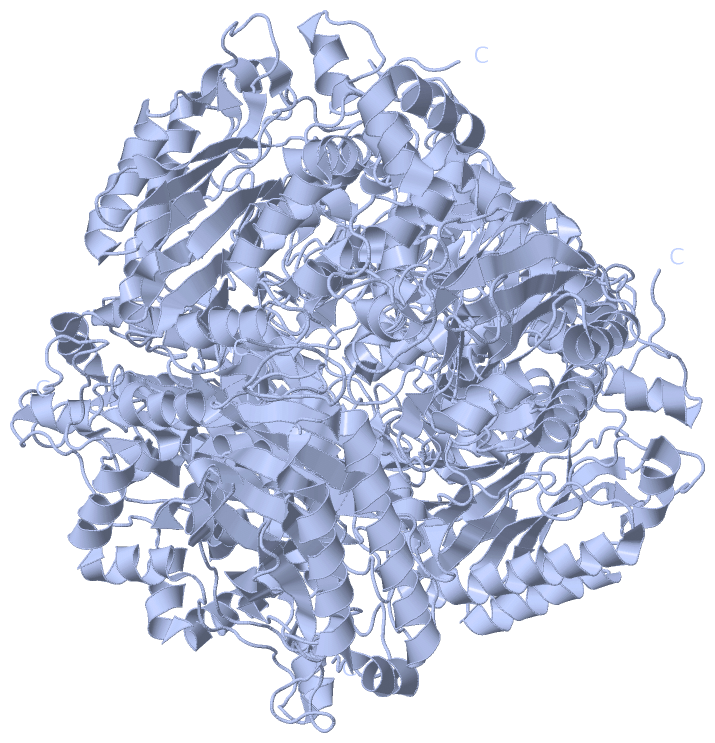

[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4lf0
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  AMIE_BACSP | Q9L543
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.5.1.4
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  AMIE_BACSP | Q9L543
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        AMIE_BACSP | Q9L543: 2plq 4gyl 4gyn 4kzf

(-) Related Entries Specified in the PDB File

2plq THE STRUCTURE OF THE WILD-TYPE AMIDASE FROM GEOBACILLUS PALLIDUS.
4gyl THE STRUCTURE OF THE E142L MUTANT OF THE AMIDASE FROM GEOBACILLUS PALLIDUS AFTER REACTION WITH ACRYLAMIDE
4gyn THE STRUCTURE OF THE E142L MUTANT OF THE AMIDASE FROM GEOBACILLUS PALLIDUS IN THE PRESENCE OF PROPIONAMIDE
4kzf THE STRUCTURE OF THE E142L MUTANT OF THE AMIDASE FROM GEOBACILLUS PALLIDUS
