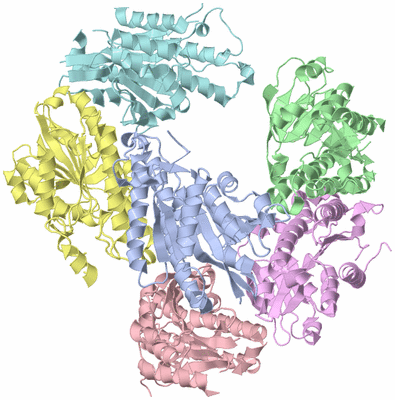

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

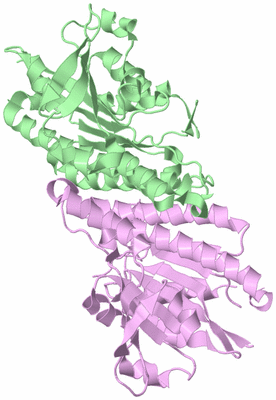

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF APO-FORMED YMTOAR1

Authors :  Y. Zhang, Y. Gao, F. Ning, L. Niu, M. Teng
Date :  26 May 12  (Deposition) - 05 Jun 13  (Release) - 05 Jun 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,D  (1x)
Biol. Unit 2:  B,E  (1x)
Biol. Unit 3:  C  (2x)
Biol. Unit 4:  F  (2x)
Keywords :  Short-Chain Alcohol Dehydrogenase (Sdr) Family, Fatty Acid Biosynthesis, Nadph, Cofactor, Mitochondrion, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Zhang, Y. Gao, F. Ning, L. Niu, M. Teng
Crystal Structure Of Apo-Formed Ymtoar1
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - 3-OXOACYL-[ACYL-CARRIER-PROTEIN] REDUCTASE
    Chains: A, B, C, D, E, F
    EC Number: 1.1.1.100
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: OAR1, YKL055C
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE
    Organism Taxid: 559292
    Strain: ATCC 204508 / S288C
    Synonym: 3-KETOACYL-ACYL CARRIER PROTEIN REDUCTASE

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (1x): A  D
Biological Unit 2 (1x):  B  E
Biological Unit 3 (2x):   C
Biological Unit 4 (2x):      F

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4FD3)

(-) Sites  (0, 0)

(no "Site" information available for 4FD3)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4FD3)

(-) Cis Peptide Bonds  (10, 10)

Asymmetric Unit
No.Residues
1Trp A:70 -Pro A:71
2Trp B:70 -Pro B:71
3Trp C:70 -Pro C:71
4Gly C:171 -Gln C:172
5Met D:1 -His D:2
6Trp D:70 -Pro D:71
7Gly D:253 -Ala D:254
8Arg E:14 -Gly E:15
9Trp E:70 -Pro E:71
10Trp F:70 -Pro F:71

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4FD3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4FD3)

(-) Exons   (0, 0)

(no "Exon" information available for 4FD3)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:254

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee....hhhhhhhhhhhhh..eeeeee.hhhhhhhhh.hhhhhhh......eeeee.hhhhhhhhhhh..eeeeee......eeeee...hhhhhhhh...eeeeeeeeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......eeeee.hhhhh.......hhhhhhhhhhhhhhhhhhhhhh.....eeeee...ee......eehhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4fd3 A   1 MHYLPVAIVTGATRGIGKAICQKLFQKGLSCIILGSTKESIERTAIDRGQLQSGLSYQRQCAIAIDFKKWPHWLDYESYDGIEYFKDRPPLKQKYSTLFDPCNKWSNNERRYYVNLLINCAGLTQESLSVRTTASQIQDIMNVNFMSPVTMTNICIKYMMKSQRRWPELSGQSARPTIVNISSILHSGKMKVPGTSVYSASKAALSRFTEVLAAEMEPRNIRCFTISPGLVKGTDSGTSAPAEIAEEVWSLYSR 273
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230    || 259       269
                                                                                                                                                                                                                                                                    235|
                                                                                                                                                                                                                                                                     255


Chain B from PDB  Type:PROTEIN  Length:253

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee....hhhhhhhhhhhhh..eeeeee...hhhhhhh.hhhhhhh......eeeee.hhhhhhhhhh...eeeee.......eeeee...hhhhhhhh...eeeeeeeeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeee.hhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeee...ee....eehhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4fd3 B   1 MHYLPVAIVTGATRGIGKAICQKLFQKGLSCIILGSTKESIERTAIDRGQLQSGLSYQRQCAIAIDFKKWPHWLDYESYDGIEYFKDRPPLKQKYSTLFDPCNKWSNNERRYYVNLLINCAGLTQESLSVRTTASQIQDIMNVNFMSPVTMTNICIKYMMKSQRRWPELSGQSARPTIVNISSILHSGKMKVPGTSVYSASKAALSRFTEVLAAEMEPRNIRCFTISPGLVKGSGTSAPAEIAEEVWSLYSRT 274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230  ||   261       271
                                                                                                                                                                                                                                                                  233|
                                                                                                                                                                                                                                                                   255


Chain C from PDB  Type:PROTEIN  Length:250

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee....hhhhhhhhhhhhh..eeeeee.hhhhhhhhh.hhhhhhh......eeeee.hhhhhhhhhhh..eeeee.......eeeee...hhhhhhhh...eeeeeeeeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeee.hhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeee.........hhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4fd3 C   1 MHYLPVAIVTGATRGIGKAICQKLFQKGLSCIILGSTKESIERTAIDRGQLQSGLSYQRQCAIAIDFKKWPHWLDYESYDGIEYFKDRPPLKQKYSTLFDPCNKWSNNERRYYVNLLINCAGLTQESLSVRTTASQIQDIMNVNFMSPVTMTNICIKYMMKSQRRWPELSGQARPTIVNISSILHSGKMKVPGTSVYSASKAALSRFTEVLAAEMEPRNIRCFTISPGLVSGTSAPAEIAEEVWSLYSRT 274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170 ||    181       191       201       211       221       231|      264       274
                                                                                                                                                                                                     172|                                                      231|
                                                                                                                                                                                                      174                                                       255


Chain D from PDB  Type:PROTEIN  Length:268

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee....hhhhhhhhhhhhh..eeeeee.hhhhhhhhh.hhhhhhh......eeeee.hhhhhhhhhhh..eeeee.......eeeee...hhhhhhhh....eeeeeeeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeee.hhhhh.......hhhhhhhhhhhhhhhhhhhhhh.....eeeee...ee.....hhhhhhhhh......eehhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4fd3 D   1 MHYLPVAIVTGATRGIGKAICQKLFQKGLSCIILGSTKESIERTAIDRGQLQSGLSYQRQCAIAIDFKKWPHWLDYESYDGIEYFKDRPPLKQKYSTLFDPCNKWSNNERRYYVNLLINCAGLTQESLSVRTTASQIQDIMNVNFMSPVTMTNICIKYMMKSQRRWPELSGQARPTIVNISSILHSGKMKVPGTSVYSASKAALSRFTEVLAAEMEPRNIRCFTISPGLVKGTDPVEAKEMLERTIGASGTSAPAEIAEEVWSLYSRT 274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170 ||    181       191       201       211       221       231   ||  246       256       266
                                                                                                                                                                                                     172|                                                          235|
                                                                                                                                                                                                      174                                                           241


Chain E from PDB  Type:PROTEIN  Length:250

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeee....hhhhhhhhhhhhh..eeeeee.hhhhhhhhh.hhhhhhh......eeeee.hhhhhhhhhh...eeeee.......eeeee...hhhhhhhh...eeeeeeeeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeee.hhhhh.......hhhhhhhhhhhhhhhhhhhhhhh....eeeee..........hhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4fd3 E   1 MHYLPVAIVTGATRGIGKAICQKLFQKGLSCIILGSTKESIERTAIDRGQLQSGLSYQRQCAIAIDFKKWPHWLDYESYDGIEYFKDRPPLKQKYSTLFDPCNKWSNNERRYYVNLLINCAGLTQESLSVRTTASQIQDIMNVNFMSPVTMTNICIKYMMKSQRRWPELSSARPTIVNISSILHSGKMKVPGTSVYSASKAALSRFTEVLAAEMEPRNIRCFTISPGLVKSGTSAPAEIAEEVWSLYSRT 274
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170|      182       192       202       212       222       232|      264       274
                                                                                                                                                                                                   170|                                                        232|
                                                                                                                                                                                                    173                                                         255


Chain F from PDB  Type:PROTEIN  Length:246

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeeeeeee....hhhhhhhhhhhhh..eeeeee.hhhhhhhhh.hhhhhhhh.....eeeee.hhhhhhhhhh...eeeee.......eeeee...hhhhhhhh...eeeeeeeeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeee.hhhhh.......hhhhhhhhhhhhhhhhhhhhhhh....eeeee......hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4fd3 F   1 MHYLPVAIVTGATRGIGKAICQKLFQKGLSCIILGSTKESIERTAIDRGQLQSGLSYQRQCAIAIDFKKWPHWLDYESYDGIEYFKDRPPLKQKYSTLFDPCNKWSNNERRYYVNLLINCAGLTQESLSVRTTASQIQDIMNVNFMSPVTMTNICIKYMMKSQRRWPELSGSARPTIVNISSILHSGKMKVPGTSVYSASKAALSRFTEVLAAEMEPRNIRCFTISPGGTSAPAEIAEEVWSLYSR 273
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170||     181       191       201       211       221       257       267
                                                                                                                                                                                                    171|                                                     229|
                                                                                                                                                                                                     173                                                      256
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4FD3)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4FD3)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4FD3)

(-) Gene Ontology  (8, 8)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4fd3)

  Sites
(no "Sites" information available for 4fd3)

  Cis Peptide Bonds
    Arg E:14 - Gly E:15   [ RasMol ]
    Gly C:171 - Gln C:172   [ RasMol ]
    Gly D:253 - Ala D:254   [ RasMol ]
    Met D:1 - His D:2   [ RasMol ]
    Trp A:70 - Pro A:71   [ RasMol ]
    Trp B:70 - Pro B:71   [ RasMol ]
    Trp C:70 - Pro C:71   [ RasMol ]
    Trp D:70 - Pro D:71   [ RasMol ]
    Trp E:70 - Pro E:71   [ RasMol ]
    Trp F:70 - Pro F:71   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4fd3
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  FABG_YEAST | P35731
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.1.1.100
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  FABG_YEAST | P35731
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        FABG_YEAST | P35731: 4fda 4hbg

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 4FD3)
