(-) Description

Title :  CRYSTAL STRUCTURE OF FREE T-CELL LYMPHOMA INVASION AND METASTASIS-1 PDZ DOMAIN QUADRUPLE MUTANT (QM)

Authors :  X. Liu, D. C. Speckhard, T. R. Shepherd, S. R. Hengel, E. J. Fuentes
Date :  09 Dec 13  (Deposition) - 13 May 15  (Release) - 15 Feb 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A
Keywords :  Beta Barrel Fold Protein, Pdz Domain, Peptide Binding, Specificity Mutant, Scaffold Signaling Protein For Cell Adhesion And Cell Junction, Signaling Domain, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Liu, D. C. Speckhard, T. R. Shepherd, Y. J. Sun, S. R. Hengel, L. Yu, C. A. Fowler, L. Gakhar, E. J. Fuentes
Distinct Roles For Conformational Dynamics In Protein-Ligan Interactions.
Structure V. 24 2053 2016
PubMed-ID: 27998539  |  Reference-DOI: 10.1016/J.STR.2016.08.019

(-) Compounds

Molecule 1 - T-LYMPHOMA INVASION AND METASTASIS-INDUCING PROTEIN 1
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21A-6HIS-RTEV
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: PDZ DOMAIN
    Gene: TIAM1
    Mutation: YES
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Strain: HUMAN
    Synonym: TIAM-1

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4NXP)

(-) Sites  (0, 0)

(no "Site" information available for 4NXP)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4NXP)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4NXP)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4NXP)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4NXP)

(-) Exons   (0, 0)

(no "Exon" information available for 4NXP)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:86

               SCOP domains -------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....eeeeee......eeeeeee...hhhhhh......eeeee..ee.hhhhhhhhhhhhhh.eeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------- Transcript
                 4nxp A 840 GKVTHSIHIEKDTYGFSLSSVEEDGIRRLYVNSVKETGLASKKGLKAGDEILEINNRAADALNSSMMEDFFSQPSVGLLVRTYPEL 930
                                   849||     864       874       884       894       904       914       924
                                    850|
                                     856
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4NXP)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4NXP)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4NXP)

(-) Gene Ontology  (55, 55)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4nxp)

  Sites
(no "Sites" information available for 4nxp)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4nxp)

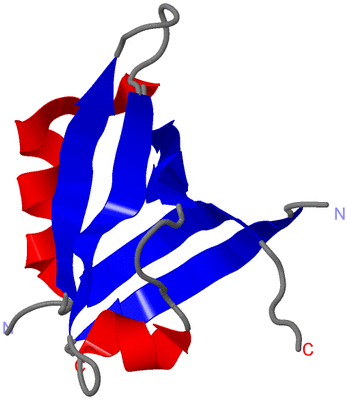

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4nxp
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TIAM1_HUMAN | Q13009
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TIAM1_HUMAN | Q13009
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TIAM1_HUMAN | Q13009: 2d8i 3kzd 3kze 4gvc 4gvd 4k2o 4k2p 4nxq 4nxr

(-) Related Entries Specified in the PDB File

3kzd THE T-CELL LYMPHOMA INVASION AND METASTASIS-1 PDZ DOMAIN WILD TYPE IN APO STATE
3kze THE T-CELL LYMPHOMA INVASION AND METASTASIS-1 PDZ DOMAIN WILD TYPE IN MODEL PEPTIDE-BOUND STATE
4gvc THE T-CELL LYMPHOMA INVASION AND METASTASIS-1 PDZ DOMAIN WILD TYPE IN PSDC1-BOUND STATE
4gvd THE T-CELL LYMPHOMA INVASION AND METASTASIS-1 PDZ DOMAIN WILD TYPE IN SDC1-BOUND STATE
4nxq
4nxr
