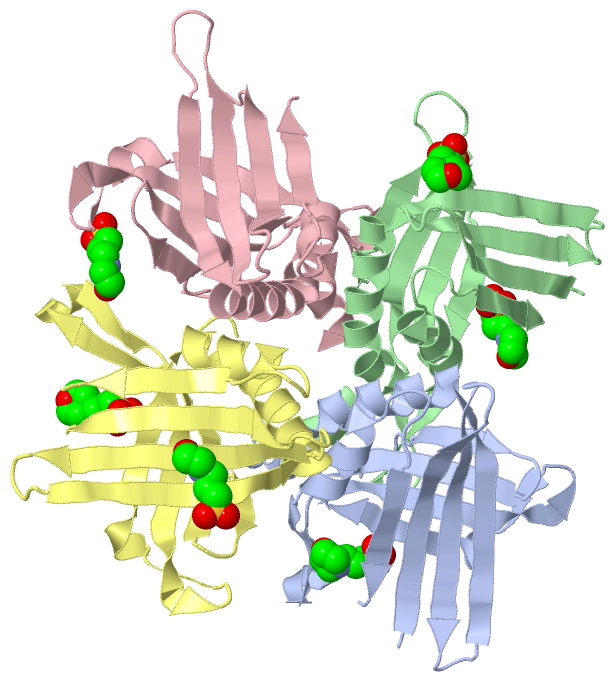

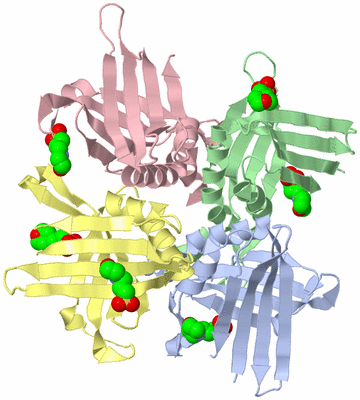

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

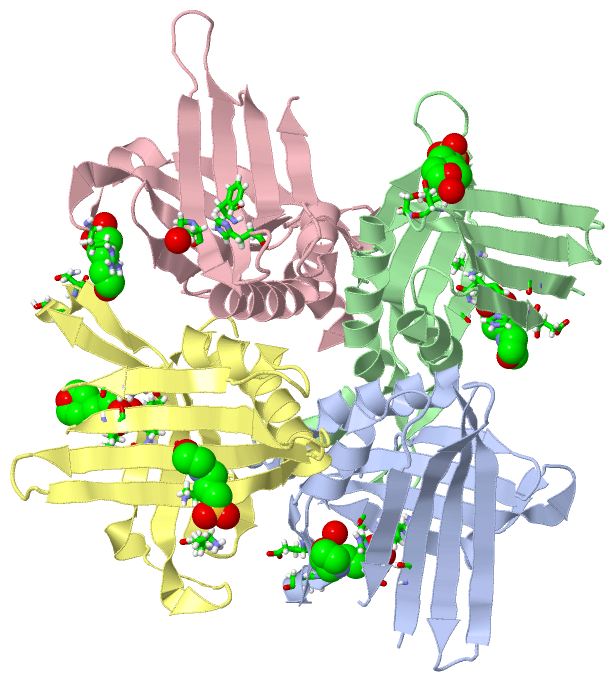

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF WHY2 FROM ARABIDOPSIS THALIANA

Authors :  L. Cappadocia, J. S. Parent, N. Brisson, J. Sygusch
Date :  12 May 13  (Deposition) - 13 Nov 13  (Release) - 27 Nov 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.75
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Plant, Whirly, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Cappadocia, J. S. Parent, J. Sygusch, N. Brisson
A Family Portrait: Structural Comparison Of The Whirly Proteins From Arabidopsis Thaliana And Solanum Tuberosum.
Acta Crystallogr. , Sect. F V. 69 1207 2013
PubMed-ID: 24192350  |  Reference-DOI: 10.1107/S1744309113028698

(-) Compounds

Molecule 1 - SINGLE-STRANDED DNA-BINDING PROTEIN WHY2, MITOCHONDRIAL
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 45-212
    Gene: AT1G71260, F3I17.9, WHY2
    Organism Common: MOUSE-EAR CRESS,THALE-CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702
    Strain: COL-0
    Synonym: PROTEIN WHIRLY 2, ATWHY2

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 6)

Asymmetric/Biological Unit (1, 6)
No.NameCountTypeFull Name
1MPO6Ligand/Ion3[N-MORPHOLINO]PROPANE SULFONIC ACID

(-) Sites  (6, 6)

Asymmetric Unit (6, 6)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:112 , PHE A:113 , ALA A:114 , HIS A:136 , LYS A:150 , HOH A:453 , SER D:81 , ASN D:83BINDING SITE FOR RESIDUE MPO A 301
2AC2SOFTWAREGLU B:108 , ASP B:159 , SER B:161 , PRO B:183 , HOH B:410BINDING SITE FOR RESIDUE MPO B 301
3AC3SOFTWARELYS B:112 , PHE B:113 , ALA B:114 , HIS B:136 , ASP B:137 , LYS B:150BINDING SITE FOR RESIDUE MPO B 302
4AC4SOFTWAREGLU A:78 , SER A:81 , GLY A:82 , ARG C:103BINDING SITE FOR RESIDUE MPO C 301
5AC5SOFTWARELYS D:112 , PHE D:113 , ALA D:114 , HIS D:136 , LYS D:150BINDING SITE FOR RESIDUE MPO D 301
6AC6SOFTWAREHIS C:157 , PHE C:164 , PRO C:183 , HOH C:484 , LYS D:64 , SER D:166 , VAL D:181BINDING SITE FOR RESIDUE MPO D 302

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4KOP)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Ser D:81 -Gly D:82
2Asp D:137 -Pro D:138

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4KOP)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4KOP)

(-) Exons   (0, 0)

(no "Exon" information available for 4KOP)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:154

               SCOP domains d4kopa_ A: automated matches                                                                                                                               SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeee...eeeeeeee..eeeeehhhheeeee..eeeeeeeeeee..ee.hhhheeeeehhhhhhhhhh......eeeee...eeeeeeeee.....eeeeeeeeee....eeeeeeeeeehhhhhhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4kop A  53 RLFAPYSIFKGKAALSVEPVLPSFTEIDSGNLRIDRRGSLMMTFMPAIGERKYDWEKKQKFALSPTEVGSLISMGSKDSSEFFHDPQVRKSLSVKPHADGSGYFISLSVNNSILKTNDYFVVPVTKAEFAVMKTAFSFALPHIMGWNRLTGHLE 214
                                    62        72        82        92       102       112       122       132     ||150       160       170       180       190       200       210
                                                                                                               138|
                                                                                                                147


Chain B from PDB  Type:PROTEIN  Length:151

               SCOP domains d4kopb_ B: automated matches                                                                                                                            SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee..eeee...eeeeeeee..eeee.hhh.eeeee..eeeeeeee............eeeeehhhhhhhhhh......eeeee...eeeeeeeee.....eeeeeeeeee....eeeeeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4kop B  53 RLFAPYSIFKGKAALSVEPVLPSFTEIDSGNLRIDRRGSLMMTFMPAIGERKYDWEKKQKFALSPTEVGSLISMGSKDSSEFFHDPQVRKSLSVKPHADGSGYFISLSVNNSILKTNDYFVVPVTKAEFAVMKTAFSFALPHIMGWNRLTG 211
                                    62        72        82        92       102       112       122       132     ||150       160       170       180       190       200       210
                                                                                                               138|
                                                                                                                147


Chain C from PDB  Type:PROTEIN  Length:152

               SCOP domains d4kopc_ C: automated matches                                                                                                                             SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeee...eeeeeeee...eee.hhh.eee....eeeeeeeeeee..ee.hhhheeeeehhhhhhhhhh......eeeee.....eeeeeeee.....eeeeeeeee.......eeeeeeeehhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4kop C  53 RLFAPYSIFKGKAALSVEPVLPSFTEIDSGNLRIDRRGSLMMTFMPAIGERKYDWEKKQKFALSPTEVGSLISMGSKDSSEFFHDPGQVRKSLSVKPHADGSGYFISLSVNNSILKTNDYFVVPVTKAEFAVMKTAFSFALPHIMGWNRLTG 211
                                    62        72        82        92       102       112       122       132     ||149       159       169       179       189       199       209
                                                                                                               138|
                                                                                                                146


Chain D from PDB  Type:PROTEIN  Length:145

               SCOP domains d4kopd_ D: automated matches                                                                                                                      SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeee...eeeeeeee..eeeeehhhheeeee..eeeeeeeeeee..ee.hhhheeeeehhhhhhhhhh......eeeee...eeeeeeee.....eeeeeeeeee....eeeeeeeeeehhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4kop D  54 LFAPYSIFKGKAALSVEPVLPSFTEIDSGNLRIDRRGSLMMTFMPAIGERKYDWEKKQKFALSPTEVGSLISMGSKDSSEFFHDPVRKSLSVKPHADGSGYFISLSVNNSILKTNDYFVVPVTKAEFAVMKTAFSFALPHIMGWN 207
                                    63        73        83        93       103       113       123       133    || 152       162       172       182       192       202
                                                                                                              138|
                                                                                                               148
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4KOP)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4KOP)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MPO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asp D:137 - Pro D:138   [ RasMol ]
    Ser D:81 - Gly D:82   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4kop
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  WHY2_ARATH | Q8VYF7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  WHY2_ARATH | Q8VYF7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 4KOP)

(-) Related Entries Specified in the PDB File

4koo 4koq
