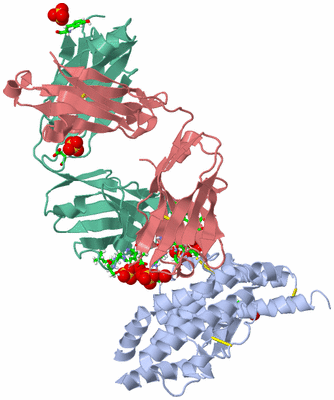

Biol. Unit 1 - sites (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF PFEBA-175 F1 IN COMPLEX WITH R218 ANTIBODY FAB FRAGMENT

Authors :   N. H. Tolia

Date :   09 Apr 13 (Deposition) - 12 Jun 13 (Release) - 12 Jun 13 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.45

Chains :   Asym. Unit : A,B,H,I,L,M
Biol. Unit 1: A,H,L  (1x)
Biol. Unit 2: B,I,M  (1x)

Keywords :   Dbl Domain, Immunoglobulin Domain, Antibody Fragment, Cell Attachment, Immunity, Receptor, Ligand, Extracellular, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   E. Chen, M. M. Paing, N. Salinas, B. K. Sim, N. H. Tolia
Structural And Functional Basis For Inhibition Of Erythrocyte Invasion By Antibodies That Target Plasmodium Falciparum Eba-175.
Plos Pathog. V. 9 03390 2013
PubMed-ID: 23717209 | Reference-DOI: 10.1371/JOURNAL.PPAT.1003390

Molecule 1 - ERYTHROCYTE BINDING ANTIGEN 175
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Gene	:	EBA-175, MAL7P1.176
	Organism Scientific	:	PLASMODIUM FALCIPARUM
	Organism Taxid	:	36329

Molecule 2 - ANTIBODY HEAVY CHAIN
	Chains	:	H, I
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090

Molecule 3 - ANTIBODY LIGHT CHAIN
	Chains	:	L, M
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090

		1	2	3	4	5	6
Asymmetric Unit	:	A	B	H	I	L	M
Biological Unit 1 (1x)	:	A		H		L
Biological Unit 2 (1x)	:		B		I		M

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 12)

No.	Name	Count	Type	Full Name
1	SO4	12	Ligand/Ion	SULFATE ION

Biological Unit 1 (1, 7)

No.	Name	Count	Type	Full Name
1	SO4	7	Ligand/Ion	SULFATE ION

Biological Unit 2 (1, 5)

No.	Name	Count	Type	Full Name
1	SO4	5	Ligand/Ion	SULFATE ION

Asymmetric Unit (12, 12)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ASN A:168 , HOH A:422	BINDING SITE FOR RESIDUE SO4 A 301
02	AC2	SOFTWARE	LYS A:230	BINDING SITE FOR RESIDUE SO4 A 302
03	AC3	SOFTWARE	LYS B:61 , LYS B:150	BINDING SITE FOR RESIDUE SO4 B 301
04	AC4	SOFTWARE	ARG H:94 , ASP H:97 , HOH H:402 , HOH H:417	BINDING SITE FOR RESIDUE SO4 H 301
05	AC5	SOFTWARE	HIS H:164 , ASP L:167	BINDING SITE FOR RESIDUE SO4 H 302
06	AC6	SOFTWARE	ASN A:164 , TYR H:33 , TRP H:47 , ARG H:50 , LYS H:58 , TYR H:100B , HOH H:413 , PHE L:94 , TRP L:96	BINDING SITE FOR RESIDUE SO4 H 303
07	AC7	SOFTWARE	VAL I:183 , THR I:187 , TRP I:188 , GLU I:191 , THR I:192 , VAL I:193 , HOH I:420	BINDING SITE FOR RESIDUE SO4 I 301
08	AC8	SOFTWARE	PHE I:27 , ARG I:94 , ASP I:97 , HOH I:434	BINDING SITE FOR RESIDUE SO4 I 302
09	AC9	SOFTWARE	ASN B:164 , TYR I:33 , TRP I:47 , ARG I:50 , LYS I:58 , TYR I:100B , HOH I:418 , PHE M:94 , TRP M:96	BINDING SITE FOR RESIDUE SO4 I 303
10	BC1	SOFTWARE	GLU H:101 , TYR L:49 , LEU L:54 , HIS L:55 , SER L:56 , HOH L:402	BINDING SITE FOR RESIDUE SO4 L 301
11	BC2	SOFTWARE	TYR L:210	BINDING SITE FOR RESIDUE SO4 L 302
12	BC3	SOFTWARE	TYR M:49 , HIS M:55 , SER M:56	BINDING SITE FOR RESIDUE SO4 M 301

Asymmetric Unit

No.	Residues
1	A:14	-	A:45
2	A:25	-	A:36
3	A:88	-	A:166
4	A:219	-	A:281
5	B:14	-	B:45
6	B:25	-	B:36
7	B:202	-	B:215
8	B:211	-	B:283
9	B:219	-	B:281
10	H:22	-	H:92
11	H:140	-	H:195
12	I:22	-	I:92
13	I:140	-	I:195
14	L:23	-	L:88
15	L:134	-	L:194
16	M:23	-	M:88
17	M:134	-	M:194

Asymmetric Unit

No.	Residues
1	Phe H:146	-	Pro H:147
2	Glu H:148	-	Pro H:149
3	Trp H:188	-	Pro H:189
4	Phe I:146	-	Pro I:147
5	Glu I:148	-	Pro I:149
6	Trp I:188	-	Pro I:189
7	Phe L:94	-	Pro L:95
8	Tyr L:140	-	Pro L:141
9	Lys L:199	-	Lys L:200
10	Arg L:209	-	Tyr L:210
11	Thr M:7	-	Thr M:8
12	Phe M:94	-	Pro M:95
13	Tyr M:140	-	Pro M:141

(no "SAP(SNP)/Variant" information available for 4K2U)

(no "PROSITE Motif" information available for 4K2U)

(no "Exon" information available for 4K2U)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:230

               SCOP domains d4k2ua_ A: automated matches                                                                                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............eeee......eeeehhhhh..hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhh....hhhhh......hhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4k2u A   10 VLSNCREKRKGMKWDCKKKNDNYVCIPDRRIQLCIVNLSIIKTYTKETMKDHFIEASKKESQLLLKKNDNKYNSKFCNDLKNSFLDYGHLAMGNDMDFGGYSTKAENKIQEVFKGAHHKIKNFRKKWWNEFREKLWEAMLSEHKNNINNCKNIPQEELQITQWIKEWHGEFLLERDNRSKLKECIDPCMKYRDWIIRSKFEWHTLSKEYETQKKVSLLLNNCDAEYSKYC  281
                                    19        29||      41        51        61        71        81        91       101       111       121      |136       146       156       166       176       186       196||     221       231       241  ||   271       281
                                               30|                                                                                            128|                                                            197|                            244|
                                                33                                                                                             134                                                             213                             265

Chain B from PDB  Type:PROTEIN  Length:257

               SCOP domains d4k2ub_ B: automated matches                                                                                                                                                                                                                                      SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhh........eeee....eeeehhhhh..hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhh....hhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4k2u B    9 EVLSNCREKRKGMKWDCKKKNYVCIPDRRIQLCIVNLSIIKTYTKETMKDHFIEASKKESQLLLKKNDNKYNSKFCNDLKNSFLDYGHLAMGNDMDFGYSTKAENKIQEVFKISEHKIKNFRKKWWNEFREKLWEAMLSEHKNNINNCKNIPQEELQITQWIKEWHGEFLLERDNRSKLPKSKCKLYEACEKCIDPCMKYRDWIIRSKFEWHTLSKEYETQKVPKENAENYLIKISDAKVSLLLNNCDAEYSKYCDC  283
                                    18        28|       42        52        62        72        82        92       102       113       123 ||    138       148       158       168       178       188       198    || 211 ||    222       232       242       252     ||266       276
                                              28|                                                                          110|          125|                                                                     203|   213|                                        258|
                                               33                                                                           112           131                                                                      207    215                                         263

Chain H from PDB  Type:PROTEIN  Length:208

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eee......eeeeeee..hhhhh.eeeeee...eeeeee......eee.hhhh..eeeeee....eeeeee...hhhhheeeeeeee........eeee...eeeee........eeeee...eeeeeeeee.....eeee.hhh....eee...eee..eeeeeeeee.hhhhh.....eeeeeehhhheeeeee... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4k2u H    1 EVQLQQSGAELVKPGASVKLSCTASGFNIKDNYMHWVKQRPLEWIGRIDPANGNTKYDPKFQGKATITADTSSNTAYLQLSSLTSEDTAVYYCARHYDGYFLYYFEYWGQGTTLTVSSAKTTPPSVYPLAPVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVP  212
                                    10        20        30        40||     52A        62        72        82|||     89        99 ||||  105       115       125||     144       154       164       174       184       194       204
                                                                   41|     52A                            82A||               100A|||                       126|
                                                                    45                                     82B|                100B||                        136
                                                                                                            82C                 100C|
                                                                                                                                 100D

Chain I from PDB  Type:PROTEIN  Length:214

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eee.....eeeeeeee..hhhhh.eeeeee.....eeeeeee......eee.hhhh..eeeeee....eeeeee...hhhhheeeeeeee........eeee...eeeee........eeeee...eeeeeeeeeee.....eeee.hhh....eee...eee..eeeeeeeeeee.hhh.....eeeeeehhhheeeeee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4k2u I    1 EVQLQQSGAELVKPGASVKLSCTASGFNIKDNYMHWVKQRPEQGLEWIGRIDPANGNTKYDPKFQGKATITADTSSNTAYLQLSSLTSEDTAVYYCARHYDGYFLYYFEYWGQGTTLTVSSAKTTPPSVYPLAPSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPR  213
                                    10        20        30        40        50  |     59        69        79   |||  86        96    |||102       112       122   ||  139       149       159       169       179       189       199       209
                                                                              52A                            82A||               100A|||                       126|
                                                                                                              82B|                100B||                        134
                                                                                                               82C                 100C|
                                                                                                                                    100D

Chain L from PDB  Type:PROTEIN  Length:208

               SCOP domains d4k2ul1 L:1-107 automated matches                                                                          d4k2ul2 L:108-210 automated matches                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee....eeee.....eeeeeee.......eeeeee.....eeeeee...ee.......eeeeee..eeeeee...hhhhh.eeeeee......ee...eeeee.......eeeee..hhhhhh..eeeeeeeeeee.....eeeeee..eee...eeeee.........eeeeeeeeee.......eeeeee..........ee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4k2u L    1 DIQMTQTTSSLSASLGDRVTITCRAGQDISNYLNWYQQKPDGTVKLLIYYTSRLHSGVPSRFSGSGSGTDYSLTISNLEQEDIATYFCQQGSTFPWTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYHNSYTCEATHKKGEFQHTGGRY  210
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180     ||192       202
                                                                                                                                                                                                                   186|
                                                                                                                                                                                                                    189

Chain M from PDB  Type:PROTEIN  Length:200

               SCOP domains d4k2um1 M:1-107 automated matches                                                                          d4k2um2 M:108-200 automated matches                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...ee....eeeee....eeeeeee.......eeeeee.....eeeeee...ee.......eeeeee..eeeeee...hhhhheeeeeee......ee...eeeeee......eeeee..hhhhhh..eeeeeeeeeee.....eeeeee...ee...eeeee.........eeeeeeeeeehhhhhhh..eeeeee... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4k2u M    1 DIQMTQTTSSLSASLGDRVTITCRAGQDISNYLNWYQQKPDGTVKLLIYYTSRLHSGVPSRFSGSGSGTDYSLTISNLEQEDIATYFCQQGSTFPWTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKK  200
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All alpha proteins (14657)

Fold: Duffy binding domain-like (7)

Superfamily: Duffy binding domain-like (7)

Family: automated matches (1)

Protein domain: automated matches (1)

Plasmodium falciparum [TaxId: 36329] (1)

1a	d4k2ua_	A:
1b	d4k2ub_	B:

Class: All beta proteins (24004)

Fold: Immunoglobulin-like beta-sandwich (7299)

Superfamily: Immunoglobulin (5995)

Family: automated matches (864)

Protein domain: automated matches (864)

Mouse (Mus musculus) [TaxId: 10090] (360)

2a	d4k2ul1	L:1-107
2b	d4k2ul2	L:108-210
2c	d4k2um1	M:1-107
2d	d4k2um2	M:108-200

(no "CATH Domain" information available for 4K2U)

(no "Pfam Domain" information available for 4K2U)

Asymmetric Unit(hide GO term definitions)

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Arg L:209 - Tyr L:210	[ RasMol ]
		Glu H:148 - Pro H:149	[ RasMol ]
		Glu I:148 - Pro I:149	[ RasMol ]
		Lys L:199 - Lys L:200	[ RasMol ]
		Phe H:146 - Pro H:147	[ RasMol ]
		Phe I:146 - Pro I:147	[ RasMol ]
		Phe L:94 - Pro L:95	[ RasMol ]
		Phe M:94 - Pro M:95	[ RasMol ]
		Thr M:7 - Thr M:8	[ RasMol ]
		Trp H:188 - Pro H:189	[ RasMol ]
		Trp I:188 - Pro I:189	[ RasMol ]
		Tyr L:140 - Pro L:141	[ RasMol ]
		Tyr M:140 - Pro M:141	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	4k2u
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	Q8IBE8_PLAF7 \| Q8IBE8
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	Q8IBE8_PLAF7 \| Q8IBE8
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 4K2U)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 12)

Sites (12, 12)

SS Bonds (17, 17)

Cis Peptide Bonds (13, 13)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 6)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (8, 8)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
