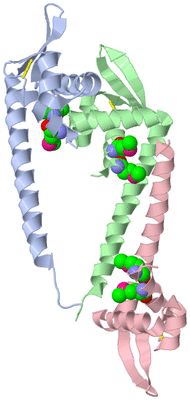

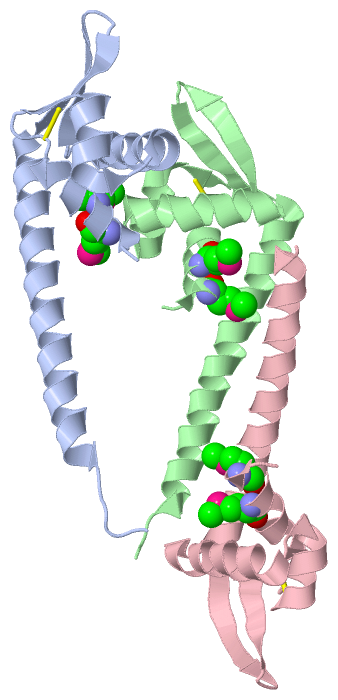

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

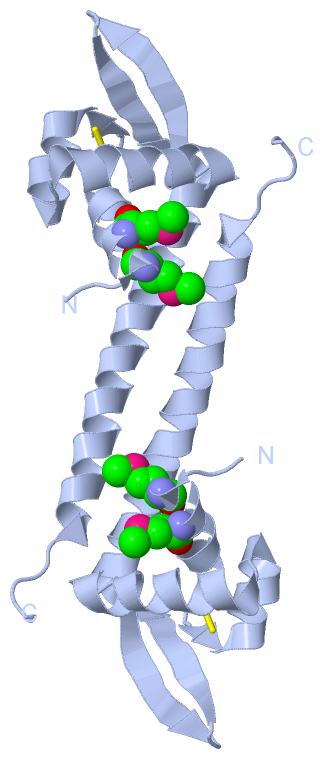

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

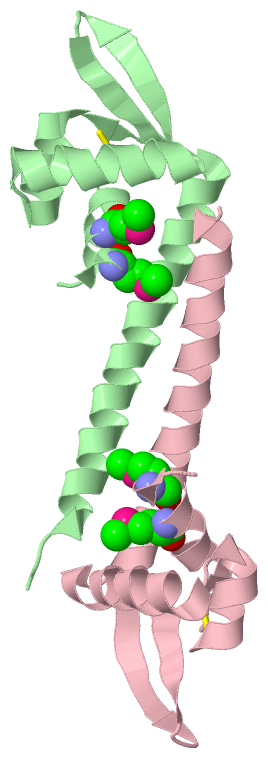

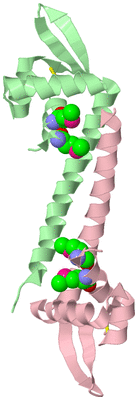

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF SSO10A-2, A DNA-BINDING PROTEIN FROM SULFOLOBUS SOLFATARICUS

Authors :  W. J. Waterreus, N. Goosen, G. F. Moolenaar, R. P. C. Driessen, R. T. Dame N. S. Pannu
Date :  07 Nov 12  (Deposition) - 30 Oct 13  (Release) - 25 Jan 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A  (2x)
Biol. Unit 2:  B,C  (1x)
Keywords :  Winged-Helix, Dna-Binding Domain, Two-Stranded Antiparallel Coiled- Coil, Dna/Rna-Binding 3-Helical Bundle, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. P. Driessen, S. N. Lin, W. J. Waterreus, A. L. Van Der Meulen, R. A. Van Der Valk, N. Laurens, G. F. Moolenaar, N. S. Pannu, G. J. Wuite, N. Goosen, R. T. Dame
Diverse Architectural Properties Of Sso10A Proteins: Evidence For A Role In Chromatin Compaction And Organization.
Sci Rep V. 6 29422 2016
PubMed-ID: 27403582  |  Reference-DOI: 10.1038/SREP29422

(-) Compounds

Molecule 1 - DNA-BINDING PROTEIN SSO10A-2
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET11A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 28-130
    Gene: AAK42937.1, SSO2827
    Organism Scientific: SULFOLOBUS SOLFATARICUS
    Organism Taxid: 273057
    Strain: ATCC 35092 / DSM 1617 / JCM 11322 / P2

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (2x): A
Biological Unit 2 (1x):  BC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 6)

Asymmetric Unit (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 4HW0)

(-) SS Bonds  (3, 3)

Asymmetric Unit
No.Residues
1A:21 -A:25
2B:21 -B:25
3C:21 -C:25

(-) Cis Peptide Bonds  (3, 3)

Asymmetric Unit
No.Residues
1Glu A:22 -Pro A:23
2Glu B:22 -Pro B:23
3Glu C:22 -Pro C:23

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4HW0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4HW0)

(-) Exons   (0, 0)

(no "Exon" information available for 4HW0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:98

               SCOP domains d4hw0a_ A: automated matches                                                                       SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhh....eehhhhhhhhhh.hhhhhhhhhhhhhhh..eeeeee..eeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------- Transcript
                 4hw0 A   7 KRGTmEImFDILRNCEPKCGITRVIYGAGINYVVAQKYLDQLVKVGALNIKTENDRKIYEITEKGKLLRTHIEEFIKIRENLYSAKEKVSELLRTDSE 104
                                |  |16        26        36        46        56        66        76        86        96
                                |  |
                               11-MSE
                                  14-MSE


Chain B from PDB  Type:PROTEIN  Length:95

               SCOP domains d4hw0b_ B: automated matches                                                                    SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhh....eehhhhhhhhhh.hhhhhhhhhhhhhhh..eeeeee..eeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------- Transcript
                 4hw0 B   8 RGTmEImFDILRNCEPKCGITRVIYGAGINYVVAQKYLDQLVKVGALNIKTENDRKIYEITEKGKLLRTHIEEFIKIRENLYSAKEKVSELLRTD 102
                               |  | 17        27        37        47        57        67        77        87        97
                              11-MSE
                                 14-MSE


Chain C from PDB  Type:PROTEIN  Length:93

               SCOP domains d4hw0c_ C: automated matches                                                                  SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhh.....hhhhhhhhhh.hhhhhhhhhhhhhhh..eeeeee..eeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 4hw0 C   8 RGTmEImFDILRNCEPKCGITRVIYGAGINYVVAQKYLDQLVKVGALNIKTENDRKIYEITEKGKLLRTHIEEFIKIRENLYSAKEKVSELLR 100
                               |  | 17        27        37        47        57        67        77        87        97
                              11-MSE
                                 14-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4HW0)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4HW0)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4HW0)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 4hw0)

  Cis Peptide Bonds
    Glu A:22 - Pro A:23   [ RasMol ]
    Glu B:22 - Pro B:23   [ RasMol ]
    Glu C:22 - Pro C:23   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
