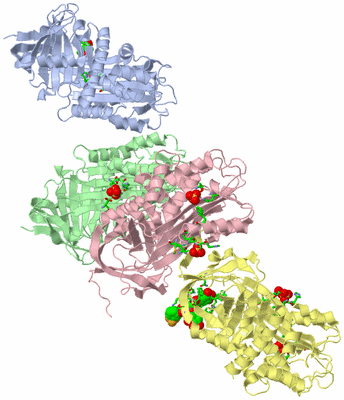

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A NOVEL SMALL MOLECULE INACTIVATOR BOUND TO PLASMINOGEN ACTIVATOR INHIBITOR-1

Authors :  J. A. Stuckey, D. A. Lawrence, S. -H. Li
Date :  23 Jul 12  (Deposition) - 25 Dec 13  (Release) - 01 Jan 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.71
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Serpin, Pai-1, Inhibitor, Blood Clotting, Blood Clotting-Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. H. Li, A. A. Reinke, K. L. Sanders, C. D. Emal, J. C. Whisstock, J. A. Stuckey, D. A. Lawrence
Mechanistic Characterization And Crystal Structure Of A Small Molecule Inactivator Bound To Plasminogen Activator Inhibitor-1.
Proc. Natl. Acad. Sci. Usa V. 110 E4941 2013
PubMed-ID: 24297881  |  Reference-DOI: 10.1073/PNAS.1216499110

(-) Compounds

Molecule 1 - PLASMINOGEN ACTIVATOR INHIBITOR 1
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3) PLYSS
    Expression System Taxid: 469008
    Expression System Vector Type: CRE/LOXP
    Fragment: UNP RESIDUES 28-402
    Gene: PAI-1, PAI1, PLANH1, SERPINE1
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: PAI, PAI-1, ENDOTHELIAL PLASMINOGEN ACTIVATOR INHIBITOR, SERPIN E1

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 8)

Asymmetric Unit (3, 8)
No.NameCountTypeFull Name
196P1Ligand/Ion(2S)-3-({[3-(TRIFLUOROMETHYL)PHENOXY]CARBONYL}AMINO)PROPANE-1,2-DIYL BIS(3,4,5-TRIHYDROXYBENZOATE)
2EDO1Ligand/Ion1,2-ETHANEDIOL
3SO46Ligand/IonSULFATE ION
Biological Unit 1 (2, 2)
No.NameCountTypeFull Name
196P-1Ligand/Ion(2S)-3-({[3-(TRIFLUOROMETHYL)PHENOXY]CARBONYL}AMINO)PROPANE-1,2-DIYL BIS(3,4,5-TRIHYDROXYBENZOATE)
2EDO1Ligand/Ion1,2-ETHANEDIOL
3SO41Ligand/IonSULFATE ION
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
196P-1Ligand/Ion(2S)-3-({[3-(TRIFLUOROMETHYL)PHENOXY]CARBONYL}AMINO)PROPANE-1,2-DIYL BIS(3,4,5-TRIHYDROXYBENZOATE)
2EDO-1Ligand/Ion1,2-ETHANEDIOL
3SO41Ligand/IonSULFATE ION
Biological Unit 3 (1, 2)
No.NameCountTypeFull Name
196P-1Ligand/Ion(2S)-3-({[3-(TRIFLUOROMETHYL)PHENOXY]CARBONYL}AMINO)PROPANE-1,2-DIYL BIS(3,4,5-TRIHYDROXYBENZOATE)
2EDO-1Ligand/Ion1,2-ETHANEDIOL
3SO42Ligand/IonSULFATE ION
Biological Unit 4 (2, 3)
No.NameCountTypeFull Name
196P1Ligand/Ion(2S)-3-({[3-(TRIFLUOROMETHYL)PHENOXY]CARBONYL}AMINO)PROPANE-1,2-DIYL BIS(3,4,5-TRIHYDROXYBENZOATE)
2EDO-1Ligand/Ion1,2-ETHANEDIOL
3SO42Ligand/IonSULFATE ION

(-) Sites  (8, 8)

Asymmetric Unit (8, 8)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:149 , HIS A:150 , LYS A:323 , HOH A:517BINDING SITE FOR RESIDUE SO4 A 401
2AC2SOFTWAREASN A:31 , LEU A:280 , GLU A:281BINDING SITE FOR RESIDUE EDO A 402
3AC3SOFTWAREILE B:148 , SER B:149 , HIS B:150 , GLU B:281 , LYS B:323BINDING SITE FOR RESIDUE SO4 B 401
4AC4SOFTWAREMET C:147 , ILE C:148 , SER C:149 , HIS C:150 , GLU C:281 , LYS C:323 , LYS C:325BINDING SITE FOR RESIDUE SO4 C 401
5AC5SOFTWAREHIS B:10 , THR C:120 , LYS C:122 , TRP C:139BINDING SITE FOR RESIDUE SO4 C 402
6AC6SOFTWAREMET D:147 , ILE D:148 , SER D:149 , HIS D:150 , GLU D:281 , LYS D:323 , LYS D:325 , HOH D:537BINDING SITE FOR RESIDUE SO4 D 401
7AC7SOFTWAREHIS A:10 , SER D:119 , THR D:120 , LYS D:122 , TRP D:139BINDING SITE FOR RESIDUE SO4 D 402
8AC8SOFTWARETRP D:175 , LYS D:176 , THR D:177 , GLN D:204 , ASN D:206 , LYS D:207 , PHE D:208 , LEU D:226 , PRO D:227 , ARG D:268BINDING SITE FOR RESIDUE 96P D 403

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4G8O)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4G8O)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4G8O)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4G8O)

(-) Exons   (0, 0)

(no "Exon" information available for 4G8O)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:359

               SCOP domains d4g8oa_ A: automated matches                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhh.....eeehhhhhhhhhhhhh...hhhhhhhhhhhhh.......hhhhhhhhhhhhh.......eeeeeeeeee.......hhhhhhhhhhh...eee...hhhhhhhhhhhhhhhhh......hhhhhhh.....eeeeeeeee........hhhhheeeeee.....eeeeeeeeeeeeeeeeeee.....eeeeeeee.hhh.eeeeeeee......hhhhhh..hhhhhhhhhhh.eeeeeeeeee.eeeeeeeehhhhhhhh..hhhhh..................eeeeeeeeee.....eee....eeeeeee.....eeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4g8o A   4 APSYVAHLASDFGVRVFQQVAQASKDRNVVFSPYGVASVLAMLQLTTGGETQQQIQAAMGFKIDDKGMAPALRHLYKELMGPWNKDEISTTDAIFVQRDLKLVQGFMPHFFRLFRSTVKQVDFSEVERARFIINDWVKTHTKGMISHLLGTGAVDQLTRLVLVNALYFNGQWKTPFPDSSTHRRLFHKSDGSTVSVPMMAQTNKFNYTEFTTPDGHYYDILELPYHGDTLSMFIAAPYEKEVPLSALTNILSAQLISHWKGNMTRLPRLLVLPKFSLETEVDLRKPLENLGMTDMFRQFQADFTSLSDQEPLHVALALQKVKIEVNESPEEIIIDRPFLFVVRHNPTGTVLFMGQVMEP 379
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       350       360       370
                                                                                                                                                                                                                                                                                                                                                                 331|
                                                                                                                                                                                                                                                                                                                                                                  349


Chain B from PDB  Type:PROTEIN  Length:359

               SCOP domains d4g8ob_ B: automated matches                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhh....eeehhhhhhhhhhhhh...hhhhhhhhhhhhh.......hhhhhhhhhhhhh.......eeeeeeeeee.......hhhhhhhhhhh...eee...hhhhhhhhhhhhhhhhh......hhhhhhh.....eeeeeeeee.............eeeeee.....eeeeeeeeeeeeeeeeeee.....eeeeeeee.hhh.eeeeeeee......hhhhhh..hhhhhhhhhhhheeeeeeeeee.eeeeeeeehhhhhhh...hhhhh..................eeeeeeeeee.....eee....eeeeeee.....eeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4g8o B   4 APSYVAHLASDFGVRVFQQVAQASKDRNVVFSPYGVASVLAMLQLTTGGETQQQIQAAMGFKIDDKGMAPALRHLYKELMGPWNKDEISTTDAIFVQRDLKLVQGFMPHFFRLFRSTVKQVDFSEVERARFIINDWVKTHTKGMISHLLGTGAVDQLTRLVLVNALYFNGQWKTPFPDSSTHRRLFHKSDGSTVSVPMMAQTNKFNYTEFTTPDGHYYDILELPYHGDTLSMFIAAPYEKEVPLSALTNILSAQLISHWKGNMTRLPRLLVLPKFSLETEVDLRKPLENLGMTDMFRQFQADFTSLSDQEPLHVALALQKVKIEVNESPEEIIIDRPFLFVVRHNPTGTVLFMGQVMEP 379
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       350       360       370
                                                                                                                                                                                                                                                                                                                                                                 331|
                                                                                                                                                                                                                                                                                                                                                                  349


Chain C from PDB  Type:PROTEIN  Length:367

               SCOP domains d4g8oc_ C: automated matches                                                                                                                                                                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhh....eeehhhhhhhhhhhhh...hhhhhhhhhhhhh.......hhhhhhhhhhhhh.......eeeeeeeeee.......hhhhhhhhhhh...eee...hhhhhhhhhhhhhhh........hhhhhh......eeeeeeeee.............eeeeee.....eeeeeeeeeeeeeeeeeee.....eeeeeeee.hhh.eeeeeeee......hhhhhh..hhhhhhhhhhhheeeeeeeeee.eeeeeeeehhhhhhh...hhhhh..................eeeeeeeeee............eeee....eeeeeee....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4g8o C   4 APSYVAHLASDFGVRVFQQVAQASKDRNVVFSPYGVASVLAMLQLTTGGETQQQIQAAMGFKIDDKGMAPALRHLYKELMGPWNKDEISTTDAIFVQRDLKLVQGFMPHFFRLFRSTVKQVDFSEVERARFIINDWVKTHTKGMISHLLGTGAVDQLTRLVLVNALYFNGQWKTPFPDSSTHRRLFHKSDGSTVSVPMMAQTNKFNYTEFTTPDGHYYDILELPYHGDTLSMFIAAPYEKEVPLSALTNILSAQLISHWKGNMTRLPRLLVLPKFSLETEVDLRKPLENLGMTDMFRQFQADFTSLSDQEPLHVALALQKVKIEVNESVIVSARMAPEEIIIDRPFLFVVRHNPTGTVLFMGQVMEP 379
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       342       352       362       372
                                                                                                                                                                                                                                                                                                                                                                 331|
                                                                                                                                                                                                                                                                                                                                                                  341


Chain D from PDB  Type:PROTEIN  Length:367

               SCOP domains d4g8od_ D: automated matches                                                                                                                                                                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhh....eeehhhhhhhhhhhhh...hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhh..eeeeeeeeee.......hhhhhhhhhhh...eee...hhhhhhhhhhhhhhhhh......hhhhhhh.....eeeeeeeee........hhhhheeeeee.....eeeeeeeeeeeeeeeeeee.....eeeeeeee.hhh.eeeeeeee......hhhhhh..hhhhhhhhhhhheeeeeeeeee.eeeeeeeehhhhhhhh.......................eeeeeeeeeeee....eeeee...eeee....eeeeeee....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4g8o D   4 APSYVAHLASDFGVRVFQQVAQASKDRNVVFSPYGVASVLAMLQLTTGGETQQQIQAAMGFKIDDKGMAPALRHLYKELMGPWNKDEISTTDAIFVQRDLKLVQGFMPHFFRLFRSTVKQVDFSEVERARFIINDWVKTHTKGMISHLLGTGAVDQLTRLVLVNALYFNGQWKTPFPDSSTHRRLFHKSDGSTVSVPMMAQTNKFNYTEFTTPDGHYYDILELPYHGDTLSMFIAAPYEKEVPLSALTNILSAQLISHWKGNMTRLPRLLVLPKFSLETEVDLRKPLENLGMTDMFRQFQADFTSLSDQEPLHVALALQKVKIEVNESVIVSARMAPEEIIIDRPFLFVVRHNPTGTVLFMGQVMEP 379
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       342       352       362       372
                                                                                                                                                                                                                                                                                                                                                                 331|
                                                                                                                                                                                                                                                                                                                                                                  341
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: Multi-domain proteins (alpha and beta) (2421)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4G8O)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4G8O)

(-) Gene Ontology  (41, 41)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    96P  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    EDO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4g8o)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4g8o
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PAI1_HUMAN | P05121
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PAI1_HUMAN | P05121
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PAI1_HUMAN | P05121: 1a7c 1b3k 1c5g 1db2 1dvm 1dvn 1lj5 1oc0 3cvm 3eox 3pb1 3q02 3q03 3r4l 3ut3 4aqh 4g8r 4ic0 5brr 9pai

(-) Related Entries Specified in the PDB File

1b3k THE ACTIVE CONFORMATION OF PLASMINOGEN ACTIVATOR INHIBITOR 1
4g8r
