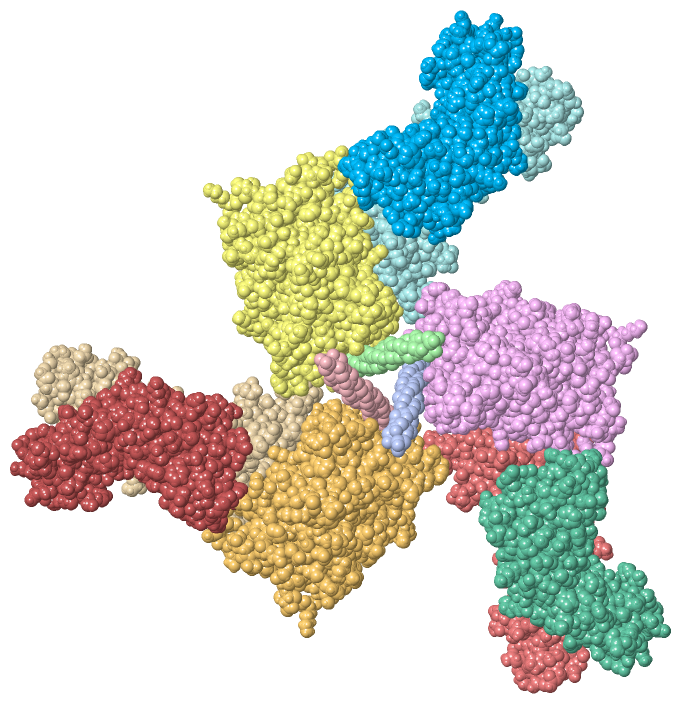

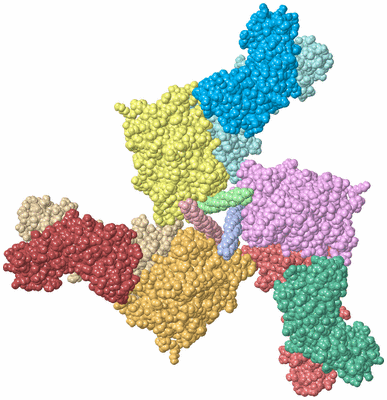

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

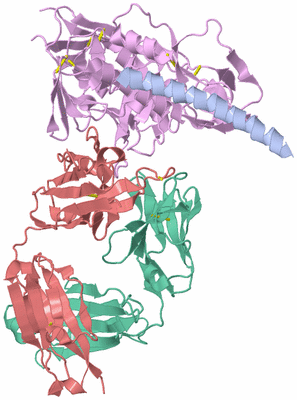

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

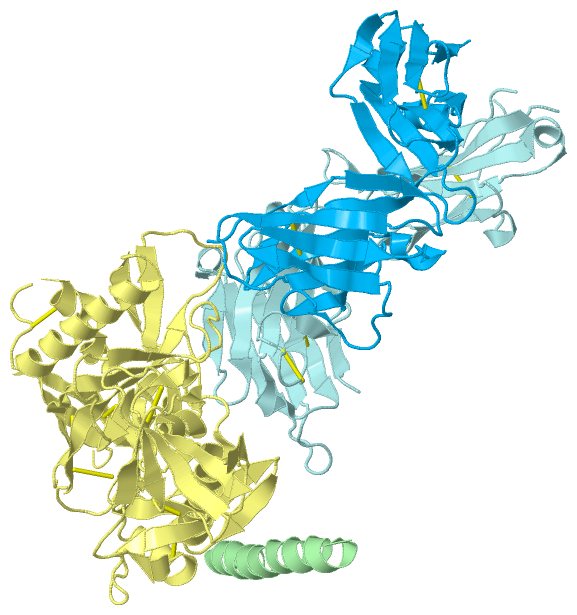

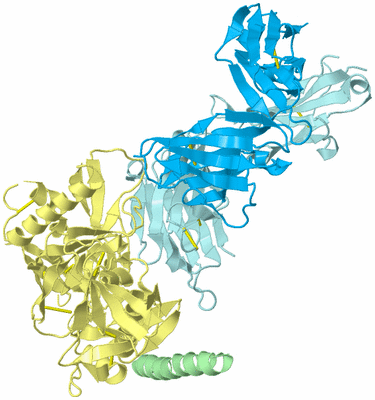

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

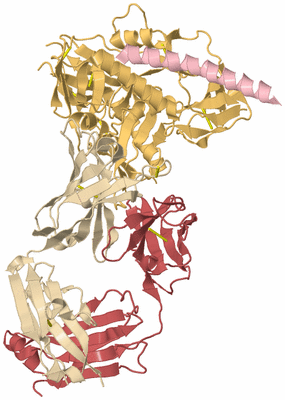

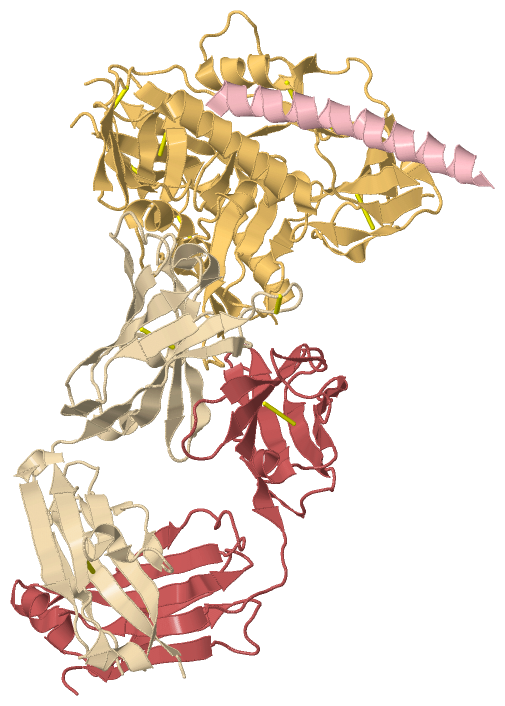

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  PRE-FUSION STRUCTURE OF TRIMERIC HIV-1 ENVELOPE GLYCOPROTEIN DETERMINED BY CRYO-ELECTRON MICROSCOPY

Authors :  A. Bartesaghi, A. Merk, M. J. Borgnia, J. L. S. Milne, S. Subramaniam
Date :  18 Oct 13  (Deposition) - 30 Oct 13  (Release) - 18 Dec 13  (Revision)
Method :  ELECTRON MICROSCOPY
Resolution :  6.00
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1:  A,E,H,L  (1x)
Biol. Unit 2:  B,D,F,J  (1x)
Biol. Unit 3:  C,G,I,K  (1x)
Keywords :  Viral Protein-Immune System Complex, Pre-Fusion State (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Bartesaghi, A. Merk, M. J. Borgnia, J. L. S. Milne, S. Subramaniam
Prefusion Structure Of Trimeric Hiv-1 Envelope Glycoprotein Determined By Cryo-Electron Microscopy.
Nat. Struct. Mol. Biol. V. 20 1352 2013
PubMed-ID: 24154805  |  Reference-DOI: 10.1038/NSMB.2711

(-) Compounds

Molecule 1 - GP41
    Chains: A, B, C
    Engineered: YES
    Expression System: HOMO SAPIENS
    Expression System Cell Line: HEK293
    Expression System Common: HUMAN
    Expression System Plasmid: SOSIP-PPI4, FURIN-PCDNA3.1
    Expression System Taxid: 9606
    Organism Scientific: HUMAN IMMUNODEFICIENCY VIRUS 1
    Organism Taxid: 11676
    Other Details: COMPLETE ECTODOMAIN OF HIV-1 ENV FROM THE CLADE A STRAIN KNH1144 INLCUDING RESIDUES IN THE MEMBRANE PROXIMAL EXTERNAL REGION WITH THE FOLLOWING RESIDUE SUBSTITUTIONS A662E, S668N, AND S676T
    Variant: HIV-1 ISOLATE 00KE_KNH1144

Molecule 2 - GP120
    Chains: D, E, G
    Engineered: YES
    Expression System: HOMO SAPIENS
    Expression System Cell Line: HEK293
    Expression System Common: HUMAN
    Expression System Plasmid: SOSIP-PPI4, FURIN-PCDNA3.1
    Expression System Taxid: 9606
    Organism Scientific: HUMAN IMMUNODEFICIENCY VIRUS 1
    Organism Taxid: 11676
    Variant: HIV-1 ISOLATE 00KE_KNH1144

Molecule 3 - MONOCLONAL ANTIBODY VRC03 FAB HEAVY CHAIN
    Chains: F, H, I
    Engineered: YES
    Expression System: HOMO SAPIENS
    Expression System Cell Line: HEK293
    Expression System Common: HUMAN
    Expression System Taxid: 9606
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606

Molecule 4 - MONOCLONAL ANTIBODY VRC03 FAB LIGHT CHAIN
    Chains: J, K, L
    Engineered: YES
    Expression System: HOMO SAPIENS
    Expression System Cell Line: HEK293
    Expression System Common: HUMAN
    Expression System Taxid: 9606
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric Unit : ABCDEFGHIJKL
Biological Unit 1 (1x): A   E  H   L
Biological Unit 2 (1x):  B D F   J
Biological Unit 3 (1x):   C   G I K

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1125)

Asymmetric Unit (1, 1125)
No.NameCountTypeFull Name
1UNK1125Mod. Amino Acid
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1UNK-1Mod. Amino Acid
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1UNK-1Mod. Amino Acid
Biological Unit 3 (0, 0)
No.NameCountTypeFull Name
1UNK-1Mod. Amino Acid

(-) Sites  (0, 0)

(no "Site" information available for 4CC8)

(-) SS Bonds  (15, 15)

Asymmetric Unit
No.Residues
1F:22 -F:92
2F:98 -F:100A
3F:140 -F:196
4H:22 -H:92
5H:98 -H:100A
6H:140 -H:196
7I:22 -I:92
8I:98 -I:100A
9I:140 -I:196
10J:23 -J:88
11J:134 -J:194
12K:23 -K:88
13K:134 -K:194
14L:23 -L:88
15L:134 -L:194

(-) Cis Peptide Bonds  (12, 12)

Asymmetric Unit
No.Residues
1Phe F:146 -Pro F:147
2Glu F:148 -Pro F:149
3Phe H:146 -Pro H:147
4Glu H:148 -Pro H:149
5Phe I:146 -Pro I:147
6Glu I:148 -Pro I:149
7Ser J:7 -Pro J:8
8Tyr J:140 -Pro J:141
9Ser K:7 -Pro K:8
10Tyr K:140 -Pro K:141
11Ser L:7 -Pro L:8
12Tyr L:140 -Pro L:141

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4CC8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4CC8)

(-) Exons   (0, 0)

(no "Exon" information available for 4CC8)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:31

               SCOP domains ------------------------------- SCOP domains
               CATH domains ------------------------------- CATH domains
               Pfam domains ------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------- PROSITE
                 Transcript ------------------------------- Transcript
                4cc8 A   92 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  122
                            |||||||101|||||||111|||||||121|
                            ||||||100-UNK||109-UNK||118-UNK
                           92-UNK||101-UNK||110-UNK||119-UNK
                            93-UNK||102-UNK||111-UNK||120-UNK
                             94-UNK| 103-UNK| 112-UNK| 121-UNK
                              95-UNK  104-UNK  113-UNK  122-UNK
                               96-UNK  105-UNK  114-UNK
                                97-UNK  106-UNK  115-UNK
                                 98-UNK  107-UNK  116-UNK
                                  99-UNK  108-UNK  117-UNK


Chain B from PDB  Type:PROTEIN  Length:31

               SCOP domains ------------------------------- SCOP domains
               CATH domains ------------------------------- CATH domains
               Pfam domains ------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------- PROSITE
                 Transcript ------------------------------- Transcript
                4cc8 B   92 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  122
                            |||||||101|||||||111|||||||121|
                            ||||||100-UNK||109-UNK||118-UNK
                           92-UNK||101-UNK||110-UNK||119-UNK
                            93-UNK||102-UNK||111-UNK||120-UNK
                             94-UNK| 103-UNK| 112-UNK| 121-UNK
                              95-UNK  104-UNK  113-UNK  122-UNK
                               96-UNK  105-UNK  114-UNK
                                97-UNK  106-UNK  115-UNK
                                 98-UNK  107-UNK  116-UNK
                                  99-UNK  108-UNK  117-UNK


Chain C from PDB  Type:PROTEIN  Length:31

               SCOP domains ------------------------------- SCOP domains
               CATH domains ------------------------------- CATH domains
               Pfam domains ------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------- PROSITE
                 Transcript ------------------------------- Transcript
                4cc8 C   92 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  122
                            |||||||101|||||||111|||||||121|
                            ||||||100-UNK||109-UNK||118-UNK
                           92-UNK||101-UNK||110-UNK||119-UNK
                            93-UNK||102-UNK||111-UNK||120-UNK
                             94-UNK| 103-UNK| 112-UNK| 121-UNK
                              95-UNK  104-UNK  113-UNK  122-UNK
                               96-UNK  105-UNK  114-UNK
                                97-UNK  106-UNK  115-UNK
                                 98-UNK  107-UNK  116-UNK
                                  99-UNK  108-UNK  117-UNK


Chain D from PDB  Type:PROTEIN  Length:344

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.....eeee.......hhhhhhhhhhhee......eeee....eeee...hhhhhhhhhhhhhhhhhhh...eeee..eeee...........eeeee....eeeeee.......eeee..eeee.....ee......eee.........eee..........eeeeeeeeeeeeeee......eeeeeeehhhhhhhhhhhhhhhhhhh...eeeee.....hhhhhheeeee..eeeee.hhhhhhhhhhh.......eeeeeeee..eeee....eeee........eeeeeeeeeeeeee........eeeeee....hhhhhhhhhh.eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4cc8 D   44 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  492
                            ||||||||53||||||||63||||||||73||||||||83||||||||93|||||||103|||||||113|||||||123|||||||206|||||||216|||||||226|||||||236|||||||246|||||||256|||||||266|||||||276|||||||286|||||||296|||||||329|||||||339|||||||349|||||||360|||||||370|||||||380|||||||390|||||||408|||||||418|||||||428|||||||438|||||||448|||||||458|||||||468|||||||478|||||||488||||
                            |||||||52-UNK|||61-UNK|||70-UNK|||79-UNK|||88-UNK|||97-UNK||106-UNK||115-UNK||124-UNK||206-UNK||215-UNK||224-UNK||233-UNK||242-UNK||251-UNK||260-UNK||269-UNK||278-UNK||287-UNK||296-UNK||328-UNK||337-UNK||346-UNK||355-UNK||365-UNK||374-UNK||383-UNK||392-UNK||409-UNK||418-UNK||427-UNK||436-UNK||445-UNK||454-UNK||463-UNK||472-UNK||481-UNK||490-UNK
                           44-UNK|||53-UNK|||62-UNK|||71-UNK|||80-UNK|||89-UNK|||98-UNK||107-UNK||116-UNK||198-UNK||207-UNK||216-UNK||225-UNK||234-UNK||243-UNK||252-UNK||261-UNK||270-UNK||279-UNK||288-UNK||297-UNK||329-UNK||338-UNK||347-UNK||357-UNK||366-UNK||375-UNK||384-UNK||393-UNK||410-UNK||419-UNK||428-UNK||437-UNK||446-UNK||455-UNK||464-UNK||473-UNK||482-UNK||491-UNK
                            45-UNK|| 54-UNK|| 63-UNK|| 72-UNK|| 81-UNK|| 90-UNK|| 99-UNK||108-UNK||117-UNK||199-UNK||208-UNK||217-UNK||226-UNK||235-UNK||244-UNK||253-UNK||262-UNK||271-UNK||280-UNK||289-UNK||298-UNK||330-UNK||339-UNK||348-UNK||358-UNK||367-UNK||376-UNK||385-UNK||394-UNK||411-UNK||420-UNK||429-UNK||438-UNK||447-UNK||456-UNK||465-UNK||474-UNK||483-UNK||492-UNK
                             46-UNK|  55-UNK|  64-UNK|  73-UNK|  82-UNK|  91-UNK| 100-UNK| 109-UNK| 118-UNK| 200-UNK| 209-UNK| 218-UNK| 227-UNK| 236-UNK| 245-UNK| 254-UNK| 263-UNK| 272-UNK| 281-UNK| 290-UNK| 299-UNK| 331-UNK| 340-UNK| 349-UNK| 359-UNK| 368-UNK| 377-UNK| 386-UNK| 395-UNK| 412-UNK| 421-UNK| 430-UNK| 439-UNK| 448-UNK| 457-UNK| 466-UNK| 475-UNK| 484-UNK|
                              47-UNK   56-UNK   65-UNK   74-UNK   83-UNK   92-UNK  101-UNK  110-UNK  119-UNK  201-UNK  210-UNK  219-UNK  228-UNK  237-UNK  246-UNK  255-UNK  264-UNK  273-UNK  282-UNK  291-UNK  300-UNK  332-UNK  341-UNK  350-UNK  360-UNK  369-UNK  378-UNK  387-UNK  396-UNK  413-UNK  422-UNK  431-UNK  440-UNK  449-UNK  458-UNK  467-UNK  476-UNK  485-UNK
                               48-UNK   57-UNK   66-UNK   75-UNK   84-UNK   93-UNK  102-UNK  111-UNK  120-UNK  202-UNK  211-UNK  220-UNK  229-UNK  238-UNK  247-UNK  256-UNK  265-UNK  274-UNK  283-UNK  292-UNK  301-UNK  333-UNK  342-UNK  351-UNK  361-UNK  370-UNK  379-UNK  388-UNK  397-UNK  414-UNK  423-UNK  432-UNK  441-UNK  450-UNK  459-UNK  468-UNK  477-UNK  486-UNK
                                49-UNK   58-UNK   67-UNK   76-UNK   85-UNK   94-UNK  103-UNK  112-UNK  121-UNK  203-UNK  212-UNK  221-UNK  230-UNK  239-UNK  248-UNK  257-UNK  266-UNK  275-UNK  284-UNK  293-UNK  325-UNK  334-UNK  343-UNK  352-UNK  362-UNK  371-UNK  380-UNK  389-UNK  398-UNK  415-UNK  424-UNK  433-UNK  442-UNK  451-UNK  460-UNK  469-UNK  478-UNK  487-UNK
                                 50-UNK   59-UNK   68-UNK   77-UNK   86-UNK   95-UNK  104-UNK  113-UNK  122-UNK  204-UNK  213-UNK  222-UNK  231-UNK  240-UNK  249-UNK  258-UNK  267-UNK  276-UNK  285-UNK  294-UNK  326-UNK  335-UNK  344-UNK  353-UNK  363-UNK  372-UNK  381-UNK  390-UNK  407-UNK  416-UNK  425-UNK  434-UNK  443-UNK  452-UNK  461-UNK  470-UNK  479-UNK  488-UNK
                                  51-UNK   60-UNK   69-UNK   78-UNK   87-UNK   96-UNK  105-UNK  114-UNK  123-UNK  205-UNK  214-UNK  223-UNK  232-UNK  241-UNK  250-UNK  259-UNK  268-UNK  277-UNK  286-UNK  295-UNK  327-UNK  336-UNK  345-UNK  354-UNK  364-UNK  373-UNK  382-UNK  391-UNK  408-UNK  417-UNK  426-UNK  435-UNK  444-UNK  453-UNK  462-UNK  471-UNK  480-UNK  489-UNK


Chain E from PDB  Type:PROTEIN  Length:344

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.....eeee.......hhhhhhhhhhhee......eeee....eeee...hhhhhhhhhhhhhhhhhhh...eeee..eeee...........eeeee....eeeeee.......eeee..eeee.....ee......eee.........eee..........eeeeeeeeeeeeeee......eeeeeeehhhhhhhhhhhhhhhhhhh...eeeee.....hhhhhheeeee..eeeee.hhhhhhhhhhh.......eeeeeeee..eeee....eeee........eeeeeeeeeeeeee........eeeeee....hhhhhhhhhh.eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4cc8 E   44 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  492
                            ||||||||53||||||||63||||||||73||||||||83||||||||93|||||||103|||||||113|||||||123|||||||206|||||||216|||||||226|||||||236|||||||246|||||||256|||||||266|||||||276|||||||286|||||||296|||||||329|||||||339|||||||349|||||||360|||||||370|||||||380|||||||390|||||||408|||||||418|||||||428|||||||438|||||||448|||||||458|||||||468|||||||478|||||||488||||
                            |||||||52-UNK|||61-UNK|||70-UNK|||79-UNK|||88-UNK|||97-UNK||106-UNK||115-UNK||124-UNK||206-UNK||215-UNK||224-UNK||233-UNK||242-UNK||251-UNK||260-UNK||269-UNK||278-UNK||287-UNK||296-UNK||328-UNK||337-UNK||346-UNK||355-UNK||365-UNK||374-UNK||383-UNK||392-UNK||409-UNK||418-UNK||427-UNK||436-UNK||445-UNK||454-UNK||463-UNK||472-UNK||481-UNK||490-UNK
                           44-UNK|||53-UNK|||62-UNK|||71-UNK|||80-UNK|||89-UNK|||98-UNK||107-UNK||116-UNK||198-UNK||207-UNK||216-UNK||225-UNK||234-UNK||243-UNK||252-UNK||261-UNK||270-UNK||279-UNK||288-UNK||297-UNK||329-UNK||338-UNK||347-UNK||357-UNK||366-UNK||375-UNK||384-UNK||393-UNK||410-UNK||419-UNK||428-UNK||437-UNK||446-UNK||455-UNK||464-UNK||473-UNK||482-UNK||491-UNK
                            45-UNK|| 54-UNK|| 63-UNK|| 72-UNK|| 81-UNK|| 90-UNK|| 99-UNK||108-UNK||117-UNK||199-UNK||208-UNK||217-UNK||226-UNK||235-UNK||244-UNK||253-UNK||262-UNK||271-UNK||280-UNK||289-UNK||298-UNK||330-UNK||339-UNK||348-UNK||358-UNK||367-UNK||376-UNK||385-UNK||394-UNK||411-UNK||420-UNK||429-UNK||438-UNK||447-UNK||456-UNK||465-UNK||474-UNK||483-UNK||492-UNK
                             46-UNK|  55-UNK|  64-UNK|  73-UNK|  82-UNK|  91-UNK| 100-UNK| 109-UNK| 118-UNK| 200-UNK| 209-UNK| 218-UNK| 227-UNK| 236-UNK| 245-UNK| 254-UNK| 263-UNK| 272-UNK| 281-UNK| 290-UNK| 299-UNK| 331-UNK| 340-UNK| 349-UNK| 359-UNK| 368-UNK| 377-UNK| 386-UNK| 395-UNK| 412-UNK| 421-UNK| 430-UNK| 439-UNK| 448-UNK| 457-UNK| 466-UNK| 475-UNK| 484-UNK|
                              47-UNK   56-UNK   65-UNK   74-UNK   83-UNK   92-UNK  101-UNK  110-UNK  119-UNK  201-UNK  210-UNK  219-UNK  228-UNK  237-UNK  246-UNK  255-UNK  264-UNK  273-UNK  282-UNK  291-UNK  300-UNK  332-UNK  341-UNK  350-UNK  360-UNK  369-UNK  378-UNK  387-UNK  396-UNK  413-UNK  422-UNK  431-UNK  440-UNK  449-UNK  458-UNK  467-UNK  476-UNK  485-UNK
                               48-UNK   57-UNK   66-UNK   75-UNK   84-UNK   93-UNK  102-UNK  111-UNK  120-UNK  202-UNK  211-UNK  220-UNK  229-UNK  238-UNK  247-UNK  256-UNK  265-UNK  274-UNK  283-UNK  292-UNK  301-UNK  333-UNK  342-UNK  351-UNK  361-UNK  370-UNK  379-UNK  388-UNK  397-UNK  414-UNK  423-UNK  432-UNK  441-UNK  450-UNK  459-UNK  468-UNK  477-UNK  486-UNK
                                49-UNK   58-UNK   67-UNK   76-UNK   85-UNK   94-UNK  103-UNK  112-UNK  121-UNK  203-UNK  212-UNK  221-UNK  230-UNK  239-UNK  248-UNK  257-UNK  266-UNK  275-UNK  284-UNK  293-UNK  325-UNK  334-UNK  343-UNK  352-UNK  362-UNK  371-UNK  380-UNK  389-UNK  398-UNK  415-UNK  424-UNK  433-UNK  442-UNK  451-UNK  460-UNK  469-UNK  478-UNK  487-UNK
                                 50-UNK   59-UNK   68-UNK   77-UNK   86-UNK   95-UNK  104-UNK  113-UNK  122-UNK  204-UNK  213-UNK  222-UNK  231-UNK  240-UNK  249-UNK  258-UNK  267-UNK  276-UNK  285-UNK  294-UNK  326-UNK  335-UNK  344-UNK  353-UNK  363-UNK  372-UNK  381-UNK  390-UNK  407-UNK  416-UNK  425-UNK  434-UNK  443-UNK  452-UNK  461-UNK  470-UNK  479-UNK  488-UNK
                                  51-UNK   60-UNK   69-UNK   78-UNK   87-UNK   96-UNK  105-UNK  114-UNK  123-UNK  205-UNK  214-UNK  223-UNK  232-UNK  241-UNK  250-UNK  259-UNK  268-UNK  277-UNK  286-UNK  295-UNK  327-UNK  336-UNK  345-UNK  354-UNK  364-UNK  373-UNK  382-UNK  391-UNK  408-UNK  417-UNK  426-UNK  435-UNK  444-UNK  453-UNK  462-UNK  471-UNK  480-UNK  489-UNK


Chain F from PDB  Type:PROTEIN  Length:227

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eee.....eeeeeeee..hhhhh.eeeeeee...eeeeeeeee....eeee.hhhh..eeeeeee.........eeeeeee...hhhhheeeeeeee..........eeee...eeeee........eeeee......eeeeeeeeeee.....eeee.hhh....eee...ee.....eeeeeeeeee.hhhhh...eeeeeehhhheeeeee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4cc8 F    1 QVQLVQSGAVIKTPGSSVKISCRASGYNFRDYSIHWVRLIPDKGFEWIGWIKPLWGAVSYARQLQGRVSMTRQLSQDPDDPDWGVAYMEFSGLTPADTAEYFCVRRGSCDYCGDFPWQYWCQGTVVVVSSASTKGPSVFPLAPSSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPK  214
                                    10        20        30        40        50  |     59        69       76C||||    82|||     89        99 ||||||103       113       123    || 137       147       157       167       177       187       197       207
                                                                              52A                      76A||||||    82A||               100A|||||                         128|
                                                                                                        76B|||||     82B|                100B||||                          133
                                                                                                         76C||||      82C                 100C|||
                                                                                                          76D|||                           100D||
                                                                                                           76E||                            100E|
                                                                                                            76F|                             100F
                                                                                                             76G


Chain G from PDB  Type:PROTEIN  Length:344

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.....eeee.......hhhhhhhhhhhee......eeee....eeee...hhhhhhhhhhhhhhhhhhh...eeee..eeee...........eeeee....eeeeee.......eeee..eeee.....ee......eee.........eee..........eeeeeeeeeeeeeee......eeeeeeehhhhhhhhhhhhhhhhhhh...eeeee.....hhhhhheeeee..eeeee.hhhhhhhhhhh.......eeeeeeee..eeee....eeee........eeeeeeeeeeeeee........eeeeee....hhhhhhhhhh.eeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4cc8 G   44 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  492
                            ||||||||53||||||||63||||||||73||||||||83||||||||93|||||||103|||||||113|||||||123|||||||206|||||||216|||||||226|||||||236|||||||246|||||||256|||||||266|||||||276|||||||286|||||||296|||||||329|||||||339|||||||349|||||||360|||||||370|||||||380|||||||390|||||||408|||||||418|||||||428|||||||438|||||||448|||||||458|||||||468|||||||478|||||||488||||
                           44-UNK|||53-UNK|||62-UNK|||71-UNK|||80-UNK|||89-UNK|||98-UNK||107-UNK||116-UNK||198-UNK||207-UNK||216-UNK||225-UNK||234-UNK||243-UNK||252-UNK||261-UNK||270-UNK||279-UNK||288-UNK||297-UNK||329-UNK||338-UNK||347-UNK||357-UNK||366-UNK||375-UNK||384-UNK||393-UNK||410-UNK||419-UNK||428-UNK||437-UNK||446-UNK||455-UNK||464-UNK||473-UNK||482-UNK||491-UNK
                            45-UNK|||54-UNK|||63-UNK|||72-UNK|||81-UNK|||90-UNK|||99-UNK||108-UNK||117-UNK||199-UNK||208-UNK||217-UNK||226-UNK||235-UNK||244-UNK||253-UNK||262-UNK||271-UNK||280-UNK||289-UNK||298-UNK||330-UNK||339-UNK||348-UNK||358-UNK||367-UNK||376-UNK||385-UNK||394-UNK||411-UNK||420-UNK||429-UNK||438-UNK||447-UNK||456-UNK||465-UNK||474-UNK||483-UNK||492-UNK
                             46-UNK|| 55-UNK|| 64-UNK|| 73-UNK|| 82-UNK|| 91-UNK||100-UNK||109-UNK||118-UNK||200-UNK||209-UNK||218-UNK||227-UNK||236-UNK||245-UNK||254-UNK||263-UNK||272-UNK||281-UNK||290-UNK||299-UNK||331-UNK||340-UNK||349-UNK||359-UNK||368-UNK||377-UNK||386-UNK||395-UNK||412-UNK||421-UNK||430-UNK||439-UNK||448-UNK||457-UNK||466-UNK||475-UNK||484-UNK||
                              47-UNK|  56-UNK|  65-UNK|  74-UNK|  83-UNK|  92-UNK| 101-UNK| 110-UNK| 119-UNK| 201-UNK| 210-UNK| 219-UNK| 228-UNK| 237-UNK| 246-UNK| 255-UNK| 264-UNK| 273-UNK| 282-UNK| 291-UNK| 300-UNK| 332-UNK| 341-UNK| 350-UNK| 360-UNK| 369-UNK| 378-UNK| 387-UNK| 396-UNK| 413-UNK| 422-UNK| 431-UNK| 440-UNK| 449-UNK| 458-UNK| 467-UNK| 476-UNK| 485-UNK|
                               48-UNK   57-UNK   66-UNK   75-UNK   84-UNK   93-UNK  102-UNK  111-UNK  120-UNK  202-UNK  211-UNK  220-UNK  229-UNK  238-UNK  247-UNK  256-UNK  265-UNK  274-UNK  283-UNK  292-UNK  301-UNK  333-UNK  342-UNK  351-UNK  361-UNK  370-UNK  379-UNK  388-UNK  397-UNK  414-UNK  423-UNK  432-UNK  441-UNK  450-UNK  459-UNK  468-UNK  477-UNK  486-UNK
                                49-UNK   58-UNK   67-UNK   76-UNK   85-UNK   94-UNK  103-UNK  112-UNK  121-UNK  203-UNK  212-UNK  221-UNK  230-UNK  239-UNK  248-UNK  257-UNK  266-UNK  275-UNK  284-UNK  293-UNK  325-UNK  334-UNK  343-UNK  352-UNK  362-UNK  371-UNK  380-UNK  389-UNK  398-UNK  415-UNK  424-UNK  433-UNK  442-UNK  451-UNK  460-UNK  469-UNK  478-UNK  487-UNK
                                 50-UNK   59-UNK   68-UNK   77-UNK   86-UNK   95-UNK  104-UNK  113-UNK  122-UNK  204-UNK  213-UNK  222-UNK  231-UNK  240-UNK  249-UNK  258-UNK  267-UNK  276-UNK  285-UNK  294-UNK  326-UNK  335-UNK  344-UNK  353-UNK  363-UNK  372-UNK  381-UNK  390-UNK  407-UNK  416-UNK  425-UNK  434-UNK  443-UNK  452-UNK  461-UNK  470-UNK  479-UNK  488-UNK
                                  51-UNK   60-UNK   69-UNK   78-UNK   87-UNK   96-UNK  105-UNK  114-UNK  123-UNK  205-UNK  214-UNK  223-UNK  232-UNK  241-UNK  250-UNK  259-UNK  268-UNK  277-UNK  286-UNK  295-UNK  327-UNK  336-UNK  345-UNK  354-UNK  364-UNK  373-UNK  382-UNK  391-UNK  408-UNK  417-UNK  426-UNK  435-UNK  444-UNK  453-UNK  462-UNK  471-UNK  480-UNK  489-UNK
                                   52-UNK   61-UNK   70-UNK   79-UNK   88-UNK   97-UNK  106-UNK  115-UNK  124-UNK  206-UNK  215-UNK  224-UNK  233-UNK  242-UNK  251-UNK  260-UNK  269-UNK  278-UNK  287-UNK  296-UNK  328-UNK  337-UNK  346-UNK  355-UNK  365-UNK  374-UNK  383-UNK  392-UNK  409-UNK  418-UNK  427-UNK  436-UNK  445-UNK  454-UNK  463-UNK  472-UNK  481-UNK  490-UNK


Chain H from PDB  Type:PROTEIN  Length:227

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eee.....eeeeeeee..hhhhh.eeeeeee...eeeeeeeee....eeee.hhhh..eeeeeee.........eeeeeee...hhhhheeeeeeee..........eeee...eeeee........eeeee......eeeeeeeeeee.....eeee.hhh....eee...ee.....eeeeeeeeee.hhhhh...eeeeeehhhheeeeee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4cc8 H    1 QVQLVQSGAVIKTPGSSVKISCRASGYNFRDYSIHWVRLIPDKGFEWIGWIKPLWGAVSYARQLQGRVSMTRQLSQDPDDPDWGVAYMEFSGLTPADTAEYFCVRRGSCDYCGDFPWQYWCQGTVVVVSSASTKGPSVFPLAPSSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPK  214
                                    10        20        30        40        50  |     59        69       76C||||    82|||     89        99 ||||||103       113       123    || 137       147       157       167       177       187       197       207
                                                                              52A                      76A||||||    82A||               100A|||||                         128|
                                                                                                        76B|||||     82B|                100B||||                          133
                                                                                                         76C||||      82C                 100C|||
                                                                                                          76D|||                           100D||
                                                                                                           76E||                            100E|
                                                                                                            76F|                             100F
                                                                                                             76G


Chain I from PDB  Type:PROTEIN  Length:227

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eee.....eeeeeeee..hhhhh.eeeeeee...eeeeeeeee....eeee.hhhh..eeeeeee.........eeeeeee...hhhhheeeeeeee..........eeee...eeeee........eeeee......eeeeeeeeeee.....eeee.hhh....eee...ee.....eeeeeeeeee.hhhhh...eeeeeehhhheeeeee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4cc8 I    1 QVQLVQSGAVIKTPGSSVKISCRASGYNFRDYSIHWVRLIPDKGFEWIGWIKPLWGAVSYARQLQGRVSMTRQLSQDPDDPDWGVAYMEFSGLTPADTAEYFCVRRGSCDYCGDFPWQYWCQGTVVVVSSASTKGPSVFPLAPSSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPK  214
                                    10        20        30        40        50  |     59        69       76C||||    82|||     89        99 ||||||103       113       123    || 137       147       157       167       177       187       197       207
                                                                              52A                      76A||||||    82A||               100A|||||                         128|
                                                                                                        76B|||||     82B|                100B||||                          133
                                                                                                         76C||||      82C                 100C|||
                                                                                                          76D|||                           100D||
                                                                                                           76E||                            100E|
                                                                                                            76F|                             100F
                                                                                                             76G


Chain J from PDB  Type:PROTEIN  Length:208

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeee.....eeeeeee.......eeeee......eeeee...ee.......eeeeee..eeeeee...hhhhh.eeeeee..ee...eeeee.......eeeee..hhhhhh..eeeeeeeeeee.....eeeeee..eee...eeeee.........eeeeeeeeeehhhhh...eeeeeee.......eeeeee... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4cc8 J    1 EIVLTQSPGILSLSPGETATLFCKASQGGNAMTWYQKRRGQVPRLLIYDTSRRASGVPDRFVGSGSGTDFFLTINKLDREDFAVYYCQQFEFFGLGSELEVHRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGE  213
                                    10        20      ||31        41        51        61        71        81        91|      105       115       125       135       145       155       165       175       185       195       205
                                                     27|                                                            91|
                                                      29                                                             96


Chain K from PDB  Type:PROTEIN  Length:208

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeee.....eeeeeee.......eeeee......eeeee...ee.......eeeeee..eeeeee...hhhhh.eeeeee..ee...eeeee.......eeeee..hhhhhh..eeeeeeeeeee.....eeeeee..eee...eeeee.........eeeeeeeeeehhhhh...eeeeeee.......eeeeee... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4cc8 K    1 EIVLTQSPGILSLSPGETATLFCKASQGGNAMTWYQKRRGQVPRLLIYDTSRRASGVPDRFVGSGSGTDFFLTINKLDREDFAVYYCQQFEFFGLGSELEVHRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGE  213
                                    10        20      ||31        41        51        61        71        81        91|      105       115       125       135       145       155       165       175       185       195       205
                                                     27|                                                            91|
                                                      29                                                             96


Chain L from PDB  Type:PROTEIN  Length:208

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeee.....eeeeeee.......eeeee......eeeee...ee.......eeeeee..eeeeee...hhhhh.eeeeee..ee...eeeee.......eeeee..hhhhhh..eeeeeeeeeee.....eeeeee..eee...eeeee.........eeeeeeeeeehhhhh...eeeeeee.......eeeeee... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4cc8 L    1 EIVLTQSPGILSLSPGETATLFCKASQGGNAMTWYQKRRGQVPRLLIYDTSRRASGVPDRFVGSGSGTDFFLTINKLDREDFAVYYCQQFEFFGLGSELEVHRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGE  213
                                    10        20      ||31        41        51        61        71        81        91|      105       115       125       135       145       155       165       175       185       195       205
                                                     27|                                                            91|
                                                      29                                                             96
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4CC8)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4CC8)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4CC8)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4CC8)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    UNK  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 4cc8)

  Cis Peptide Bonds
    Glu F:148 - Pro F:149   [ RasMol ]
    Glu H:148 - Pro H:149   [ RasMol ]
    Glu I:148 - Pro I:149   [ RasMol ]
    Phe F:146 - Pro F:147   [ RasMol ]
    Phe H:146 - Pro H:147   [ RasMol ]
    Phe I:146 - Pro I:147   [ RasMol ]
    Ser J:7 - Pro J:8   [ RasMol ]
    Ser K:7 - Pro K:8   [ RasMol ]
    Ser L:7 - Pro L:8   [ RasMol ]
    Tyr J:140 - Pro J:141   [ RasMol ]
    Tyr K:140 - Pro K:141   [ RasMol ]
    Tyr L:140 - Pro L:141   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4cc8
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 4CC8)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 4CC8)
