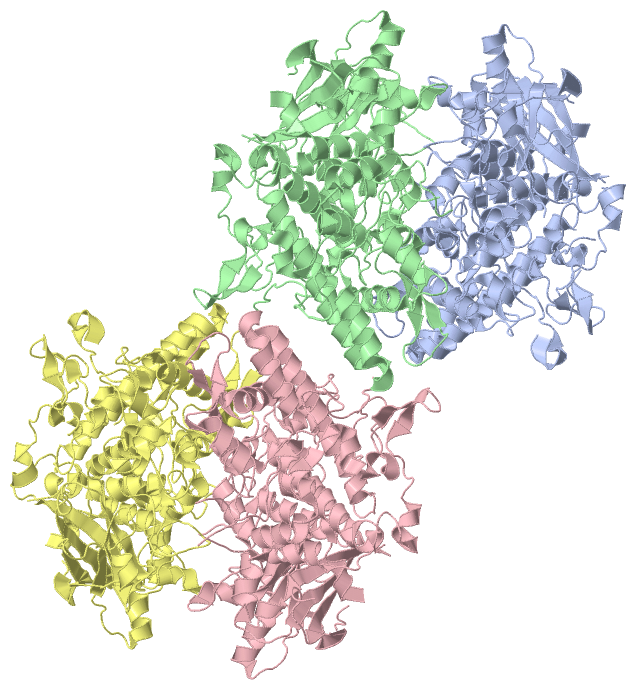

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MELB APO-PROTYROSINASE FROM ASPERUGILLUS ORYZAE

Authors :  N. Fujieda, S. Yabuta, T. Ikeda, T. Oyama, N. Muraki, G. Kurisu, S. Itoh
Date :  20 Feb 13  (Deposition) - 19 Jun 13  (Release) - 19 Jun 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.05
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Four Helix Bundle, Metal Binding Protein, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Fujieda, S. Yabuta, T. Ikeda, T. Oyama, N. Muraki, G. Kurisu, S. Itoh
Crystal Structures Of Copper-Depleted And Copper-Bound Fungal Pro-Tyrosinase: Insights Into Endogenous Cysteine-Dependent Copper Incorporation
J. Biol. Chem. 2013
PubMed: search  |  Reference-DOI: 10.1074/JBC.M113.477612

(-) Compounds

Molecule 1 - TYROSINASE
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET30
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: MELB
    Organism Scientific: ASPERGILLUS ORYZAE
    Organism Taxid: 5062

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3W6Q)

(-) Sites  (0, 0)

(no "Site" information available for 3W6Q)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3W6Q)

(-) Cis Peptide Bonds  (15, 15)

Asymmetric Unit
No.Residues
1Ala A:69 -Pro A:70
2Arg A:207 -Pro A:208
3Arg A:405 -Pro A:406
4Ser B:1 -Pro B:2
5Ala B:69 -Pro B:70
6Arg B:207 -Pro B:208
7Arg B:405 -Pro B:406
8Ser C:1 -Pro C:2
9Ala C:69 -Pro C:70
10Arg C:207 -Pro C:208
11Arg C:405 -Pro C:406
12Ala D:69 -Pro D:70
13Arg D:207 -Pro D:208
14Arg D:405 -Pro D:406
15Glu D:531 -Gly D:532

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3W6Q)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3W6Q)

(-) Exons   (0, 0)

(no "Exon" information available for 3W6Q)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:564
 aligned with Q2UP46_ASPOR | Q2UP46 from UniProtKB/TrEMBL  Length:638

    Alignment length:642
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       581
                                1                                                                                                                                                                                                                                                                                                                                                                                 373  374                                                                                                                                                                                                           580 |
                                |    6        16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366      |  - |     382       392       402       412       422       432       442       452       462       472       482       492       502       512       522       532       542       552       562       572       581       591       601       611       621       631
         Q2UP46_ASPOR     - ----MPYLITGIPKDPKHPLPIRKDIDDWYLEQTSAGSNRIQLTLFVEALTVIQNRPLNDQLSYFRLAGIHGAPWTEWDGVPGGQKDSKGNPTGFCVHNNYTFPTWHRVYVTLYEQVIYEAMLDFIKQNVPQNGKADWENEAKQWRLPYWDFARFARHGHDNTQGDELRLPILVTMPMVKVLVPGQPGKQLSKPNPLYRFQMQTLMGTLERPYAITSQKTEEHGWSFDLPFDKCQSTTKYGLLENYNADVWADGGQNWLRANLALNEHPWYQNLDGWASVPTLQDMTFRLLTTGGLNWGEFSSTRYDDKKEEAQPKNNEQAPKNWMNLEAIHNNVHNWVGGFMFSRPGRHDLKLWGAGHMSSVPVAAFDPIFWLHHW----LTAIWQTVNSGSWFNDDKSKVSKDDDLRPFHRFCEKTRKVVFFRSDDVKDWRSLNYDYAITKDASRIRKEISDLYGQRTKEVYKDFGEEDYILSIRYSRYALGGKPFQINIFFGDVDGKDFYDARSQNFVGSVFNFSGSLEDSNCDKCAQQEQEGVLSVSQLPARLAVHYYKKQNKGEVPTPRYVVVNSQGKAEAEVKVEVALHKTE-VFHSVDSESWDLRMEHTHCFSTHGMGGHYHYDTTAEVVEYEAWLNTAKVIYRI 633
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhh...................hhhhhhhhhh.....hhhhhhhhhhhhhhhhh......hhhhhhhh...............----............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.............------.......hhhhh.eeeee.......eeeee..........hhhhh.......-----------..hhhhh............hhhhhhhh..hhhhhhhhhh..hhhhhh......hhhhhhhhhhhhh...hhhhhhh.ee.-------------hhhhh.hhhhhhhhhhhhhhhee............ee.hhhh..hhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhh.........eeee....eeee.hhhhhhhhhhhh..hhhhh...hhhhhhhhhhhhhhhhhhh....eeeeeeeee.........eeeeeee...............eeeeeee...-----------------.eeeeeeehhhhhhhhhhhh......eeeeee...........eeeeeeeee........---..eeeee--------------.ee...hh----------hhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3w6q A  -3 GPGGSPYLITGIPKDPKHPLPIRKDIDDWYLEQTSAGSNRIQLTLFVEALTVIQNRPLNDQLSYFRLAGIHGAPWTEWDGVPGGQ----GNPTGFCVHNNYTFPTWHRVYVTLYEQVIYEAMLDFIKQNVPQNGKADWENEAKQWRLPYWDFARFARH------GDELRLPILVTMPMVKVLVPGQPGKQLSKPNPLYRFQMQTLMGTLERPYAIT-----------DLPFDKCQSTTKYGLLENYNADVWADGGQNWLRANLALNEHPWYQNLDGWDSVPTLQDMTFRLLTTGGLNWGEFSSTRYD-------------APKNWMNLEAIHNNVHNWVGGFMFSRPGRHDLKLWGAGHMSSVPVAAYDPIFWLHHCNIDRLTAIWQTVNSGSWFNDDKSKVSKDDDLRPFHRFCEKTRKVVFFRSDDVKDWRSLNYDYAITKDASRIRKEISDLYGQRTKEVYKDFGEEDYILSIRYSRYALGGKPFQINIFFGDVDGKDFYDARSQNFVGSVFNFSG-----------------VLSVSQLPARLAVHYYKKQNKGEVPTPRYVVVNSQGKAEAEVKVEVALHKTEGTFYDAPA---DYRRVAD--------------GKRAEVDD----------AYRA 616
                                     6        16        26        36        46        56        66        76    |   86        96       106       116       126       136       146       | -    |  166       176       186       196       206     |   -       226       236       246       256       266       276       286       296      |  -         -|      326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506        |-         -      |536       546       556       566       576       586     | 598     |   -         -|      | -       614
                                                                                                               81   86                                                                 154    161                                                212         224                                                                            303           317                                                                                                                                                                                                   515               533                                                        592 598   604            605    612        613


Chain B from PDB  Type:PROTEIN  Length:560
 aligned with Q2UP46_ASPOR | Q2UP46 from UniProtKB/TrEMBL  Length:638

    Alignment length:638
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                   581
                                                                                                                                                                                                                                                                                                                                                                                                              373  374                                                                                                                                                                                                           580 |
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370  |    376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536       546       556       566       576   | | 585       595       605       615       625
         Q2UP46_ASPOR     1 MPYLITGIPKDPKHPLPIRKDIDDWYLEQTSAGSNRIQLTLFVEALTVIQNRPLNDQLSYFRLAGIHGAPWTEWDGVPGGQKDSKGNPTGFCVHNNYTFPTWHRVYVTLYEQVIYEAMLDFIKQNVPQNGKADWENEAKQWRLPYWDFARFARHGHDNTQGDELRLPILVTMPMVKVLVPGQPGKQLSKPNPLYRFQMQTLMGTLERPYAITSQKTEEHGWSFDLPFDKCQSTTKYGLLENYNADVWADGGQNWLRANLALNEHPWYQNLDGWASVPTLQDMTFRLLTTGGLNWGEFSSTRYDDKKEEAQPKNNEQAPKNWMNLEAIHNNVHNWVGGFMFSRPGRHDLKLWGAGHMSSVPVAAFDPIFWLHHW----LTAIWQTVNSGSWFNDDKSKVSKDDDLRPFHRFCEKTRKVVFFRSDDVKDWRSLNYDYAITKDASRIRKEISDLYGQRTKEVYKDFGEEDYILSIRYSRYALGGKPFQINIFFGDVDGKDFYDARSQNFVGSVFNFSGSLEDSNCDKCAQQEQEGVLSVSQLPARLAVHYYKKQNKGEVPTPRYVVVNSQGKAEAEVKVEVALHKTE-VFHSVDSESWDLRMEHTHCFSTHGMGGHYHYDTTAEVVEYEAWLNTAKVIYRI 633
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....................hhhhhhhhhh.....hhhhhhhhhhhhhhhhh......hhhhhhhh..............------...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.............--...........hhhhh.eeeee.......eeeee..........hhhhh.......-----------..hhhhh............hhhhhhhh..hhhhhhhhhh..hhhhhh......hhhhhhhhhhhhh...hhhhhhh.ee.-------------hhhhh.hhhhhhhhhhhhhhhee............ee.hhhh..hhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhh.........eeee....eeee.hhhhhhhhhhhh..hhhhhh..hhhhhhhhhhhhhhhhhhh....eeeeeeeee.........eeeeeee...............eeeeeee...-----------------.eeeeeeehhhhhhhhhhhh......eeeeee...........eeeeeeeee.hhhhh-----..eeeee--------------.ee...hh----------hhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3w6q B   1 SPYLITGIPKDPKHPLPIRKDIDDWYLEQTSAGSNRIQLTLFVEALTVIQNRPLNDQLSYFRLAGIHGAPWTEWDGVPGG------NPTGFCVHNNYTFPTWHRVYVTLYEQVIYEAMLDFIKQNVPQNGKADWENEAKQWRLPYWDFARFARH--DNTQGDELRLPILVTMPMVKVLVPGQPGKQLSKPNPLYRFQMQTLMGTLERPYAIT-----------DLPFDKCQSTTKYGLLENYNADVWADGGQNWLRANLALNEHPWYQNLDGWDSVPTLQDMTFRLLTTGGLNWGEFSSTRYD-------------APKNWMNLEAIHNNVHNWVGGFMFSRPGRHDLKLWGAGHMSSVPVAAYDPIFWLHHCNIDRLTAIWQTVNSGSWFNDDKSKVSKDDDLRPFHRFCEKTRKVVFFRSDDVKDWRSLNYDYAITKDASRIRKEISDLYGQRTKEVYKDFGEEDYILSIRYSRYALGGKPFQINIFFGDVDGKDFYDARSQNFVGSVFNFSG-----------------VLSVSQLPARLAVHYYKKQNKGEVPTPRYVVVNSQGKAEAEVKVEVALHKTEGTFYDA-----DYRRVAD--------------GKRAEVDD----------AYRA 616
                                    10        20        30        40        50        60        70        80      | 90       100       110       120       130       140       150   |  |160       170       180       190       200       210 |       -   |   230       240       250       260       270       280       290       300  |      -      |320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510    |    -         -  |    540       550       560       570       580       590     | 602 |       -      |608   |     -    |
                                                                                                          80     87                                                                154  |                                                    212         224                                                                            303           317                                                                                                                                                                                                   515               533                                                      590   598   604            605    612        613
                                                                                                                                                                                      157


Chain C from PDB  Type:PROTEIN  Length:560
 aligned with Q2UP46_ASPOR | Q2UP46 from UniProtKB/TrEMBL  Length:638

    Alignment length:638
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                   581
                                                                                                                                                                                                                                                                                                                                                                                                              373  374                                                                                                                                                                                                           580 |
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370  |    376       386       396       406       416       426       436       446       456       466       476       486       496       506       516       526       536       546       556       566       576   | | 585       595       605       615       625
         Q2UP46_ASPOR     1 MPYLITGIPKDPKHPLPIRKDIDDWYLEQTSAGSNRIQLTLFVEALTVIQNRPLNDQLSYFRLAGIHGAPWTEWDGVPGGQKDSKGNPTGFCVHNNYTFPTWHRVYVTLYEQVIYEAMLDFIKQNVPQNGKADWENEAKQWRLPYWDFARFARHGHDNTQGDELRLPILVTMPMVKVLVPGQPGKQLSKPNPLYRFQMQTLMGTLERPYAITSQKTEEHGWSFDLPFDKCQSTTKYGLLENYNADVWADGGQNWLRANLALNEHPWYQNLDGWASVPTLQDMTFRLLTTGGLNWGEFSSTRYDDKKEEAQPKNNEQAPKNWMNLEAIHNNVHNWVGGFMFSRPGRHDLKLWGAGHMSSVPVAAFDPIFWLHHW----LTAIWQTVNSGSWFNDDKSKVSKDDDLRPFHRFCEKTRKVVFFRSDDVKDWRSLNYDYAITKDASRIRKEISDLYGQRTKEVYKDFGEEDYILSIRYSRYALGGKPFQINIFFGDVDGKDFYDARSQNFVGSVFNFSGSLEDSNCDKCAQQEQEGVLSVSQLPARLAVHYYKKQNKGEVPTPRYVVVNSQGKAEAEVKVEVALHKTE-VFHSVDSESWDLRMEHTHCFSTHGMGGHYHYDTTAEVVEYEAWLNTAKVIYRI 633
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .................ee.hhhhhhhhhhh....hhhhhhhhhhhhhhhhh......hhhhhhhh...............-----...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.............------......hhhhhh.eeeee.......eeeee..........hhhhh.......----------...hhhhh............hhhhhhhh..hhhhhhhhhh..hhhhhh......hhhhhhhhhhhhh...hhhhhhh.ee.-------------hhhhh.hhhhhhhhhhhhhhhee............ee.hhhh..hhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhh.........eeee....eeee.hhhhhhhhhhhh.eehhhhh..hhhhhhhhhhhhhhhhhhh.....eeeeeeee.........eeeeeee...............eeeeeee...-----------------.eeeeeeehhhhhhhhhhhh......eeeeee...........eeeeeeee.......-....eeeee----------------.ee...hh----------hhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3w6q C   1 SPYLITGIPKDPKHPLPIRKDIDDWYLEQTSAGSNRIQLTLFVEALTVIQNRPLNDQLSYFRLAGIHGAPWTEWDGVPGGQ-----NPTGFCVHNNYTFPTWHRVYVTLYEQVIYEAMLDFIKQNVPQNGKADWENEAKQWRLPYWDFARFARH------GDELRLPILVTMPMVKVLVPGQPGKQLSKPNPLYRFQMQTLMGTLERPYAIT----------FDLPFDKCQSTTKYGLLENYNADVWADGGQNWLRANLALNEHPWYQNLDGWDSVPTLQDMTFRLLTTGGLNWGEFSSTRYD-------------APKNWMNLEAIHNNVHNWVGGFMFSRPGRHDLKLWGAGHMSSVPVAAYDPIFWLHHCNIDRLTAIWQTVNSGSWFNDDKSKVSKDDDLRPFHRFCEKTRKVVFFRSDDVKDWRSLNYDYAITKDASRIRKEISDLYGQRTKEVYKDFGEEDYILSIRYSRYALGGKPFQINIFFGDVDGKDFYDARSQNFVGSVFNFSG-----------------VLSVSQLPARLAVHYYKKQNKGEVPTPRYVVVNSQGKAEAEVKVEVALHKTEGTFYDA-SDDYRRVAD----------------GKRAEVDD----------AYRA 616
                                    10        20        30        40        50        60        70        80|     | 90       100       110       120       130       140       150   |     -|      170       180       190       200       210 |       -  |    230       240       250       260       270       280       290       300  |      -      |320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510    |    -         -  |    540       550       560       570       580       590 |     604         -      |608   |     -    |
                                                                                                           81    87                                                                154    161                                                212        223                                                                             303           317                                                                                                                                                                                                   515               533                                                      590 |     604              605    612        613
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                         596


Chain D from PDB  Type:PROTEIN  Length:563
 aligned with Q2UP46_ASPOR | Q2UP46 from UniProtKB/TrEMBL  Length:638

    Alignment length:642
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       581
                                1                                                                                                                                                                                                                                                                                                                                                                                 373  374                                                                                                                                                                                                           580 |
                                |    6        16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366      |  - |     382       392       402       412       422       432       442       452       462       472       482       492       502       512       522       532       542       552       562       572       581       591       601       611       621       631
         Q2UP46_ASPOR     - ----MPYLITGIPKDPKHPLPIRKDIDDWYLEQTSAGSNRIQLTLFVEALTVIQNRPLNDQLSYFRLAGIHGAPWTEWDGVPGGQKDSKGNPTGFCVHNNYTFPTWHRVYVTLYEQVIYEAMLDFIKQNVPQNGKADWENEAKQWRLPYWDFARFARHGHDNTQGDELRLPILVTMPMVKVLVPGQPGKQLSKPNPLYRFQMQTLMGTLERPYAITSQKTEEHGWSFDLPFDKCQSTTKYGLLENYNADVWADGGQNWLRANLALNEHPWYQNLDGWASVPTLQDMTFRLLTTGGLNWGEFSSTRYDDKKEEAQPKNNEQAPKNWMNLEAIHNNVHNWVGGFMFSRPGRHDLKLWGAGHMSSVPVAAFDPIFWLHHW----LTAIWQTVNSGSWFNDDKSKVSKDDDLRPFHRFCEKTRKVVFFRSDDVKDWRSLNYDYAITKDASRIRKEISDLYGQRTKEVYKDFGEEDYILSIRYSRYALGGKPFQINIFFGDVDGKDFYDARSQNFVGSVFNFSGSLEDSNCDKCAQQEQEGVLSVSQLPARLAVHYYKKQNKGEVPTPRYVVVNSQGKAEAEVKVEVALHKTE-VFHSVDSESWDLRMEHTHCFSTHGMGGHYHYDTTAEVVEYEAWLNTAKVIYRI 633
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhh................ee.hhhhhhhhhhh....hhhhhhhhhhhhhhhhh......hhhhhhhhhh............-------..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.............----.........hhhhh.eeeee.......eeeee..........hhhhh.......-----------..hhhhh............hhhhhhhh..hhhhhhhhhh..hhhhhh......hhhhhhhhhhhhh...hhhhhhh.ee.-------------hhhhh.hhhhhhhhhhhhhhhee............ee.hhhh..hhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhh.........eeee....eeee.hhhhhhhhhhhh.eehhhhh..hhhhhhhhhhhhhhhhhhh....eeeeeeeee.........eeeeeee...............eeeeeee...---------------...eeeeeeehhhhhhhhhhhh......eeeeee...........eeeeeeeee.hhhhh-----..eeeee--------------.ee...hh----------hhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3w6q D  -3 GPGGSPYLITGIPKDPKHPLPIRKDIDDWYLEQTSAGSNRIQLTLFVEALTVIQNRPLNDQLSYFRLAGIHGAPWTEWDGVPGG-------PTGFCVHNNYTFPTWHRVYVTLYEQVIYEAMLDFIKQNVPQNGKADWENEAKQWRLPYWDFARFARH----TQGDELRLPILVTMPMVKVLVPGQPGKQLSKPNPLYRFQMQTLMGTLERPYAIT-----------DLPFDKCQSTTKYGLLENYNADVWADGGQNWLRANLALNEHPWYQNLDGWDSVPTLQDMTFRLLTTGGLNWGEFSSTRYD-------------APKNWMNLEAIHNNVHNWVGGFMFSRPGRHDLKLWGAGHMSSVPVAAYDPIFWLHHCNIDRLTAIWQTVNSGSWFNDDKSKVSKDDDLRPFHRFCEKTRKVVFFRSDDVKDWRSLNYDYAITKDASRIRKEISDLYGQRTKEVYKDFGEEDYILSIRYSRYALGGKPFQINIFFGDVDGKDFYDARSQNFVGSVFNFSG---------------EGVLSVSQLPARLAVHYYKKQNKGEVPTPRYVVVNSQGKAEAEVKVEVALHKTEGTFYDA-----DYRRVAD--------------GKRAEVDD----------AYRA 616
                                     6        16        26        36        46        56        66        76   |     - |      96       106       116       126       136       146       | -  |    166       176       186       196       206     |   -       226       236       246       256       266       276       286       296      |  -         -|      326       336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496       506        |-         -    |  536       546       556       566       576       586   |   598     |   -         -|      | -       614
                                                                                                              80      88                                                               154  159                                                  212         224                                                                            303           317                                                                                                                                                                                                   515             531                                                        590   598   604            605    612        613
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3W6Q)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3W6Q)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3W6Q)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (Q2UP46_ASPOR | Q2UP46)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004503    monophenol monooxygenase activity    Catalysis of the reaction: L-tyrosine + L-DOPA + O2 = L-DOPA + DOPAquinone + H2O.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3w6q)

  Sites
(no "Sites" information available for 3w6q)

  Cis Peptide Bonds
    Ala A:69 - Pro A:70   [ RasMol ]
    Ala B:69 - Pro B:70   [ RasMol ]
    Ala C:69 - Pro C:70   [ RasMol ]
    Ala D:69 - Pro D:70   [ RasMol ]
    Arg A:207 - Pro A:208   [ RasMol ]
    Arg A:405 - Pro A:406   [ RasMol ]
    Arg B:207 - Pro B:208   [ RasMol ]
    Arg B:405 - Pro B:406   [ RasMol ]
    Arg C:207 - Pro C:208   [ RasMol ]
    Arg C:405 - Pro C:406   [ RasMol ]
    Arg D:207 - Pro D:208   [ RasMol ]
    Arg D:405 - Pro D:406   [ RasMol ]
    Glu D:531 - Gly D:532   [ RasMol ]
    Ser B:1 - Pro B:2   [ RasMol ]
    Ser C:1 - Pro C:2   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3w6q
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q2UP46_ASPOR | Q2UP46
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q2UP46_ASPOR | Q2UP46
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q2UP46_ASPOR | Q2UP46: 3w6w

(-) Related Entries Specified in the PDB File

3w6w
