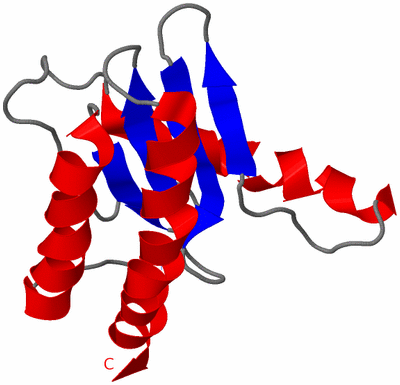

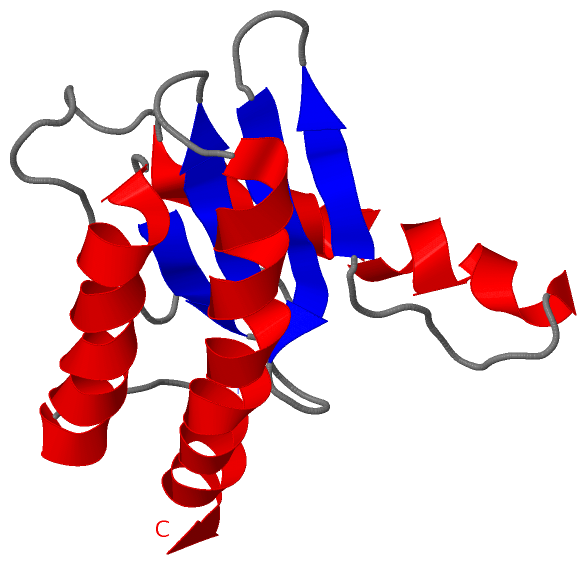

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

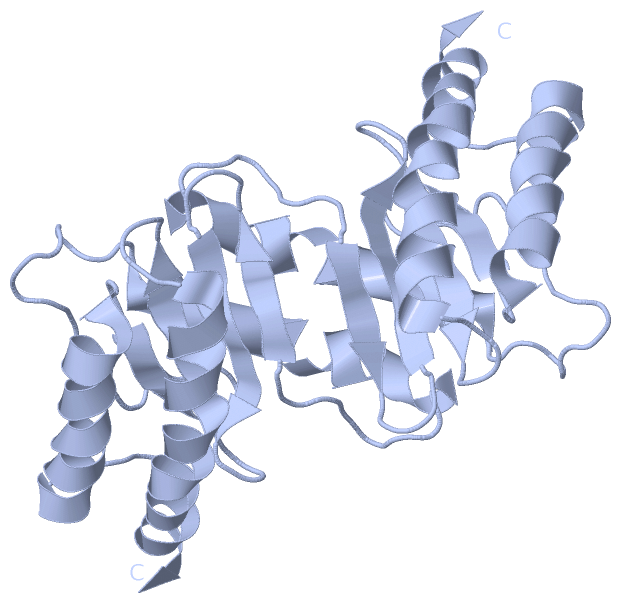

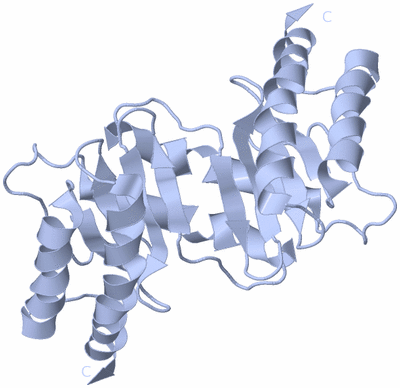

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  MGLB R124A E127A MONOMER

Authors :  M. Miertzschke, I. R. Vetter, C. Koerner, A. Wittinghofer
Date :  22 Jul 11  (Deposition) - 31 Aug 11  (Release) - 02 Nov 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.91
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Gtpase Activating Protein, Bacterial Polarity, Motility, Alpha/Beta Protein, Catalytic Gap Domain, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Miertzschke, C. Koerner, I. R. Vetter, D. Keilberg, E. Hot, S. Leonardy, L. Sogaard-Andersen, A. Wittinghofer
Structural Analysis Of The Ras-Like G Protein Mgla And Its Cognate Gap Mglb And Implications For Bacterial Polarity.
Embo J. V. 30 4185 2011
PubMed-ID: 21847100  |  Reference-DOI: 10.1038/EMBOJ.2011.291

(-) Compounds

Molecule 1 - GLIDING PROTEIN MGLB
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEXET
    Expression System Strain: BL21 CODON PLUS RIL
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 6-139
    Gene: TTHA1131
    Mutation: YES
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3T1X)

(-) Sites  (0, 0)

(no "Site" information available for 3T1X)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3T1X)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3T1X)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3T1X)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3T1X)

(-) Exons   (0, 0)

(no "Exon" information available for 3T1X)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:134
 aligned with Q5SJ83_THET8 | Q5SJ83 from UniProtKB/TrEMBL  Length:163

    Alignment length:134
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
         Q5SJ83_THET8     6 LVLYGAPYERAVEVLEETLRETGARYALLIDRKGFVLAHKEALWAPKPPPLDTLATLVAGNAAATQALAKLLGEARFQEEVHQGERMGLYVDEAGEHALLVLVFDETAPLGKVKLHGKRAAEALARIAEEALAN 139
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhh...eeee...................hhhhhhhhhhhhhhhhhhhhhh........eeee....eeeeee.....eeeeee....hhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3t1x A   6 LVLYGAPYERAVEVLEETLRETGARYALLIDRKGFVLAHKEALWAPKPPPLDTLATLVASNAAATQALAKLLGEARFQEEVHQGERMGLYVDEAGEHALLVLVFDETAPLGKVKLHGKAAAAALARIAEEALAN 139
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3T1X)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3T1X)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3T1X)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A   (Q5SJ83_THET8 | Q5SJ83)
molecular function
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
