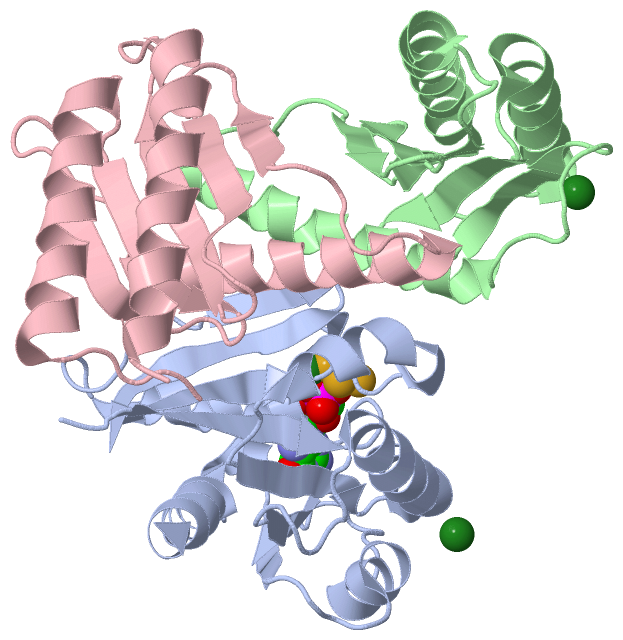

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

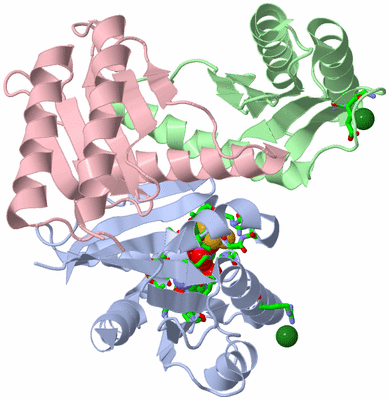

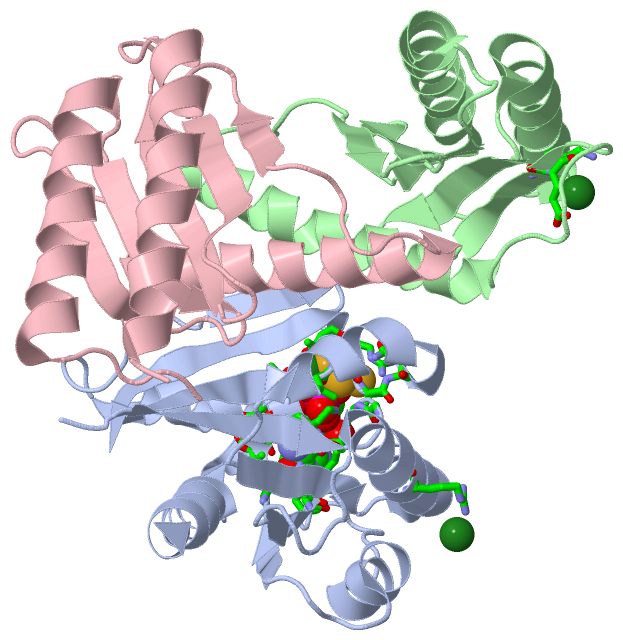

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  MGLA IN COMPLEX WITH MGLB IN TRANSITION STATE

Authors :  M. Miertzschke, I. R. Vetter, C. Koerner, A. Wittinghofer
Date :  21 Jul 11  (Deposition) - 31 Aug 11  (Release) - 02 Nov 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  G-Domain Containing Protein, Bacterial Polarity, Motility, Homodimeric Gap Protein, Pole Localisation, Alpha/Beta Proteins, Gtpase, Hydrolase-Signaling Protein Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Miertzschke, C. Koerner, I. R. Vetter, D. Keilberg, E. Hot, S. Leonardy, L. Sogaard-Andersen, A. Wittinghofer
Structural Analysis Of The Ras-Like G Protein Mgla And Its Cognate Gap Mglb And Implications For Bacterial Polarity.
Embo J. V. 30 4185 2011
PubMed-ID: 21847100  |  Reference-DOI: 10.1038/EMBOJ.2011.291

(-) Compounds

Molecule 1 - GLIDING PROTEIN MGLA
    Chains: A
    EC Number: 3.6.5.2
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEXET
    Expression System Strain: BL21 CODON PLUS RIL
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: TTHA1132
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8

Molecule 2 - GLIDING PROTEIN MGLB
    Chains: B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEXET
    Expression System Strain: BL21 CODON PLUS RIL
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 6-139
    Gene: TTHA1131
    Mutation: YES
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 5)

Asymmetric/Biological Unit (3, 5)
No.NameCountTypeFull Name
1ALF1Ligand/IonTETRAFLUOROALUMINATE ION
2GDP1Ligand/IonGUANOSINE-5'-DIPHOSPHATE
3MG3Ligand/IonMAGNESIUM ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELEU A:22 , SER A:23 , GLY A:24 , LYS A:25 , THR A:26 , THR A:27 , ASN A:141 , LYS A:142 , ASP A:144 , VAL A:170 , ALA A:171 , THR A:172 , MG A:198 , ALF A:200 , HOH A:203 , HOH A:222 , HOH A:240 , HOH A:280BINDING SITE FOR RESIDUE GDP A 197
2AC2SOFTWARETHR A:26 , THR A:54 , GDP A:197 , ALF A:200 , HOH A:222 , HOH A:240 , HOH A:256BINDING SITE FOR RESIDUE MG A 198
3AC3SOFTWAREARG A:118 , MG B:1 , LYS B:45 , GLU B:46BINDING SITE FOR RESIDUE MG A 199
4AC4SOFTWAREGLY A:21 , LEU A:22 , LYS A:25 , ARG A:53 , THR A:54 , VAL A:79 , PRO A:80 , GLY A:81 , GLN A:82 , GDP A:197 , MG A:198 , HOH A:203 , HOH A:209 , HOH A:222 , HOH A:239 , HOH A:240 , HOH A:256BINDING SITE FOR RESIDUE ALF A 200
5AC5SOFTWAREARG A:118 , MG A:199 , GLU B:46BINDING SITE FOR RESIDUE MG B 1

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3T12)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3T12)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3T12)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3T12)

(-) Exons   (0, 0)

(no "Exon" information available for 3T12)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:176
 aligned with Q5SJ82_THET8 | Q5SJ82 from UniProtKB/TrEMBL  Length:196

    Alignment length:182
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190
         Q5SJ82_THET8    11 INFKIVYYGPGLSGKTTNLKWIYSKVPEGRKGEMVSLATEDERTLFFDFLPLDIGEVKGFKTRFHLYTVPGQVFYNASRKLILRGVDGIVFVADSAPNRLRANAESMRNMRENLAEYGLTLDDVPIVIQVNKRDLPDALPVEMVRAVVDPEGKFPVLEAVATEGKGVFETLKEVSRLVLARV 192
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee.....hhhhhhhhhhhhh........eeee.....eeeeeeeeee.------..eeeeee...hhhhhhhhhhhhh...eeeeeee.hhhhhhhhhhhhhhhhhhhhhh........eeeeee........hhhhhhhhhh......eee.hhhhh.hhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3t12 A  11 INFKIVYYGPGLSGKTTNLKWIYSKVPEGRKGEMVSLATEDERTLFFDFLPLDI------KTRFHLYTVPGQVFYNASRKLILRGVDGIVFVADSAPNRLRANAESMRNMRENLAEYGLTLDDVPIVIQVNKRDLPDALPVEMVRAVVDPEGKFPVLEAVATEGKGVFETLKEVSRLVLARV 192
                                    20        30        40        50        60   |     -|       80        90       100       110       120       130       140       150       160       170       180       190
                                                                                64     71


Chain B from PDB  Type:PROTEIN  Length:132
 aligned with Q5SJ83_THET8 | Q5SJ83 from UniProtKB/TrEMBL  Length:163

    Alignment length:132
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
         Q5SJ83_THET8     6 LVLYGAPYERAVEVLEETLRETGARYALLIDRKGFVLAHKEALWAPKPPPLDTLATLVAGNAAATQALAKLLGEARFQEEVHQGERMGLYVDEAGEHALLVLVFDETAPLGKVKLHGKRAAEALARIAEEAL 137
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhh..eeeeee....eeeeee........hhhhhhhhhhhhhhhhhhhhhhh.......eeee....eeeeee....eeeeeee....hhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3t12 B   6 LVLYGAPYAAAVEVLEETLRETGARYALLIDRKGFVLAHKEALWAPKPPPLDTLATLVASNAAATQALAKLLGEARFQEEVHQGERMGLYVDEAGEHALLVLVFDETAPLGKVKLHGKAAAAALAAIAEEAL 137
                                    15        25        35        45        55        65        75        85        95       105       115       125       135


Chain C from PDB  Type:PROTEIN  Length:133
 aligned with Q5SJ83_THET8 | Q5SJ83 from UniProtKB/TrEMBL  Length:163

    Alignment length:133
                                    14        24        34        44        54        64        74        84        94       104       114       124       134
         Q5SJ83_THET8     5 SLVLYGAPYERAVEVLEETLRETGARYALLIDRKGFVLAHKEALWAPKPPPLDTLATLVAGNAAATQALAKLLGEARFQEEVHQGERMGLYVDEAGEHALLVLVFDETAPLGKVKLHGKRAAEALARIAEEAL 137
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhh..eeeeee....eeeeee........hhhhhhhhhhhhhhhhhhhhhhh.......eeee....eeeeee....eeeeeee....hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3t12 C   5 SLVLYGAPYAAAVEVLEETLRETGARYALLIDRKGFVLAHKEALWAPKPPPLDTLATLVASNAAATQALAKLLGEARFQEEVHQGERMGLYVDEAGEHALLVLVFDETAPLGKVKLHGKAAAAALAAIAEEAL 137
                                    14        24        34        44        54        64        74        84        94       104       114       124       134
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3T12)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3T12)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3T12)

(-) Gene Ontology  (4, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Q5SJ82_THET8 | Q5SJ82)
molecular function
    GO:0005525    GTP binding    Interacting selectively and non-covalently with GTP, guanosine triphosphate.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).

Chain B,C   (Q5SJ83_THET8 | Q5SJ83)
molecular function
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ALF  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GDP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3t12)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
