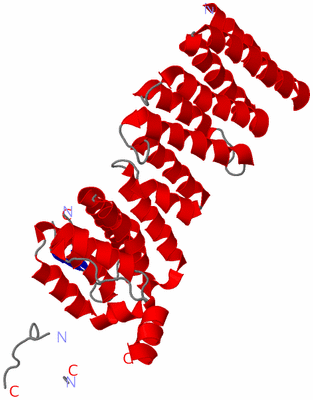

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF C. THERM. GET4

Authors :  G. Bozkurt, K. Wild, I. Sinning
Date :  08 Feb 10  (Deposition) - 16 Mar 10  (Release) - 28 Apr 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.98
Chains :  Asym./Biol. Unit :  A
Keywords :  Protein Targeting, Tail-Anchored Protein Biogenesis, Get Pathway, Get5 Binding, Protein Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Bozkurt, K. Wild, S. Amlacher, E. Hurt, B. Dobberstein, I. Sinning
The Structure Of Get4 Reveals An Alpha-Solenoid Fold Adapted For Multiple Interactions In Tail-Anchored Protein Biogenesis.
Febs Lett. V. 584 1509 2010
PubMed-ID: 20206626  |  Reference-DOI: 10.1016/J.FEBSLET.2010.02.070

(-) Compounds

Molecule 1 - GET4 (YOR164C HOMOLOG)
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET24 (D)
    Expression System Strain: ROSETTA (DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: GET4
    Organism Scientific: CHAETOMIUM THERMOPHILUM
    Organism Taxid: 209285

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3LPZ)

(-) Sites  (0, 0)

(no "Site" information available for 3LPZ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3LPZ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3LPZ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3LPZ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3LPZ)

(-) Exons   (0, 0)

(no "Exon" information available for 3LPZ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:314

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh.hhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh.....ee......ee...hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh.......hhhhhhhhhhhh............ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3lpz A   3 NKIERIIARLQRRIAEGQPEEQYEAAQETRLVAARYSKQGNWAAAVDILASVSQTLLRSGQGGSGGDLAVLLVDTFRQAGQRVDGASRGKLLGCLRLFQPGEPVRKRFVKEMIDWSKKFGDYPAGDPELHHVVGTLYVEEGEFEAAEKHLVLGTKESPEVLARMEYEWYKQDESHTAPLYCARAVLPYLLVANVRAANTAYRIFTSALVEDNKGLTVQNIGSAELRIFPSLPLLNFISMLLLSVQKGSPDLFRQLKSKYEANLNELNGIWDTALELIAEMYFGIQRPRQSNPLLDMMGSLFGGGGAALRRIDTP 323
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222 ||    234       244       254       264       274       284       294       304 || || 319
                                                                                                                                                                                                                                                       224|                                                                            306| ||
                                                                                                                                                                                                                                                        227                                                                             308 ||
                                                                                                                                                                                                                                                                                                                                          310|
                                                                                                                                                                                                                                                                                                                                           315
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3LPZ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3LPZ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3LPZ)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3LPZ)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3lpz)

  Sites
(no "Sites" information available for 3lpz)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3lpz)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3lpz
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 3LPZ)

(-) Related Entries Specified in the PDB File

2wpv 3iqw 3iqx 3lku
