Title :   CRYSTAL STRUCTURE OF SAG173-04

Authors :   C. L. Brooks, R. J. Blackler, S. Gerstenbruch, P. Kosma, S. Muller- Loennies, H. Brade, S. V. Evans

Date :   17 Jul 08 (Deposition) - 02 Dec 08 (Release) - 02 Dec 08 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.86

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: C,D  (1x)
Biol. Unit 2: A,B  (1x)

Keywords :   Antibody, Kdo, Twinning, Pseudo-Symmetry, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. L. Brooks, R. J. Blackler, S. Gerstenbruch, P. Kosma, S. Muller-Loennies, H. Brade, S. V. Evans
Pseudo-Symmetry And Twinning In Crystals Of Homologous Antibody Fv Fragments.
Acta Crystallogr. , Sect. D V. 64 1250 2008
PubMed-ID: 19018101 | Reference-DOI: 10.1107/S0907444908033453
(for further references see the PDB file header)

Molecule 1 - ANTIBODY FV FRAGMENT SAG173-04
	Chains	:	A, C
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PSFJ8
	Expression System Strain	:	TG1
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Fragment	:	VARIABLE REGION FRAGMENT (FV)
	Organism Common	:	MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090

Molecule 2 - IG-LIKE PROTEIN
	Chains	:	B, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Organism Common	:	MOUSE
	Organism Scientific	:	MUS MUSCULUS
	Organism Taxid	:	10090

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:			C	D
Biological Unit 2 (1x)	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 6)

No.	Name	Count	Type	Full Name
1	KDO	2	Ligand/Ion	3-DEOXY-D-MANNO-OCT-2-ULOSONIC ACID
2	MG	2	Ligand/Ion	MAGNESIUM ION
3	PG4	2	Ligand/Ion	TETRAETHYLENE GLYCOL

Biological Unit 1 (2, 2)

No.	Name	Count	Type	Full Name
1	KDO	1	Ligand/Ion	3-DEOXY-D-MANNO-OCT-2-ULOSONIC ACID
2	MG	-1	Ligand/Ion	MAGNESIUM ION
3	PG4	1	Ligand/Ion	TETRAETHYLENE GLYCOL

Biological Unit 2 (2, 2)

No.	Name	Count	Type	Full Name
1	KDO	1	Ligand/Ion	3-DEOXY-D-MANNO-OCT-2-ULOSONIC ACID
2	MG	-1	Ligand/Ion	MAGNESIUM ION
3	PG4	1	Ligand/Ion	TETRAETHYLENE GLYCOL

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	LYS A:30A , SER A:91 , TYR A:92 , ARG A:95 , HOH A:315 , HOH A:348 , HOH A:407 , TYR B:33 , PHE B:50 , ARG B:52 , ASP B:99	BINDING SITE FOR RESIDUE KDO A 303
2	AC2	SOFTWARE	LYS C:30A , SER C:91 , TYR C:92 , ARG C:95 , HOH C:124 , TYR D:33 , PHE D:50 , ARG D:52 , ASP D:99 , HOH D:371 , HOH D:383	BINDING SITE FOR RESIDUE KDO D 303
3	AC3	SOFTWARE	GLN A:79 , HOH A:313 , HOH A:332 , HOH A:335 , HOH A:357 , HOH A:388	BINDING SITE FOR RESIDUE MG A 107
4	AC4	SOFTWARE	HOH A:321 , HOH A:331 , GLN C:79 , HOH C:153 , HOH C:217	BINDING SITE FOR RESIDUE MG C 108
5	AC5	SOFTWARE	LYS D:52D , TYR D:97	BINDING SITE FOR RESIDUE PG4 D 304
6	AC6	SOFTWARE	LYS B:52D , PRO C:40	BINDING SITE FOR RESIDUE PG4 B 112

Asymmetric Unit

No.	Residues
1	A:23	-	A:88
2	B:22	-	B:92
3	C:23	-	C:88
4	D:22	-	D:92

Asymmetric Unit

No.	Residues
1	Ser A:7	-	Pro A:8
2	Ser C:7	-	Pro C:8

(no "SAP(SNP)/Variant" information available for 3DUR)

(no "PROSITE Motif" information available for 3DUR)

(no "Exon" information available for 3DUR)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:112
 aligned with A2N494_MOUSE | A2N494 from UniProtKB/TrEMBL  Length:114

    Alignment length:113
                                    10        20        30        40        50        60        70        80        90       100       110
        A2N494_MOUSE      1 DIVMSQSPSSLAVSVGEKVTMSCKSSQSLLYSSNQKNYLAWYQQKPGQSPKLLIYWASTRESGVPDRFTGSGSGTDFTLTISSVKAEDLAVYYCQQYYSYPRTFGGGTKLEIK  113
               SCOP domains d3dura_ A: automated matches                                                                                      SCOP domains
               CATH domains 3durA00 A:1-106 Immunoglobulins                                                                                   CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeeee...eeeeeeee....ee....ee.eeeeee......eeeee...ee.......eeeeee..eeeeeee..hhhhheeeeeee...-..ee...eeeeee Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------- Transcript
                3dur A    1 DIVMTQSPSSLAVSAGEKVTMSCKSSQSLFKSRNQKNYLAWYQQKPGQSPKLLIYWASTRESGVPDRFTGSGSGTDFTLTINGVQAEDLAVYYCKQSYN-LRTFGGGTKLELK  106
                                    10        20        30||||||  34        44        54        64        74        84        |-|      103
                                                        30A|||||                                                             93 |
                                                         30B||||                                                               94
                                                          30C|||
                                                           30D||
                                                            30E|
                                                             30F

Chain B from PDB  Type:PROTEIN  Length:121
 aligned with A2NU21_MOUSE | A2NU21 from UniProtKB/TrEMBL  Length:119

    Alignment length:121
                                                                                                                              119
                                    28        38        48        58        68        78        88        98       108       118|        -         -
        A2NU21_MOUSE     19 EVKLVESGGGLVQPGGSLSLSCAASGFTFTDYYMSWVRQLPGKALEWLGFIRNKANGYTTEYSASVKGRFTISRDNSQSILYLQMNALRAEDSATYYCAKD--------------------    -
               SCOP domains d3durb_ B: automated matches                                                                                              SCOP domains
               CATH domains 3durB00 B:1-111 Immunoglobulins                                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee...ee.....eeeeeeee..hhhhheeeeeee......eeeeee.hhhhh..eee.......eeeeee....eeeeee...hhhhheeeeeeee........ee...eeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------- Transcript
                3dur B    1 EVQLVESGGGLVQPGGSLRLSCATSGFTFTDYYMSWVRQPPGKALEWLGFIRNKAKGYTTEYSASVKGRFSISRDNSQSILYLQMNTLRAEDSATYYCARDGYYADAMDYWGQGTSVTVSS  111
                                    10        20        30        40        50  ||||| 55        65        75      ||84        94   |  100E       110
                                                                              52A||||                           81A|             97A   |||
                                                                               52B|||                            82A                100C||
                                                                                52C||                                                100D|
                                                                                 52D|                                                 100E
                                                                                  52E

Chain C from PDB  Type:PROTEIN  Length:112
 aligned with A2N494_MOUSE | A2N494 from UniProtKB/TrEMBL  Length:114

    Alignment length:113
                                    10        20        30        40        50        60        70        80        90       100       110
        A2N494_MOUSE      1 DIVMSQSPSSLAVSVGEKVTMSCKSSQSLLYSSNQKNYLAWYQQKPGQSPKLLIYWASTRESGVPDRFTGSGSGTDFTLTISSVKAEDLAVYYCQQYYSYPRTFGGGTKLEIK  113
               SCOP domains d3durc_ C: automated matches                                                                                      SCOP domains
               CATH domains 3durC00 C:1-106 Immunoglobulins                                                                                   CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeeee...eeeeeeee....ee....ee.eeeeee......eeeee...ee.......eeeeee..eeeeeee..hhhhheeeeeee...-..ee...eeeeee Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------- Transcript
                3dur C    1 DIVMTQSPSSLAVSAGEKVTMSCKSSQSLFKSRNQKNYLAWYQQKPGQSPKLLIYWASTRESGVPDRFTGSGSGTDFTLTINGVQAEDLAVYYCKQSYN-LRTFGGGTKLELK  106
                                    10        20        30||||||  34        44        54        64        74        84        |-|      103
                                                        30A|||||                                                             93 |
                                                         30B||||                                                               94
                                                          30C|||
                                                           30D||
                                                            30E|
                                                             30F

Chain D from PDB  Type:PROTEIN  Length:121
 aligned with A2NU21_MOUSE | A2NU21 from UniProtKB/TrEMBL  Length:119

    Alignment length:121
                                                                                                                              119
                                    28        38        48        58        68        78        88        98       108       118|        -         -
        A2NU21_MOUSE     19 EVKLVESGGGLVQPGGSLSLSCAASGFTFTDYYMSWVRQLPGKALEWLGFIRNKANGYTTEYSASVKGRFTISRDNSQSILYLQMNALRAEDSATYYCAKD--------------------    -
               SCOP domains d3durd_ D: automated matches                                                                                              SCOP domains
               CATH domains 3durD00 D:1-111 Immunoglobulins                                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee..eee.....eeeeeeee..hhhhheeeeeee......eeeeee.hhhhh..eee.......eeeeee....eeeeee...hhhhheeeeeeee........ee...eeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------- Transcript
                3dur D    1 EVQLVESGGGLVQPGGSLRLSCATSGFTFTDYYMSWVRQPPGKALEWLGFIRNKAKGYTTEYSASVKGRFSISRDNSQSILYLQMNTLRAEDSATYYCARDGYYADAMDYWGQGTSVTVSS  111
                                    10        20        30        40        50  ||||| 55        65        75    |   84        94   |  100E       110
                                                                              52A||||                         80A                97A   |||
                                                                               52B|||                                               100C||
                                                                                52C||                                                100D|
                                                                                 52D|                                                 100E
                                                                                  52E

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Immunoglobulin-like beta-sandwich (7299)

Superfamily: Immunoglobulin (5995)

Family: V set domains (antibody variable domain-like) (1919)

Protein domain: automated matches (311)

Mouse (Mus musculus) [TaxId: 10090] (112)

1a	d3dura_	A:
1b	d3durb_	B:
1c	d3durc_	C:
1d	d3durd_	D:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Sandwich (5577)

Topology: Immunoglobulin-like (3897)

Homologous Superfamily: Immunoglobulins (2282)

Mouse (Mus musculus) (152)

1a	3durA00	A:1-106
1b	3durC00	C:1-106
1c	3durB00	B:1-111
1d	3durD00	D:1-111

(no "Pfam Domain" information available for 3DUR)

Asymmetric Unit(hide GO term definitions)

(no "Gene Ontology" information available for 3DUR)

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		KDO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PG4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ser A:7 - Pro A:8	[ RasMol ]
		Ser C:7 - Pro C:8	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3dur
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	A2N494_MOUSE \| A2N494
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL
	A2NU21_MOUSE \| A2NU21
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP

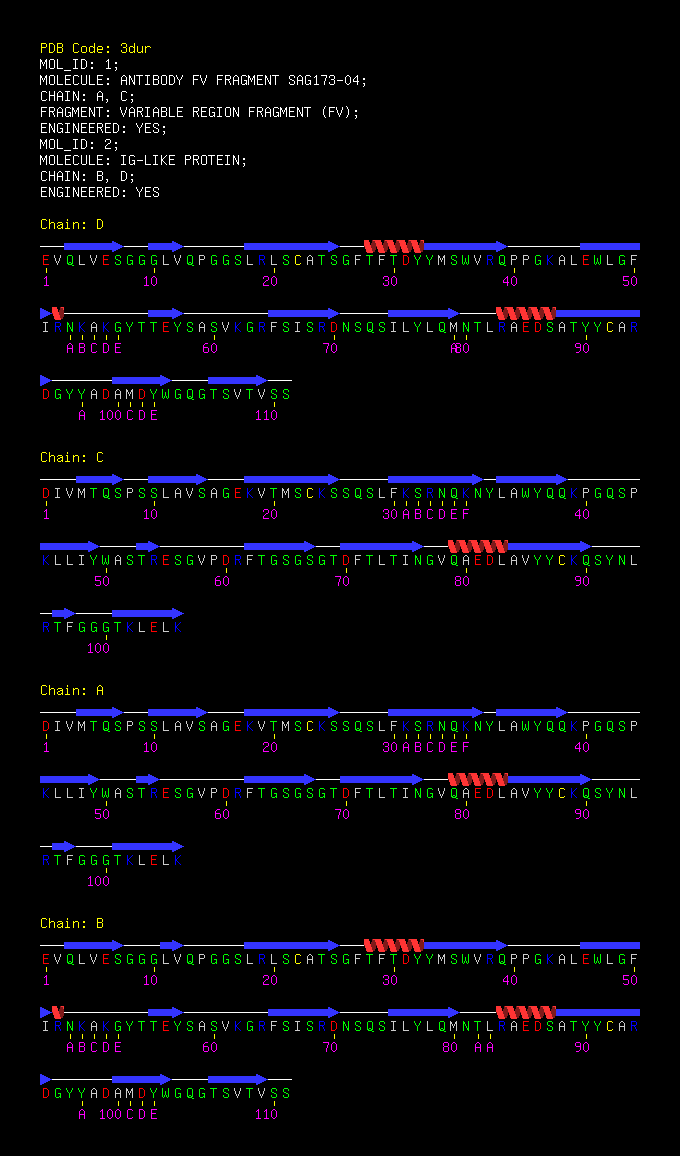

		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	A2N494_MOUSE \| A2N494
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	A2NU21_MOUSE \| A2NU21
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/TrEMBL
	A2NU21_MOUSE \| A2NU21	:	2r1w 2r1x 2r1y 3dus 3duu 3dv4 3dv6

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 6)

Sites (6, 6)

SS Bonds (4, 4)

Cis Peptide Bonds (2, 2)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (1, 4)

Pfam Domains (0, 0)

Gene Ontology (0, 0)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
