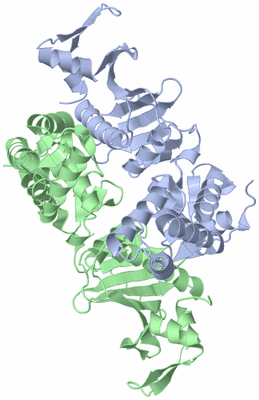

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

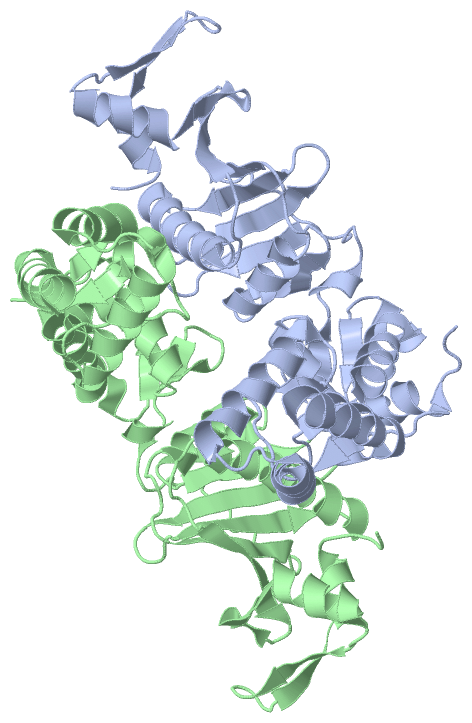

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

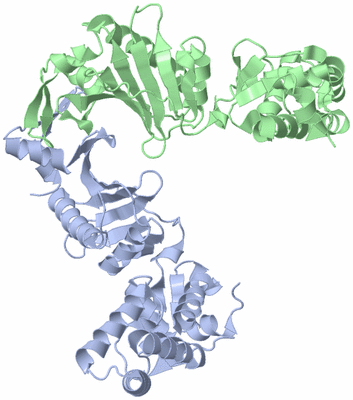

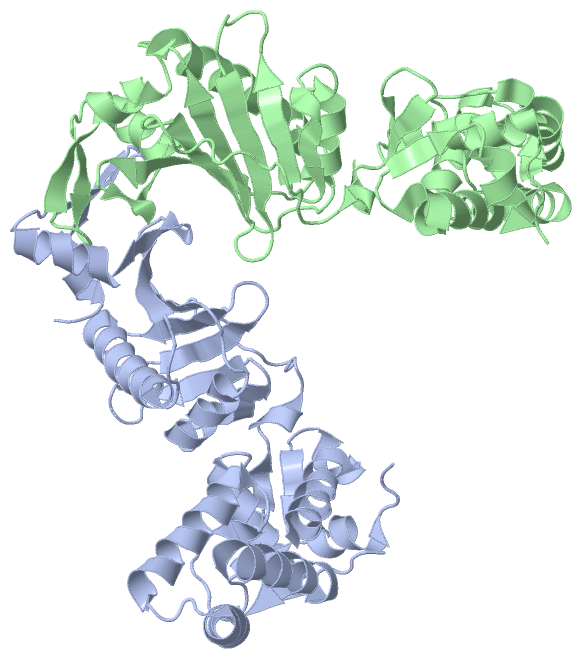

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

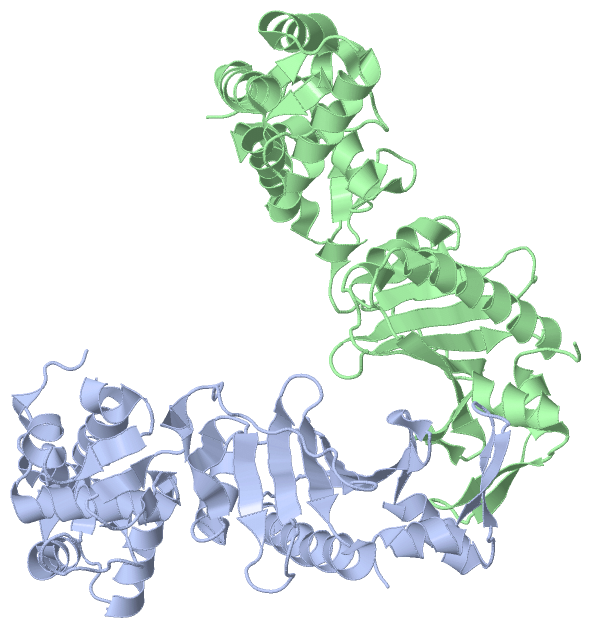

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  COR DOMAIN OF RAB FAMILY PROTEIN (ROCO)

Authors :  K. Gotthardt, M. Weyand, A. Kortholt, P. J. M. Van Haastert, A. Witting
Date :  09 Jul 08  (Deposition) - 12 Aug 08  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.90
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  A (1x),B (1x)
Biol. Unit 3:  A (1x),B (1x)
Keywords :  Cor, Alpha-Beta-Protein, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Gotthardt, M. Weyand, A. Kortholt, P. J. Van Haastert, A. Wittinghofer
Structure Of The Roc-Cor Domain Tandem Of C. Tepidum, A Prokaryotic Homologue Of The Human Lrrk2 Parkinson Kinase
Embo J. V. 27 2239 2008
PubMed-ID: 18650931  |  Reference-DOI: 10.1038/EMBOJ.2008.150

(-) Compounds

Molecule 1 - RAB FAMILY PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEX4T1
    Expression System Strain: BL21 DE3
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: COR, UNP RESIDUES 615-946
    Gene: CT1526
    Organism Scientific: CHLOROBACULUM TEPIDUM
    Organism Taxid: 1097
    Strain: CLOROBLIUM TEPIDUM TLS
    Synonym: ROCO

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): AB
Biological Unit 2 (1x): A (1x)B (1x)
Biological Unit 3 (1x): A (1x)B (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3DPT)

(-) Sites  (0, 0)

(no "Site" information available for 3DPT)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3DPT)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3DPT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3DPT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3DPT)

(-) Exons   (0, 0)

(no "Exon" information available for 3DPT)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:298
 aligned with Q8KC98_CHLTE | Q8KC98 from UniProtKB/TrEMBL  Length:1102

    Alignment length:308
                                   640       650       660       670       680       690       700       710       720       730       740       750       760       770       780       790       800       810       820       830       840       850       860       870       880       890       900       910       920       930
         Q8KC98_CHLTE   631 SWIKVKEKLVEATTAQRYLNRTEVEKICNDSGITDPGERKTLLGYLNNLGIVLYFEALDLSEIYVLDPHWVTIGVYRIINSSKTKNGHLNTSALGYILNEEQIRCDEYDPAKNNKFTYTLLEQRYLLDIMKQFELCYDEGKGLFIIPSNLPTQIDNEPEITEGEPLRFIMKYDYLPSTIIPRLMIAMQHQILDRMQWRYGMVLKSQDHEGALAKVVAETKDSTITIAIQGEPRCKREYLSIIWYEIKKINANFTNLDVKEFIPLPGHPDELVEYKELLGLEKMGRDEYVSGKLEKVFSVSKMLDSVIS 938
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eehhhhhhhhhhhh...hhhhhhhhhhhhhhh...ee..........eehhhhhhhhhhhhhhhhhhh..eee..hhhhhhhh....----------....hhhhhhhhhhhhhhh...ee....eee.hhhh...............eeeeeee.....hhhhhhhhhh...eeeeeee..eeeee.......eeeeeee....eeeeeee.hhhhhhhhhhhhhhhhhhhhh......eeeeeee..eeeeeeehhhhhhhhhh...eeee....eeeehhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dpt A 631 SWIKVKEKLVEATTAQRYLNRTEVEKICNDSGITDPGERKTLLGYLNNLGIVLYFEALDLSEIYVLDPHWVTIGVYRIINSSKTKNGHLNTSALGYILNEEQIR----------KFTYTLLEQRYLLDIMKQFELCYDEGKGLFIIPSNLPTQIDNEPEITEGEPLRFIMKYDYLPSTIIPRLMIAMQHQILDRMQWRYGMVLKSQDHEGALAKVVAETKDSTITIAIQGEPRCKREYLSIIWYEIKKINANFTNLDVKEFIPLPGHPDELVEYKELLGLEKMGRDEYVSGKLEKVFSVSKMLDSVIS 938
                                   640       650       660       670       680       690       700       710       720       730   |     -    |  750       760       770       780       790       800       810       820       830       840       850       860       870       880       890       900       910       920       930
                                                                                                                                 734        745


Chain B from PDB  Type:PROTEIN  Length:299
 aligned with Q8KC98_CHLTE | Q8KC98 from UniProtKB/TrEMBL  Length:1102

    Alignment length:312
                                   638       648       658       668       678       688       698       708       718       728       738       748       758       768       778       788       798       808       818       828       838       848       858       868       878       888       898       908       918       928       938
         Q8KC98_CHLTE   629 APSWIKVKEKLVEATTAQRYLNRTEVEKICNDSGITDPGERKTLLGYLNNLGIVLYFEALDLSEIYVLDPHWVTIGVYRIINSSKTKNGHLNTSALGYILNEEQIRCDEYDPAKNNKFTYTLLEQRYLLDIMKQFELCYDEGKGLFIIPSNLPTQIDNEPEITEGEPLRFIMKYDYLPSTIIPRLMIAMQHQILDRMQWRYGMVLKSQDHEGALAKVVAETKDSTITIAIQGEPRCKREYLSIIWYEIKKINANFTNLDVKEFIPLPGHPDELVEYKELLGLEKMGRDEYVSGKLEKVFSVSKMLDSVISKE 940
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhh.eehhhhhhhhhhhh...hhhhhhhhhhhhhhh..........hhhhheehhhhhhhhhhhhhhhhhhh..eee..hhhhhhhh.-------------....hhhhhhhhhhhhhhh...ee....eee.hhhh...............eeeeeee.....hhhhhhhhhh...eeeeeee..eeeee.......eeeeeee....eeeeeee.hhhhhhhhhhhhhhhhhhhhh......eeeeeee..eeeeeeehhhhhhhhhh...eeee....eeeehhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3dpt B 629 APSWIKVKEKLVEATTAQRYLNRTEVEKICNDSGITDPGERKTLLGYLNNLGIVLYFEALDLSEIYVLDPHWVTIGVYRIINSSKTKNGHLNTSALGYILNEE-------------KFTYTLLEQRYLLDIMKQFELCYDEGKGLFIIPSNLPTQIDNEPEITEGEPLRFIMKYDYLPSTIIPRLMIAMQHQILDRMQWRYGMVLKSQDHEGALAKVVAETKDSTITIAIQGEPRCKREYLSIIWYEIKKINANFTNLDVKEFIPLPGHPDELVEYKELLGLEKMGRDEYVSGKLEKVFSVSKMLDSVISKE 940
                                   638       648       658       668       678       688       698       708       718       728  |      -      |748       758       768       778       788       798       808       818       828       838       848       858       868       878       888       898       908       918       928       938
                                                                                                                                731           745
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3DPT)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3DPT)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3DPT)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q8KC98_CHLTE | Q8KC98)
molecular function
    GO:0005525    GTP binding    Interacting selectively and non-covalently with GTP, guanosine triphosphate.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
biological process
    GO:0007264    small GTPase mediated signal transduction    Any series of molecular signals in which a small monomeric GTPase relays one or more of the signals.
cellular component
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
