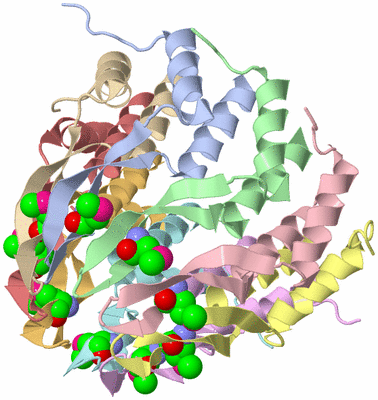

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE SMALL TERMINASE OLIGOMERIZATION CORE DOMAIN FROM A SPP1-LIKE BACTERIOPHAGE (CRYSTAL FORM 3)

Authors :  C. R. Buttner, M. Chechik, M. Ortiz-Lombardia, C. Smits, V. Chechik, G. E. Dykeman, S. Benini, J. C. Alonso, A. A. Antson
Date :  10 Jun 11  (Deposition) - 28 Dec 11  (Release) - 15 Feb 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.68
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R
Biol. Unit 1:  A,B,C,D,E,F,G,H,I  (1x)
Biol. Unit 2:  J,K,L,M,N,O,P,Q,R  (1x)
Keywords :  Dna-Binding Protein, Molecular Motor, Dna Packaging (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. R. Buttner, M. Chechik, M. Ortiz-Lombardia, C. Smits, I. O. Ebong, V. Chechik, G. Jeschke, E. Dykeman, S. Benini, C. V. Robinson, J. C. Alonso, A. A. Antson
Structural Basis For Dna Recognition And Loading Into A Viral Packaging Motor.
Proc. Natl. Acad. Sci. Usa V. 109 811 2012
PubMed-ID: 22207627  |  Reference-DOI: 10.1073/PNAS.1110270109

(-) Compounds

Molecule 1 - TERMINASE SMALL SUBUNIT
    Chains: A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: B834
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: OLIGOMERIZATION CORE DOMAIN, RESIDUES 53-120
    Organism Scientific: BACILLUS PHAGE SF6
    Organism Taxid: 10773
    Synonym: G1P, SF6 SMALL TERMINASE G1P

 Structural Features

(-) Chains, Units

  123456789101112131415161718
Asymmetric Unit : ABCDEFGHIJKLMNOPQR
Biological Unit 1 (1x): ABCDEFGHI
Biological Unit 2 (1x):          JKLMNOPQR

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 20)

Asymmetric Unit (2, 20)
No.NameCountTypeFull Name
1K2Ligand/IonPOTASSIUM ION
2MSE18Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 9)
No.NameCountTypeFull Name
1K-1Ligand/IonPOTASSIUM ION
2MSE9Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 9)
No.NameCountTypeFull Name
1K-1Ligand/IonPOTASSIUM ION
2MSE9Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLN M:69 , THR R:99 , LYS R:100BINDING SITE FOR RESIDUE K R1121

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3ZQO)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3ZQO)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3ZQO)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3ZQO)

(-) Exons   (0, 0)

(no "Exon" information available for 3ZQO)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:58
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:58
                                    72        82        92       102       112
           TERS_BPSF6    63 NEKKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains ---------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------- Transcript
                 3zqo A  63 NEKKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    72        82        92       102       112
                                                       91-MSE


Chain B from PDB  Type:PROTEIN  Length:56
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:56
                                    74        84        94       104       114
           TERS_BPSF6    65 KKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains -------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------- Transcript
                 3zqo B  65 KKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    74        84      | 94       104       114
                                                     91-MSE


Chain C from PDB  Type:PROTEIN  Length:56
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:56
                                    74        84        94       104       114
           TERS_BPSF6    65 KKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains -------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------- Transcript
                 3zqo C  65 KKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    74        84      | 94       104       114
                                                     91-MSE


Chain D from PDB  Type:PROTEIN  Length:58
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:58
                                    72        82        92       102       112
           TERS_BPSF6    63 NEKKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains ---------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------- Transcript
                 3zqo D  63 NEKKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    72        82        92       102       112
                                                       91-MSE


Chain E from PDB  Type:PROTEIN  Length:56
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:56
                                    74        84        94       104       114
           TERS_BPSF6    65 KKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains -------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------- Transcript
                 3zqo E  65 KKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    74        84      | 94       104       114
                                                     91-MSE


Chain F from PDB  Type:PROTEIN  Length:56
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:56
                                    74        84        94       104       114
           TERS_BPSF6    65 KKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains -------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------- Transcript
                 3zqo F  65 KKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    74        84      | 94       104       114
                                                     91-MSE


Chain G from PDB  Type:PROTEIN  Length:57
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:57
                                    73        83        93       103       113
           TERS_BPSF6    64 EKKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains --------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------- Transcript
                 3zqo G  64 EKKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    73        83       |93       103       113
                                                      91-MSE


Chain H from PDB  Type:PROTEIN  Length:57
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:57
                                    73        83        93       103       113
           TERS_BPSF6    64 EKKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains --------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhh..eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------- Transcript
                 3zqo H  64 EKKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    73        83       |93       103       113
                                                      91-MSE


Chain I from PDB  Type:PROTEIN  Length:57
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:57
                                    73        83        93       103       113
           TERS_BPSF6    64 EKKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains --------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------- Transcript
                 3zqo I  64 EKKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    73        83       |93       103       113
                                                      91-MSE


Chain J from PDB  Type:PROTEIN  Length:58
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:58
                                    72        82        92       102       112
           TERS_BPSF6    63 NEKKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains ---------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------- Transcript
                 3zqo J  63 NEKKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    72        82        92       102       112
                                                       91-MSE


Chain K from PDB  Type:PROTEIN  Length:56
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:56
                                    74        84        94       104       114
           TERS_BPSF6    65 KKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains -------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------- Transcript
                 3zqo K  65 KKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    74        84      | 94       104       114
                                                     91-MSE


Chain L from PDB  Type:PROTEIN  Length:56
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:56
                                    74        84        94       104       114
           TERS_BPSF6    65 KKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains -------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------- Transcript
                 3zqo L  65 KKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    74        84      | 94       104       114
                                                     91-MSE


Chain M from PDB  Type:PROTEIN  Length:57
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:57
                                    73        83        93       103       113
           TERS_BPSF6    64 EKKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains --------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------- Transcript
                 3zqo M  64 EKKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    73        83       |93       103       113
                                                      91-MSE


Chain N from PDB  Type:PROTEIN  Length:56
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:56
                                    74        84        94       104       114
           TERS_BPSF6    65 KKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains -------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------- Transcript
                 3zqo N  65 KKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    74        84      | 94       104       114
                                                     91-MSE


Chain O from PDB  Type:PROTEIN  Length:57
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:57
                                    73        83        93       103       113
           TERS_BPSF6    64 EKKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains --------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhh..eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------- Transcript
                 3zqo O  64 EKKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    73        83       |93       103       113
                                                      91-MSE


Chain P from PDB  Type:PROTEIN  Length:58
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:58
                                    72        82        92       102       112
           TERS_BPSF6    63 NEKKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains ---------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------- Transcript
                 3zqo P  63 NEKKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    72        82        92       102       112
                                                       91-MSE


Chain Q from PDB  Type:PROTEIN  Length:58
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:58
                                    72        82        92       102       112
           TERS_BPSF6    63 NEKKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains ---------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------- Transcript
                 3zqo Q  63 NEKKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    72        82        92       102       112
                                                       91-MSE


Chain R from PDB  Type:PROTEIN  Length:56
 aligned with TERS_BPSF6 | P68928 from UniProtKB/Swiss-Prot  Length:145

    Alignment length:56
                                    74        84        94       104       114
           TERS_BPSF6    65 KKILQANEVLEHLTRIALGQEKEQVLMGIGKGAETKTHVEVSAKDRIKALELLGKA 120
               SCOP domains -------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhh...eeeeeeeee..eeeeeeee.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------- Transcript
                 3zqo R  65 KKILQANEVLEHLTRIALGQEKEQVLmGIGKGAETKTHVEVSAKDRIKALELLGKA 120
                                    74        84      | 94       104       114
                                                     91-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3ZQO)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3ZQO)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3ZQO)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R   (TERS_BPSF6 | P68928)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
    GO:0006323    DNA packaging    Any process in which DNA and associated proteins are formed into a compact, orderly structure.
    GO:0019076    viral release from host cell    The dissemination of mature viral particles from the host cell, e.g. by cell lysis or the budding of virus particles from the cell membrane.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    K  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3zqo)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3zqo
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TERS_BPSF6 | P68928
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TERS_BPSF6 | P68928
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TERS_BPSF6 | P68928: 2cmp 3zqm 3zqn 3zqp 3zqq 4zc3

(-) Related Entries Specified in the PDB File

3zqm CRYSTAL STRUCTURE OF THE SMALL TERMINASE OLIGOMERIZATION CORE DOMAIN FROM A SPP1-LIKE BACTERIOPHAGE (CRYSTAL FORM 1)
3zqn CRYSTAL STRUCTURE OF THE SMALL TERMINASE OLIGOMERIZATION CORE DOMAIN FROM A SPP1-LIKE BACTERIOPHAGE (CRYSTAL FORM 2
3zqp CRYSTAL STRUCTURE OF THE SMALL TERMINASE OLIGOMERIZATION DOMAIN FROM A SPP1-LIKE BACTERIOPHAGE
3zqq CRYSTAL STRUCTURE OF THE FULL-LENGTH SMALL TERMINASE FROM A SPP1-LIKE BACTERIOPHAGE
