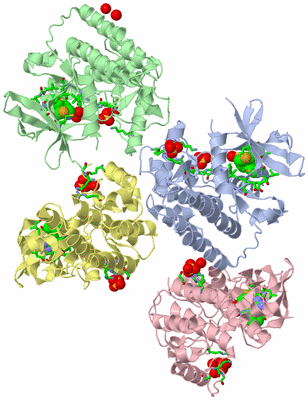

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

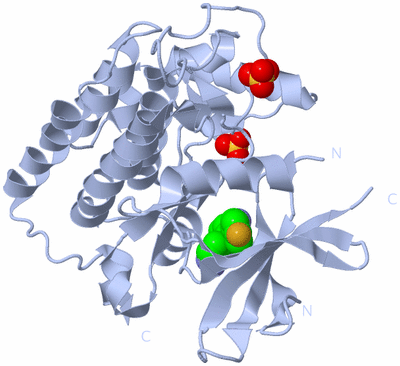

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

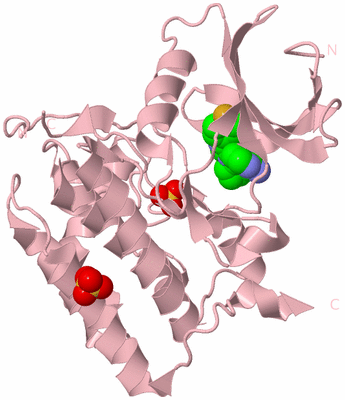

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

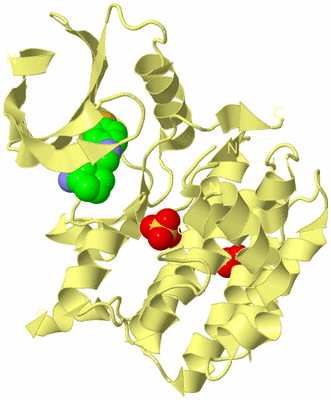

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)
Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)

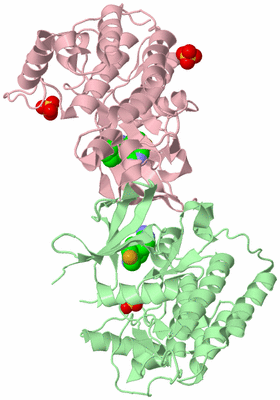

Image Biological Unit 6
Biological Unit 6  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF CK1D WITH PF670462 FROM P1 CRYSTAL FORM

Authors :  X. Huang
Date :  06 Dec 11  (Deposition) - 11 Jan 12  (Release) - 14 Nov 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Biol. Unit 5:  A (1x),D (1x)
Biol. Unit 6:  B (1x),C (1x)
Keywords :  Ck1D, Kinase, Inhibitor, Pf670462, Transferase-Transferase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  A. Long, H. Zhao, X. Huang
Structural Basis For The Interaction Between Casein Kinase Delta And A Potent And Selective Inhibitor.
J. Med. Chem. V. 55 956 2012
PubMed-ID: 22168824  |  Reference-DOI: 10.1021/JM201387S

(-) Compounds

Molecule 1 - CASEIN KINASE I ISOFORM DELTA
    ChainsA, B, C, D
    EC Number2.7.11.1
    EngineeredYES
    Expression SystemSPODOPTERA FRUGIPERDA
    Expression System Taxid7108
    GeneCSNK1D
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymCKI-DELTA, CKID

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit ABCD
Biological Unit 1 (1x)A
Biological Unit 2 (1x) B
Biological Unit 3 (1x)  C
Biological Unit 4 (1x)   D
Biological Unit 5 (1x)A (1x)  D (1x)
Biological Unit 6 (1x) B (1x)C (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 11)

Asymmetric Unit (2, 11)
No.NameCountTypeFull Name
10CK4Ligand/Ion4-[1-CYCLOHEXYL-4-(4-FLUOROPHENYL)-1H-IMIDAZOL-5-YL]PYRIMIDIN-2-AMINE
2SO47Ligand/IonSULFATE ION
Biological Unit 1 (2, 3)
No.NameCountTypeFull Name
10CK1Ligand/Ion4-[1-CYCLOHEXYL-4-(4-FLUOROPHENYL)-1H-IMIDAZOL-5-YL]PYRIMIDIN-2-AMINE
2SO42Ligand/IonSULFATE ION
Biological Unit 2 (2, 2)
No.NameCountTypeFull Name
10CK1Ligand/Ion4-[1-CYCLOHEXYL-4-(4-FLUOROPHENYL)-1H-IMIDAZOL-5-YL]PYRIMIDIN-2-AMINE
2SO41Ligand/IonSULFATE ION
Biological Unit 3 (2, 3)
No.NameCountTypeFull Name
10CK1Ligand/Ion4-[1-CYCLOHEXYL-4-(4-FLUOROPHENYL)-1H-IMIDAZOL-5-YL]PYRIMIDIN-2-AMINE
2SO42Ligand/IonSULFATE ION
Biological Unit 4 (2, 3)
No.NameCountTypeFull Name
10CK1Ligand/Ion4-[1-CYCLOHEXYL-4-(4-FLUOROPHENYL)-1H-IMIDAZOL-5-YL]PYRIMIDIN-2-AMINE
2SO42Ligand/IonSULFATE ION
Biological Unit 5 (2, 3)
No.NameCountTypeFull Name
10CK1Ligand/Ion4-[1-CYCLOHEXYL-4-(4-FLUOROPHENYL)-1H-IMIDAZOL-5-YL]PYRIMIDIN-2-AMINE
2SO42Ligand/IonSULFATE ION
Biological Unit 6 (2, 3)
No.NameCountTypeFull Name
10CK1Ligand/Ion4-[1-CYCLOHEXYL-4-(4-FLUOROPHENYL)-1H-IMIDAZOL-5-YL]PYRIMIDIN-2-AMINE
2SO42Ligand/IonSULFATE ION

(-) Sites  (11, 11)

Asymmetric Unit (11, 11)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREILE A:15 , ILE A:23 , ALA A:36 , TYR A:56 , MET A:80 , MET A:82 , GLU A:83 , LEU A:84 , LEU A:85 , LEU A:135 , ILE A:148 , HOH A:343BINDING SITE FOR RESIDUE 0CK A 295
02AC2SOFTWAREILE B:23 , ALA B:36 , TYR B:56 , MET B:80 , MET B:82 , LEU B:84 , LEU B:85 , SER B:88 , LEU B:135 , ILE B:148 , HOH B:320 , HOH B:346BINDING SITE FOR RESIDUE 0CK B 295
03AC3SOFTWAREILE C:23 , ALA C:36 , MET C:80 , MET C:82 , LEU C:84 , LEU C:85 , HOH C:359 , HOH C:451BINDING SITE FOR RESIDUE 0CK C 295
04AC4SOFTWAREILE D:15 , ILE D:23 , ALA D:36 , LYS D:38 , MET D:80 , MET D:82 , LEU D:84 , LEU D:85 , LEU D:135 , ILE D:148 , HOH D:306 , HOH D:310BINDING SITE FOR RESIDUE 0CK D 295
05AC5SOFTWARESER C:267 , ARG C:270 , ARG C:274 , HOH C:343BINDING SITE FOR RESIDUE SO4 C 296
06AC6SOFTWAREHOH B:311 , HOH B:462 , SER D:267 , ARG D:270 , ARG D:274BINDING SITE FOR RESIDUE SO4 D 296
07AC7SOFTWAREARG D:178 , GLN D:214 , GLY D:215 , LYS D:224 , HOH D:686BINDING SITE FOR RESIDUE SO4 D 297
08AC8SOFTWAREARG A:178 , GLN A:214 , GLY A:215 , LYS A:224BINDING SITE FOR RESIDUE SO4 A 296
09AC9SOFTWAREARG A:127 , LYS A:154 , LYS A:171BINDING SITE FOR RESIDUE SO4 A 297
10BC1SOFTWAREARG C:178 , GLN C:214 , GLY C:215 , LYS C:224 , HOH C:931 , HOH C:1020BINDING SITE FOR RESIDUE SO4 C 297
11BC2SOFTWAREARG B:178 , GLN B:214 , GLY B:215 , LYS B:224 , HOH B:613BINDING SITE FOR RESIDUE SO4 B 296

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3UYT)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1His D:46 -Pro D:47

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (4, 12)

Asymmetric Unit (4, 12)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_029075T44AKC1D_HUMANDisease (FASPS2)104894561C/DT44A
2UniProtVAR_069801H46RKC1D_HUMANDisease (FASPS2)397514693C/DH46R
3UniProtVAR_036451S97CKC1D_HUMANUnclassified  ---A/B/C/DS97C
4CancerSNPVAR_KC1D_HUMAN_CCDS11805_1_01 *S97CKC1D_HUMANDisease (Breast cancer)  ---A/B/C/DS97C
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 1 (2, 2)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
3UniProtVAR_036451S97CKC1D_HUMANUnclassified  ---AS97C
4CancerSNPVAR_KC1D_HUMAN_CCDS11805_1_01 *S97CKC1D_HUMANDisease (Breast cancer)  ---AS97C
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 2 (2, 2)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
3UniProtVAR_036451S97CKC1D_HUMANUnclassified  ---BS97C
4CancerSNPVAR_KC1D_HUMAN_CCDS11805_1_01 *S97CKC1D_HUMANDisease (Breast cancer)  ---BS97C
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 3 (4, 4)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_029075T44AKC1D_HUMANDisease (FASPS2)104894561CT44A
2UniProtVAR_069801H46RKC1D_HUMANDisease (FASPS2)397514693CH46R
3UniProtVAR_036451S97CKC1D_HUMANUnclassified  ---CS97C
4CancerSNPVAR_KC1D_HUMAN_CCDS11805_1_01 *S97CKC1D_HUMANDisease (Breast cancer)  ---CS97C
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 4 (4, 4)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_029075T44AKC1D_HUMANDisease (FASPS2)104894561DT44A
2UniProtVAR_069801H46RKC1D_HUMANDisease (FASPS2)397514693DH46R
3UniProtVAR_036451S97CKC1D_HUMANUnclassified  ---DS97C
4CancerSNPVAR_KC1D_HUMAN_CCDS11805_1_01 *S97CKC1D_HUMANDisease (Breast cancer)  ---DS97C
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 5 (4, 6)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_029075T44AKC1D_HUMANDisease (FASPS2)104894561DT44A
2UniProtVAR_069801H46RKC1D_HUMANDisease (FASPS2)397514693DH46R
3UniProtVAR_036451S97CKC1D_HUMANUnclassified  ---A/DS97C
4CancerSNPVAR_KC1D_HUMAN_CCDS11805_1_01 *S97CKC1D_HUMANDisease (Breast cancer)  ---A/DS97C
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 6 (4, 6)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_029075T44AKC1D_HUMANDisease (FASPS2)104894561CT44A
2UniProtVAR_069801H46RKC1D_HUMANDisease (FASPS2)397514693CH46R
3UniProtVAR_036451S97CKC1D_HUMANUnclassified  ---B/CS97C
4CancerSNPVAR_KC1D_HUMAN_CCDS11805_1_01 *S97CKC1D_HUMANDisease (Breast cancer)  ---B/CS97C
   * ID not provided by source

  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (2, 8)

Asymmetric Unit (2, 8)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.KC1D_HUMAN15-38



  4A:15-38
B:15-38
C:15-38
D:15-38
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.KC1D_HUMAN124-136



  4A:124-136
B:124-136
C:124-136
D:124-136
Biological Unit 1 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.KC1D_HUMAN15-38



  1A:15-38
-
-
-
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.KC1D_HUMAN124-136



  1A:124-136
-
-
-
Biological Unit 2 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.KC1D_HUMAN15-38



  1-
B:15-38
-
-
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.KC1D_HUMAN124-136



  1-
B:124-136
-
-
Biological Unit 3 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.KC1D_HUMAN15-38



  1-
-
C:15-38
-
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.KC1D_HUMAN124-136



  1-
-
C:124-136
-
Biological Unit 4 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.KC1D_HUMAN15-38



  1-
-
-
D:15-38
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.KC1D_HUMAN124-136



  1-
-
-
D:124-136
Biological Unit 5 (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.KC1D_HUMAN15-38



  2A:15-38
-
-
D:15-38
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.KC1D_HUMAN124-136



  2A:124-136
-
-
D:124-136
Biological Unit 6 (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.KC1D_HUMAN15-38



  2-
B:15-38
C:15-38
-
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.KC1D_HUMAN124-136



  2-
B:124-136
C:124-136
-

(-) Exons   (0, 0)

(no "Exon" information available for 3UYT)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:287
 aligned with KC1D_HUMAN | P48730 from UniProtKB/Swiss-Prot  Length:415

    Alignment length:290
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294
           KC1D_HUMAN     5 VGNRYRLGRKIGSGSFGDIYLGTDIAAGEEVAIKLECVKTKHPQLHIESKIYKMMQGGVGIPTIRWCGAEGDYNVMVMELLGPSLEDLFNFCSRKFSLKTVLLLADQMISRIEYIHSKNFIHRDVKPDNFLMGLGKKGNLVYIIDFGLAKKYRDARTHQHIPYRENKNLTGTARYASINTHLGIEQSRRDDLESLGYVLMYFNLGSLPWQGLKAATKRQKYERISEKKMSTPIEVLCKGYPSEFATYLNFCRSLRFDDKPDYSYLRQLFRNLFHRQGFSYDYVFDWNMLK 294
               SCOP domains d3uyta_ A: automated matches                                                                                                                                                                                                                                                                       SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeee....eeeeeee.....eeeeeeee..---.hhhhhhhhhhhhh.......eeeeeee..eeeeeee....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.ee....hhh.eee.hhhhhh.eee......ee....................hhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhh.......hhhhhhhhhhhhhhhh.......hhhhhh. Sec.struct. author
             SAPs(SNPs) (1) --------------------------------------------------------------------------------------------C----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (1)
             SAPs(SNPs) (2) --------------------------------------------------------------------------------------------C----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (2)
                    PROSITE ----------PROTEIN_KINASE_ATP      -------------------------------------------------------------------------------------PROTEIN_KINAS-------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3uyt A   5 VGNRYRLGRKIGSGSFGDIYLGTDIAAGEEVAIKLECVK---PQLHIESKIYKMMQGGVGIPTIRWCGAEGDYNVMVMELLGPSLEDLFNFCSRKFSLKTVLLLADQMISRIEYIHSKNFIHRDVKPDNFLMGLGKKGNLVYIIDFGLAKKYRDARTHQHIPYRENKNLTGTARYASINTHLGIEQSRRDDLESLGYVLMYFNLGSLPWQGLKAATKRQKYERISEKKMSTPIEVLCKGYPSEFATYLNFCRSLRFDDKPDYSYLRQLFRNLFHRQGFSYDYVFDWNMLK 294
                                    14        24        34        |-  |     54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294
                                                                 43  47

Chain B from PDB  Type:PROTEIN  Length:286
 aligned with KC1D_HUMAN | P48730 from UniProtKB/Swiss-Prot  Length:415

    Alignment length:289
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284
           KC1D_HUMAN     5 VGNRYRLGRKIGSGSFGDIYLGTDIAAGEEVAIKLECVKTKHPQLHIESKIYKMMQGGVGIPTIRWCGAEGDYNVMVMELLGPSLEDLFNFCSRKFSLKTVLLLADQMISRIEYIHSKNFIHRDVKPDNFLMGLGKKGNLVYIIDFGLAKKYRDARTHQHIPYRENKNLTGTARYASINTHLGIEQSRRDDLESLGYVLMYFNLGSLPWQGLKAATKRQKYERISEKKMSTPIEVLCKGYPSEFATYLNFCRSLRFDDKPDYSYLRQLFRNLFHRQGFSYDYVFDWNML 293
               SCOP domains d3uytb_ B: automated matches                                                                                                                                                                                                                                                                      SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....ee...eeee....eeeeeee....eeeeeeee...---.hhhhhhhhhhhhh.......eeeeee....eeeeee....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.ee....hhh.eee.hhhhh..eee......ee.........................hhhhhhh...hhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhhh.hhhhhh....hhhhhhhhhhhhh......hhhhhhhhhhhhhhhh.......hhhhhh Sec.struct. author
             SAPs(SNPs) (1) --------------------------------------------------------------------------------------------C---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (1)
             SAPs(SNPs) (2) --------------------------------------------------------------------------------------------C---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (2)
                    PROSITE ----------PROTEIN_KINASE_ATP      -------------------------------------------------------------------------------------PROTEIN_KINAS------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3uyt B   5 VGNRYRLGRKIGSGSFGDIYLGTDIAAGEEVAIKLECVK---PQLHIESKIYKMMQGGVGIPTIRWCGAEGDYNVMVMELLGPSLEDLFNFCSRKFSLKTVLLLADQMISRIEYIHSKNFIHRDVKPDNFLMGLGKKGNLVYIIDFGLAKKYRDARTHQHIPYRENKNLTGTARYASINTHLGIEQSRRDDLESLGYVLMYFNLGSLPWQGLKAATKRQKYERISEKKMSTPIEVLCKGYPSEFATYLNFCRSLRFDDKPDYSYLRQLFRNLFHRQGFSYDYVFDWNML 293
                                    14        24        34        |-  |     54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284
                                                                 43  47

Chain C from PDB  Type:PROTEIN  Length:286
 aligned with KC1D_HUMAN | P48730 from UniProtKB/Swiss-Prot  Length:415

    Alignment length:291
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293
           KC1D_HUMAN     4 RVGNRYRLGRKIGSGSFGDIYLGTDIAAGEEVAIKLECVKTKHPQLHIESKIYKMMQGGVGIPTIRWCGAEGDYNVMVMELLGPSLEDLFNFCSRKFSLKTVLLLADQMISRIEYIHSKNFIHRDVKPDNFLMGLGKKGNLVYIIDFGLAKKYRDARTHQHIPYRENKNLTGTARYASINTHLGIEQSRRDDLESLGYVLMYFNLGSLPWQGLKAATKRQKYERISEKKMSTPIEVLCKGYPSEFATYLNFCRSLRFDDKPDYSYLRQLFRNLFHRQGFSYDYVFDWNMLK 294
               SCOP domains d3uytc_ C: automated matches                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeeeeeee..eeeeeeee....eeeeeeeee......hhhhhhhhhhhhh.......eeeeeee..eeeeeee....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.ee....hhh.eee.hhhhh..eee......ee...-----.................hhhhhh....hhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhh......hhhhhh. Sec.struct. author
             SAPs(SNPs) (1) ----------------------------------------A-R--------------------------------------------------C----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (1)
             SAPs(SNPs) (2) ---------------------------------------------------------------------------------------------C----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (2)
                    PROSITE -----------PROTEIN_KINASE_ATP      -------------------------------------------------------------------------------------PROTEIN_KINAS-------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3uyt C   4 RVGNRYRLGRKIGSGSFGDIYLGTDIAAGEEVAIKLECVKTKHPQLHIESKIYKMMQGGVGIPTIRWCGAEGDYNVMVMELLGPSLEDLFNFCSRKFSLKTVLLLADQMISRIEYIHSKNFIHRDVKPDNFLMGLGKKGNLVYIIDFGLAKKYRD-----HIPYRENKNLTGTARYASINTHLGIEQSRRDDLESLGYVLMYFNLGSLPWQGLKAATKRQKYERISEKKMSTPIEVLCKGYPSEFATYLNFCRSLRFDDKPDYSYLRQLFRNLFHRQGFSYDYVFDWNMLK 294
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153    |    -|      173       183       193       203       213       223       233       243       253       263       273       283       293
                                                                                                                                                                                    158   164

Chain D from PDB  Type:PROTEIN  Length:268
 aligned with KC1D_HUMAN | P48730 from UniProtKB/Swiss-Prot  Length:415

    Alignment length:291
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293
           KC1D_HUMAN     4 RVGNRYRLGRKIGSGSFGDIYLGTDIAAGEEVAIKLECVKTKHPQLHIESKIYKMMQGGVGIPTIRWCGAEGDYNVMVMELLGPSLEDLFNFCSRKFSLKTVLLLADQMISRIEYIHSKNFIHRDVKPDNFLMGLGKKGNLVYIIDFGLAKKYRDARTHQHIPYRENKNLTGTARYASINTHLGIEQSRRDDLESLGYVLMYFNLGSLPWQGLKAATKRQKYERISEKKMSTPIEVLCKGYPSEFATYLNFCRSLRFDDKPDYSYLRQLFRNLFHRQGFSYDYVFDWNMLK 294
               SCOP domains d3uytd_ D: automated matches                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhh.eeeeeeeee....eeeeeee....eeeeeeeee......hhhhhhhhhhhhh.......eeeeeee..eeeeeee....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.ee....hhh.eee.hhhhh..eee......ee..----------------..hhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh.......-------.hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh......hhhhhhhhhhhhhhhh.......hhhhhh. Sec.struct. author
             SAPs(SNPs) (1) ----------------------------------------A-R--------------------------------------------------C----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (1)
             SAPs(SNPs) (2) ---------------------------------------------------------------------------------------------C----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (2)
                    PROSITE -----------PROTEIN_KINASE_ATP      -------------------------------------------------------------------------------------PROTEIN_KINAS-------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3uyt D   4 RVGNRYRLGRKIGSGSFGDIYLGTDIAAGEEVAIKLECVKTKHPQLHIESKIYKMMQGGVGIPTIRWCGAEGDYNVMVMELLGPSLEDLFNFCSRKFSLKTVLLLADQMISRIEYIHSKNFIHRDVKPDNFLMGLGKKGNLVYIIDFGLAKKYR----------------TGTARYASINTHLGIEQSRRDDLESLGYVLMYFNLGSLPWQGL-------KYERISEKKMSTPIEVLCKGYPSEFATYLNFCRSLRFDDKPDYSYLRQLFRNLFHRQGFSYDYVFDWNMLK 294
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153   |     -         -|      183       193       203       213  |      -|      233       243       253       263       273       283       293
                                                                                                                                                                                   157              174                                       216     224

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3UYT)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3UYT)

(-) Gene Ontology  (52, 52)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (KC1D_HUMAN | P48730)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0042277    peptide binding    Interacting selectively and non-covalently with peptides, any of a group of organic compounds comprising two or more amino acids linked by peptide bonds.
    GO:0051219    phosphoprotein binding    Interacting selectively and non-covalently with a phosphorylated protein.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004672    protein kinase activity    Catalysis of the phosphorylation of an amino acid residue in a protein, usually according to the reaction: a protein + ATP = a phosphoprotein + ADP.
    GO:0004674    protein serine/threonine kinase activity    Catalysis of the reactions: ATP + protein serine = ADP + protein serine phosphate, and ATP + protein threonine = ADP + protein threonine phosphate.
    GO:0050321    tau-protein kinase activity    Catalysis of the reaction: ATP + tau-protein = ADP + O-phospho-tau-protein.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0048208    COPII vesicle coating    The addition of COPII proteins and adaptor proteins to ER membranes during the formation of transport vesicles, forming a vesicle coat.
    GO:0006281    DNA repair    The process of restoring DNA after damage. Genomes are subject to damage by chemical and physical agents in the environment (e.g. UV and ionizing radiations, chemical mutagens, fungal and bacterial toxins, etc.) and by free radicals or alkylating agents endogenously generated in metabolism. DNA is also damaged because of errors during its replication. A variety of different DNA repair pathways have been reported that include direct reversal, base excision repair, nucleotide excision repair, photoreactivation, bypass, double-strand break repair pathway, and mismatch repair pathway.
    GO:0000086    G2/M transition of mitotic cell cycle    The mitotic cell cycle transition by which a cell in G2 commits to M phase. The process begins when the kinase activity of M cyclin/CDK complex reaches a threshold high enough for the cell cycle to proceed. This is accomplished by activating a positive feedback loop that results in the accumulation of unphosphorylated and active M cyclin/CDK complex.
    GO:0007030    Golgi organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of the Golgi apparatus.
    GO:0016055    Wnt signaling pathway    The series of molecular signals initiated by binding of a Wnt protein to a frizzled family receptor on the surface of the target cell and ending with a change in cell state.
    GO:1990090    cellular response to nerve growth factor stimulus    A process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a nerve growth factor stimulus.
    GO:0032922    circadian regulation of gene expression    Any process that modulates the frequency, rate or extent of gene expression such that an expression pattern recurs with a regularity of approximately 24 hours.
    GO:0006897    endocytosis    A vesicle-mediated transport process in which cells take up external materials or membrane constituents by the invagination of a small region of the plasma membrane to form a new membrane-bounded vesicle.
    GO:0007020    microtubule nucleation    The process in which tubulin alpha-beta heterodimers begin aggregation to form an oligomeric tubulin structure (a microtubule seed). Microtubule nucleation is the initiating step in the formation of a microtubule in the absence of any existing microtubules ('de novo' microtubule formation).
    GO:0018105    peptidyl-serine phosphorylation    The phosphorylation of peptidyl-serine to form peptidyl-O-phospho-L-serine.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0030177    positive regulation of Wnt signaling pathway    Any process that activates or increases the frequency, rate or extent of Wnt signal transduction.
    GO:0090263    positive regulation of canonical Wnt signaling pathway    Any process that increases the rate, frequency, or extent of the Wnt signaling pathway through beta-catenin, the series of molecular signals initiated by binding of a Wnt protein to a frizzled family receptor on the surface of the target cell, followed by propagation of the signal via beta-catenin, and ending with a change in transcription of target genes.
    GO:2000052    positive regulation of non-canonical Wnt signaling pathway    Any process that activates or increases the frequency, rate or extent of non-canonical Wnt-activated signaling pathway.
    GO:0032436    positive regulation of proteasomal ubiquitin-dependent protein catabolic process    Any process that activates or increases the frequency, rate or extent of the breakdown of a protein or peptide by hydrolysis of its peptide bonds, initiated by the covalent attachment of ubiquitin, and mediated by the proteasome.
    GO:0001934    positive regulation of protein phosphorylation    Any process that activates or increases the frequency, rate or extent of addition of phosphate groups to amino acids within a protein.
    GO:0034067    protein localization to Golgi apparatus    A process in which a protein is transported to, or maintained in, a location within the Golgi apparatus.
    GO:0071539    protein localization to centrosome    A process in which a protein is transported to, or maintained at, the centrosome.
    GO:0061512    protein localization to cilium    A process in which a protein is transported to, or maintained in, a location within a cilium.
    GO:0006468    protein phosphorylation    The process of introducing a phosphate group on to a protein.
    GO:0006364    rRNA processing    Any process involved in the conversion of a primary ribosomal RNA (rRNA) transcript into one or more mature rRNA molecules.
    GO:0008360    regulation of cell shape    Any process that modulates the surface configuration of a cell.
    GO:0042752    regulation of circadian rhythm    Any process that modulates the frequency, rate or extent of a circadian rhythm. A circadian rhythm is a biological process in an organism that recurs with a regularity of approximately 24 hours.
    GO:0048511    rhythmic process    Any process pertinent to the generation and maintenance of rhythms in the physiology of an organism.
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
    GO:0051225    spindle assembly    The aggregation, arrangement and bonding together of a set of components to form the spindle, the array of microtubules and associated molecules that serves to move duplicated chromosomes apart.
cellular component
    GO:0005794    Golgi apparatus    A compound membranous cytoplasmic organelle of eukaryotic cells, consisting of flattened, ribosome-free vesicles arranged in a more or less regular stack. The Golgi apparatus differs from the endoplasmic reticulum in often having slightly thicker membranes, appearing in sections as a characteristic shallow semicircle so that the convex side (cis or entry face) abuts the endoplasmic reticulum, secretory vesicles emerging from the concave side (trans or exit face). In vertebrate cells there is usually one such organelle, while in invertebrates and plants, where they are known usually as dictyosomes, there may be several scattered in the cytoplasm. The Golgi apparatus processes proteins produced on the ribosomes of the rough endoplasmic reticulum; such processing includes modification of the core oligosaccharides of glycoproteins, and the sorting and packaging of proteins for transport to a variety of cellular locations. Three different regions of the Golgi are now recognized both in terms of structure and function: cis, in the vicinity of the cis face, trans, in the vicinity of the trans face, and medial, lying between the cis and trans regions.
    GO:0000139    Golgi membrane    The lipid bilayer surrounding any of the compartments of the Golgi apparatus.
    GO:0005813    centrosome    A structure comprised of a core structure (in most organisms, a pair of centrioles) and peripheral material from which a microtubule-based structure, such as a spindle apparatus, is organized. Centrosomes occur close to the nucleus during interphase in many eukaryotic cells, though in animal cells it changes continually during the cell-division cycle.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0033116    endoplasmic reticulum-Golgi intermediate compartment membrane    The lipid bilayer surrounding any of the compartments of the endoplasmic reticulum (ER)-Golgi intermediate compartment system.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005815    microtubule organizing center    An intracellular structure that can catalyze gamma-tubulin-dependent microtubule nucleation and that can anchor microtubules by interacting with their minus ends, plus ends or sides.
    GO:0043005    neuron projection    A prolongation or process extending from a nerve cell, e.g. an axon or dendrite.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0048471    perinuclear region of cytoplasm    Cytoplasm situated near, or occurring around, the nucleus.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0005819    spindle    The array of microtubules and associated molecules that forms between opposite poles of a eukaryotic cell during mitosis or meiosis and serves to move the duplicated chromosomes apart.
    GO:0005876    spindle microtubule    Any microtubule that is part of a mitotic or meiotic spindle; anchored at one spindle pole.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    0CK  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    His D:46 - Pro D:47   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]
    Biological Unit 6  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3uyt
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  KC1D_HUMAN | P48730
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.11.1
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  615224
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  KC1D_HUMAN | P48730
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        KC1D_HUMAN | P487303uys 3uzp 4hgt 4hnf 4kb8 4kba 4kbc 4kbk 4tn6 4tw9 4twc 5ih4 5ih5 5ih6 5mqv 5w4w

(-) Related Entries Specified in the PDB File

1cki 3uys 3uzp
