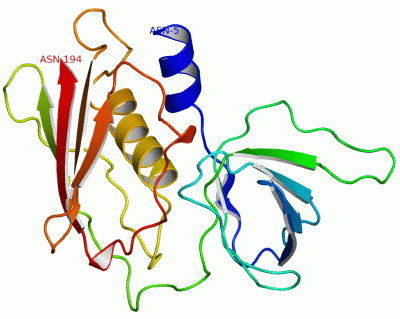

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

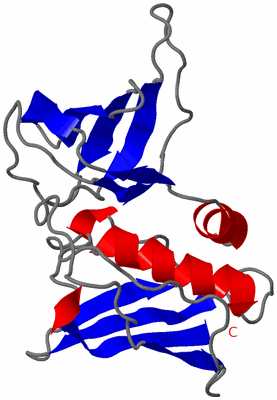

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  TOXIC SHOCK SYNDROME TOXIN-1 TETRAMUTANT, P2(1) CRYSTAL FORM

Authors :  G. S. Prasad, R. Radhakrishnan, D. T. Mitchell, C. A. Earhart, M. M. Dinges, W. J. Cook, P. M. Schlivert, D. H. Ohlendorf
Date :  11 Dec 96  (Deposition) - 24 Dec 97  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Toxin, Superantigen, Signal (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. S. Prasad, R. Radhakrishnan, D. T. Mitchell, C. A. Earhart, M. M. Dinges, W. J. Cook, P. M. Schlievert, D. H. Ohlendorf
Refined Structures Of Three Crystal Forms Of Toxic Shock Syndrome Toxin-1 And Of A Tetramutant With Reduced Activity.
Protein Sci. V. 6 1220 1997
PubMed-ID: 9194182
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TOXIC SHOCK SYNDROME TOXIN-1
    Cellular Location: SECRETED
    Chains: A
    Engineered: YES
    Mutation: YES
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 1280
    Strain: RN8361

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3TSS)

(-) Sites  (0, 0)

(no "Site" information available for 3TSS)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3TSS)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3TSS)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3TSS)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1STAPH_STREP_TOXIN_2PS00278 Staphyloccocal enterotoxin/Streptococcal pyrogenic exotoxin signature 2.TSST_STAAU161-184  1A:121-144

(-) Exons   (0, 0)

(no "Exon" information available for 3TSS)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:190
 aligned with TSST_STAAU | P06886 from UniProtKB/Swiss-Prot  Length:234

    Alignment length:190
                                    54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234
           TSST_STAAU    45 NIKDLLDWYSSGSDTFTNSEVLDNSLGSMRIKNTDGSISLIIFPSPYYSPAFTKGEKVDLNTKRTKKSQHTSEGTYIHFQISGVTNTEKLPTPIELPLKVKVHGKDSPLKYGPKFDKKQLAISTLDFEIRHQLTQIHGLYRSSDKTGGYWKITMNDGSTYQSDLSKKFEYNTEKPPINIDEIKTIEAEIN 234
               SCOP domains d3tssa1 A:5-93 Toxic shock syndrome toxin-1 (TSST-1)                                     d3tssa2 A:94-194 Toxic shock syndrome toxin-1 (TSST-1)                                                SCOP domains
               CATH domains 3tssA01      3tssA02 A:18-88  [code=2.40.50.110, no name defined]                   3tssA01 A:5-17,A:89-194  [code=3.10.20.120, no name defined]                                               CATH domains
               Pfam domains Stap_Strp_toxin-3tssA02 A:5-91                                                         -------Stap_Strp_tox_C-3tssA01 A:99-194                                                                 Pfam domains
         Sec.struct. author .hhhhhhhhh...eee...eeeeee..eeeee.....eeeee.................eee..............eeeee................eeeee...................hhhhhhhhhhhhhhh..........eeeeeeee....eeeee......hhh......hhheeeeeeeee Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------STAPH_STREP_TOXIN_2     -------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3tss A   5 NIKDLLDWYSSGSDTFTNSEVLDNSLGSMRIKNTDGSISLIIFPSPYYSPAFTKGEKVDLNTKRIKKSQHTSEGTWIHFQISGVTNTEKLPTPIELPLKVKVHGKDSPLKYWPKFDKKQLAISTLDFKIRHQLTQTHGLYRSSDKTGGYWKITMNDGSTYQSDLSKKFEYNTEKPPINIDEIKTIEAEIN 194
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Clan: Ant-toxin_C (48)
(-)
Clan: no clan defined [family: Stap_Strp_toxin] (39)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (TSST_STAAU | P06886)
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3tss)

  Sites
(no "Sites" information available for 3tss)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3tss)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

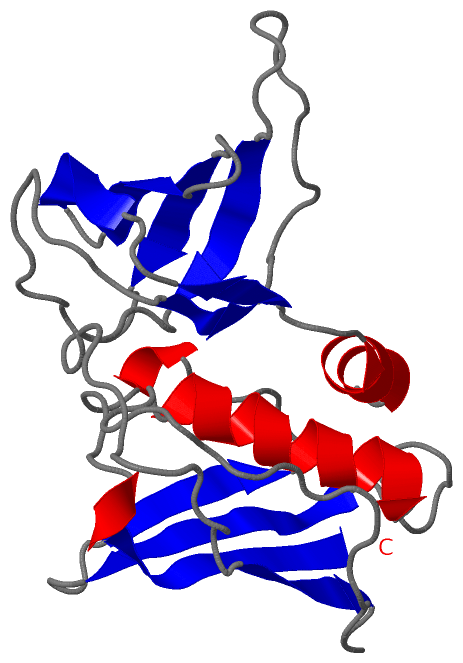

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3tss
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TSST_STAAU | P06886
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TSST_STAAU | P06886
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TSST_STAAU | P06886: 1aw7 1qil 1ts2 1ts3 1ts4 1ts5 2ij0 2qil 2tss 4ohj 4tss 5tss

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3TSS)
