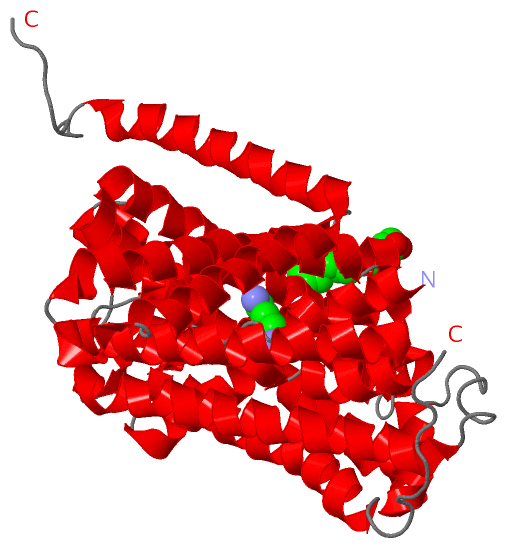

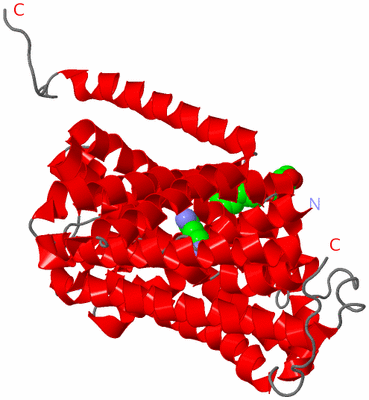

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

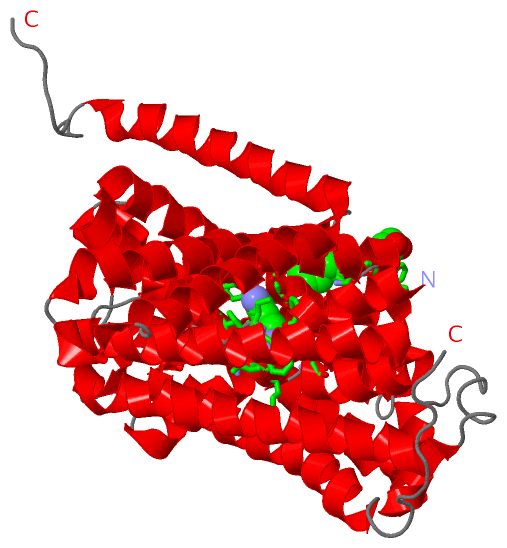

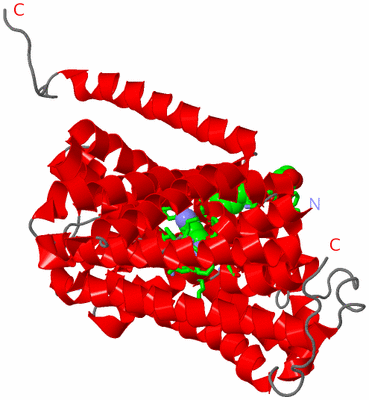

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

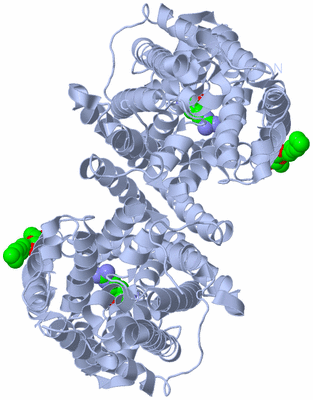

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

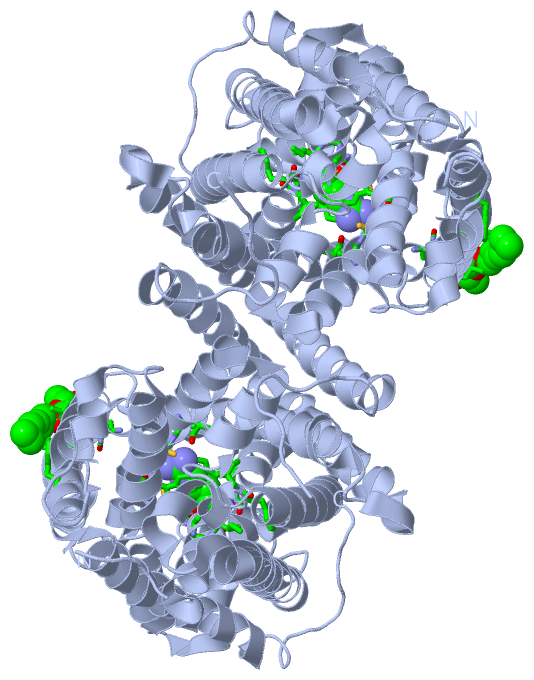

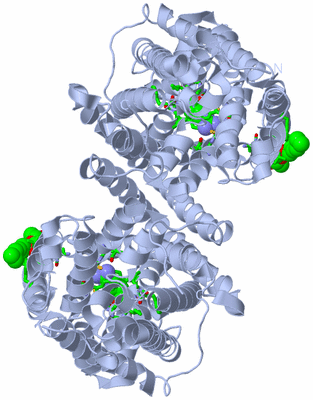

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF ARG-BOUND ESCHERICHIA COLI ADIC

Authors :  X. Gao, L. Zhou, Y. Shi
Date :  13 Dec 09  (Deposition) - 02 Feb 10  (Release) - 12 Feb 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Tcdb 2. A. 3. 2. 5, Adic, Antiporter, Arg-Bound, Amino-Acid Transport, Antiport, Cell Inner Membrane, Cell Membrane, Membrane, Transmembrane, Transport, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Gao, L. Zhou, X. Jiao, F. Lu, C. Yan, X. Zeng, J. Wang, Y. Shi
Mechanism Of Substrate Recognition And Transport By An Amin Acid Antiporter
Nature V. 463 828 2010
PubMed-ID: 20090677  |  Reference-DOI: 10.1038/NATURE08741

(-) Compounds

Molecule 1 - ARGININE/AGMATINE ANTIPORTER
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET15B (NOVAGEN)
    Expression System Strain: E. COLI BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: ADIC, Z5717, ECS5097
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 83334

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric Unit (2, 2)
No.NameCountTypeFull Name
1ARG1Mod. Amino AcidARGININE
2BNG1Ligand/IonB-NONYLGLUCOSIDE
Biological Unit 1 (2, 4)
No.NameCountTypeFull Name
1ARG2Mod. Amino AcidARGININE
2BNG2Ligand/IonB-NONYLGLUCOSIDE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREALA A:22 , ILE A:23 , MET A:24 , SER A:26 , GLY A:27 , ALA A:96 , CYS A:97 , GLY A:100 , ASN A:101 , MET A:104 , TRP A:202 , SER A:203 , PHE A:204 , ILE A:205 , TRP A:293 , SER A:357BINDING SITE FOR RESIDUE ARG A 446
2AC2SOFTWAREPRO A:122 , TRP A:123 , THR A:126 , TRP A:134 , LEU A:339 , ASN A:345BINDING SITE FOR RESIDUE BNG A 447

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3L1L)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric Unit
No.Residues
1Pro A:70 -Gly A:71
2Pro A:385 -Ala A:386
3Ala A:386 -Tyr A:387

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3L1L)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3L1L)

(-) Exons   (0, 0)

(no "Exon" information available for 3L1L)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:424
 aligned with ADIC_ECO57 | P60063 from UniProtKB/Swiss-Prot  Length:445

    Alignment length:438
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436
           ADIC_ECO57     7 AHKVGLIPVTLMVSGNIMGSGVFLLPANLASTGGIAIYGWLVTIIGALGLSMVYAKMSFLDPSPGGSYAYARRCFGPFLGYQTNVLYWLACWIGNIAMVVIGVGYLSYFFPILKDPLVLTITCVVVLWIFVLLNIVGPKMITRVQAVATVLALIPIVGIAVFGWFWFRGETYMAAWNVSGLGTFGAIQSTLNVTLWSFIGVESASVAAGVVKNPKRNVPIATIGGVLIAAVCYVLSTTAIMGMIPNAALRVSASPFGDAARMALGDTAGAIVSFCAAAGCLGSLGGWTLLAGQTAKAAADDGLFPPIFARVNKAGTPVAGLIIVGILMTIFQLSSISPNATKEFGLVSSVSVIFTLVPYLYTCAALLLLGHGHFGKARPAYLAVTTIAFLYCIWAVVGSGAKEVMWSFVTLMVITAMYALNYNRLHKNPYPLDAPISK 444
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ---AA_permease_2-3l1lA01 A:10-428                                                                                                                                                                                                                                                                                                                                                                                                     ------------   - Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............-----------hhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhh.hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh...hhhhhh......hhhhhhhhhhhhhhhhhh..hhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........---. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3l1l A   7 AHKVGLIPVTLMVSGAIMGSGVFLLPANLASTGGIAIYGWLVTIIGALGLSMVYAKMSFLDPSPGGSYAYARRCFGPFLGYQTNVLYWLACWIGNIAMVVIGVGYLSYFFPILKDPWVLTITCVVVLWIFVLLNIVGPKMITRVQAVATVLALIPIVGIAVFGWFWFRGETYMA-----------AIQSTLNVTLWSFIGVESASVAAGVVKNPKRNVPIATIGGVLIAAVCYVLSTTAIMGMIPNAALRVSASPFGDAARMALGDTAGAIVSFCAAAGCLGSLGGWTLLAGQTAKAAADDGLFPPIFARVNKAGTPVAGLIIVGILMTIFQLSSISPNATKEFGLVSSVSVIFTLVPYLYTCAALLLLGHGHFGKARPAYLAVTTIAFLYCIWAVVGSGAKEVMWSFVTLMVITAMYALNYNRLHKNPYPLDA---R 446
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176   |     -     | 196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406       416       426       436   |   |
                                                                                                                                                                                                       180         192                                                                                                                                                                                                                                                     440 446
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3L1L)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3L1L)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: APC (6)

(-) Gene Ontology  (8, 8)

Asymmetric Unit(hide GO term definitions)
Chain A   (ADIC_ECO57 | P60063)
molecular function
    GO:0015171    amino acid transmembrane transporter activity    Enables the transfer of amino acids from one side of a membrane to the other. Amino acids are organic molecules that contain an amino group and a carboxyl group.
    GO:0015297    antiporter activity    Enables the active transport of a solute across a membrane by a mechanism whereby two or more species are transported in opposite directions in a tightly coupled process not directly linked to a form of energy other than chemiosmotic energy. The reaction is: solute A(out) + solute B(in) = solute A(in) + solute B(out).
biological process
    GO:0003333    amino acid transmembrane transport    The directed movement of amino acids, organic acids containing one or more amino substituents across a membrane by means of some agent such as a transporter or pore.
    GO:0006865    amino acid transport    The directed movement of amino acids, organic acids containing one or more amino substituents, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ARG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    BNG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:386 - Tyr A:387   [ RasMol ]
    Pro A:385 - Ala A:386   [ RasMol ]
    Pro A:70 - Gly A:71   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3l1l
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ADIC_ECO57 | P60063
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ADIC_ECO57 | P60063
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ADIC_ECO57 | P60063: 3lrb 3lrc 5j4i 5j4n

(-) Related Entries Specified in the PDB File

3h5m 3h6b
