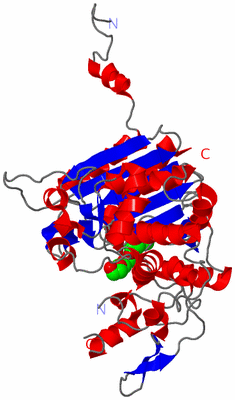

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

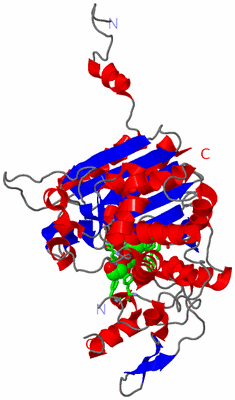

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  SIMVASTATIN SYNTHASE (LOVD) FROM ASPERGILLUS TERREUS, S5 MUTANT, UNLIGANDED

Authors :  M. R. Sawaya, T. O. Yeates, J. Laidman, I. Pashkov, X. Gao, Y. Tang
Date :  27 May 09  (Deposition) - 27 Oct 09  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Alpha/Beta Hydrolase Fold, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Gao, X. Xie, I. Pashkov, M. R. Sawaya, J. Laidman, W. Zhang, R. Cacho, T. O. Yeates, Y. Tang
Directed Evolution And Structural Characterization Of A Simvastatin Synthase
Chem. Biol. V. 16 1064 2009
PubMed-ID: 19875080  |  Reference-DOI: 10.1016/J.CHEMBIOL.2009.09.017

(-) Compounds

Molecule 1 - TRANSESTERASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21(DE3)WITH BIOH KNOCKOUT
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Mutation: YES
    Organism Scientific: ASPERGILLUS TERREUS
    Organism Taxid: 33178
    Synonym: LOVD

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL
2PG41Ligand/IonTETRAETHYLENE GLYCOL

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPRO A:323 , MET A:331 , MET A:333 , ARG A:396BINDING SITE FOR RESIDUE GOL A 414
2AC2SOFTWARETYR A:146 , PHE A:148 , GLN A:270 , ILE A:325 , TYR A:327 , PHE A:363 , GLY A:364 , TRP A:390 , HOH A:446BINDING SITE FOR RESIDUE PG4 A 415

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3HLC)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Glu A:388 -Pro A:389

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3HLC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3HLC)

(-) Exons   (0, 0)

(no "Exon" information available for 3HLC)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:416
 aligned with LOVD_ASPTE | Q9Y7D1 from UniProtKB/Swiss-Prot  Length:413

    Alignment length:424
                                        1
                                     -  |      8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408
           LOVD_ASPTE     - ------------MGSIIDAAAAADPVVLMETAFRKAVKSRQIPGAVIMARDCSGNLNYTRCFGARTVRRDECNQLPPLQVDTPCRLASATKLLTTIMALQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGHLQSAEKFGIQSRLAPPAVNDPGAEWIYGANLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYDDSVYFRADGEECFGGQGVFSGPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQ 412
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhh...hhhhhhhhhhhhhhhh....eeeeeeee.....eeeeeee....................ee...hhhhhhhhhhhhhhhh............hhhhhh..eeeee.....eeee......hhhhhhh......hhhhhhhhhhhhhh....--------..................hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh...ee.hhhhhhhhhhhh..eeee......eeee.hhhhh............eehhhhhhhhhhhhhhh.....hhhhhhhhh....hhhhhhhhhhhhhh...............eee....eee..............eeeee...eeeeee....eeeeee..ee...hhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3hlc A -11 HHSSGLVPRGSHMGSIIDAAAAAGPVVLMETAFRKAVESRQIPGAVIMARDASGNLNYTRCFGARTVRRDENNQLPPLQVDTPCRLASATKLLTTIMVLQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGYLQ--------SRLAPPAVNDPGAEWIYGTNLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYDDSVYFRADGEECFGGQGVFSSPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQ 412
                                    -2         8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158    |    -   |   178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408
                                                                                                                                                                                                        163      172
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3HLC)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3HLC)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3HLC)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (LOVD_ASPTE | Q9Y7D1)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016746    transferase activity, transferring acyl groups    Catalysis of the transfer of an acyl group from one compound (donor) to another (acceptor).
biological process
    GO:0017000    antibiotic biosynthetic process    The chemical reactions and pathways resulting in the formation of an antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms.
    GO:0050832    defense response to fungus    Reactions triggered in response to the presence of a fungus that act to protect the cell or organism.
    GO:0030639    polyketide biosynthetic process    The chemical reactions and pathways resulting in the formation of polyketides, any of a diverse group of natural products synthesized via linear poly-beta-ketones, which are themselves formed by repetitive head-to-tail addition of acetyl (or substituted acetyl) units indirectly derived from acetate (or a substituted acetate) by a mechanism similar to that for fatty acid biosynthesis but without the intermediate reductive steps.
