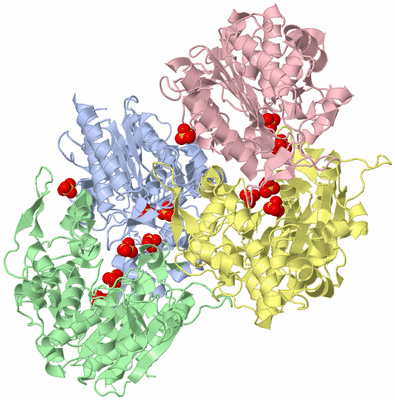

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

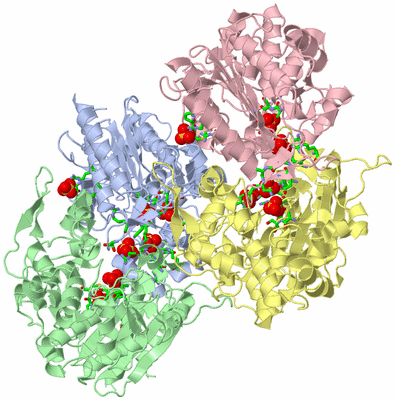

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

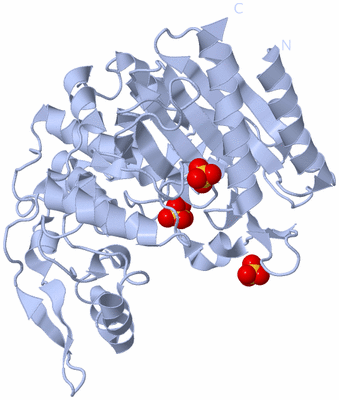

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

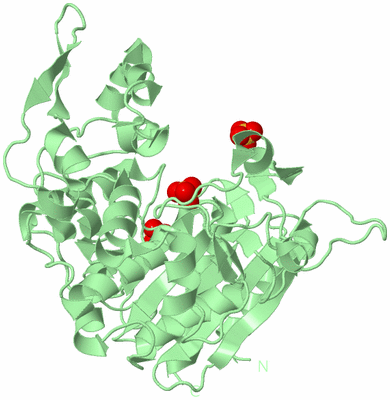

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

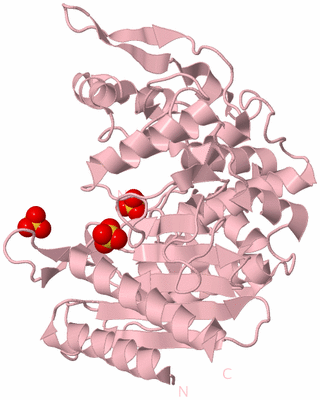

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

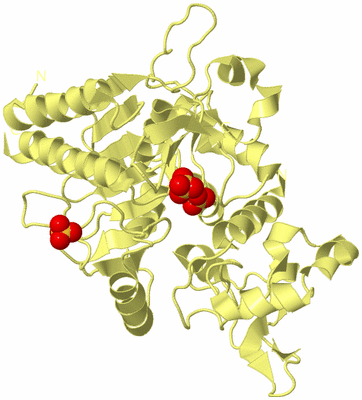

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  SIMVASTATIN SYNTHASE (LOVD) FROM ASPERGILLUS TERREUS, UNLIGANDED, SELENOMETHIONYL DERIVATIVE

Authors :  M. R. Sawaya, T. O. Yeates, J. Laidman, I. Pashkov, X. Gao, Y. Tang
Date :  27 May 09  (Deposition) - 27 Oct 09  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Alpha/Beta Hydrolase Fold, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Gao, X. Xie, I. Pashkov, M. R. Sawaya, J. Laidman, W. Zhang, R. Cacho, T. O. Yeates, Y. Tang
Directed Evolution And Structural Characterization Of A Simvastatin Synthase
Chem. Biol. V. 16 1064 2009
PubMed-ID: 19875080  |  Reference-DOI: 10.1016/J.CHEMBIOL.2009.09.017

(-) Compounds

Molecule 1 - TRANSESTERASE
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21(DE3)WITH BIOH KNOCKOUT
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: LOVD
    Mutation: YES
    Organism Scientific: ASPERGILLUS TERREUS
    Organism Taxid: 33178
    Synonym: LOVD

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 13)

Asymmetric Unit (1, 13)
No.NameCountTypeFull Name
1SO413Ligand/IonSULFATE ION
Biological Unit 1 (1, 4)
No.NameCountTypeFull Name
1SO44Ligand/IonSULFATE ION
Biological Unit 2 (1, 3)
No.NameCountTypeFull Name
1SO43Ligand/IonSULFATE ION
Biological Unit 3 (1, 3)
No.NameCountTypeFull Name
1SO43Ligand/IonSULFATE ION
Biological Unit 4 (1, 3)
No.NameCountTypeFull Name
1SO43Ligand/IonSULFATE ION

(-) Sites  (13, 13)

Asymmetric Unit (13, 13)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREARG A:260 , HIS B:243 , ARG B:244 , ASN B:245 , SER B:246 , ARG B:252BINDING SITE FOR RESIDUE SO4 B 414
02AC2SOFTWAREPRO C:332 , MET C:333 , ARG C:396 , ARG C:400BINDING SITE FOR RESIDUE SO4 C 414
03AC3SOFTWAREALA D:75 , SER D:76 , GLY D:365 , GLY D:366 , GLU D:388BINDING SITE FOR RESIDUE SO4 D 414
04AC4SOFTWAREALA B:75 , SER B:76 , GLY B:365 , GLY B:366BINDING SITE FOR RESIDUE SO4 B 415
05AC5SOFTWAREALA A:75 , SER A:76 , GLY A:365 , GLY A:366 , SO4 A:416BINDING SITE FOR RESIDUE SO4 A 414
06AC6SOFTWAREPRO B:332 , MET B:333 , ARG B:396 , ARG B:400BINDING SITE FOR RESIDUE SO4 B 416
07AC7SOFTWAREALA C:75 , SER C:76 , GLY C:365 , GLY C:366BINDING SITE FOR RESIDUE SO4 C 415
08AC8SOFTWAREHIS D:243 , ARG D:244 , ASN D:245 , SER D:246 , ARG D:252BINDING SITE FOR RESIDUE SO4 D 415
09AC9SOFTWAREHIS C:243 , ARG C:244 , ASN C:245 , SER C:246 , ARG C:252BINDING SITE FOR RESIDUE SO4 C 416
10BC1SOFTWAREPRO D:332 , MET D:333 , ARG D:396 , ARG D:400BINDING SITE FOR RESIDUE SO4 D 416
11BC2SOFTWAREHIS A:243 , ARG A:244 , SER A:246 , ARG A:252 , SER B:256 , ARG B:260BINDING SITE FOR RESIDUE SO4 A 415
12BC3SOFTWAREARG A:73 , ALA A:75 , ARG A:260 , ASP A:262 , GLN A:270 , GLY A:271 , SO4 A:414BINDING SITE FOR RESIDUE SO4 A 416
13BC4SOFTWAREPRO A:332 , MET A:333 , ARG A:396 , ARG A:400BINDING SITE FOR RESIDUE SO4 A 417

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3HLB)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Glu A:388 -Pro A:389
2Glu B:388 -Pro B:389
3Glu C:388 -Pro C:389
4Glu D:388 -Pro D:389

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3HLB)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3HLB)

(-) Exons   (0, 0)

(no "Exon" information available for 3HLB)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:404
 aligned with LOVD_ASPTE | Q9Y7D1 from UniProtKB/Swiss-Prot  Length:413

    Alignment length:404
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409
           LOVD_ASPTE    10 AADPVVLMETAFRKAVKSRQIPGAVIMARDCSGNLNYTRCFGARTVRRDECNQLPPLQVDTPCRLASATKLLTTIMALQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGHLQSAEKFGIQSRLAPPAVNDPGAEWIYGANLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYDDSVYFRADGEECFGGQGVFSGPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQG 413
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh....eeeeeeee.....eeeeeee....................ee...hhhhhhhhhhhhhhhh............hhhhhhh.eeeee.....eeee......hhhhhhh..........hhhhhhhhhhh.hhhhh....hhhhh..............hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh...ee.....hhhhhhh....eee......eee.hhhhhhh...........eehhhhhhhhhhhhhhh.....hhhhhhhhh....hhhhhhhhhhhhhh...............eee....eee..............eeeee...eeeeee....eeeeee..ee...hhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3hlb A  10 AADPVVLMETAFRKAVKSRQIPGAVIMARDASGNLNYTRCFGARTVRRDENNQLPPLQVDTPCRLASATKLLTTIMALQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGHLQSAEKFGIQSRLAPPAVNDPGAEWIYGANLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYDDSVYFRADGEECFGGQGVFSGPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQG 413
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409


Chain B from PDB  Type:PROTEIN  Length:404
 aligned with LOVD_ASPTE | Q9Y7D1 from UniProtKB/Swiss-Prot  Length:413

    Alignment length:404
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409
           LOVD_ASPTE    10 AADPVVLMETAFRKAVKSRQIPGAVIMARDCSGNLNYTRCFGARTVRRDECNQLPPLQVDTPCRLASATKLLTTIMALQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGHLQSAEKFGIQSRLAPPAVNDPGAEWIYGANLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYDDSVYFRADGEECFGGQGVFSGPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQG 413
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh....eeeeeeee.....eeeeeee....................ee.hhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhh.eeeee.....eeee......hhhhhhh......hhhhhhhhhhhhhhhhhhhhh....hhhhh..............hhhhhhhhhhhhhhh.hhhhhhhhhh........ee.....hhhhhhh....eee......eee.hhhhhhh...........eehhhhhhhhhhhhhh......hhhhhhhhh....hhhhhhhhhhhhhhh..............eee....eee..............eeeee...eeeeee....eeeeee..ee...hhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3hlb B  10 AADPVVLMETAFRKAVKSRQIPGAVIMARDASGNLNYTRCFGARTVRRDENNQLPPLQVDTPCRLASATKLLTTIMALQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGHLQSAEKFGIQSRLAPPAVNDPGAEWIYGANLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYDDSVYFRADGEECFGGQGVFSGPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQG 413
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409


Chain C from PDB  Type:PROTEIN  Length:398
 aligned with LOVD_ASPTE | Q9Y7D1 from UniProtKB/Swiss-Prot  Length:413

    Alignment length:404
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409
           LOVD_ASPTE    10 AADPVVLMETAFRKAVKSRQIPGAVIMARDCSGNLNYTRCFGARTVRRDECNQLPPLQVDTPCRLASATKLLTTIMALQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGHLQSAEKFGIQSRLAPPAVNDPGAEWIYGANLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYDDSVYFRADGEECFGGQGVFSGPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQG 413
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh....eeeeeeee.....eeeeeee....................ee...hhhhhhhhhhhhhhhh............hhhhhhh.eeeee.....eeee......hhhhhhh..........hhhhhhhhhhh.hhhhhhhh.hhhhh..............hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh...ee.hhhhhhhhhh.....eee......eee..------...........eehhhhhhhhhhhhhh......hhhhhhhhh....hhhhhhhhhhhhhhh..............eee....eee..............eeeee...eeeeee....eeeeee..ee...hhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3hlb C  10 AADPVVLMETAFRKAVKSRQIPGAVIMARDASGNLNYTRCFGARTVRRDENNQLPPLQVDTPCRLASATKLLTTIMALQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGHLQSAEKFGIQSRLAPPAVNDPGAEWIYGANLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYDD------DGEECFGGQGVFSGPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQG 413
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249     |   -  |    269       279       289       299       309       319       329       339       349       359       369       379       389       399       409
                                                                                                                                                                                                                                                                               255    262


Chain D from PDB  Type:PROTEIN  Length:393
 aligned with LOVD_ASPTE | Q9Y7D1 from UniProtKB/Swiss-Prot  Length:413

    Alignment length:404
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409
           LOVD_ASPTE    10 AADPVVLMETAFRKAVKSRQIPGAVIMARDCSGNLNYTRCFGARTVRRDECNQLPPLQVDTPCRLASATKLLTTIMALQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGHLQSAEKFGIQSRLAPPAVNDPGAEWIYGANLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYDDSVYFRADGEECFGGQGVFSGPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQG 413
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh....eeeeeeee.....eeeeeee....................ee...hhhhhhhhhhhhhhhh............hhhhhhh.eeeee.....eeee......hhhhhhh..........hhhhhhhhhh..hhhhhhhh.hhhhh..............hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh...ee.hhhhhhhhhh.....eee......eee.-----------.......eehhhhhhhhhhhhhh......hhhhhhhhh....hhhhhhhhhhhhhhh..............eee....eee..............eeeee...eeeeee....eeeeee..ee...hhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3hlb D  10 AADPVVLMETAFRKAVKSRQIPGAVIMARDASGNLNYTRCFGARTVRRDENNQLPPLQVDTPCRLASATKLLTTIMALQCMERGLVDLDETVDRLLPDLSAMPVLEGFDDAGNARLRERRGKITLRHLLTHTSGLSYVFLHPLLREYMAQGHLQSAEKFGIQSRLAPPAVNDPGAEWIYGANLDWAGKLVERATGLDLEQYLQENICAPLGITDMTFKLQQRPDMLARRADQTHRNSADGRLRYD-----------CFGGQGVFSGPGSYMKVLHSLLKRDGLLLQPQTVDLMFQPALEPRLEEQMNQHMDASPHINYGGPMPMVLRRSFGLGGIIALEDLDGENWRRKGSLTFGGGPNIVWQIDPKAGLCTLAFFQLEPWNDPVCRDLTRTFEHAIYAQYQQG 413
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249    |    -      |269       279       289       299       309       319       329       339       349       359       369       379       389       399       409
                                                                                                                                                                                                                                                                              254         266
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3HLB)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3HLB)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3HLB)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (LOVD_ASPTE | Q9Y7D1)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016746    transferase activity, transferring acyl groups    Catalysis of the transfer of an acyl group from one compound (donor) to another (acceptor).
biological process
    GO:0017000    antibiotic biosynthetic process    The chemical reactions and pathways resulting in the formation of an antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms.
    GO:0050832    defense response to fungus    Reactions triggered in response to the presence of a fungus that act to protect the cell or organism.
    GO:0030639    polyketide biosynthetic process    The chemical reactions and pathways resulting in the formation of polyketides, any of a diverse group of natural products synthesized via linear poly-beta-ketones, which are themselves formed by repetitive head-to-tail addition of acetyl (or substituted acetyl) units indirectly derived from acetate (or a substituted acetate) by a mechanism similar to that for fatty acid biosynthesis but without the intermediate reductive steps.
