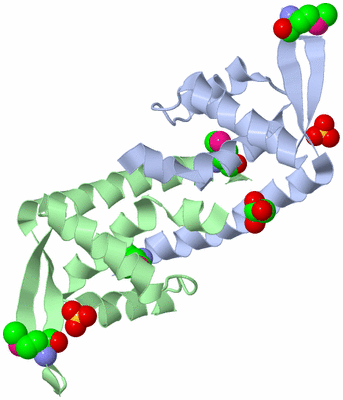

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

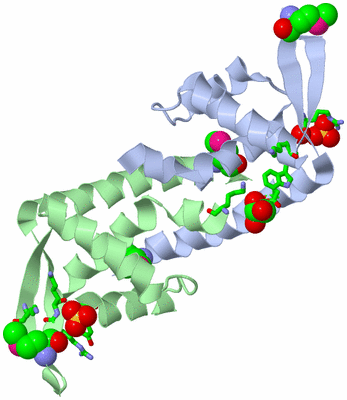

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TRANSCRIPTIONAL REGULATOR, A MEMBER OF PADR FAMILY, FROM ENTEROCOCCUS FAECALIS V583

Authors :  B. Nocek, M. Zhou, S. Moy, A. Joachimiak, Midwest Center For Structu Genomics (Mcsg)
Date :  15 May 09  (Deposition) - 02 Jun 09  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Transcriptional Regulator, Padr Family, Pf03551, Structural Genomics, Psi-2, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Transcription Regulator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. Nocek, M. Zhou, S. Moy, A. Joachimiak
Crystal Structure Of Transcriptional Regulator, A Membar Of Padr Family, From Enterococcus Faecalis V583
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - TRANSCRIPTIONAL REGULATOR, PADR FAMILY
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PMCSG7
    Gene: EF_1297
    Organism Scientific: ENTEROCOCCUS FAECALIS
    Organism Taxid: 1351
    Strain: V583

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 7)

Asymmetric/Biological Unit (3, 7)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL
2MSE4Mod. Amino AcidSELENOMETHIONINE
3SO42Ligand/IonSULFATE ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETRP A:58 , GLU A:84 , LYS B:2BINDING SITE FOR RESIDUE GOL A 1001
2AC2SOFTWARELYS A:55 , ARG A:76 , HOH A:119 , LYS B:63BINDING SITE FOR RESIDUE SO4 A 114
3AC3SOFTWARETYR B:25 , ARG B:72 , LYS B:73BINDING SITE FOR RESIDUE SO4 B 114

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3HHH)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Gln A:36 -Gly A:37
2Gly A:37 -Phe A:38
3Gln B:36 -Gly B:37
4Glu B:67 -Lys B:68

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3HHH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3HHH)

(-) Exons   (0, 0)

(no "Exon" information available for 3HHH)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:102
 aligned with Q835S6_ENTFA | Q835S6 from UniProtKB/TrEMBL  Length:113

    Alignment length:104
                                    11        21        31        41        51        61        71        81        91       101
         Q835S6_ENTFA     2 KQTELLKGILEGLVLAIIQRKETYGYEITKILNDQGFTEIVEGTVYTILLRLEKNQWVIAEKKPSEKGPMRKFYRLTSSGEAELADFWQRWTLLSKQVNKMKKN 105
               SCOP domains d3hhha_ A: automated matches                                                                             SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhh......hhhhhhhhhhhhhhh..eeeeeee..--.eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 3hhh A   2 KQTELLKGILEGLVLAIIQRKETYGYEITKILNDQGFTEIVEGTVYTILLRLEKNQWVIAEKKPSE--PmRKFYRLTSSGEAELADFWQRWTLLSKQVNKmKKN 105
                                    11        21        31        41        51        61     |  71        81        91       101|
                                                                                            67 70|                            102-MSE
                                                                                                71-MSE


Chain B from PDB  Type:PROTEIN  Length:103
 aligned with Q835S6_ENTFA | Q835S6 from UniProtKB/TrEMBL  Length:113

    Alignment length:103
                                    11        21        31        41        51        61        71        81        91       101
         Q835S6_ENTFA     2 KQTELLKGILEGLVLAIIQRKETYGYEITKILNDQGFTEIVEGTVYTILLRLEKNQWVIAEKKPSEKGPMRKFYRLTSSGEAELADFWQRWTLLSKQVNKMKK 104
               SCOP domains d3hhhb_ B: automated matches                                                                            SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhh.hhhhhhhhhhhhhh..hhhhhhhhhhh......hhhhhhhhhhhhhhh..eeeeeeee..eeeeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 3hhh B   2 KQTELLKGILEGLVLAIIQRKETYGYEITKILNDQGFTEIVEGTVYTILLRLEKNQWVIAEKKPSEKGPmRKFYRLTSSGEAELADFWQRWTLLSKQVNKmKK 104
                                    11        21        31        41        51        61        71        81        91       101|
                                                                                                71-MSE                        102-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3HHH)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3HHH)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3HHH)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gln A:36 - Gly A:37   [ RasMol ]
    Gln B:36 - Gly B:37   [ RasMol ]
    Glu B:67 - Lys B:68   [ RasMol ]
    Gly A:37 - Phe A:38   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

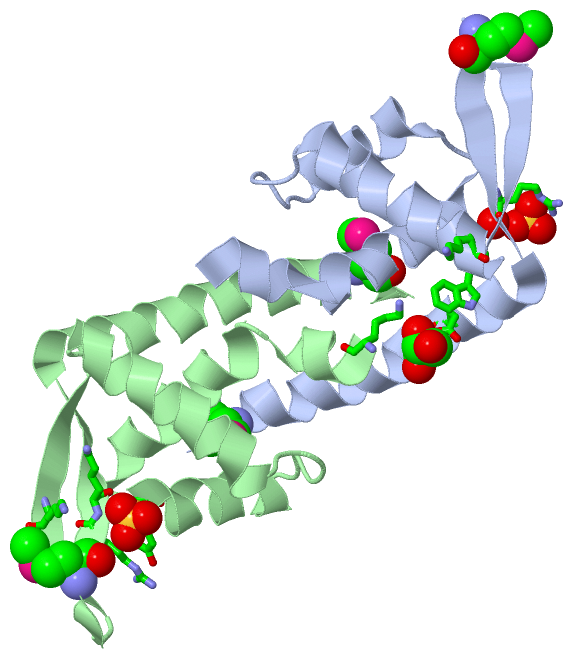

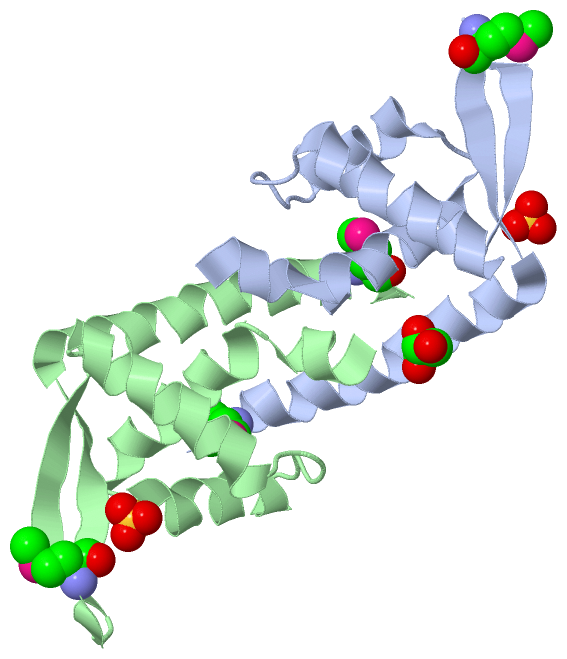

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
