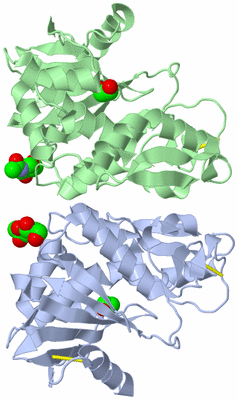

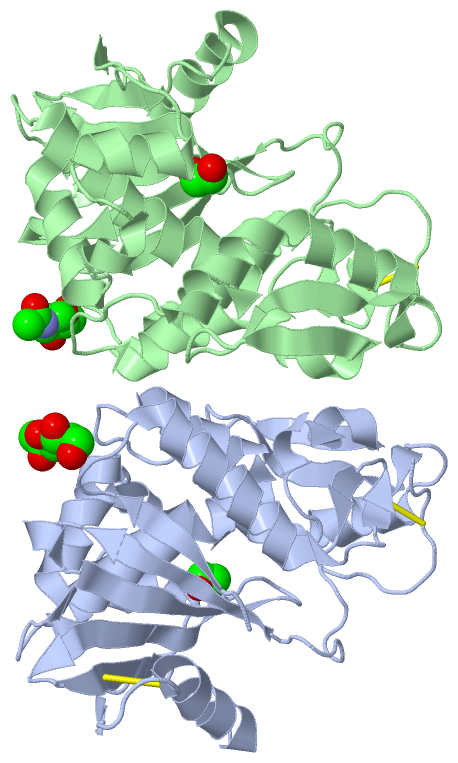

Asymmetric Unit (Jmol Viewer)

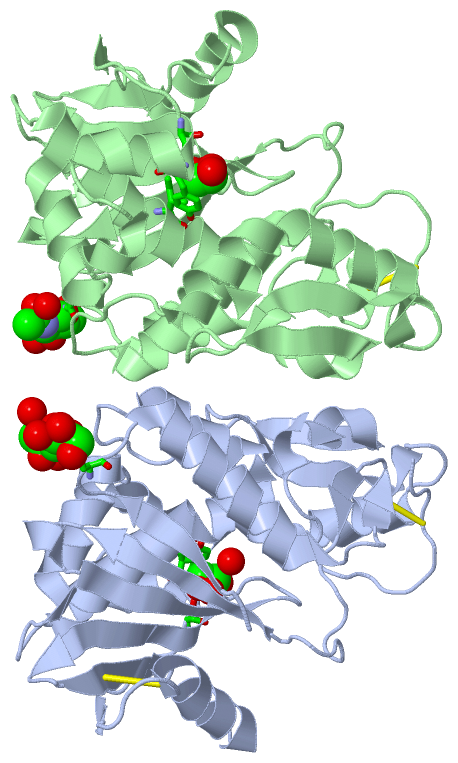

Asym. Unit - sites (Jmol Viewer)

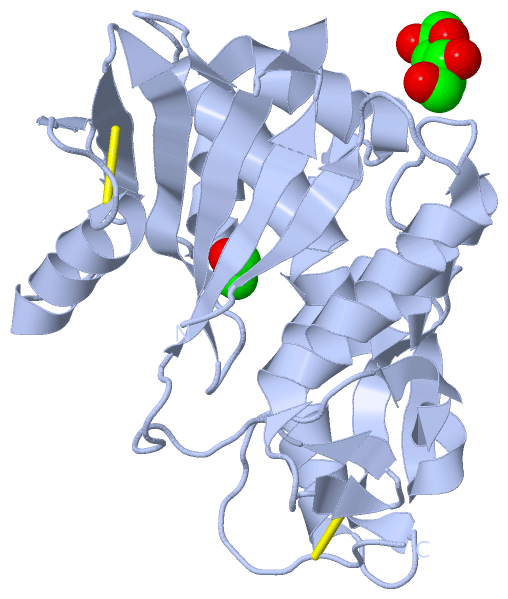

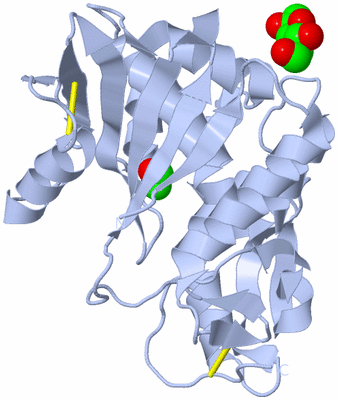

Biological Unit 1 (Jmol Viewer)

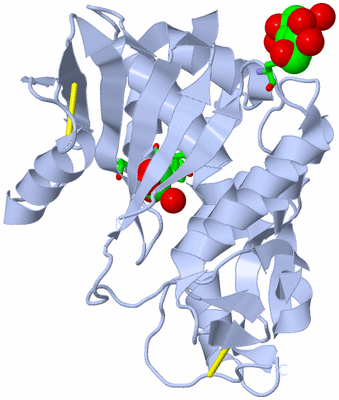

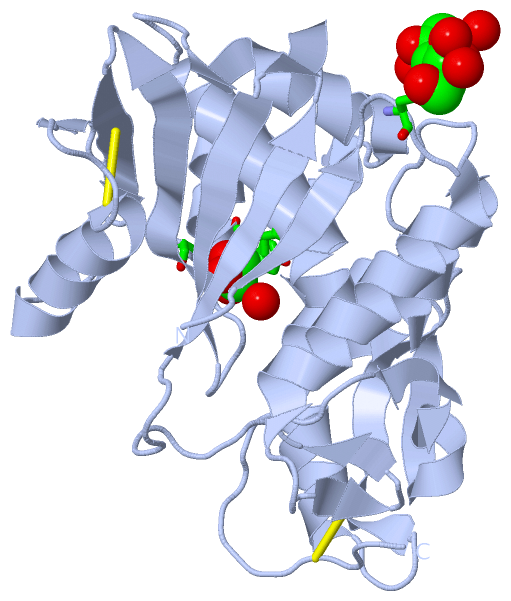

Biol. Unit 1 - sites (Jmol Viewer)

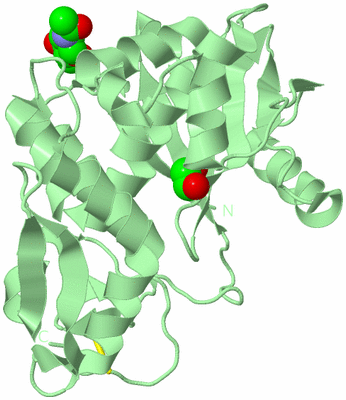

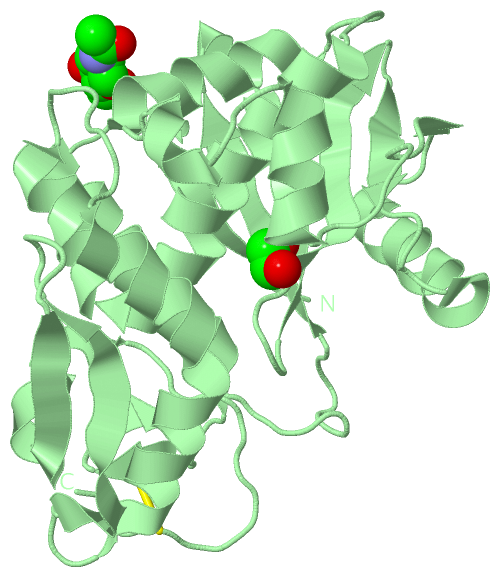

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF THE RIBOSOME INACTIVATING PROTEIN PDL1

Authors :   A. Ruggiero, A. Di Maro, V. Severino, A. Chambery, R. Berisio

Date :   22 Apr 09 (Deposition) - 13 Oct 09 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.45

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Protein, Ribosome Inactivation, Disulfide Bond, Glycoprotein, Hydrolase, Plant Defense, Protein Synthesis Inhibitor, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. Ruggiero, A. Di Maro, V. Severino, A. Chambery, R. Berisio
Crystal Structure Of Pd-L1, A Ribosome Inactivating Protein From Phytolacca Dioica L. Leaves With The Property To Induc Dna Cleavage
Biopolymers V. 91 1135 2009
PubMed-ID: 19452522 | Reference-DOI: 10.1002/BIP.21260

Molecule 1 - RIBOSOME-INACTIVATING PROTEIN PD-L1/PD-L2
	Chains	:	A, B
	EC Number	:	3.2.2.22
	Organism Common	:	BELLA SOMBRA TREE
	Organism Scientific	:	PHYTOLACCA DIOICA
	Organism Taxid	:	29725
	Synonym	:	RRNA N-GLYCOSIDASE PD-L1/PD-L2

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 4)

No.	Name	Count	Type	Full Name
1	EDO	2	Ligand/Ion	1,2-ETHANEDIOL
2	NAG	2	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE

Biological Unit 1 (2, 2)

No.	Name	Count	Type	Full Name
1	EDO	1	Ligand/Ion	1,2-ETHANEDIOL
2	NAG	1	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE

Biological Unit 2 (2, 2)

No.	Name	Count	Type	Full Name
1	EDO	1	Ligand/Ion	1,2-ETHANEDIOL
2	NAG	1	Ligand/Ion	N-ACETYL-D-GLUCOSAMINE

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASN A:10 , HOH A:630 , HOH A:634 , HOH A:673 , HOH A:741 , HOH A:815	BINDING SITE FOR RESIDUE NAG A 263
2	AC2	SOFTWARE	SER A:120 , TYR A:122 , ILE A:170 , HOH A:378 , HOH A:412 , HOH A:507	BINDING SITE FOR RESIDUE EDO A 264
3	AC3	SOFTWARE	ASN B:10 , HOH B:643 , HOH B:804	BINDING SITE FOR RESIDUE NAG B 262
4	AC4	SOFTWARE	SER B:120 , TYR B:122 , ILE B:170 , HOH B:439 , HOH B:448	BINDING SITE FOR RESIDUE EDO B 265

Asymmetric Unit

No.	Residues
1	A:34	-	A:258
2	A:84	-	A:105
3	B:34	-	B:258
4	B:84	-	B:105

(no "Cis Peptide Bond" information available for 3H5K)

(no "SAP(SNP)/Variant" information available for 3H5K)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SHIGA_RICIN	PS00275	Shiga/ricin ribosomal inactivating toxins active site signature.	RIPL1_PHYDI	170-186	2	A:170-186 B:170-186

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SHIGA_RICIN	PS00275	Shiga/ricin ribosomal inactivating toxins active site signature.	RIPL1_PHYDI	170-186	1	A:170-186 -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	SHIGA_RICIN	PS00275	Shiga/ricin ribosomal inactivating toxins active site signature.	RIPL1_PHYDI	170-186	1	- B:170-186

(no "Exon" information available for 3H5K)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:261
 aligned with RIPL1_PHYDI | P84853 from UniProtKB/Swiss-Prot  Length:261

    Alignment length:261
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260
          RIPL1_PHYDI     1 INTITYDAGNTTINKYATFMESLRNEAKDPSLQCYGIPMLPNNSSTIKYLLVKLQGASQKTITLMLRRNNLYVMGYSDPFNGNCRYHIFNDITGTERTNVENTLCSSSSSRDAKPINYNSLYSTLEKKAEVNSRSQVQLGIQILSSDIGKISGQSSFTDKTEAKFLLVAIQMVSEAARFKYIENQVKTNFNRDFSPNDKILDLEENWGKISTAIHDATNGALPKPLELKNADGTKWIVLRVDEIKPDMGLLNYVNGTCQTT 261
               SCOP domains d3h5ka_ A: automated matches                                                                                                                                                                                                                                          SCOP domains
               CATH domains 3h5kA01 A:1-177 Ricin (A subunit), domain 1                                                                                                                                      3h5kA02 A:178-258 Ricin (A Subunit), domain 2                                    --- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee....hhhhhhhhhhhhhhhhh....ee..ee..........eeeeeee.hhh.eeeeeee.....eeeeeeee..eeeeee.....hhhhhhhhhhhh.....eee.......hhhhhhhhh...hhhhh..hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhh....eeeeeeeee.....eeeeeehhhhhhhh............. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------SHIGA_RICIN      --------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3h5k A   1 INTITYDAGNTTINKYATFMESLRNEAKDPSLQCYGIPMLPNNSSTIKYLLVKLQGASQKTITLMLRRNNLYVMGYSDPFNGNCRYHIFNDITGTERTNVENTLCSSSSSRDAKPINYNSLYSTLEKKAEVNSRSQVQLGIQILSSDIGKISGQSSFTDKTEAKFLLVAIQMVSEAARFKYIENQVKTNFNRDFSPNDKILDLEENWGKISTAIHDATNGALPKPLELKNADGTKWIVLRVDEIKPDMGLLNYVNGTCQTT 261
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260

Chain B from PDB  Type:PROTEIN  Length:261
 aligned with RIPL1_PHYDI | P84853 from UniProtKB/Swiss-Prot  Length:261

    Alignment length:261
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260
          RIPL1_PHYDI     1 INTITYDAGNTTINKYATFMESLRNEAKDPSLQCYGIPMLPNNSSTIKYLLVKLQGASQKTITLMLRRNNLYVMGYSDPFNGNCRYHIFNDITGTERTNVENTLCSSSSSRDAKPINYNSLYSTLEKKAEVNSRSQVQLGIQILSSDIGKISGQSSFTDKTEAKFLLVAIQMVSEAARFKYIENQVKTNFNRDFSPNDKILDLEENWGKISTAIHDATNGALPKPLELKNADGTKWIVLRVDEIKPDMGLLNYVNGTCQTT 261
               SCOP domains d3h5kb_ B: automated matches                                                                                                                                                                                                                                          SCOP domains
               CATH domains 3h5kB01 B:1-177 Ricin (A subunit), domain 1                                                                                                                                      3h5kB02 B:178-258 Ricin (A Subunit), domain 2                                    --- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee....hhhhhhhhhhhhhhhhh....ee..ee..........eeeeeee.hhh.eeeeeee.....eeeeeeee..eeeeee....hhhhhhhhhhhhh.....eee.......hhhhhhhhh...hhhhh..hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhh...eeeeeeeee.....eeeeeehhhhhhhh............. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------SHIGA_RICIN      --------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3h5k B   1 INTITYDAGNTTINKYATFMESLRNEAKDPSLQCYGIPMLPNNSSTIKYLLVKLQGASQKTITLMLRRNNLYVMGYSDPFNGNCRYHIFNDITGTERTNVENTLCSSSSSRDAKPINYNSLYSTLEKKAEVNSRSQVQLGIQILSSDIGKISGQSSFTDKTEAKFLLVAIQMVSEAARFKYIENQVKTNFNRDFSPNDKILDLEENWGKISTAIHDATNGALPKPLELKNADGTKWIVLRVDEIKPDMGLLNYVNGTCQTT 261
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Ribosome inactivating proteins (RIP) (180)

Superfamily: Ribosome inactivating proteins (RIP) (180)

Family: Plant cytotoxins (166)

Protein domain: automated matches (73)

Phytolacca dioica [TaxId: 29725] (6)

1a	d3h5ka_	A:
1b	d3h5kb_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Ricin (A subunit); domain 1 (112)

Homologous Superfamily: Ricin (A subunit), domain 1 (112)

Bella sombra tree (Phytolacca dioica) (2)

1a	3h5kA01	A:1-177
1b	3h5kB01	B:1-177

Class: Few Secondary Structures (1120)

Architecture: Irregular (1120)

Topology: Ricin (A Subunit), domain 2 (112)

Homologous Superfamily: Ricin (A Subunit), domain 2 (112)

Bella sombra tree (Phytolacca dioica) (2)

2a	3h5kA02	A:178-258
2b	3h5kB02	B:178-258

(no "Pfam Domain" information available for 3H5K)

Asymmetric Unit(hide GO term definitions)

Chain A,B (RIPL1_PHYDI | P84853)

molecular function
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0030598	rRNA N-glycosylase activity	Catalysis of the hydrolysis of the N-glycosylic bond at A-4324 in 28S rRNA from rat ribosomes or corresponding sites in 28S RNA from other species.
biological process
	GO:0006952	defense response	Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
	GO:0017148	negative regulation of translation	Any process that stops, prevents, or reduces the frequency, rate or extent of the chemical reactions and pathways resulting in the formation of proteins by the translation of mRNA or circRNA.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		EDO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		NAG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3h5k)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3h5k
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RIPL1_PHYDI \| P84853
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.2.2.22
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RIPL1_PHYDI \| P84853
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	RIPL1_PHYDI \| P84853	:	3le7

2qet	STRUCTURE OF THE MUTANT S211A OF THE RIBOSOME INACTIVATING PROTEIN PDL4 FROM P. DIOICA IN COMPLEX WITH ADENINE
2z4u	CRYSTAL STRUCTURE OF WILD TYPE PD-L4 FROM PHYTOLACCA DIOICA LEAVES
2z53	CRYSTAL STRUCTURE OF THE S211A MUTANT OF THE RIBOSOME INACTIVATING PROTEIN PDL4 FROM P. DIOICA LEAVES
