3GZ2 - JenaLib

Molecule 1 - CHAPERONE PROTEIN IPGC
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET28A
	Expression System Strain	:	BL21(DE3) RIL
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Fragment	:	RESIDUES 1-151
	Gene	:	IPGC
	Mutation	:	YES
	Organism Scientific	:	SHIGELLA FLEXNERI
	Organism Taxid	:	623
	Strain	:	M90T

Molecule 2 - INVASIN IPAB
	Chains	:	P
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET28A
	Expression System Strain	:	BL21(DE3) RIL
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Fragment	:	CHAPERONE BINDING REGIONS OF IPAB, RESIDUES 16-72
	Gene	:	IPAB
	Organism Scientific	:	SHIGELLA FLEXNERI
	Organism Taxid	:	623
	Strain	:	M90T
	Synonym	:	62 KDA ANTIGEN

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 3)

Sites (3, 3)

SS Bonds (0, 0)

Cis Peptide Bonds (2, 2)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:144
 aligned with IPGC_SHIFL | P0A2U4 from UniProtKB/Swiss-Prot  Length:155

    Alignment length:144
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147
           IPGC_SHIFL     8 NESISTAVIDAINSGATLKDINAIPDDMMDDIYSYAYDFYNKGRIEEAEVFFRFLCIYDFYNVDYIMGLAAIYQIKEQFQQAADLYAVAFALGKNDYTPVFHTGQCQLRLKAPLKAKECFELVIQHSNDEKLKIKAQSYLDAIQ 151
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhh..hhhhhh..hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3gz2 A   8 NESISTAVIDAINSGATLKDINAIPDDMMDDIYSYAYDFYNKGRIEEAEVFFRFLCIYDFYNVDYIMGLAAIYQIKEQFQQAADLYAVAFALGKNDYTPVFHTGQCQLRLKAPLKAKECFELVIQHSNDEKLKIKAQSYLDAIQ 151
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147

Chain B from PDB  Type:PROTEIN  Length:143
 aligned with IPGC_SHIFL | P0A2U4 from UniProtKB/Swiss-Prot  Length:155

    Alignment length:143
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148
           IPGC_SHIFL     9 ESISTAVIDAINSGATLKDINAIPDDMMDDIYSYAYDFYNKGRIEEAEVFFRFLCIYDFYNVDYIMGLAAIYQIKEQFQQAADLYAVAFALGKNDYTPVFHTGQCQLRLKAPLKAKECFELVIQHSNDEKLKIKAQSYLDAIQ 151
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhh.hhhhhh....hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh....hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3gz2 B   9 ESISTAVIDAINSGATLKDINAIPDDMMDDIYSYAYDFYNKGRIEEAEVFFRFLCIYDFYNVDYIMGLAAIYQIKEQFQQAADLYAVAFALGKNDYTPVFHTGQCQLRLKAPLKAKECFELVIQHSNDEKLKIKAQSYLDAIQ 151
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148

Chain P from PDB  Type:PROTEIN  Length:7
 aligned with IPAB_SHIFL | P18011 from UniProtKB/Swiss-Prot  Length:580

    Alignment length:7
           IPAB_SHIFL    64 IPELKAP  70
               SCOP domains ------- SCOP domains
               CATH domains ------- CATH domains
               Pfam domains ------- Pfam domains
         Sec.struct. author ....... Sec.struct. author
                 SAPs(SNPs) ------- SAPs(SNPs)
                    PROSITE ------- PROSITE
                 Transcript ------- Transcript
                 3gz2 P  64 IPELKAP  70

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (10, 11)

Asymmetric Unit(hide GO term definitions)

Chain A,B (IPGC_SHIFL | P0A2U4)

biological process
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
	GO:0006950	response to stress	Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a disturbance in organismal or cellular homeostasis, usually, but not necessarily, exogenous (e.g. temperature, humidity, ionizing radiation).
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Chain P (IPAB_SHIFL | P18011)

molecular function
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
	GO:0033644	host cell membrane	Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
	GO:0042025	host cell nucleus	A membrane-bounded organelle as it is found in the host cell in which chromosomes are housed and replicated. The host is defined as the larger of the organisms involved in a symbiotic interaction.
	GO:0020002	host cell plasma membrane	The plasma membrane surrounding a host cell.
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Visualization

Interactive Views

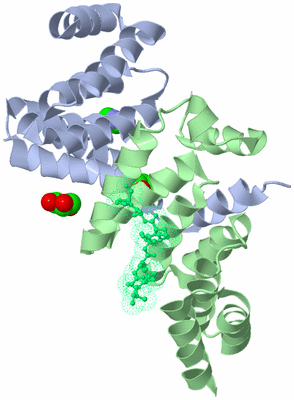

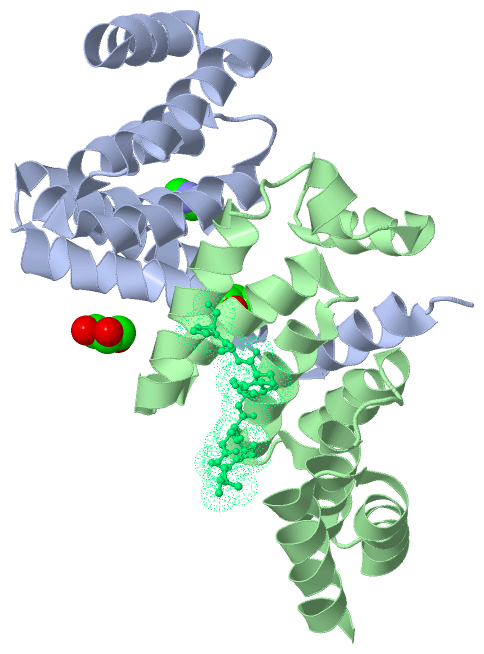

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		GOL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		IMD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

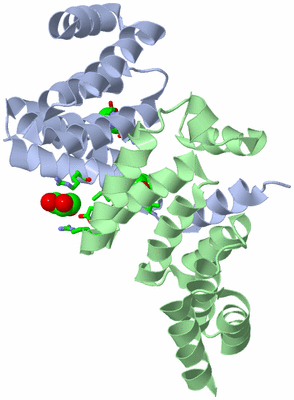

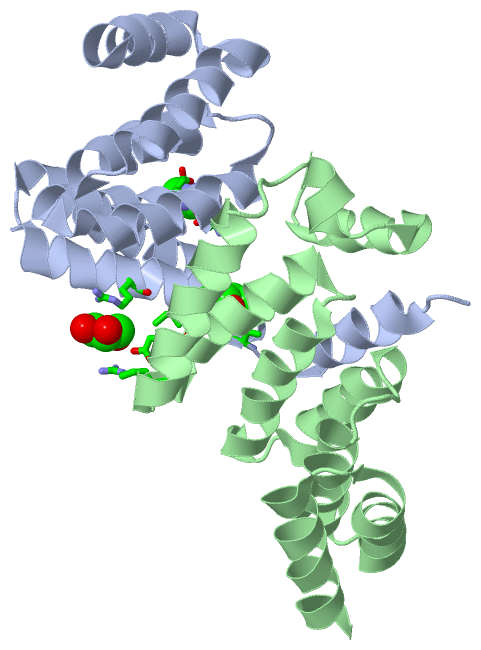

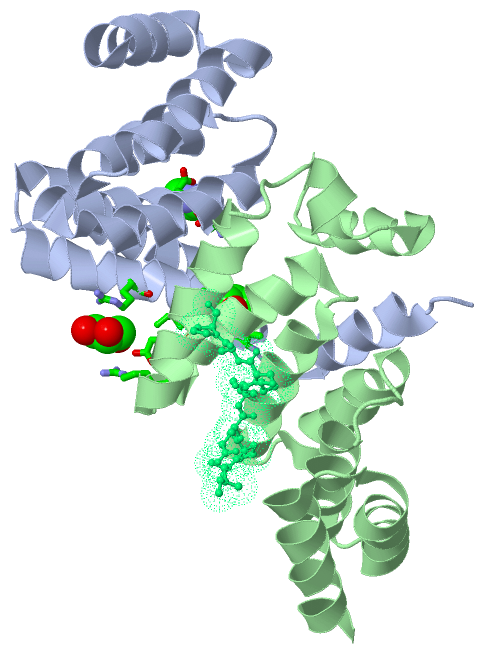

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ala P:69 - Pro P:70	[ RasMol ]
		Ile P:64 - Pro P:65	[ RasMol ]

Biological Units
	Complete Structure

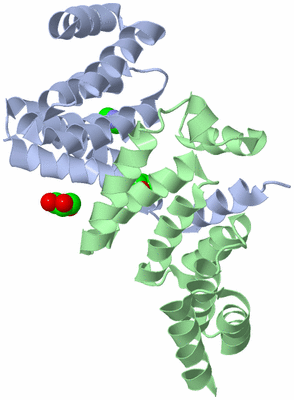

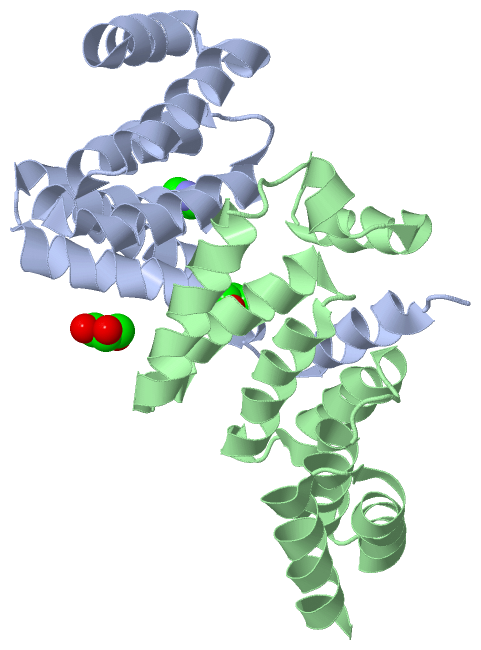

		Biological Unit 1	[ Jena3D ]

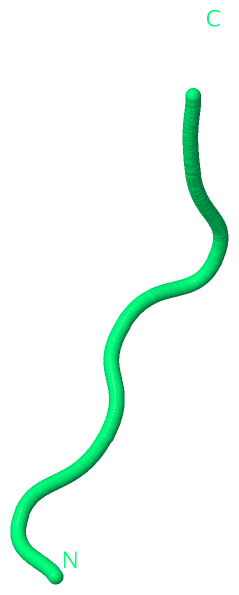

		Biological Unit 2	[ Jena3D ]

Still Images
