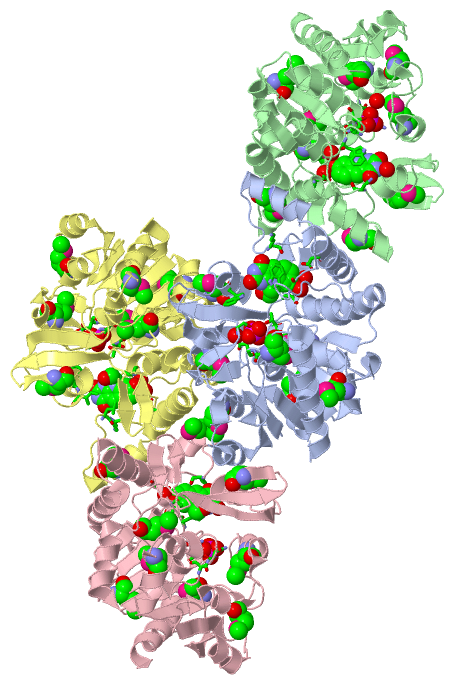

Asym. Unit - sites (Jmol Viewer)

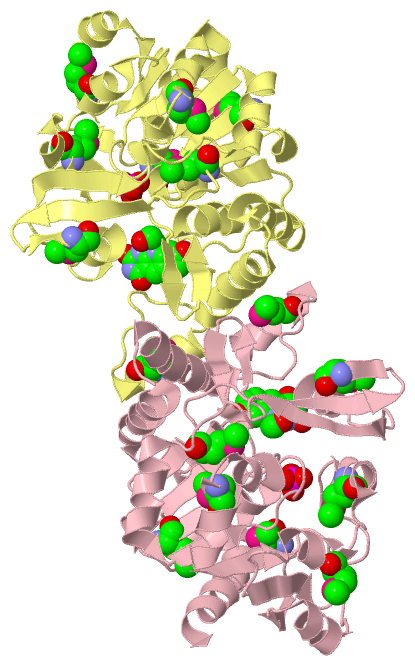

Biological Unit 1 (Jmol Viewer)

Biol. Unit 1 - sites (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF 2-PHOSPHO-(S)-LACTATE TRANSFERASE FROM METHANOSARCINA MAZEI IN COMPLEX WITH FO AND PHOSPHATE. NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET MAR46

Authors :   F. Forouhar, M. Abashidze, H. Xu, L. L. Grochowski, J. Seetharaman, M. Hussain, A. P. Kuzin, Y. Chen, W. Zhou, R. Xiao, T. B. Acton, G. T. Montelione, A. Galinier, R. H. White, L. Tong, Northeast Structural Genomics Consortium (Nesg)

Date :   28 Jan 08 (Deposition) - 19 Feb 08 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.50

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)

Keywords :   Alpha-Beta Protein, Structural Genomics, Psi-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Magnesium, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   F. Forouhar, M. Abashidze, H. Xu, L. L. Grochowski, J. Seetharaman, M. Hussain, A. Kuzin, Y. Chen, W. Zhou, R. Xiao, T. B. Acton, G. T. Montelione, A. Galinier, R. H. White, L. Tong
Molecular Insights Into The Biosynthesis Of The F420 Coenzyme.
J. Biol. Chem. V. 283 11832 2008
PubMed-ID: 18252724 | Reference-DOI: 10.1074/JBC.M710352200
(for further references see the PDB file header)

Molecule 1 - 2-PHOSPHO-L-LACTATE TRANSFERASE
	Atcc	:	BAA-159
	Chains	:	A, B, C, D
	EC Number	:	2.7.8.-
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET21
	Expression System Strain	:	BL21(DE3)+MAGIC
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	COFD, MM_1874
	Organism Scientific	:	METHANOSARCINA MAZEI GO1
	Organism Taxid	:	192952
	Strain	:	GO1 / DSM 3647 / GOE1 / JCM 11883 / OCM 88

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 40)

No.	Name	Count	Type	Full Name
1	FO1	4	Ligand/Ion	1-DEOXY-1-(8-HYDROXY-2,4-DIOXO-3,4-DIHYDROPYRIMIDO[4,5-B]QUINOLIN-10(2H)-YL)-D-RIBITOL
2	MSE	32	Mod. Amino Acid	SELENOMETHIONINE
3	PO4	4	Ligand/Ion	PHOSPHATE ION

Biological Unit 1 (3, 20)

No.	Name	Count	Type	Full Name
1	FO1	2	Ligand/Ion	1-DEOXY-1-(8-HYDROXY-2,4-DIOXO-3,4-DIHYDROPYRIMIDO[4,5-B]QUINOLIN-10(2H)-YL)-D-RIBITOL
2	MSE	16	Mod. Amino Acid	SELENOMETHIONINE
3	PO4	2	Ligand/Ion	PHOSPHATE ION

Biological Unit 2 (3, 20)

No.	Name	Count	Type	Full Name
1	FO1	2	Ligand/Ion	1-DEOXY-1-(8-HYDROXY-2,4-DIOXO-3,4-DIHYDROPYRIMIDO[4,5-B]QUINOLIN-10(2H)-YL)-D-RIBITOL
2	MSE	16	Mod. Amino Acid	SELENOMETHIONINE
3	PO4	2	Ligand/Ion	PHOSPHATE ION

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	GLY A:7 , THR A:8 , SER A:192 , ASN A:193 , SER A:197 , SER A:229 , HOH A:476	BINDING SITE FOR RESIDUE PO4 A 402
2	AC2	SOFTWARE	GLY B:7 , THR B:8 , SER B:192 , ASN B:193 , SER B:197 , HOH B:443	BINDING SITE FOR RESIDUE PO4 B 402
3	AC3	SOFTWARE	GLY C:7 , THR C:8 , SER C:192 , ASN C:193 , SER C:197	BINDING SITE FOR RESIDUE PO4 C 402
4	AC4	SOFTWARE	GLY D:7 , THR D:8 , SER D:192 , ASN D:193 , SER D:197 , SER D:229 , HOH D:405	BINDING SITE FOR RESIDUE PO4 D 402
5	AC5	SOFTWARE	PRO A:45 , TRP A:64 , LYS A:87 , ASP A:92 , TRP A:151 , HOH A:452 , HOH A:481	BINDING SITE FOR RESIDUE FO1 A 401
6	AC6	SOFTWARE	PRO B:45 , TRP B:64 , LYS B:87 , ASP B:92 , HOH B:407 , HOH B:445 , HOH B:447	BINDING SITE FOR RESIDUE FO1 B 401
7	AC7	SOFTWARE	PRO C:45 , TRP C:64 , LYS C:87 , ASP C:92 , HOH C:407 , HOH C:429	BINDING SITE FOR RESIDUE FO1 C 401
8	AC8	SOFTWARE	PRO D:45 , TRP D:64 , LEU D:86 , LYS D:87 , ASP D:92 , TRP D:151 , ILE D:152 , HOH D:404 , HOH D:480	BINDING SITE FOR RESIDUE FO1 D 401

(no "SS Bond" information available for 3C3D)

(no "Cis Peptide Bond" information available for 3C3D)

(no "SAP(SNP)/Variant" information available for 3C3D)

(no "PROSITE Motif" information available for 3C3D)

(no "Exon" information available for 3C3D)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:306
 aligned with COFD_METMA | Q8PVT6 from UniProtKB/Swiss-Prot  Length:303

    Alignment length:306
                                                                                                                                                                                                                                                                                                                                        303
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300  |
           COFD_METMA     1 MIIFSGGTGTPKLLDGLKEILPEEELTVVVNTAEDLWVSGNLISPDLDTVLYLFSDQIDRKRWWGIENDTFGTYERMKELGIEEGLKLGDRDRATHIIRSNIIRDGASLTDSTVKLSSLFGIKANILPMSDDPVSTYIETAEGIMHFQDFWIGKRGEPDVRGVDIRGVSEASISPKVLEAFEKEENILIGPSNPITSIGPIISLPGMRELLKKKKVVAVSPIIGNAPVSGPAGKLMPACGIEVSSMGVAEYYQDFLDVFVFDERDRADEFAFERLGCHASRADTLMTSTEKSKELAEIVVQAF---   -
               SCOP domains d3c3da_ A: LPPG:FO 2-phospho-L-lactate transferase CofD                                                                                                                                                                                                                                                            SCOP domains
               CATH domains -3c3dA01 A:2-34,A:123-306         3c3dA02 A:35-122 CofD-like domain                                                       3c3dA01 A:2-34,A:123-306 CofD-like domains                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeee..hhhhhhhhhhh...hhhh.eeee.....eee..eeehhhhhhhhhhh................hhhhhhhhhh........hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh...eeee......eeeeee...eeehhhhhh.......eeeeeee.......hhhhhhhhhhh.eeee........hhhhhhh.hhhhhhhh.eeeee..ee..ee...hhhhhhhhhh...hhhhhhhhhh....eeeee.hhh.hhhhhhhhh.eeeee.....hhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3c3d A   1 mIIFSGGTGTPKLLDGLKEILPEEELTVVVNTAEDLWVSGNLISPDLDTVLYLFSDQIDRKRWWGIENDTFGTYERmKELGIEEGLKLGDRDRATHIIRSNIIRDGASLTDSTVKLSSLFGIKANILPmSDDPVSTYIETAEGImHFQDFWIGKRGEPDVRGVDIRGVSEASISPKVLEAFEKEENILIGPSNPITSIGPIISLPGmRELLKKKKVVAVSPIIGNAPVSGPAGKLmPACGIEVSSmGVAEYYQDFLDVFVFDERDRADEFAFERLGCHASRADTLmTSTEKSKELAEIVVQAFLEH 306
                            |       10        20        30        40        50        60        70      | 80        90       100       110       120       130       140    |  150       160       170       180       190       200      |210       220       230     | 240     | 250       260       270       280     | 290       300
                            |                                                                          77-MSE                                             129-MSE         145-MSE                                                       207-MSE                      236-MSE   246-MSE                                 286-MSE
                            1-MSE

Chain B from PDB  Type:PROTEIN  Length:306
 aligned with COFD_METMA | Q8PVT6 from UniProtKB/Swiss-Prot  Length:303

    Alignment length:306
                                                                                                                                                                                                                                                                                                                                        303
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300  |
           COFD_METMA     1 MIIFSGGTGTPKLLDGLKEILPEEELTVVVNTAEDLWVSGNLISPDLDTVLYLFSDQIDRKRWWGIENDTFGTYERMKELGIEEGLKLGDRDRATHIIRSNIIRDGASLTDSTVKLSSLFGIKANILPMSDDPVSTYIETAEGIMHFQDFWIGKRGEPDVRGVDIRGVSEASISPKVLEAFEKEENILIGPSNPITSIGPIISLPGMRELLKKKKVVAVSPIIGNAPVSGPAGKLMPACGIEVSSMGVAEYYQDFLDVFVFDERDRADEFAFERLGCHASRADTLMTSTEKSKELAEIVVQAF---   -
               SCOP domains d3c3db_ B: LPPG:FO 2-phospho-L-lactate transferase CofD                                                                                                                                                                                                                                                            SCOP domains
               CATH domains -3c3dB01 B:2-34,B:123-306         3c3dB02 B:35-122 CofD-like domain                                                       3c3dB01 B:2-34,B:123-306 CofD-like domains                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeee..hhhhhhhhhhh...hhhh.eeee.....eee..eeehhhhhhhhhhh................hhhhhhhhhh........hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh....eeee......eeeeee..eeeehhhhhh.......eeeeeee.......hhhhhhhhhhh.eeee........hhhhhhh.hhhhhhhh.eeeee...........hhhhhhhhhh...hhhhhhhhhh....eeeee.....hhhhhhhhh.eeeee.....hhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3c3d B   1 mIIFSGGTGTPKLLDGLKEILPEEELTVVVNTAEDLWVSGNLISPDLDTVLYLFSDQIDRKRWWGIENDTFGTYERmKELGIEEGLKLGDRDRATHIIRSNIIRDGASLTDSTVKLSSLFGIKANILPmSDDPVSTYIETAEGImHFQDFWIGKRGEPDVRGVDIRGVSEASISPKVLEAFEKEENILIGPSNPITSIGPIISLPGmRELLKKKKVVAVSPIIGNAPVSGPAGKLmPACGIEVSSmGVAEYYQDFLDVFVFDERDRADEFAFERLGCHASRADTLmTSTEKSKELAEIVVQAFLEH 306
                            |       10        20        30        40        50        60        70      | 80        90       100       110       120       130       140    |  150       160       170       180       190       200      |210       220       230     | 240     | 250       260       270       280     | 290       300
                            1-MSE                                                                      77-MSE                                             129-MSE         145-MSE                                                       207-MSE                      236-MSE   246-MSE                                 286-MSE

Chain C from PDB  Type:PROTEIN  Length:306
 aligned with COFD_METMA | Q8PVT6 from UniProtKB/Swiss-Prot  Length:303

    Alignment length:306
                                                                                                                                                                                                                                                                                                                                        303
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300  |
           COFD_METMA     1 MIIFSGGTGTPKLLDGLKEILPEEELTVVVNTAEDLWVSGNLISPDLDTVLYLFSDQIDRKRWWGIENDTFGTYERMKELGIEEGLKLGDRDRATHIIRSNIIRDGASLTDSTVKLSSLFGIKANILPMSDDPVSTYIETAEGIMHFQDFWIGKRGEPDVRGVDIRGVSEASISPKVLEAFEKEENILIGPSNPITSIGPIISLPGMRELLKKKKVVAVSPIIGNAPVSGPAGKLMPACGIEVSSMGVAEYYQDFLDVFVFDERDRADEFAFERLGCHASRADTLMTSTEKSKELAEIVVQAF---   -
               SCOP domains d3c3dc_ C: LPPG:FO 2-phospho-L-lactate transferase CofD                                                                                                                                                                                                                                                            SCOP domains
               CATH domains -3c3dC01 C:2-34,C:123-306         3c3dC02 C:35-122 CofD-like domain                                                       3c3dC01 C:2-34,C:123-306 CofD-like domains                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeee..hhhhhhhhhhh...hhhh.eeee.....eee..eeehhhhhhhhhhh................hhhhhhhhhh........hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh...eeee......eeeeee..eeeehhhhhh.......eeeeeee.......hhhhhhhhhhh.eeee........hhhhhhh.hhhhhhhh.eeeee...........hhhhhhhhhh...hhhhhhhhh.....eeeee.....hhhhhhhh..eeeee.....hhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3c3d C   1 mIIFSGGTGTPKLLDGLKEILPEEELTVVVNTAEDLWVSGNLISPDLDTVLYLFSDQIDRKRWWGIENDTFGTYERmKELGIEEGLKLGDRDRATHIIRSNIIRDGASLTDSTVKLSSLFGIKANILPmSDDPVSTYIETAEGImHFQDFWIGKRGEPDVRGVDIRGVSEASISPKVLEAFEKEENILIGPSNPITSIGPIISLPGmRELLKKKKVVAVSPIIGNAPVSGPAGKLmPACGIEVSSmGVAEYYQDFLDVFVFDERDRADEFAFERLGCHASRADTLmTSTEKSKELAEIVVQAFLEH 306
                            |       10        20        30        40        50        60        70      | 80        90       100       110       120       130       140    |  150       160       170       180       190       200      |210       220       230     | 240     | 250       260       270       280     | 290       300
                            1-MSE                                                                      77-MSE                                             129-MSE         145-MSE                                                       207-MSE                      236-MSE   246-MSE                                 286-MSE

Chain D from PDB  Type:PROTEIN  Length:306
 aligned with COFD_METMA | Q8PVT6 from UniProtKB/Swiss-Prot  Length:303

    Alignment length:306
                                                                                                                                                                                                                                                                                                                                        303
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300  |
           COFD_METMA     1 MIIFSGGTGTPKLLDGLKEILPEEELTVVVNTAEDLWVSGNLISPDLDTVLYLFSDQIDRKRWWGIENDTFGTYERMKELGIEEGLKLGDRDRATHIIRSNIIRDGASLTDSTVKLSSLFGIKANILPMSDDPVSTYIETAEGIMHFQDFWIGKRGEPDVRGVDIRGVSEASISPKVLEAFEKEENILIGPSNPITSIGPIISLPGMRELLKKKKVVAVSPIIGNAPVSGPAGKLMPACGIEVSSMGVAEYYQDFLDVFVFDERDRADEFAFERLGCHASRADTLMTSTEKSKELAEIVVQAF---   -
               SCOP domains d3c3dd_ D: LPPG:FO 2-phospho-L-lactate transferase CofD                                                                                                                                                                                                                                                            SCOP domains
               CATH domains -3c3dD01 D:2-34,D:123-306         3c3dD02 D:35-122 CofD-like domain                                                       3c3dD01 D:2-34,D:123-306 CofD-like domains                                                                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeee..hhhhhhhhhhh...hhhh.eeee.....eee..eeehhhhhhhhhhh................hhhhhhhhhh........hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh...eeee......eeeeee..eeeehhhhhh.......eeeeeee.......hhhhhhhhhhh.eeee........hhhhhhh.hhhhhhhh.eeeee..ee..ee...hhhhhhhhhh...hhhhhhhhhh....eeeee.hhh.hhhhhhhhh.eeeee.....hhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3c3d D   1 mIIFSGGTGTPKLLDGLKEILPEEELTVVVNTAEDLWVSGNLISPDLDTVLYLFSDQIDRKRWWGIENDTFGTYERmKELGIEEGLKLGDRDRATHIIRSNIIRDGASLTDSTVKLSSLFGIKANILPmSDDPVSTYIETAEGImHFQDFWIGKRGEPDVRGVDIRGVSEASISPKVLEAFEKEENILIGPSNPITSIGPIISLPGmRELLKKKKVVAVSPIIGNAPVSGPAGKLmPACGIEVSSmGVAEYYQDFLDVFVFDERDRADEFAFERLGCHASRADTLmTSTEKSKELAEIVVQAFLEH 306
                            |       10        20        30        40        50        60        70      | 80        90       100       110       120       130       140    |  150       160       170       180       190       200      |210       220       230     | 240     | 250       260       270       280     | 290       300
                            1-MSE                                                                      77-MSE                                             129-MSE         145-MSE                                                       207-MSE                      236-MSE   246-MSE                                 286-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: CofD-like (6)

Superfamily: CofD-like (6)

Family: CofD-like (5)

Protein domain: LPPG:FO 2-phospho-L-lactate transferase CofD (3)

Methanosarcina mazei [TaxId: 2209] (3)

1a	d3c3da_	A:
1b	d3c3db_	B:
1c	d3c3dc_	C:
1d	d3c3dd_	D:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: CofD-like domains (3)

Methanosarcina mazei go1. Organism_taxid: 192952. Strain: go1 / dsm 3647 / goe1 / jcm 11883 / ocm 88. (3)

1a	3c3dA01	A:2-34,A:123-306
1b	3c3dB01	B:2-34,B:123-306
1c	3c3dC01	C:2-34,C:123-306
1d	3c3dD01	D:2-34,D:123-306

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Helicase, Ruva Protein; domain 3 (218)

Homologous Superfamily: CofD-like domain (3)

Methanosarcina mazei go1. Organism_taxid: 192952. Strain: go1 / dsm 3647 / goe1 / jcm 11883 / ocm 88. (3)

2a	3c3dA02	A:35-122
2b	3c3dB02	B:35-122
2c	3c3dC02	C:35-122
2d	3c3dD02	D:35-122

(no "Pfam Domain" information available for 3C3D)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (COFD_METMA | Q8PVT6)

molecular function
	GO:0000287	magnesium ion binding	Interacting selectively and non-covalently with magnesium (Mg) ions.
	GO:0016773	phosphotransferase activity, alcohol group as acceptor	Catalysis of the transfer of a phosphorus-containing group from one compound (donor) to an alcohol group (acceptor).
	GO:0016780	phosphotransferase activity, for other substituted phosphate groups	Catalysis of the transfer of a substituted phosphate group, other than diphosphate or nucleotidyl residues, from one compound (donor) to a another (acceptor).
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
	GO:0009108	coenzyme biosynthetic process	The chemical reactions and pathways resulting in the formation of coenzymes, any of various nonprotein organic cofactors that are required, in addition to an enzyme and a substrate, for an enzymatic reaction to proceed.
	GO:0051188	cofactor biosynthetic process	The chemical reactions and pathways resulting in the formation of a cofactor, a substance that is required for the activity of an enzyme or other protein.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FO1	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3c3d)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3c3d
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	COFD_METMA \| Q8PVT6
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.7.8.-
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	COFD_METMA \| Q8PVT6
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	COFD_METMA \| Q8PVT6	:	3c3e 3cgw

3c3e	CRYSTAL STRUCTURE OF 2-PHOSPHO-(S)-LACTATE TRANSFERASE FROM METHANOSARCINA MAZEI IN COMPLEX WITH FO AND GDP. NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET MAR46
3cgw	CRYSTAL STRUCTURE OF 2-PHOSPHO-(S)-LACTATE TRANSFERASE FROM METHANOSARCINA MAZEI. NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET MAR46

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 40)

Sites (8, 8)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (2, 8)

Pfam Domains (0, 0)

Gene Ontology (6, 6)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
