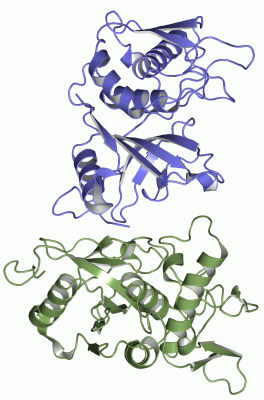

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

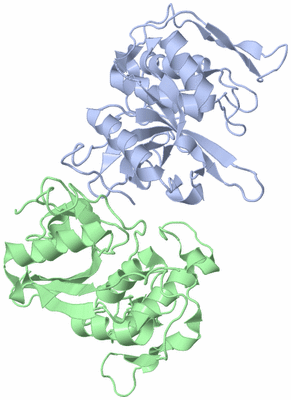

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

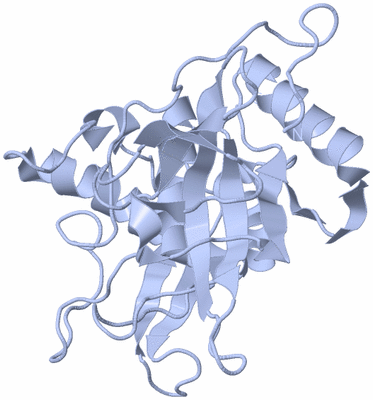

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

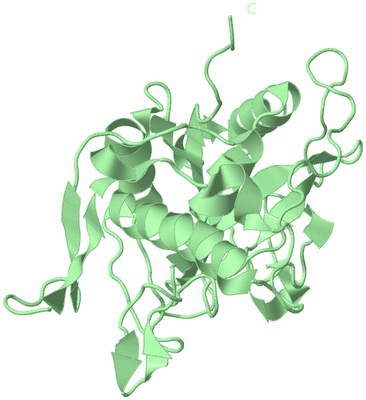

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF ACTIVE WILD-TYPE PREVOTELLA INTERMEDIA INTERPAIN A CYSTEINE PROTEASE

Authors :  N. Mallorqui-Fernandez, S. P. Manandhar, G. Mallorqui-Fernandez, I. K. Wawrzonek, T. Kantyka, M. Sola, I. B. Thogersen, J. J. Enghild, J. Po F. X. Gomis-Ruth
Date :  09 Nov 07  (Deposition) - 20 Nov 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.20
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Prevotella Intermedia, Zymogen Activation, Cysteine Protease, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Mallorqui-Fernandez, S. P. Manandhar, G. Mallorqui-Fernandez, I. Uson, K. Wawrzonek, T. Kantyka, M. Sola, I. B. Thogersen, J. J. Enghild, J. Potempa, F. X. Gomis-Ruth
A New Autocatalytic Activation Mechanism For Cysteine Proteases Revealed By Prevotella Intermedia Interpain A
J. Biol. Chem. V. 283 2871 2008
PubMed-ID: 17993455  |  Reference-DOI: 10.1074/JBC.M708481200

(-) Compounds

Molecule 1 - INTERPAIN A
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET24D(+)
    Expression System Strain: BL21 (DE3) PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 156-403
    Gene: PIN0048
    Organism Scientific: PREVOTELLA INTERMEDIA
    Organism Taxid: 28131

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3BBA)

(-) Sites  (0, 0)

(no "Site" information available for 3BBA)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3BBA)

(-) Cis Peptide Bonds  (6, 6)

Asymmetric Unit
No.Residues
1Met A:136 -Pro A:137
2Tyr A:168 -Pro A:169
3Tyr A:180 -Pro A:181
4Met B:136 -Pro B:137
5Tyr B:168 -Pro B:169
6Tyr B:180 -Pro B:181

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3BBA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3BBA)

(-) Exons   (0, 0)

(no "Exon" information available for 3BBA)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:246
 aligned with A9J7N5_PREIN | A9J7N5 from UniProtKB/TrEMBL  Length:868

    Alignment length:246
                                   165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395
         A9J7N5_PREIN   156 VIKPDPSKYAAEVSTLLTTTWGQQMPYNKLLPNTKKGRLITGCVATATAQALNYFKYPVRGIGSHTVHYPANDPSGVAISADFGNTTYDWANMKDDYSGNYTEAEANAVATLMLHCGVASEMQYGGPNEGSGAYMTDCAAGLRTYFGFTDAEYITRADYTDEQWMDIVFSELTKGHPLIYGGVSPGSMGQDAGHAFVIDGYNKAGLVSVNWGWNGDVDGYYKIDLLNPGNMYSFTAEQDMVRGVYG 401
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........................................hhhhhhhhhhhhhhh........eeeee.......eeeee.......hhhhh........hhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhh....eeee.hhhhhhhhhhhhhhhhhh...eeeeeee.......eeeeeeeeee.....eeee........eee.....hhhhh....eeeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3bba A 112 VIKPDPSKYAAEVSTLLTTTWGQQMPYNKLLPKTKKGRLITGCVATATAQVLNYFKYPVRGIGSHTVHYPANDPSGTAISADFGNTTYDWANMKDNYSGNYTEAEANAVATLMLHCGVASEMQYGGPNEGSGAYMTDCAAGLRTYFGFTDAEYITRANYTDEQWMDIVFSELTKGHPLIYGGVSPGSMGQDAGHAFVIDGYNKAGLVSVNWGWNGDVDGYYKIDLLNPGNMYSFTAEQDMVRGVYG 357
                                   121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351


Chain B from PDB  Type:PROTEIN  Length:250
 aligned with A9J7N5_PREIN | A9J7N5 from UniProtKB/TrEMBL  Length:868

    Alignment length:252
                                   165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405
         A9J7N5_PREIN   156 VIKPDPSKYAAEVSTLLTTTWGQQMPYNKLLPNTKKGRLITGCVATATAQALNYFKYPVRGIGSHTVHYPANDPSGVAISADFGNTTYDWANMKDDYSGNYTEAEANAVATLMLHCGVASEMQYGGPNEGSGAYMTDCAAGLRTYFGFTDAEYITRADYTDEQWMDIVFSELTKGHPLIYGGVSPGSMGQDAGHAFVIDGYNKAGLVSVNWGWNGDVDGYYKIDLLNPGNMYSFTAEQDMVRGVYGKPKDLE 407
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ................................ee..ee...hhhhhhhhhhhhhh.........eeeee.......eeeeehhhhh..hhhhh........hhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhh....eeee.hhhhhhhhhhhhhhhhhh...eeeeeee.......eeeeeeeeee.....eeee........eee.....hhhhh....eeeeeee......--.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3bba B 112 VIKPDPSKYAAEVSTLLTTTWGQQMPYNKLLPKTKKGRLITGCVATATAQVLNYFKYPVRGIGSHTVHYPANDPSGTAISADFGNTTYDWANMKDNYSGNYTEAEANAVATLMLHCGVASEMQYGGPNEGSGAYMTDCAAGLRTYFGFTDAEYITRANYTDEQWMDIVFSELTKGHPLIYGGVSPGSMGQDAGHAFVIDGYNKAGLVSVNWGWNGDVDGYYKIDLLNPGNMYSFTAEQDMVRGVYGKP--LE 361
                                   121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       | -|
                                                                                                                                                                                                                                                                                 359  |
                                                                                                                                                                                                                                                                                    360
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3BBA)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3BBA)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3BBA)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (A9J7N5_PREIN | A9J7N5)
molecular function
    GO:0008234    cysteine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3bba)

  Sites
(no "Sites" information available for 3bba)

  Cis Peptide Bonds
    Met A:136 - Pro A:137   [ RasMol ]
    Met B:136 - Pro B:137   [ RasMol ]
    Tyr A:168 - Pro A:169   [ RasMol ]
    Tyr A:180 - Pro A:181   [ RasMol ]
    Tyr B:168 - Pro B:169   [ RasMol ]
    Tyr B:180 - Pro B:181   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

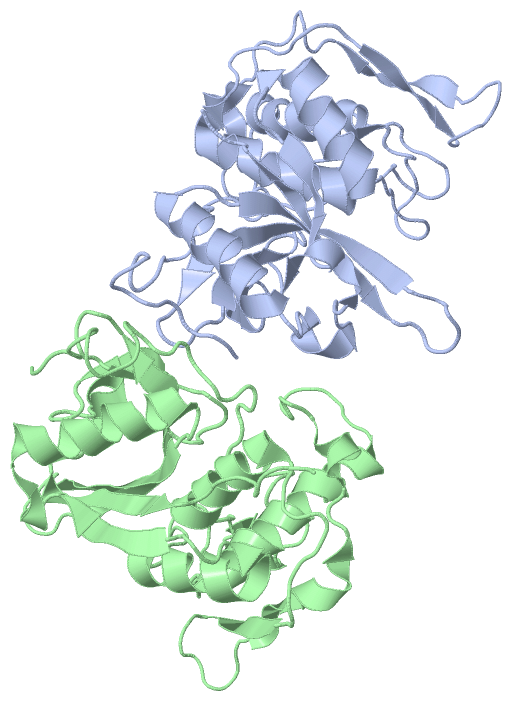

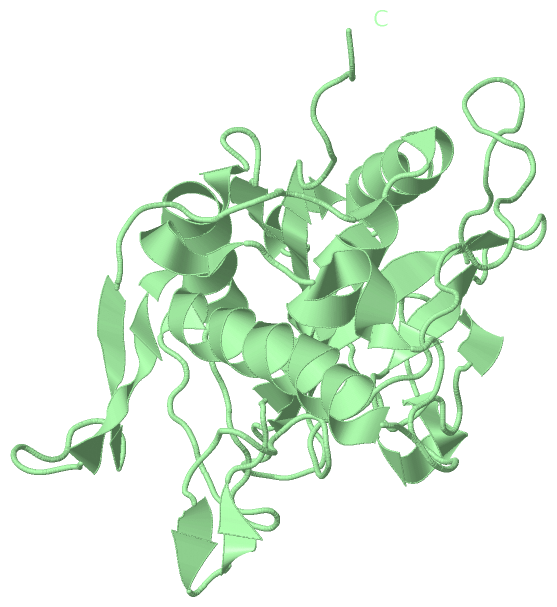

[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3bba
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A9J7N5_PREIN | A9J7N5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A9J7N5_PREIN | A9J7N5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        A9J7N5_PREIN | A9J7N5: 3bb7

(-) Related Entries Specified in the PDB File

3bb7 THE PRESENT ENTRY IS THE MATURE ENZYME AND THE RELATED ONE A MAJOR FRAGMENT OF THE ZYMOGEN (C154A MUTANT)
