(-) Description

Title :  CRYSTALLOGRAPHIC ANALYSIS OF THE POLYSIALIC ACID O-ACETYLTRANSFERASE OATWY

Authors :  H. J. Lee, B. Rakic, M. Gilbert, W. W. Wakarchuk, S. G. Withers, N. C. J. S
Date :  23 Jun 09  (Deposition) - 07 Jul 09  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Transferase, Enzyme, Acetyltransferase, Left-Handed Beta Helix (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. J. Lee, B. Rakic, M. Gilbert, W. W. Wakarchuk, S. G. Withers, N. C. J. Strynadka
Structural And Kinetic Characterizations Of The Polysialic Acid O-Acetyltransferase Oatwy From Neisseria Meningitidis.
J. Biol. Chem. V. 284 24501 2009
PubMed-ID: 19525232  |  Reference-DOI: 10.1074/JBC.M109.006049

(-) Compounds

Molecule 1 - POLYSIALIC ACID O-ACETYLTRANSFERASE
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-28
    Expression System Strain: DE3
    Expression System Taxid: 562
    Mutation: YES
    Organism Scientific: NEISSERIA MENINGITIDIS SEROGROUP Y
    Organism Taxid: 648194
    Other Details: LEFT-HANDED BETA HELIX
    Strain: 406Y

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 9)

Asymmetric/Biological Unit (2, 9)
No.NameCountTypeFull Name
1ACT2Ligand/IonACETATE ION
2EDO7Ligand/Ion1,2-ETHANEDIOL

(-) Sites  (9, 9)

Asymmetric Unit (9, 9)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP C:119 , LYS C:154 , HOH C:2075BINDING SITE FOR RESIDUE ACT C1216
2AC2SOFTWARESER A:36 , LEU A:59 , PHE A:60 , GLN A:81 , GLN A:83 , HOH A:2004BINDING SITE FOR RESIDUE ACT A1215
3AC3SOFTWAREGLY A:147BINDING SITE FOR RESIDUE EDO A1216
4AC4SOFTWAREGLY A:69 , VAL A:71 , ASN A:90BINDING SITE FOR RESIDUE EDO A1217
5AC5SOFTWAREHIS B:75 , ALA B:96 , GLU B:97BINDING SITE FOR RESIDUE EDO B1216
6AC6SOFTWAREGLU A:8 , ASN A:13 , THR A:14 , ILE A:15BINDING SITE FOR RESIDUE EDO A1218
7AC7SOFTWAREHIS A:75 , GLU A:97 , HOH A:2098BINDING SITE FOR RESIDUE EDO A1219
8AC8SOFTWAREEDO A:1220 , HOH A:2084 , GLY C:147BINDING SITE FOR RESIDUE EDO C1217
9AC9SOFTWAREASP A:119 , ASN A:133 , LYS A:154 , HOH A:2100 , EDO C:1217BINDING SITE FOR RESIDUE EDO A1220

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2WLD)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1Ser A:184 -Pro A:185
2Ser B:184 -Pro B:185
3Ser C:184 -Pro C:185

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2WLD)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2WLD)

(-) Exons   (0, 0)

(no "Exon" information available for 2WLD)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:210
 aligned with OATWY_NEIME | Q93S40 from UniProtKB/Swiss-Prot  Length:215

    Alignment length:210
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214
          OATWY_NEIME     5 MYSEQGINNTINISTTSLTNATQLTVIGNNNSVYIGNNCKIVSSNIRLKGNNITLFIADDVENMGLVCSLHSDCSLQIQAKTTMGNGEITIAEKGKISIGKDCMLAHGYEIRNTDMHPIYSLENGERINHGKDVIIGNHVWLGRNVTILKGVCIPNNVVVGSHTVLYKSFKEPNCVIAGSPAKIVKENIVWGRKMYHSTMYDDPTLNEFY 214
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eee....eeee.........eeeee....eeee....eee..eeeee....eeee....eee.eeeee....eeee....ee..eeeee....eeee....ee...eeee......eee............eee....ee....ee....ee...eee....ee........eeee....eeeee.eee........hhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2wld A   5 MYSEQGINNTINISTTSLTNATQLTVIGNNNSVYIGNNCKIVSSNIRLKGNNITLFIADDVEIMGLVCSLHSDCSLQIQAKTTMGNGEITIAEKGKISIGKDCMLAHGYEIRNTDMHPIYSLENGERINHGKDVIIGNHVWLGRNVTILKGVCIPNNVVVGSHTVLYKSFKEPNCVIAGSPAKIVKENIVWGRKMYHSTMYDDPTLNEFY 214
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214


Chain B from PDB  Type:PROTEIN  Length:211
 aligned with OATWY_NEIME | Q93S40 from UniProtKB/Swiss-Prot  Length:215

    Alignment length:211
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214
          OATWY_NEIME     5 MYSEQGINNTINISTTSLTNATQLTVIGNNNSVYIGNNCKIVSSNIRLKGNNITLFIADDVENMGLVCSLHSDCSLQIQAKTTMGNGEITIAEKGKISIGKDCMLAHGYEIRNTDMHPIYSLENGERINHGKDVIIGNHVWLGRNVTILKGVCIPNNVVVGSHTVLYKSFKEPNCVIAGSPAKIVKENIVWGRKMYHSTMYDDPTLNEFYK 215
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee....eeee.........eeeeeee..eeee....eee..eeeeeee..eeee....eee.eeeeee...eeee....ee..eeeee....eeee....ee...eeee......eee............eee...eee....ee....ee...eee....ee........eeee....eeeee.eee........hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2wld B   5 MYSEQGINNTINISTTSLTNATQLTVIGNNNSVYIGNNCKIVSSNIRLKGNNITLFIADDVEIMGLVCSLHSDCSLQIQAKTTMGNGEITIAEKGKISIGKDCMLAHGYEIRNTDMHPIYSLENGERINHGKDVIIGNHVWLGRNVTILKGVCIPNNVVVGSHTVLYKSFKEPNCVIAGSPAKIVKENIVWGRKMYHSTMYDDPTLNEFYK 215
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214


Chain C from PDB  Type:PROTEIN  Length:211
 aligned with OATWY_NEIME | Q93S40 from UniProtKB/Swiss-Prot  Length:215

    Alignment length:211
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214
          OATWY_NEIME     5 MYSEQGINNTINISTTSLTNATQLTVIGNNNSVYIGNNCKIVSSNIRLKGNNITLFIADDVENMGLVCSLHSDCSLQIQAKTTMGNGEITIAEKGKISIGKDCMLAHGYEIRNTDMHPIYSLENGERINHGKDVIIGNHVWLGRNVTILKGVCIPNNVVVGSHTVLYKSFKEPNCVIAGSPAKIVKENIVWGRKMYHSTMYDDPTLNEFYK 215
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee....eeee.........eeeee....eeee....eee..eeeee....eeee....eee.eeeee....eeee....ee..eeeee....eeee....ee...eeee......eee............eee...eee....ee....ee...eee....ee........eeee....eeeee.eee........hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2wld C   5 MYSEQGINNTINISTTSLTNATQLTVIGNNNSVYIGNNCKIVSSNIRLKGNNITLFIADDVEIMGLVCSLHSDCSLQIQAKTTMGNGEITIAEKGKISIGKDCMLAHGYEIRNTDMHPIYSLENGERINHGKDVIIGNHVWLGRNVTILKGVCIPNNVVVGSHTVLYKSFKEPNCVIAGSPAKIVKENIVWGRKMYHSTMYDDPTLNEFYK 215
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2WLD)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2WLD)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2WLD)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C   (OATWY_NEIME | Q93S40)
molecular function
    GO:0050208    polysialic-acid O-acetyltransferase activity    Catalysis of the reaction: acetyl-CoA + an alpha-2,8-linked polymer of sialic acid = CoA + polysialic acid acetylated at O-7 or O-9.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0070207    protein homotrimerization    The formation of a protein homotrimer, a macromolecular structure consisting of three noncovalently associated identical subunits.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ACT  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    EDO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ser A:184 - Pro A:185   [ RasMol ]
    Ser B:184 - Pro B:185   [ RasMol ]
    Ser C:184 - Pro C:185   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2wld
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  OATWY_NEIME | Q93S40
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP

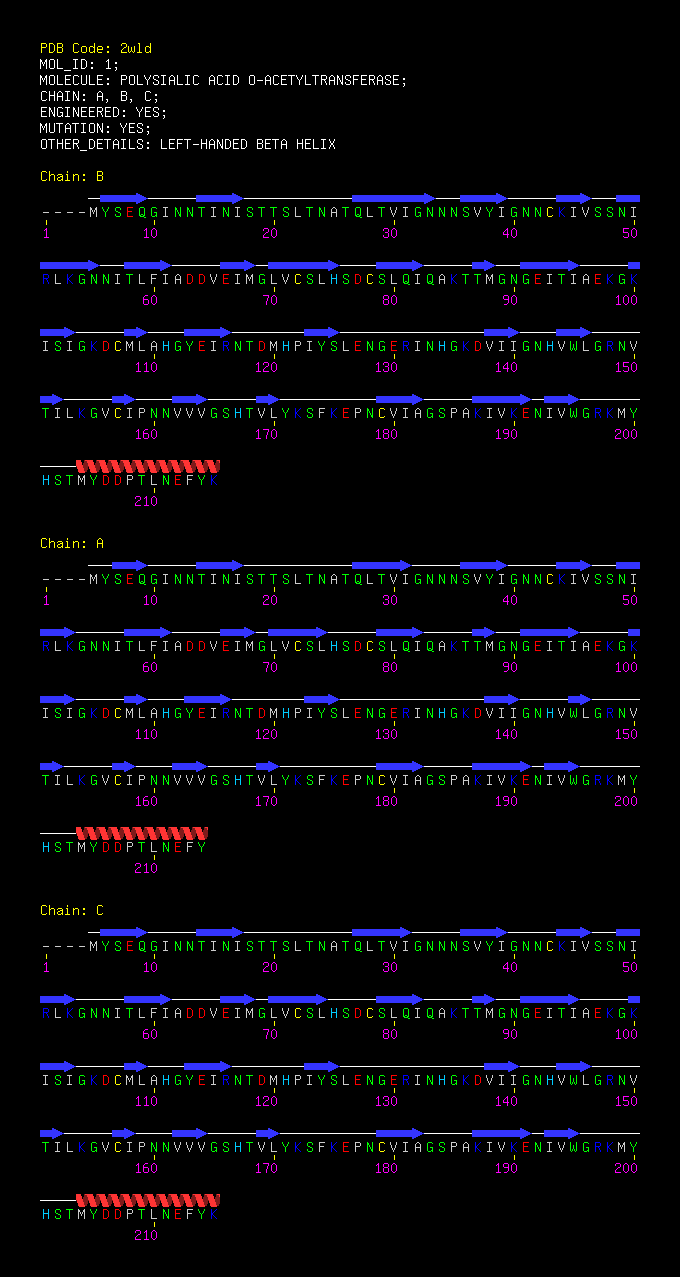

    Sequence and Secondary Structure: PDBCartoon
