Title :   THE BIOCHEMICAL AND STRUCTURAL BASIS FOR FEEDBACK INHIBITION OF MEVALONATE KINASE AND ISOPRENOID METABOLISM

Authors :   Z. Fu, N. E. Voynova, H. M. Miziorko, J. P. Kim

Date :   30 Aug 07 (Deposition) - 24 Jun 08 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.50

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)

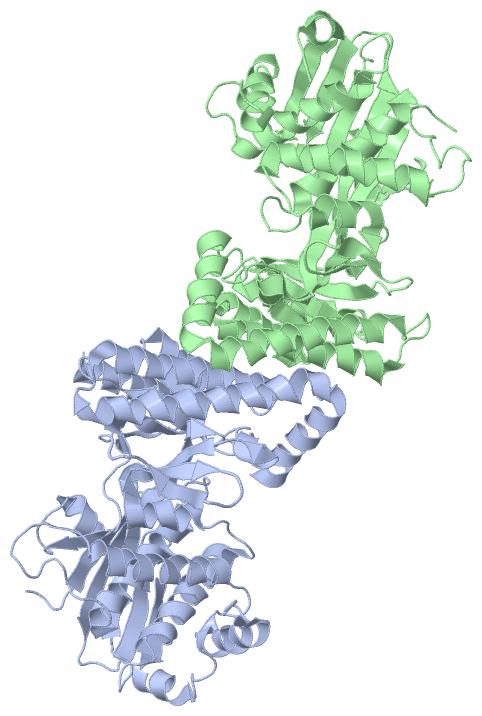

Biol. Unit 5: A,B  (1x)
Biol. Unit 6: C,D  (1x)

Keywords :   Mevalonate Kinase, Farnesyl Thiodiphophate, Atp-Binding, Cataract, Cholesterol Biosynthesis, Cytoplasm, Disease Mutation, Lipid Synthesis, Nucleotide-Binding, Peroxisome, Polymorphism, Steroid Biosynthesis, Sterol Biosynthesis, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   Z. Fu, N. E. Voynova, T. J. Herdendorf, H. M. Miziorko, J. J. Kim
Biochemical And Structural Basis For Feedback Inhibition Of Mevalonate Kinase And Isoprenoid Metabolism.
Biochemistry V. 47 3715 2008
PubMed-ID: 18302342 | Reference-DOI: 10.1021/BI7024386
(for further references see the PDB file header)

Molecule 1 - MEVALONATE KINASE
	Chains	:	A, B, C, D
	EC Number	:	2.7.1.36
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET-3D
	Expression System Strain	:	BL 21 DE3
	Expression System Vector Type	:	PLASMID
	Gene	:	MVK
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Synonym	:	MK

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D
Biological Unit 5 (1x)	:	A	B
Biological Unit 6 (1x)	:			C	D

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 2R3V)

(no "Site" information available for 2R3V)

(no "SS Bond" information available for 2R3V)

(no "Cis Peptide Bond" information available for 2R3V)

Asymmetric Unit (37, 148)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
01	UniProt	VAR_075036	G	12	R	KIME_HUMAN	Disease (POROK3)	---	A/B/C/D	G	12	R
02	UniProt	VAR_010956	H	20	N	KIME_HUMAN	Disease (HIDS)	11544299	A/B/C/D	H	20	N
03	UniProt	VAR_004022	H	20	P	KIME_HUMAN	Disease (MEVA)	104895295	A/B/C/D	H	20	P
04	UniProt	VAR_029519	H	20	Q	KIME_HUMAN	Disease (HIDS)	104895335	A/B/C/D	H	20	Q
05	UniProt	VAR_010957	L	39	P	KIME_HUMAN	Disease (HIDS)	104895296	A/B/C/D	L	39	P
06	UniProt	VAR_075037	L	41	P	KIME_HUMAN	Disease (POROK3)	397514571	A/B/C/D	L	41	P
07	UniProt	VAR_010958	S	52	N	KIME_HUMAN	Polymorphism	7957619	A/B/C/D	S	52	N
08	UniProt	VAR_029520	V	132	I	KIME_HUMAN	Disease (HIDS)	104895336	A/B/C/D	V	132	I
09	UniProt	VAR_010959	S	135	L	KIME_HUMAN	Disease (HIDS)	104895297	A/B/C/D	S	135	L
10	UniProt	VAR_010960	A	148	T	KIME_HUMAN	Disease (HIDS)	104895298	A/B/C/D	A	148	T
11	UniProt	VAR_010961	S	150	L	KIME_HUMAN	Disease (HIDS)	747116992	A/B/C/D	S	150	L
12	UniProt	VAR_004023	P	167	L	KIME_HUMAN	Disease (HIDS)	104895300	A/B/C/D	P	167	L
13	UniProt	VAR_029521	G	171	R	KIME_HUMAN	Disease (HIDS)	104895337	A/B/C/D	G	171	R
14	UniProt	VAR_010962	G	202	R	KIME_HUMAN	Disease (POROK3)	104895301	A/B/C/D	G	202	R
15	UniProt	VAR_029522	G	211	E	KIME_HUMAN	Disease (HIDS)	104895325	A/B/C/D	G	211	E
16	UniProt	VAR_010963	R	215	Q	KIME_HUMAN	Disease (HIDS)	104895303	A/B/C/D	R	215	Q
17	UniProt	VAR_010964	T	243	I	KIME_HUMAN	Disease (MEVA)	104895314	A/B/C/D	T	243	I
18	UniProt	VAR_029523	V	250	I	KIME_HUMAN	Disease (HIDS)	104895339	A/B/C/D	V	250	I
19	UniProt	VAR_075038	L	255	P	KIME_HUMAN	Disease (POROK3)	397514570	A/B/C/D	L	255	P
20	UniProt	VAR_010965	L	264	F	KIME_HUMAN	Disease (MEVA)	104895315	A/B/C/D	L	264	F
21	UniProt	VAR_010966	L	265	P	KIME_HUMAN	Disease (MEVA)	104895316	A/B/C/D	L	265	P
22	UniProt	VAR_029524	L	265	R	KIME_HUMAN	Disease (HIDS)	104895316	A/B/C/D	L	265	R
23	UniProt	VAR_004024	I	268	T	KIME_HUMAN	Disease (MEVA)	104895304	A/B/C/D	I	268	T
24	UniProt	VAR_075039	L	279	P	KIME_HUMAN	Disease (POROK3)	---	A/B/C/D	L	279	P
25	UniProt	VAR_075040	Y	291	D	KIME_HUMAN	Disease (POROK3)	---	A/B/C/D	Y	291	D
26	UniProt	VAR_004025	N	301	T	KIME_HUMAN	Disease (MEVA)	28934896	A/B/C/D	N	301	T
27	UniProt	VAR_010967	G	309	S	KIME_HUMAN	Disease (HIDS)	104895305	A/B/C/D	G	309	S
28	UniProt	VAR_009068	V	310	M	KIME_HUMAN	Disease (MEVA)	104895319	A/B/C/D	V	310	M
29	UniProt	VAR_075041	H	312	R	KIME_HUMAN	Disease (POROK3)	---	A/B/C/D	H	312	R
30	UniProt	VAR_010968	G	326	R	KIME_HUMAN	Disease (HIDS)	104895308	A/B/C/D	G	326	R
31	UniProt	VAR_004026	A	334	T	KIME_HUMAN	Disease (MEVA)	104895317	A/B/C/D	A	334	T
32	UniProt	VAR_029525	G	335	S	KIME_HUMAN	Polymorphism	11614976	A/B/C/D	G	335	S
33	UniProt	VAR_029526	T	356	M	KIME_HUMAN	Polymorphism	104895342	A/B/C/D	T	356	M
34	UniProt	VAR_075042	F	365	S	KIME_HUMAN	Disease (POROK3)	398122911	A/B/C/D	F	365	S
35	UniProt	VAR_075043	G	376	S	KIME_HUMAN	Disease (POROK3)	---	A/B/C/D	G	376	S
36	UniProt	VAR_029527	G	376	V	KIME_HUMAN	Disease (HIDS)	104895340	A/B/C/D	G	376	V
37	UniProt	VAR_004027	V	377	I	KIME_HUMAN	Disease (HIDS)	28934897	A/B/C/D	V	377	I

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 1 (37, 37)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
01	UniProt	VAR_075036	G	12	R	KIME_HUMAN	Disease (POROK3)	---	A	G	12	R
02	UniProt	VAR_010956	H	20	N	KIME_HUMAN	Disease (HIDS)	11544299	A	H	20	N
03	UniProt	VAR_004022	H	20	P	KIME_HUMAN	Disease (MEVA)	104895295	A	H	20	P
04	UniProt	VAR_029519	H	20	Q	KIME_HUMAN	Disease (HIDS)	104895335	A	H	20	Q
05	UniProt	VAR_010957	L	39	P	KIME_HUMAN	Disease (HIDS)	104895296	A	L	39	P
06	UniProt	VAR_075037	L	41	P	KIME_HUMAN	Disease (POROK3)	397514571	A	L	41	P
07	UniProt	VAR_010958	S	52	N	KIME_HUMAN	Polymorphism	7957619	A	S	52	N
08	UniProt	VAR_029520	V	132	I	KIME_HUMAN	Disease (HIDS)	104895336	A	V	132	I
09	UniProt	VAR_010959	S	135	L	KIME_HUMAN	Disease (HIDS)	104895297	A	S	135	L
10	UniProt	VAR_010960	A	148	T	KIME_HUMAN	Disease (HIDS)	104895298	A	A	148	T
11	UniProt	VAR_010961	S	150	L	KIME_HUMAN	Disease (HIDS)	747116992	A	S	150	L
12	UniProt	VAR_004023	P	167	L	KIME_HUMAN	Disease (HIDS)	104895300	A	P	167	L
13	UniProt	VAR_029521	G	171	R	KIME_HUMAN	Disease (HIDS)	104895337	A	G	171	R
14	UniProt	VAR_010962	G	202	R	KIME_HUMAN	Disease (POROK3)	104895301	A	G	202	R
15	UniProt	VAR_029522	G	211	E	KIME_HUMAN	Disease (HIDS)	104895325	A	G	211	E
16	UniProt	VAR_010963	R	215	Q	KIME_HUMAN	Disease (HIDS)	104895303	A	R	215	Q
17	UniProt	VAR_010964	T	243	I	KIME_HUMAN	Disease (MEVA)	104895314	A	T	243	I
18	UniProt	VAR_029523	V	250	I	KIME_HUMAN	Disease (HIDS)	104895339	A	V	250	I
19	UniProt	VAR_075038	L	255	P	KIME_HUMAN	Disease (POROK3)	397514570	A	L	255	P
20	UniProt	VAR_010965	L	264	F	KIME_HUMAN	Disease (MEVA)	104895315	A	L	264	F
21	UniProt	VAR_010966	L	265	P	KIME_HUMAN	Disease (MEVA)	104895316	A	L	265	P
22	UniProt	VAR_029524	L	265	R	KIME_HUMAN	Disease (HIDS)	104895316	A	L	265	R
23	UniProt	VAR_004024	I	268	T	KIME_HUMAN	Disease (MEVA)	104895304	A	I	268	T
24	UniProt	VAR_075039	L	279	P	KIME_HUMAN	Disease (POROK3)	---	A	L	279	P
25	UniProt	VAR_075040	Y	291	D	KIME_HUMAN	Disease (POROK3)	---	A	Y	291	D
26	UniProt	VAR_004025	N	301	T	KIME_HUMAN	Disease (MEVA)	28934896	A	N	301	T
27	UniProt	VAR_010967	G	309	S	KIME_HUMAN	Disease (HIDS)	104895305	A	G	309	S
28	UniProt	VAR_009068	V	310	M	KIME_HUMAN	Disease (MEVA)	104895319	A	V	310	M
29	UniProt	VAR_075041	H	312	R	KIME_HUMAN	Disease (POROK3)	---	A	H	312	R
30	UniProt	VAR_010968	G	326	R	KIME_HUMAN	Disease (HIDS)	104895308	A	G	326	R
31	UniProt	VAR_004026	A	334	T	KIME_HUMAN	Disease (MEVA)	104895317	A	A	334	T
32	UniProt	VAR_029525	G	335	S	KIME_HUMAN	Polymorphism	11614976	A	G	335	S
33	UniProt	VAR_029526	T	356	M	KIME_HUMAN	Polymorphism	104895342	A	T	356	M
34	UniProt	VAR_075042	F	365	S	KIME_HUMAN	Disease (POROK3)	398122911	A	F	365	S
35	UniProt	VAR_075043	G	376	S	KIME_HUMAN	Disease (POROK3)	---	A	G	376	S
36	UniProt	VAR_029527	G	376	V	KIME_HUMAN	Disease (HIDS)	104895340	A	G	376	V
37	UniProt	VAR_004027	V	377	I	KIME_HUMAN	Disease (HIDS)	28934897	A	V	377	I

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 2 (37, 37)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
01	UniProt	VAR_075036	G	12	R	KIME_HUMAN	Disease (POROK3)	---	B	G	12	R
02	UniProt	VAR_010956	H	20	N	KIME_HUMAN	Disease (HIDS)	11544299	B	H	20	N
03	UniProt	VAR_004022	H	20	P	KIME_HUMAN	Disease (MEVA)	104895295	B	H	20	P
04	UniProt	VAR_029519	H	20	Q	KIME_HUMAN	Disease (HIDS)	104895335	B	H	20	Q
05	UniProt	VAR_010957	L	39	P	KIME_HUMAN	Disease (HIDS)	104895296	B	L	39	P
06	UniProt	VAR_075037	L	41	P	KIME_HUMAN	Disease (POROK3)	397514571	B	L	41	P
07	UniProt	VAR_010958	S	52	N	KIME_HUMAN	Polymorphism	7957619	B	S	52	N
08	UniProt	VAR_029520	V	132	I	KIME_HUMAN	Disease (HIDS)	104895336	B	V	132	I
09	UniProt	VAR_010959	S	135	L	KIME_HUMAN	Disease (HIDS)	104895297	B	S	135	L
10	UniProt	VAR_010960	A	148	T	KIME_HUMAN	Disease (HIDS)	104895298	B	A	148	T
11	UniProt	VAR_010961	S	150	L	KIME_HUMAN	Disease (HIDS)	747116992	B	S	150	L
12	UniProt	VAR_004023	P	167	L	KIME_HUMAN	Disease (HIDS)	104895300	B	P	167	L
13	UniProt	VAR_029521	G	171	R	KIME_HUMAN	Disease (HIDS)	104895337	B	G	171	R
14	UniProt	VAR_010962	G	202	R	KIME_HUMAN	Disease (POROK3)	104895301	B	G	202	R
15	UniProt	VAR_029522	G	211	E	KIME_HUMAN	Disease (HIDS)	104895325	B	G	211	E
16	UniProt	VAR_010963	R	215	Q	KIME_HUMAN	Disease (HIDS)	104895303	B	R	215	Q
17	UniProt	VAR_010964	T	243	I	KIME_HUMAN	Disease (MEVA)	104895314	B	T	243	I
18	UniProt	VAR_029523	V	250	I	KIME_HUMAN	Disease (HIDS)	104895339	B	V	250	I
19	UniProt	VAR_075038	L	255	P	KIME_HUMAN	Disease (POROK3)	397514570	B	L	255	P
20	UniProt	VAR_010965	L	264	F	KIME_HUMAN	Disease (MEVA)	104895315	B	L	264	F
21	UniProt	VAR_010966	L	265	P	KIME_HUMAN	Disease (MEVA)	104895316	B	L	265	P
22	UniProt	VAR_029524	L	265	R	KIME_HUMAN	Disease (HIDS)	104895316	B	L	265	R
23	UniProt	VAR_004024	I	268	T	KIME_HUMAN	Disease (MEVA)	104895304	B	I	268	T
24	UniProt	VAR_075039	L	279	P	KIME_HUMAN	Disease (POROK3)	---	B	L	279	P
25	UniProt	VAR_075040	Y	291	D	KIME_HUMAN	Disease (POROK3)	---	B	Y	291	D
26	UniProt	VAR_004025	N	301	T	KIME_HUMAN	Disease (MEVA)	28934896	B	N	301	T
27	UniProt	VAR_010967	G	309	S	KIME_HUMAN	Disease (HIDS)	104895305	B	G	309	S
28	UniProt	VAR_009068	V	310	M	KIME_HUMAN	Disease (MEVA)	104895319	B	V	310	M
29	UniProt	VAR_075041	H	312	R	KIME_HUMAN	Disease (POROK3)	---	B	H	312	R
30	UniProt	VAR_010968	G	326	R	KIME_HUMAN	Disease (HIDS)	104895308	B	G	326	R
31	UniProt	VAR_004026	A	334	T	KIME_HUMAN	Disease (MEVA)	104895317	B	A	334	T
32	UniProt	VAR_029525	G	335	S	KIME_HUMAN	Polymorphism	11614976	B	G	335	S
33	UniProt	VAR_029526	T	356	M	KIME_HUMAN	Polymorphism	104895342	B	T	356	M
34	UniProt	VAR_075042	F	365	S	KIME_HUMAN	Disease (POROK3)	398122911	B	F	365	S
35	UniProt	VAR_075043	G	376	S	KIME_HUMAN	Disease (POROK3)	---	B	G	376	S
36	UniProt	VAR_029527	G	376	V	KIME_HUMAN	Disease (HIDS)	104895340	B	G	376	V
37	UniProt	VAR_004027	V	377	I	KIME_HUMAN	Disease (HIDS)	28934897	B	V	377	I

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 3 (37, 37)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
01	UniProt	VAR_075036	G	12	R	KIME_HUMAN	Disease (POROK3)	---	C	G	12	R
02	UniProt	VAR_010956	H	20	N	KIME_HUMAN	Disease (HIDS)	11544299	C	H	20	N
03	UniProt	VAR_004022	H	20	P	KIME_HUMAN	Disease (MEVA)	104895295	C	H	20	P
04	UniProt	VAR_029519	H	20	Q	KIME_HUMAN	Disease (HIDS)	104895335	C	H	20	Q
05	UniProt	VAR_010957	L	39	P	KIME_HUMAN	Disease (HIDS)	104895296	C	L	39	P
06	UniProt	VAR_075037	L	41	P	KIME_HUMAN	Disease (POROK3)	397514571	C	L	41	P
07	UniProt	VAR_010958	S	52	N	KIME_HUMAN	Polymorphism	7957619	C	S	52	N
08	UniProt	VAR_029520	V	132	I	KIME_HUMAN	Disease (HIDS)	104895336	C	V	132	I
09	UniProt	VAR_010959	S	135	L	KIME_HUMAN	Disease (HIDS)	104895297	C	S	135	L
10	UniProt	VAR_010960	A	148	T	KIME_HUMAN	Disease (HIDS)	104895298	C	A	148	T
11	UniProt	VAR_010961	S	150	L	KIME_HUMAN	Disease (HIDS)	747116992	C	S	150	L
12	UniProt	VAR_004023	P	167	L	KIME_HUMAN	Disease (HIDS)	104895300	C	P	167	L
13	UniProt	VAR_029521	G	171	R	KIME_HUMAN	Disease (HIDS)	104895337	C	G	171	R
14	UniProt	VAR_010962	G	202	R	KIME_HUMAN	Disease (POROK3)	104895301	C	G	202	R
15	UniProt	VAR_029522	G	211	E	KIME_HUMAN	Disease (HIDS)	104895325	C	G	211	E
16	UniProt	VAR_010963	R	215	Q	KIME_HUMAN	Disease (HIDS)	104895303	C	R	215	Q
17	UniProt	VAR_010964	T	243	I	KIME_HUMAN	Disease (MEVA)	104895314	C	T	243	I
18	UniProt	VAR_029523	V	250	I	KIME_HUMAN	Disease (HIDS)	104895339	C	V	250	I
19	UniProt	VAR_075038	L	255	P	KIME_HUMAN	Disease (POROK3)	397514570	C	L	255	P
20	UniProt	VAR_010965	L	264	F	KIME_HUMAN	Disease (MEVA)	104895315	C	L	264	F
21	UniProt	VAR_010966	L	265	P	KIME_HUMAN	Disease (MEVA)	104895316	C	L	265	P
22	UniProt	VAR_029524	L	265	R	KIME_HUMAN	Disease (HIDS)	104895316	C	L	265	R
23	UniProt	VAR_004024	I	268	T	KIME_HUMAN	Disease (MEVA)	104895304	C	I	268	T
24	UniProt	VAR_075039	L	279	P	KIME_HUMAN	Disease (POROK3)	---	C	L	279	P
25	UniProt	VAR_075040	Y	291	D	KIME_HUMAN	Disease (POROK3)	---	C	Y	291	D
26	UniProt	VAR_004025	N	301	T	KIME_HUMAN	Disease (MEVA)	28934896	C	N	301	T
27	UniProt	VAR_010967	G	309	S	KIME_HUMAN	Disease (HIDS)	104895305	C	G	309	S
28	UniProt	VAR_009068	V	310	M	KIME_HUMAN	Disease (MEVA)	104895319	C	V	310	M
29	UniProt	VAR_075041	H	312	R	KIME_HUMAN	Disease (POROK3)	---	C	H	312	R
30	UniProt	VAR_010968	G	326	R	KIME_HUMAN	Disease (HIDS)	104895308	C	G	326	R
31	UniProt	VAR_004026	A	334	T	KIME_HUMAN	Disease (MEVA)	104895317	C	A	334	T
32	UniProt	VAR_029525	G	335	S	KIME_HUMAN	Polymorphism	11614976	C	G	335	S
33	UniProt	VAR_029526	T	356	M	KIME_HUMAN	Polymorphism	104895342	C	T	356	M
34	UniProt	VAR_075042	F	365	S	KIME_HUMAN	Disease (POROK3)	398122911	C	F	365	S
35	UniProt	VAR_075043	G	376	S	KIME_HUMAN	Disease (POROK3)	---	C	G	376	S
36	UniProt	VAR_029527	G	376	V	KIME_HUMAN	Disease (HIDS)	104895340	C	G	376	V
37	UniProt	VAR_004027	V	377	I	KIME_HUMAN	Disease (HIDS)	28934897	C	V	377	I

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 4 (37, 37)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
01	UniProt	VAR_075036	G	12	R	KIME_HUMAN	Disease (POROK3)	---	D	G	12	R
02	UniProt	VAR_010956	H	20	N	KIME_HUMAN	Disease (HIDS)	11544299	D	H	20	N
03	UniProt	VAR_004022	H	20	P	KIME_HUMAN	Disease (MEVA)	104895295	D	H	20	P
04	UniProt	VAR_029519	H	20	Q	KIME_HUMAN	Disease (HIDS)	104895335	D	H	20	Q
05	UniProt	VAR_010957	L	39	P	KIME_HUMAN	Disease (HIDS)	104895296	D	L	39	P
06	UniProt	VAR_075037	L	41	P	KIME_HUMAN	Disease (POROK3)	397514571	D	L	41	P
07	UniProt	VAR_010958	S	52	N	KIME_HUMAN	Polymorphism	7957619	D	S	52	N
08	UniProt	VAR_029520	V	132	I	KIME_HUMAN	Disease (HIDS)	104895336	D	V	132	I
09	UniProt	VAR_010959	S	135	L	KIME_HUMAN	Disease (HIDS)	104895297	D	S	135	L
10	UniProt	VAR_010960	A	148	T	KIME_HUMAN	Disease (HIDS)	104895298	D	A	148	T
11	UniProt	VAR_010961	S	150	L	KIME_HUMAN	Disease (HIDS)	747116992	D	S	150	L
12	UniProt	VAR_004023	P	167	L	KIME_HUMAN	Disease (HIDS)	104895300	D	P	167	L
13	UniProt	VAR_029521	G	171	R	KIME_HUMAN	Disease (HIDS)	104895337	D	G	171	R
14	UniProt	VAR_010962	G	202	R	KIME_HUMAN	Disease (POROK3)	104895301	D	G	202	R
15	UniProt	VAR_029522	G	211	E	KIME_HUMAN	Disease (HIDS)	104895325	D	G	211	E
16	UniProt	VAR_010963	R	215	Q	KIME_HUMAN	Disease (HIDS)	104895303	D	R	215	Q
17	UniProt	VAR_010964	T	243	I	KIME_HUMAN	Disease (MEVA)	104895314	D	T	243	I
18	UniProt	VAR_029523	V	250	I	KIME_HUMAN	Disease (HIDS)	104895339	D	V	250	I
19	UniProt	VAR_075038	L	255	P	KIME_HUMAN	Disease (POROK3)	397514570	D	L	255	P
20	UniProt	VAR_010965	L	264	F	KIME_HUMAN	Disease (MEVA)	104895315	D	L	264	F
21	UniProt	VAR_010966	L	265	P	KIME_HUMAN	Disease (MEVA)	104895316	D	L	265	P
22	UniProt	VAR_029524	L	265	R	KIME_HUMAN	Disease (HIDS)	104895316	D	L	265	R
23	UniProt	VAR_004024	I	268	T	KIME_HUMAN	Disease (MEVA)	104895304	D	I	268	T
24	UniProt	VAR_075039	L	279	P	KIME_HUMAN	Disease (POROK3)	---	D	L	279	P
25	UniProt	VAR_075040	Y	291	D	KIME_HUMAN	Disease (POROK3)	---	D	Y	291	D
26	UniProt	VAR_004025	N	301	T	KIME_HUMAN	Disease (MEVA)	28934896	D	N	301	T
27	UniProt	VAR_010967	G	309	S	KIME_HUMAN	Disease (HIDS)	104895305	D	G	309	S
28	UniProt	VAR_009068	V	310	M	KIME_HUMAN	Disease (MEVA)	104895319	D	V	310	M
29	UniProt	VAR_075041	H	312	R	KIME_HUMAN	Disease (POROK3)	---	D	H	312	R
30	UniProt	VAR_010968	G	326	R	KIME_HUMAN	Disease (HIDS)	104895308	D	G	326	R
31	UniProt	VAR_004026	A	334	T	KIME_HUMAN	Disease (MEVA)	104895317	D	A	334	T
32	UniProt	VAR_029525	G	335	S	KIME_HUMAN	Polymorphism	11614976	D	G	335	S
33	UniProt	VAR_029526	T	356	M	KIME_HUMAN	Polymorphism	104895342	D	T	356	M
34	UniProt	VAR_075042	F	365	S	KIME_HUMAN	Disease (POROK3)	398122911	D	F	365	S
35	UniProt	VAR_075043	G	376	S	KIME_HUMAN	Disease (POROK3)	---	D	G	376	S
36	UniProt	VAR_029527	G	376	V	KIME_HUMAN	Disease (HIDS)	104895340	D	G	376	V
37	UniProt	VAR_004027	V	377	I	KIME_HUMAN	Disease (HIDS)	28934897	D	V	377	I

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 5 (37, 74)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
01	UniProt	VAR_075036	G	12	R	KIME_HUMAN	Disease (POROK3)	---	A/B	G	12	R
02	UniProt	VAR_010956	H	20	N	KIME_HUMAN	Disease (HIDS)	11544299	A/B	H	20	N
03	UniProt	VAR_004022	H	20	P	KIME_HUMAN	Disease (MEVA)	104895295	A/B	H	20	P
04	UniProt	VAR_029519	H	20	Q	KIME_HUMAN	Disease (HIDS)	104895335	A/B	H	20	Q
05	UniProt	VAR_010957	L	39	P	KIME_HUMAN	Disease (HIDS)	104895296	A/B	L	39	P
06	UniProt	VAR_075037	L	41	P	KIME_HUMAN	Disease (POROK3)	397514571	A/B	L	41	P
07	UniProt	VAR_010958	S	52	N	KIME_HUMAN	Polymorphism	7957619	A/B	S	52	N
08	UniProt	VAR_029520	V	132	I	KIME_HUMAN	Disease (HIDS)	104895336	A/B	V	132	I
09	UniProt	VAR_010959	S	135	L	KIME_HUMAN	Disease (HIDS)	104895297	A/B	S	135	L
10	UniProt	VAR_010960	A	148	T	KIME_HUMAN	Disease (HIDS)	104895298	A/B	A	148	T
11	UniProt	VAR_010961	S	150	L	KIME_HUMAN	Disease (HIDS)	747116992	A/B	S	150	L
12	UniProt	VAR_004023	P	167	L	KIME_HUMAN	Disease (HIDS)	104895300	A/B	P	167	L
13	UniProt	VAR_029521	G	171	R	KIME_HUMAN	Disease (HIDS)	104895337	A/B	G	171	R
14	UniProt	VAR_010962	G	202	R	KIME_HUMAN	Disease (POROK3)	104895301	A/B	G	202	R
15	UniProt	VAR_029522	G	211	E	KIME_HUMAN	Disease (HIDS)	104895325	A/B	G	211	E
16	UniProt	VAR_010963	R	215	Q	KIME_HUMAN	Disease (HIDS)	104895303	A/B	R	215	Q
17	UniProt	VAR_010964	T	243	I	KIME_HUMAN	Disease (MEVA)	104895314	A/B	T	243	I
18	UniProt	VAR_029523	V	250	I	KIME_HUMAN	Disease (HIDS)	104895339	A/B	V	250	I
19	UniProt	VAR_075038	L	255	P	KIME_HUMAN	Disease (POROK3)	397514570	A/B	L	255	P
20	UniProt	VAR_010965	L	264	F	KIME_HUMAN	Disease (MEVA)	104895315	A/B	L	264	F
21	UniProt	VAR_010966	L	265	P	KIME_HUMAN	Disease (MEVA)	104895316	A/B	L	265	P
22	UniProt	VAR_029524	L	265	R	KIME_HUMAN	Disease (HIDS)	104895316	A/B	L	265	R
23	UniProt	VAR_004024	I	268	T	KIME_HUMAN	Disease (MEVA)	104895304	A/B	I	268	T
24	UniProt	VAR_075039	L	279	P	KIME_HUMAN	Disease (POROK3)	---	A/B	L	279	P
25	UniProt	VAR_075040	Y	291	D	KIME_HUMAN	Disease (POROK3)	---	A/B	Y	291	D
26	UniProt	VAR_004025	N	301	T	KIME_HUMAN	Disease (MEVA)	28934896	A/B	N	301	T
27	UniProt	VAR_010967	G	309	S	KIME_HUMAN	Disease (HIDS)	104895305	A/B	G	309	S
28	UniProt	VAR_009068	V	310	M	KIME_HUMAN	Disease (MEVA)	104895319	A/B	V	310	M
29	UniProt	VAR_075041	H	312	R	KIME_HUMAN	Disease (POROK3)	---	A/B	H	312	R
30	UniProt	VAR_010968	G	326	R	KIME_HUMAN	Disease (HIDS)	104895308	A/B	G	326	R
31	UniProt	VAR_004026	A	334	T	KIME_HUMAN	Disease (MEVA)	104895317	A/B	A	334	T
32	UniProt	VAR_029525	G	335	S	KIME_HUMAN	Polymorphism	11614976	A/B	G	335	S
33	UniProt	VAR_029526	T	356	M	KIME_HUMAN	Polymorphism	104895342	A/B	T	356	M
34	UniProt	VAR_075042	F	365	S	KIME_HUMAN	Disease (POROK3)	398122911	A/B	F	365	S
35	UniProt	VAR_075043	G	376	S	KIME_HUMAN	Disease (POROK3)	---	A/B	G	376	S
36	UniProt	VAR_029527	G	376	V	KIME_HUMAN	Disease (HIDS)	104895340	A/B	G	376	V
37	UniProt	VAR_004027	V	377	I	KIME_HUMAN	Disease (HIDS)	28934897	A/B	V	377	I

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 6 (37, 74)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
01	UniProt	VAR_075036	G	12	R	KIME_HUMAN	Disease (POROK3)	---	C/D	G	12	R
02	UniProt	VAR_010956	H	20	N	KIME_HUMAN	Disease (HIDS)	11544299	C/D	H	20	N
03	UniProt	VAR_004022	H	20	P	KIME_HUMAN	Disease (MEVA)	104895295	C/D	H	20	P
04	UniProt	VAR_029519	H	20	Q	KIME_HUMAN	Disease (HIDS)	104895335	C/D	H	20	Q
05	UniProt	VAR_010957	L	39	P	KIME_HUMAN	Disease (HIDS)	104895296	C/D	L	39	P
06	UniProt	VAR_075037	L	41	P	KIME_HUMAN	Disease (POROK3)	397514571	C/D	L	41	P
07	UniProt	VAR_010958	S	52	N	KIME_HUMAN	Polymorphism	7957619	C/D	S	52	N
08	UniProt	VAR_029520	V	132	I	KIME_HUMAN	Disease (HIDS)	104895336	C/D	V	132	I
09	UniProt	VAR_010959	S	135	L	KIME_HUMAN	Disease (HIDS)	104895297	C/D	S	135	L
10	UniProt	VAR_010960	A	148	T	KIME_HUMAN	Disease (HIDS)	104895298	C/D	A	148	T
11	UniProt	VAR_010961	S	150	L	KIME_HUMAN	Disease (HIDS)	747116992	C/D	S	150	L
12	UniProt	VAR_004023	P	167	L	KIME_HUMAN	Disease (HIDS)	104895300	C/D	P	167	L
13	UniProt	VAR_029521	G	171	R	KIME_HUMAN	Disease (HIDS)	104895337	C/D	G	171	R
14	UniProt	VAR_010962	G	202	R	KIME_HUMAN	Disease (POROK3)	104895301	C/D	G	202	R
15	UniProt	VAR_029522	G	211	E	KIME_HUMAN	Disease (HIDS)	104895325	C/D	G	211	E
16	UniProt	VAR_010963	R	215	Q	KIME_HUMAN	Disease (HIDS)	104895303	C/D	R	215	Q
17	UniProt	VAR_010964	T	243	I	KIME_HUMAN	Disease (MEVA)	104895314	C/D	T	243	I
18	UniProt	VAR_029523	V	250	I	KIME_HUMAN	Disease (HIDS)	104895339	C/D	V	250	I
19	UniProt	VAR_075038	L	255	P	KIME_HUMAN	Disease (POROK3)	397514570	C/D	L	255	P
20	UniProt	VAR_010965	L	264	F	KIME_HUMAN	Disease (MEVA)	104895315	C/D	L	264	F
21	UniProt	VAR_010966	L	265	P	KIME_HUMAN	Disease (MEVA)	104895316	C/D	L	265	P
22	UniProt	VAR_029524	L	265	R	KIME_HUMAN	Disease (HIDS)	104895316	C/D	L	265	R
23	UniProt	VAR_004024	I	268	T	KIME_HUMAN	Disease (MEVA)	104895304	C/D	I	268	T
24	UniProt	VAR_075039	L	279	P	KIME_HUMAN	Disease (POROK3)	---	C/D	L	279	P
25	UniProt	VAR_075040	Y	291	D	KIME_HUMAN	Disease (POROK3)	---	C/D	Y	291	D
26	UniProt	VAR_004025	N	301	T	KIME_HUMAN	Disease (MEVA)	28934896	C/D	N	301	T
27	UniProt	VAR_010967	G	309	S	KIME_HUMAN	Disease (HIDS)	104895305	C/D	G	309	S
28	UniProt	VAR_009068	V	310	M	KIME_HUMAN	Disease (MEVA)	104895319	C/D	V	310	M
29	UniProt	VAR_075041	H	312	R	KIME_HUMAN	Disease (POROK3)	---	C/D	H	312	R
30	UniProt	VAR_010968	G	326	R	KIME_HUMAN	Disease (HIDS)	104895308	C/D	G	326	R
31	UniProt	VAR_004026	A	334	T	KIME_HUMAN	Disease (MEVA)	104895317	C/D	A	334	T
32	UniProt	VAR_029525	G	335	S	KIME_HUMAN	Polymorphism	11614976	C/D	G	335	S
33	UniProt	VAR_029526	T	356	M	KIME_HUMAN	Polymorphism	104895342	C/D	T	356	M
34	UniProt	VAR_075042	F	365	S	KIME_HUMAN	Disease (POROK3)	398122911	C/D	F	365	S
35	UniProt	VAR_075043	G	376	S	KIME_HUMAN	Disease (POROK3)	---	C/D	G	376	S
36	UniProt	VAR_029527	G	376	V	KIME_HUMAN	Disease (HIDS)	104895340	C/D	G	376	V
37	UniProt	VAR_004027	V	377	I	KIME_HUMAN	Disease (HIDS)	28934897	C/D	V	377	I

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Asymmetric Unit (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GHMP_KINASES_ATP	PS00627	GHMP kinases putative ATP-binding domain.	KIME_HUMAN	137-148	4	A:137-148 B:137-148 C:137-148 D:137-148

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GHMP_KINASES_ATP	PS00627	GHMP kinases putative ATP-binding domain.	KIME_HUMAN	137-148	1	A:137-148 - - -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GHMP_KINASES_ATP	PS00627	GHMP kinases putative ATP-binding domain.	KIME_HUMAN	137-148	1	- B:137-148 - -

Biological Unit 3 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GHMP_KINASES_ATP	PS00627	GHMP kinases putative ATP-binding domain.	KIME_HUMAN	137-148	1	- - C:137-148 -

Biological Unit 4 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GHMP_KINASES_ATP	PS00627	GHMP kinases putative ATP-binding domain.	KIME_HUMAN	137-148	1	- - - D:137-148

Biological Unit 5 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GHMP_KINASES_ATP	PS00627	GHMP kinases putative ATP-binding domain.	KIME_HUMAN	137-148	2	A:137-148 B:137-148 - -

Biological Unit 6 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GHMP_KINASES_ATP	PS00627	GHMP kinases putative ATP-binding domain.	KIME_HUMAN	137-148	2	- - C:137-148 D:137-148

(no "Exon" information available for 2R3V)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:390
 aligned with KIME_HUMAN | Q03426 from UniProtKB/Swiss-Prot  Length:396

    Alignment length:394
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
           KIME_HUMAN     2 LSEVLLVSAPGKVILHGEHAVVHGKVALAVSLNLRTFLRLQPHSNGKVDLSLPNIGIKRAWDVARLQSLDTSFLEQGDVTTPTSEQVEKLKEVAGLPDDCAVTERLAVLAFLYLYLSICRKQRALPSLDIVVWSELPPGAGLGSSAAYSVCLAAALLTVCEEIPNPLKDGDCVNRWTKEDLELINKWAFQGERMIHGNPSGVDNAVSTWGGALRYHQGKISSLKRSPALQILLTNTKVPRNTRALVAGVRNRLLKFPEIVAPLLTSIDAISLECERVLGEMGEAPAPEQYLVLEELIDMNQHHLNALGVGHASLDQLCQVTRARGLHSKLTGAGGGGCGITLLKPGLEQPEVEATKQALTSCGFDCLETSIGAPGVSIHSATSLDSRVQQALDG 395
               SCOP domains d2r3va1 A:2-225 Mevalonate kinase                                                                                                                                                                                               d2r3va2 A:226-395 Mevalonate kinase                                                                                                                                        SCOP domains
               CATH domains 2r3vA01 A:2-226,A:375-395  [code=3.30.230.10, no name defined]                                                                                                                                                                   2r3vA02 A:227-374  [code=3.30.70.890, no name defined]                                                                                              2r3vA01               CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeeeeee...hhhhh..eeeeeeeeeeeeeeee....eeeee......eeeeehhhhhhh.....----....hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh........eeeeeee........hhhhhhhhhhhhhhhhhh............ee..hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.eeee....eee......eeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh...eeee.......eeeee.....hhhhhhhhhhhhhh...eeeeeee.....eee.....hhhhhhhh.. Sec.struct. author
             SAPs(SNPs) (1) ----------R-------N------------------P-P----------N-------------------------------------------------------------------------------I--L------------T-L----------------L---R------------------------------R--------E---Q---------------------------I------I----P--------FP--T----------P-----------D---------T-------SM-R-------------R-------TS--------------------M--------S----------SI------------------ SAPs(SNPs) (1)
             SAPs(SNPs) (2) ------------------P----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------R--------------------------------------------------------------------------------------------------------------V------------------- SAPs(SNPs) (2)
             SAPs(SNPs) (3) ------------------Q--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (3)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------GHMP_KINASES------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2r3v A   2 LSEVLLVSAPGKVILHGEHAVVHGKVALAVSLNLRTFLRLQPHSNGKVDLSLPNIGIKRAWDVARLQSLDTSFL----VTTPTSEQVEKLKEVAGLPDDCAVTERLAVLAFLYLYLSICRKQRALPSLDIVVWSELPPGAGLGSSAAYSVCLAAALLTVCEEIPNPLKDGDCVNRWTKEDLELINKWAFQGERMIHGNPSGVDNAVSTWGGALRYHQGKISSLKRSPALQILLTNTKVPRNTRALVAGVRNRLLKFPEIVAPLLTSIDAISLECERVLGEMGEAPAPEQYLVLEELIDMNQHHLNALGVGHASLDQLCQVTRARGLHSKLTGAGGGGCGITLLKPGLEQPEVEATKQALTSCGFDCLETSIGAPGVSIHSATSLDSRVQQALDG 395
                                    11        21        31        41        51        61        71   |    81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
                                                                                                    75   80

Chain B from PDB  Type:PROTEIN  Length:388
 aligned with KIME_HUMAN | Q03426 from UniProtKB/Swiss-Prot  Length:396

    Alignment length:394
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
           KIME_HUMAN     2 LSEVLLVSAPGKVILHGEHAVVHGKVALAVSLNLRTFLRLQPHSNGKVDLSLPNIGIKRAWDVARLQSLDTSFLEQGDVTTPTSEQVEKLKEVAGLPDDCAVTERLAVLAFLYLYLSICRKQRALPSLDIVVWSELPPGAGLGSSAAYSVCLAAALLTVCEEIPNPLKDGDCVNRWTKEDLELINKWAFQGERMIHGNPSGVDNAVSTWGGALRYHQGKISSLKRSPALQILLTNTKVPRNTRALVAGVRNRLLKFPEIVAPLLTSIDAISLECERVLGEMGEAPAPEQYLVLEELIDMNQHHLNALGVGHASLDQLCQVTRARGLHSKLTGAGGGGCGITLLKPGLEQPEVEATKQALTSCGFDCLETSIGAPGVSIHSATSLDSRVQQALDG 395
               SCOP domains d2r3vb1 B:2-225 Mevalonate kinase                                                                                                                                                                                               d2r3vb2 B:226-395 Mevalonate kinase                                                                                                                                        SCOP domains
               CATH domains 2r3vB01 B:2-226,B:375-395  [code=3.30.230.10, no name defined]                                                                                                                                                                   2r3vB02 B:227-374  [code=3.30.70.890, no name defined]                                                                                              2r3vB01               CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeeeeee..hhhhhh..eeeeeeeeeeeeeeee....eeeeeehhhheeeeeehhhhhhh....------..hhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhh........eeeeeee........hhhhhhhhhhhhhhhhhh................hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.eeee....eee......eeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh...eee.......eeeee.....hhhhhhhhhhhhhhh..eee..ee.....ee......hhhhhhhhh. Sec.struct. author
             SAPs(SNPs) (1) ----------R-------N------------------P-P----------N-------------------------------------------------------------------------------I--L------------T-L----------------L---R------------------------------R--------E---Q---------------------------I------I----P--------FP--T----------P-----------D---------T-------SM-R-------------R-------TS--------------------M--------S----------SI------------------ SAPs(SNPs) (1)
             SAPs(SNPs) (2) ------------------P----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------R--------------------------------------------------------------------------------------------------------------V------------------- SAPs(SNPs) (2)
             SAPs(SNPs) (3) ------------------Q--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (3)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------GHMP_KINASES------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2r3v B   2 LSEVLLVSAPGKVILHGEHAVVHGKVALAVSLNLRTFLRLQPHSNGKVDLSLPNIGIKRAWDVARLQSLDTSF------TTPTSEQVEKLKEVAGLPDDCAVTERLAVLAFLYLYLSICRKQRALPSLDIVVWSELPPGAGLGSSAAYSVCLAAALLTVCEEIPNPLKDGDCVNRWTKEDLELINKWAFQGERMIHGNPSGVDNAVSTWGGALRYHQGKISSLKRSPALQILLTNTKVPRNTRALVAGVRNRLLKFPEIVAPLLTSIDAISLECERVLGEMGEAPAPEQYLVLEELIDMNQHHLNALGVGHASLDQLCQVTRARGLHSKLTGAGGGGCGITLLKPGLEQPEVEATKQALTSCGFDCLETSIGAPGVSIHSATSLDSRVQQALDG 395
                                    11        21        31        41        51        61        71  |     81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
                                                                                                   74     81

Chain C from PDB  Type:PROTEIN  Length:390
 aligned with KIME_HUMAN | Q03426 from UniProtKB/Swiss-Prot  Length:396

    Alignment length:394
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
           KIME_HUMAN     2 LSEVLLVSAPGKVILHGEHAVVHGKVALAVSLNLRTFLRLQPHSNGKVDLSLPNIGIKRAWDVARLQSLDTSFLEQGDVTTPTSEQVEKLKEVAGLPDDCAVTERLAVLAFLYLYLSICRKQRALPSLDIVVWSELPPGAGLGSSAAYSVCLAAALLTVCEEIPNPLKDGDCVNRWTKEDLELINKWAFQGERMIHGNPSGVDNAVSTWGGALRYHQGKISSLKRSPALQILLTNTKVPRNTRALVAGVRNRLLKFPEIVAPLLTSIDAISLECERVLGEMGEAPAPEQYLVLEELIDMNQHHLNALGVGHASLDQLCQVTRARGLHSKLTGAGGGGCGITLLKPGLEQPEVEATKQALTSCGFDCLETSIGAPGVSIHSATSLDSRVQQALDG 395
               SCOP domains d2r3vc1 C:2-225 Mevalonate kinase                                                                                                                                                                                               d2r3vc2 C:226-395 Mevalonate kinase                                                                                                                                        SCOP domains
               CATH domains 2r3vC01 C:2-226,C:375-395  [code=3.30.230.10, no name defined]                                                                                                                                                                   2r3vC02 C:227-374  [code=3.30.70.890, no name defined]                                                                                              2r3vC01               CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeeeeee...hhhhh..eeeeeeeeeeeeeeee.....eeeee....eeeee..hhhhhh.....----....hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh........eeeeeee........hhhhhhhhhhhhhhhhhh............ee..hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh.eeee....eee......eeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh....eeee......eeeee.....hhhhhhhhhhhhhh...eeeeeee.....eee.......hhhhhhhh Sec.struct. author
             SAPs(SNPs) (1) ----------R-------N------------------P-P----------N-------------------------------------------------------------------------------I--L------------T-L----------------L---R------------------------------R--------E---Q---------------------------I------I----P--------FP--T----------P-----------D---------T-------SM-R-------------R-------TS--------------------M--------S----------SI------------------ SAPs(SNPs) (1)
             SAPs(SNPs) (2) ------------------P----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------R--------------------------------------------------------------------------------------------------------------V------------------- SAPs(SNPs) (2)
             SAPs(SNPs) (3) ------------------Q--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (3)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------GHMP_KINASES------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2r3v C   2 LSEVLLVSAPGKVILHGEHAVVHGKVALAVSLNLRTFLRLQPHSNGKVDLSLPNIGIKRAWDVARLQSLDTSFL----VTTPTSEQVEKLKEVAGLPDDCAVTERLAVLAFLYLYLSICRKQRALPSLDIVVWSELPPGAGLGSSAAYSVCLAAALLTVCEEIPNPLKDGDCVNRWTKEDLELINKWAFQGERMIHGNPSGVDNAVSTWGGALRYHQGKISSLKRSPALQILLTNTKVPRNTRALVAGVRNRLLKFPEIVAPLLTSIDAISLECERVLGEMGEAPAPEQYLVLEELIDMNQHHLNALGVGHASLDQLCQVTRARGLHSKLTGAGGGGCGITLLKPGLEQPEVEATKQALTSCGFDCLETSIGAPGVSIHSATSLDSRVQQALDG 395
                                    11        21        31        41        51        61        71   |    81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
                                                                                                    75   80

Chain D from PDB  Type:PROTEIN  Length:389
 aligned with KIME_HUMAN | Q03426 from UniProtKB/Swiss-Prot  Length:396

    Alignment length:394
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
           KIME_HUMAN     2 LSEVLLVSAPGKVILHGEHAVVHGKVALAVSLNLRTFLRLQPHSNGKVDLSLPNIGIKRAWDVARLQSLDTSFLEQGDVTTPTSEQVEKLKEVAGLPDDCAVTERLAVLAFLYLYLSICRKQRALPSLDIVVWSELPPGAGLGSSAAYSVCLAAALLTVCEEIPNPLKDGDCVNRWTKEDLELINKWAFQGERMIHGNPSGVDNAVSTWGGALRYHQGKISSLKRSPALQILLTNTKVPRNTRALVAGVRNRLLKFPEIVAPLLTSIDAISLECERVLGEMGEAPAPEQYLVLEELIDMNQHHLNALGVGHASLDQLCQVTRARGLHSKLTGAGGGGCGITLLKPGLEQPEVEATKQALTSCGFDCLETSIGAPGVSIHSATSLDSRVQQALDG 395
               SCOP domains d2r3vd1 D:2-225 Mevalonate kinase                                                                                                                                                                                               d2r3vd2 D:226-395 Mevalonate kinase                                                                                                                                        SCOP domains
               CATH domains 2r3vD01 D:2-226,D:375-395  [code=3.30.230.10, no name defined]                                                                                                                                                                   2r3vD02 D:227-374  [code=3.30.70.890, no name defined]                                                                                              2r3vD01               CATH domains
           Pfam domains (1) --------------------------------------------------------------------------------------------------------------------------------GHMP_kinases_N-2r3vD01 D:130-212                                                   -----------------------------------------------------------------------------GHMP_kinases_C-2r3vD05 D:290-366                                             ----------------------------- Pfam domains (1)
           Pfam domains (2) --------------------------------------------------------------------------------------------------------------------------------GHMP_kinases_N-2r3vD02 D:130-212                                                   -----------------------------------------------------------------------------GHMP_kinases_C-2r3vD06 D:290-366                                             ----------------------------- Pfam domains (2)
           Pfam domains (3) --------------------------------------------------------------------------------------------------------------------------------GHMP_kinases_N-2r3vD03 D:130-212                                                   -----------------------------------------------------------------------------GHMP_kinases_C-2r3vD07 D:290-366                                             ----------------------------- Pfam domains (3)
           Pfam domains (4) --------------------------------------------------------------------------------------------------------------------------------GHMP_kinases_N-2r3vD04 D:130-212                                                   -----------------------------------------------------------------------------GHMP_kinases_C-2r3vD08 D:290-366                                             ----------------------------- Pfam domains (4)
         Sec.struct. author ....eeeeeeeeeeee...hhhhh..eeeeeeeeeeeeeeeee...eeeee......eeeeehhhhhh......-----...hhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhh.....eeeeeeee........hhhhhhhhhhhhhhhhhh................hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.eeee..............ee.eee.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh....eee.......eeeeee....hhhhhhhhhhhhhhh..eee.........ee..........hhhhh. Sec.struct. author
             SAPs(SNPs) (1) ----------R-------N------------------P-P----------N-------------------------------------------------------------------------------I--L------------T-L----------------L---R------------------------------R--------E---Q---------------------------I------I----P--------FP--T----------P-----------D---------T-------SM-R-------------R-------TS--------------------M--------S----------SI------------------ SAPs(SNPs) (1)
             SAPs(SNPs) (2) ------------------P----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------R--------------------------------------------------------------------------------------------------------------V------------------- SAPs(SNPs) (2)
             SAPs(SNPs) (3) ------------------Q--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs) (3)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------GHMP_KINASES------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2r3v D   2 LSEVLLVSAPGKVILHGEHAVVHGKVALAVSLNLRTFLRLQPHSNGKVDLSLPNIGIKRAWDVARLQSLDTSFL-----TTPTSEQVEKLKEVAGLPDDCAVTERLAVLAFLYLYLSICRKQRALPSLDIVVWSELPPGAGLGSSAAYSVCLAAALLTVCEEIPNPLKDGDCVNRWTKEDLELINKWAFQGERMIHGNPSGVDNAVSTWGGALRYHQGKISSLKRSPALQILLTNTKVPRNTRALVAGVRNRLLKFPEIVAPLLTSIDAISLECERVLGEMGEAPAPEQYLVLEELIDMNQHHLNALGVGHASLDQLCQVTRARGLHSKLTGAGGGGCGITLLKPGLEQPEVEATKQALTSCGFDCLETSIGAPGVSIHSATSLDSRVQQALDG 395
                                    11        21        31        41        51        61        71   |    81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
                                                                                                    75    81

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Ferredoxin-like (1795)

Superfamily: GHMP Kinase, C-terminal domain (25)

Family: Mevalonate kinase (5)

Protein domain: Mevalonate kinase (5)

Human (Homo sapiens) [TaxId: 9606] (1)

1a	d2r3va2	A:226-395
1b	d2r3vb2	B:226-395
1c	d2r3vc2	C:226-395
1d	d2r3vd2	D:226-395

Fold: Ribosomal protein S5 domain 2-like (306)

Superfamily: Ribosomal protein S5 domain 2-like (306)

Family: GHMP Kinase, N-terminal domain (19)

Protein domain: Mevalonate kinase (5)

Human (Homo sapiens) [TaxId: 9606] (1)

2a	d2r3va1	A:2-225
2b	d2r3vb1	B:2-225
2c	d2r3vc1	C:2-225
2d	d2r3vd1	D:2-225

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Alpha-Beta Plaits (1688)

Homologous Superfamily: [code=3.30.70.890, no name defined] (18)

Human (Homo sapiens) (2)

1a	2r3vA02	A:227-374
1b	2r3vB02	B:227-374
1c	2r3vC02	C:227-374
1d	2r3vD02	D:227-374

Topology: Ribosomal Protein S5; domain 2 (189)

Homologous Superfamily: [code=3.30.230.10, no name defined] (170)

Human (Homo sapiens) (6)

2a	2r3vB01	B:2-226,B:375-395
2b	2r3vD01	D:2-226,D:375-395
2c	2r3vA01	A:2-226,A:375-395
2d	2r3vC01	C:2-226,C:375-395

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: S5 (103)

Family: GHMP_kinases_N (23)

Homo sapiens (Human) (2)

1a	GHMP_kinases_N-2r3vD01	D:130-212
1b	GHMP_kinases_N-2r3vD02	D:130-212
1c	GHMP_kinases_N-2r3vD03	D:130-212
1d	GHMP_kinases_N-2r3vD04	D:130-212

Clan: no clan defined [family: GHMP_kinases_C] (13)

Family: GHMP_kinases_C (13)

Homo sapiens (Human) (2)

2a	GHMP_kinases_C-2r3vD05	D:290-366
2b	GHMP_kinases_C-2r3vD06	D:290-366
2c	GHMP_kinases_C-2r3vD07	D:290-366
2d	GHMP_kinases_C-2r3vD08	D:290-366

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (KIME_HUMAN | Q03426)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0042802	identical protein binding	Interacting selectively and non-covalently with an identical protein or proteins.
	GO:0016301	kinase activity	Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
	GO:0004496	mevalonate kinase activity	Catalysis of the reaction: (R)-mevalonate + ATP = (R)-5-phosphomevalonate + ADP + 2 H(+).
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0016773	phosphotransferase activity, alcohol group as acceptor	Catalysis of the transfer of a phosphorus-containing group from one compound (donor) to an alcohol group (acceptor).
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
	GO:0006695	cholesterol biosynthetic process	The chemical reactions and pathways resulting in the formation of cholesterol, cholest-5-en-3 beta-ol, the principal sterol of vertebrates and the precursor of many steroids, including bile acids and steroid hormones.
	GO:0008203	cholesterol metabolic process	The chemical reactions and pathways involving cholesterol, cholest-5-en-3 beta-ol, the principal sterol of vertebrates and the precursor of many steroids, including bile acids and steroid hormones. It is a component of the plasma membrane lipid bilayer and of plasma lipoproteins and can be found in all animal tissues.
	GO:0019287	isopentenyl diphosphate biosynthetic process, mevalonate pathway	The chemical reactions and pathways resulting in the formation of isopentenyl diphosphate, via the intermediate mevalonate. This pathway converts acetate, in the form of acetyl-CoA, to isopentenyl diphosphate (IPP), the fundamental unit in isoprenoid biosynthesis, through a series of mevalonate intermediates.
	GO:0008299	isoprenoid biosynthetic process	The chemical reactions and pathways resulting in the formation of any isoprenoid compound, isoprene (2-methylbuta-1,3-diene) or compounds containing or derived from linked isoprene (3-methyl-2-butenylene) residues.
	GO:0006629	lipid metabolic process	The chemical reactions and pathways involving lipids, compounds soluble in an organic solvent but not, or sparingly, in an aqueous solvent. Includes fatty acids; neutral fats, other fatty-acid esters, and soaps; long-chain (fatty) alcohols and waxes; sphingoids and other long-chain bases; glycolipids, phospholipids and sphingolipids; and carotenes, polyprenols, sterols, terpenes and other isoprenoids.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
	GO:0050728	negative regulation of inflammatory response	Any process that stops, prevents, or reduces the frequency, rate or extent of the inflammatory response.
	GO:0016310	phosphorylation	The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
	GO:0006694	steroid biosynthetic process	The chemical reactions and pathways resulting in the formation of steroids, compounds with a 1,2,cyclopentanoperhydrophenanthrene nucleus; includes de novo formation and steroid interconversion by modification.
	GO:0008202	steroid metabolic process	The chemical reactions and pathways involving steroids, compounds with a 1,2,cyclopentanoperhydrophenanthrene nucleus.
	GO:0016126	sterol biosynthetic process	The chemical reactions and pathways resulting in the formation of sterols, steroids with one or more hydroxyl groups and a hydrocarbon side-chain in the molecule.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0005777	peroxisome	A small organelle enclosed by a single membrane, and found in most eukaryotic cells. Contains peroxidases and other enzymes involved in a variety of metabolic processes including free radical detoxification, lipid catabolism and biosynthesis, and hydrogen peroxide metabolism.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2r3v)

	Sites
(no "Sites" information available for 2r3v)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2r3v)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2r3v
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	KIME_HUMAN \| Q03426
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.7.1.36
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	175900
		Disease Information	:	OMIM
	260920
		Disease Information	:	OMIM
	610377
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	KIME_HUMAN \| Q03426
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 2R3V)

(no "Related Entries Specified in the PDB File" available for 2R3V)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (37, 148)

PROSITE Motifs (1, 4)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 8)

CATH Domains (2, 8)

Pfam Domains (2, 8)

Gene Ontology (23, 23)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
