2QXX - JenaLib

Asymmetric Unit (Jmol Viewer)

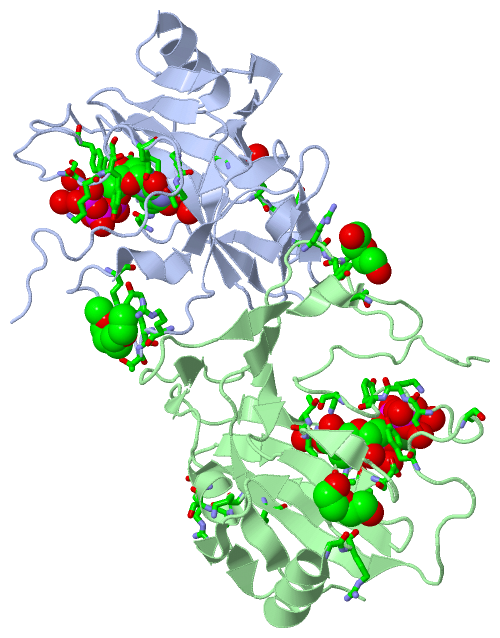

Asym. Unit - sites (Jmol Viewer)

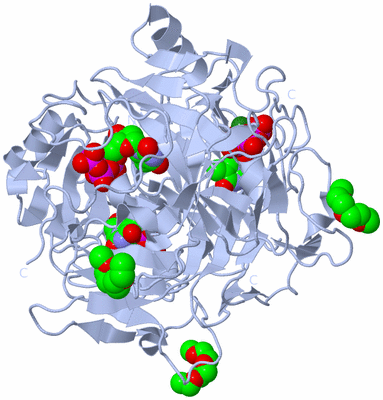

Biological Unit 1 (Jmol Viewer)

Biol. Unit 1 - sites (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Title :   BIFUNCTIONAL DCTP DEAMINASE: DUTPASE FROM MYCOBACTERIUM TUBERCULOSIS IN COMPLEX WITH DTTP

Authors :   S. Christophersen, P. Harris, M. Willemoes

Date :   13 Aug 07 (Deposition) - 19 Feb 08 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (3x)
Biol. Unit 2: B  (3x)

Keywords :   Distorted Beta Barrel, Hydrolase, Nucleotide Metabolism (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. S. Helt, M. Thymark, P. Harris, C. Aagaard, J. Dietrich, S. Larsen, M. Willemoes
Mechanism Of Dttp Inhibition Of The Bifunctional Dctp Deaminase:Dutpase Encoded By Mycobacterium Tuberculosis.
J. Mol. Biol. V. 376 554 2008
PubMed-ID: 18164314 | Reference-DOI: 10.1016/J.JMB.2007.11.099

Molecule 1 - DEOXYCYTIDINE TRIPHOSPHATE DEAMINASE
	Chains	:	A, B
	EC Number	:	3.5.4.13
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Plasmid	:	PTBDCD7
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PET11A
	Gene	:	DCD
	Organism Scientific	:	MYCOBACTERIUM TUBERCULOSIS
	Organism Taxid	:	83332
	Strain	:	H37RV
	Synonym	:	DCTP DEAMINASE

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (3x)	:	A
Biological Unit 2 (3x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 7)

No.	Name	Count	Type	Full Name
1	1PE	3	Ligand/Ion	PENTAETHYLENE GLYCOL
2	MG	2	Ligand/Ion	MAGNESIUM ION
3	TTP	2	Ligand/Ion	THYMIDINE-5'-TRIPHOSPHATE

Biological Unit 1 (2, 6)

No.	Name	Count	Type	Full Name
1	1PE	3	Ligand/Ion	PENTAETHYLENE GLYCOL
2	MG	-1	Ligand/Ion	MAGNESIUM ION
3	TTP	3	Ligand/Ion	THYMIDINE-5'-TRIPHOSPHATE

Biological Unit 2 (2, 9)

No.	Name	Count	Type	Full Name
1	1PE	6	Ligand/Ion	PENTAETHYLENE GLYCOL
2	MG	-1	Ligand/Ion	MAGNESIUM ION
3	TTP	3	Ligand/Ion	THYMIDINE-5'-TRIPHOSPHATE

Asymmetric Unit (7, 7)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	TTP A:201 , HOH A:237 , HOH A:239 , HOH A:265	BINDING SITE FOR RESIDUE MG A 202
2	AC2	SOFTWARE	TTP B:201 , HOH B:229 , HOH B:247 , HOH B:268	BINDING SITE FOR RESIDUE MG B 202
3	AC3	SOFTWARE	LYS A:101 , SER A:102 , SER A:103 , ARG A:106 , ALA A:115 , GLY A:116 , PHE A:117 , ILE A:118 , ASP A:119 , ILE A:126 , THR A:127 , GLN A:148 , TYR A:162 , SER A:169 , LYS A:170 , TYR A:171 , GLN A:174 , MG A:202 , HOH A:233 , HOH A:237 , HOH A:239 , HOH A:240 , HOH A:243 , HOH A:265 , HOH A:288	BINDING SITE FOR RESIDUE TTP A 201
4	AC4	SOFTWARE	ARG A:47 , TYR A:48 , THR A:49 , GLN A:57	BINDING SITE FOR RESIDUE 1PE A 203
5	AC5	SOFTWARE	LYS B:101 , SER B:102 , SER B:103 , ARG B:106 , ALA B:115 , GLY B:116 , PHE B:117 , ASP B:119 , ILE B:126 , THR B:127 , GLN B:148 , TYR B:162 , SER B:169 , LYS B:170 , TYR B:171 , GLN B:174 , MG B:202 , HOH B:228 , HOH B:229 , HOH B:234 , HOH B:235 , HOH B:237 , HOH B:247 , HOH B:268 , HOH B:279	BINDING SITE FOR RESIDUE TTP B 201
6	AC6	SOFTWARE	GLY B:15 , ARG B:16 , THR B:89	BINDING SITE FOR RESIDUE 1PE B 203
7	AC7	SOFTWARE	ARG B:47 , TYR B:48 , THR B:49 , GLN B:57 , SER B:165	BINDING SITE FOR RESIDUE 1PE B 204

(no "SS Bond" information available for 2QXX)

Asymmetric Unit

No.	Residues
1	Asp A:20	-	Pro A:21
2	Asp B:20	-	Pro B:21

(no "SAP(SNP)/Variant" information available for 2QXX)

(no "PROSITE Motif" information available for 2QXX)

(no "Exon" information available for 2QXX)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:189
 aligned with DCD_MYCTO | P9WP16 from UniProtKB/Swiss-Prot  Length:190

    Alignment length:189
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
            DCD_MYCTO     1 MLLSDRDLRAEISSGRLGIDPFDDTLVQPSSIDVRLDCLFRVFNNTRYTHIDPAKQQDELTSLVQPVDGEPFVLHPGEFVLGSTLELFTLPDNLAGRLEGKSSLGRLGLLTHSTAGFIDPGFSGHITLELSNVANLPITLWPGMKIGQLCMLRLTSPSEHPYGSSRAGSKYQGQRGPTPSRSYQNFIRS 189
               SCOP domains d2qxxa_ A: Deoxycytidine triphosphate deaminase (dCTP deaminase)                                                                                                                              SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhh...eee..hhh.ee..eeeee....eee..............hhhhheee.......eee....eeeee...eee....eeeeee.hhhhhh..eee.....ee....ee..eeeeee.....eee....eeeeeeeee.................................... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2qxx A   1 MLLSDRDLRAEISSGRLGIDPFDDTLVQPSSIDVRLDCLFRVFNNTRYTHIDPAKQQDELTSLVQPVDGEPFVLHPGEFVLGSTLELFTLPDNLAGRLEGKSSLGRLGLLTHSTAGFIDPGFSGHITLELSNVANLPITLWPGMKIGQLCMLRLTSPSEHPYGSSRAGSKYQGQRGPTPSRSYQNFIRS 189
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180

Chain A from PDB  Type:PROTEIN  Length:189
 aligned with DCD_MYCTU | P9WP17 from UniProtKB/Swiss-Prot  Length:190

    Alignment length:189
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
            DCD_MYCTU     1 MLLSDRDLRAEISSGRLGIDPFDDTLVQPSSIDVRLDCLFRVFNNTRYTHIDPAKQQDELTSLVQPVDGEPFVLHPGEFVLGSTLELFTLPDNLAGRLEGKSSLGRLGLLTHSTAGFIDPGFSGHITLELSNVANLPITLWPGMKIGQLCMLRLTSPSEHPYGSSRAGSKYQGQRGPTPSRSYQNFIRS 189
               SCOP domains d2qxxa_ A: Deoxycytidine triphosphate deaminase (dCTP deaminase)                                                                                                                              SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhh...eee..hhh.ee..eeeee....eee..............hhhhheee.......eee....eeeee...eee....eeeeee.hhhhhh..eee.....ee....ee..eeeeee.....eee....eeeeeeeee.................................... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2qxx A   1 MLLSDRDLRAEISSGRLGIDPFDDTLVQPSSIDVRLDCLFRVFNNTRYTHIDPAKQQDELTSLVQPVDGEPFVLHPGEFVLGSTLELFTLPDNLAGRLEGKSSLGRLGLLTHSTAGFIDPGFSGHITLELSNVANLPITLWPGMKIGQLCMLRLTSPSEHPYGSSRAGSKYQGQRGPTPSRSYQNFIRS 189
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180

Chain B from PDB  Type:PROTEIN  Length:189
 aligned with DCD_MYCTO | P9WP16 from UniProtKB/Swiss-Prot  Length:190

    Alignment length:189
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
            DCD_MYCTO     1 MLLSDRDLRAEISSGRLGIDPFDDTLVQPSSIDVRLDCLFRVFNNTRYTHIDPAKQQDELTSLVQPVDGEPFVLHPGEFVLGSTLELFTLPDNLAGRLEGKSSLGRLGLLTHSTAGFIDPGFSGHITLELSNVANLPITLWPGMKIGQLCMLRLTSPSEHPYGSSRAGSKYQGQRGPTPSRSYQNFIRS 189
               SCOP domains d2qxxb_ B: Deoxycytidine triphosphate deaminase (dCTP deaminase)                                                                                                                              SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---------------------------------------------------dUTPase-2qxxB01 B:52-181                                                                                                          -------- Pfam domains (1)
           Pfam domains (2) ---------------------------------------------------dUTPase-2qxxB02 B:52-181                                                                                                          -------- Pfam domains (2)
         Sec.struct. author ...hhhhhhhhhhh...eee..hhh.ee..eeeee....eee..............hhhhheee.......eee....eeeee...eee....eeeeee.hhhhhh..eee.....ee....ee..eeeeee.....eee....eeeeeeeee.................................... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2qxx B   1 MLLSDRDLRAEISSGRLGIDPFDDTLVQPSSIDVRLDCLFRVFNNTRYTHIDPAKQQDELTSLVQPVDGEPFVLHPGEFVLGSTLELFTLPDNLAGRLEGKSSLGRLGLLTHSTAGFIDPGFSGHITLELSNVANLPITLWPGMKIGQLCMLRLTSPSEHPYGSSRAGSKYQGQRGPTPSRSYQNFIRS 189
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180

Chain B from PDB  Type:PROTEIN  Length:189
 aligned with DCD_MYCTU | P9WP17 from UniProtKB/Swiss-Prot  Length:190

    Alignment length:189
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
            DCD_MYCTU     1 MLLSDRDLRAEISSGRLGIDPFDDTLVQPSSIDVRLDCLFRVFNNTRYTHIDPAKQQDELTSLVQPVDGEPFVLHPGEFVLGSTLELFTLPDNLAGRLEGKSSLGRLGLLTHSTAGFIDPGFSGHITLELSNVANLPITLWPGMKIGQLCMLRLTSPSEHPYGSSRAGSKYQGQRGPTPSRSYQNFIRS 189
               SCOP domains d2qxxb_ B: Deoxycytidine triphosphate deaminase (dCTP deaminase)                                                                                                                              SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ---------------------------------------------------dUTPase-2qxxB01 B:52-181                                                                                                          -------- Pfam domains (1)
           Pfam domains (2) ---------------------------------------------------dUTPase-2qxxB02 B:52-181                                                                                                          -------- Pfam domains (2)
         Sec.struct. author ...hhhhhhhhhhh...eee..hhh.ee..eeeee....eee..............hhhhheee.......eee....eeeee...eee....eeeeee.hhhhhh..eee.....ee....ee..eeeeee.....eee....eeeeeeeee.................................... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2qxx B   1 MLLSDRDLRAEISSGRLGIDPFDDTLVQPSSIDVRLDCLFRVFNNTRYTHIDPAKQQDELTSLVQPVDGEPFVLHPGEFVLGSTLELFTLPDNLAGRLEGKSSLGRLGLLTHSTAGFIDPGFSGHITLELSNVANLPITLWPGMKIGQLCMLRLTSPSEHPYGSSRAGSKYQGQRGPTPSRSYQNFIRS 189
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: beta-clip (280)

Superfamily: dUTPase-like (122)

Family: dUTPase-like (71)

Protein domain: Deoxycytidine triphosphate deaminase (dCTP deaminase) (9)

Mycobacterium tuberculosis [TaxId: 83332] (3)

1a	d2qxxa_	A:
1b	d2qxxb_	B:

(no "CATH Domain" information available for 2QXX)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: dUTPase (38)

Family: dUTPase (38)

Mycobacterium tuberculosis (9)

1a	dUTPase-2qxxB01	B:52-181
1b	dUTPase-2qxxB02	B:52-181

Asymmetric Unit(hide GO term definitions)

Chain A,B (DCD_MYCTO | P9WP16)

molecular function
	GO:0008829	dCTP deaminase activity	Catalysis of the reaction: dCTP + H2O = dUTP + NH3.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
biological process
	GO:0006226	dUMP biosynthetic process	The chemical reactions and pathways resulting in the formation of dUMP, deoxyuridine monophosphate (2'-deoxyuridine 5'-phosphate).
	GO:0006229	dUTP biosynthetic process	The chemical reactions and pathways resulting in the formation of dUTP, deoxyuridine (5'-)triphosphate.
	GO:0046080	dUTP metabolic process	The chemical reactions and pathways involving dUTP, deoxyuridine (5'-)triphosphate.
	GO:0009117	nucleotide metabolic process	The chemical reactions and pathways involving a nucleotide, a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the glycose moiety; may be mono-, di- or triphosphate; this definition includes cyclic nucleotides (nucleoside cyclic phosphates).
	GO:0009220	pyrimidine ribonucleotide biosynthetic process	The chemical reactions and pathways resulting in the formation of a pyrimidine ribonucleotide, a compound consisting of nucleoside (a pyrimidine base linked to a ribose sugar) esterified with a phosphate group at either the 3' or 5'-hydroxyl group of the sugar.

Chain A,B (DCD_MYCTU | P9WP17)

molecular function
	GO:0033973	dCTP deaminase (dUMP-forming) activity	Catalysis of the reaction: dCTP + 2 H(2)O = diphosphate + dUMP + H(+) + NH(4)(+).
	GO:0008829	dCTP deaminase activity	Catalysis of the reaction: dCTP + H2O = dUTP + NH3.
	GO:0004170	dUTP diphosphatase activity	Catalysis of the reaction: dUTP + H2O = dUMP + diphosphate.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
biological process
	GO:0006226	dUMP biosynthetic process	The chemical reactions and pathways resulting in the formation of dUMP, deoxyuridine monophosphate (2'-deoxyuridine 5'-phosphate).
	GO:0006229	dUTP biosynthetic process	The chemical reactions and pathways resulting in the formation of dUTP, deoxyuridine (5'-)triphosphate.
	GO:0046080	dUTP metabolic process	The chemical reactions and pathways involving dUTP, deoxyuridine (5'-)triphosphate.
	GO:0015949	nucleobase-containing small molecule interconversion	The chemical reactions and pathways by which a nucleobase, nucleoside or nucleotide small molecule is synthesized from another nucleobase, nucleoside or nucleotide small molecule.
	GO:0009117	nucleotide metabolic process	The chemical reactions and pathways involving a nucleotide, a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the glycose moiety; may be mono-, di- or triphosphate; this definition includes cyclic nucleotides (nucleoside cyclic phosphates).
	GO:0009220	pyrimidine ribonucleotide biosynthetic process	The chemical reactions and pathways resulting in the formation of a pyrimidine ribonucleotide, a compound consisting of nucleoside (a pyrimidine base linked to a ribose sugar) esterified with a phosphate group at either the 3' or 5'-hydroxyl group of the sugar.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		1PE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		TTP	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Asp A:20 - Pro A:21	[ RasMol ]
		Asp B:20 - Pro B:21	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2qxx
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	DCD_MYCTO \| P9WP16
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	DCD_MYCTU \| P9WP17
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.5.4.13
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	DCD_MYCTO \| P9WP16
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	DCD_MYCTU \| P9WP17
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	DCD_MYCTO \| P9WP16	:	2qlp 4a6a
	DCD_MYCTU \| P9WP17	:	2qlp 4a6a

2qlp	BIFUNCTIONAL DCTP DEAMINASE:DUTPASE FROM MYCOBACTERIUM TUBERCULOSIS, APO FORM

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 7)

Sites (7, 7)

SS Bonds (0, 0)

Cis Peptide Bonds (2, 2)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (0, 0)

Pfam Domains (1, 2)

Gene Ontology (11, 18)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
