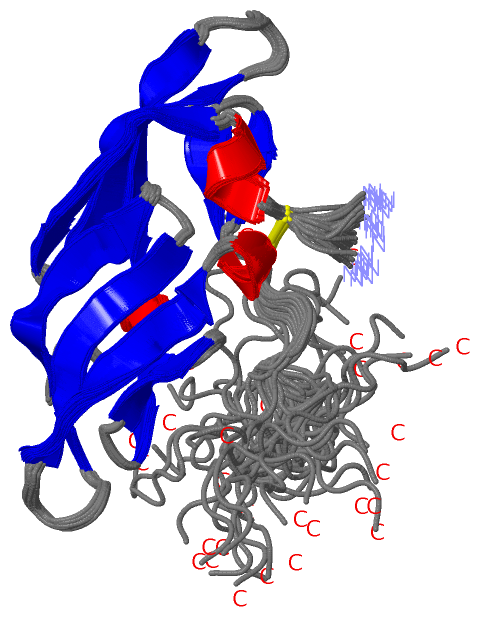

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF CRCVNH (C. RICHARDII CVNH)

Authors :  L. M. I. Koharudin, A. R. Viscomi, J. Jee, S. Ottonello, A. M. Gronenborn
Date :  09 Jan 08  (Deposition) - 25 Mar 08  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (30x)
Keywords :  Cvnh, Nmr, Antiviral Protein, Carbohydrate Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. M. Koharudin, A. R. Viscomi, J. G. Jee, S. Ottonello, A. M. Gronenborn
The Evolutionarily Conserved Family Of Cyanovirin-N Homologs: Structures And Carbohydrate Specificity.
Structure V. 16 570 2008
PubMed-ID: 18400178  |  Reference-DOI: 10.1016/J.STR.2008.01.015
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - CYANOVIRIN-N HOMOLOG
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET22B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: CERATOPTERIS RICHARDII
    Organism Taxid: 49495
    Synonym: CYANOVIRIN-N-LIKE PROTEIN

 Structural Features

(-) Chains, Units


NMR Structure (30x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2JZJ)

(-) Sites  (0, 0)

(no "Site" information available for 2JZJ)

(-) SS Bonds  (3, 3)

NMR Structure
No.Residues
1A:3 -A:102
2A:9 -A:23
3A:59 -A:74

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2JZJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2JZJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2JZJ)

(-) Exons   (0, 0)

(no "Exon" information available for 2JZJ)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:116
 aligned with CVNH_CERRI | P86326 from UniProtKB/Swiss-Prot  Length:142

    Alignment length:116
                                    36        46        56        66        76        86        96       106       116       126       136
           CVNH_CERRI    27 AQCNFANSCTGVELYGYILRGDCINEDGHPHATSINLNYYIGNDNGRLEYPGESFGSSCVKTALNDGHTLTASCKGADGQYHDSSMDLNYVVGNSYGYMEPCRASNADHVLKSSSE 142
               SCOP domains -------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -----------------------------------------------------CVNH-2jzjA01 A:54-116                                           Pfam domains (1)
           Pfam domains (2) -----------------------------------------------------CVNH-2jzjA02 A:54-116                                           Pfam domains (2)
         Sec.struct. author ...hhhh.eeeeeee..eeeeeee.....eeeeeee.hhh.eee..eee.........eeeeeee...eeeeeee.....eeeeeee.hhh.eee..eee................ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                 2jzj A   1 MQCNFANSCTGVELYGYILRGDCINEDGHPHATSINLNYYIGNDNGRLEYPGESFGSSCVKTALNDGHTLTASCKGADGQYHDSSMDLNYVVGNSYGYMEPCRASNADHVLKSSSE 116
                                    10        20        30        40        50        60        70        80        90       100       110


Chain A from PDB  Type:PROTEIN  Length:116
 aligned with D0VWW7_CERRI | D0VWW7 from UniProtKB/TrEMBL  Length:124

    Alignment length:116
                                    10        20        30        40        50        60        70        80        90       100       110
         D0VWW7_CERRI     1 MQCNFANSCTGVELYGYILRGDCINEDGHPHATSINLNYYIGNDNGRLEYPGESFGSSCVKTALNDGHTLTASCKGADGQYHDSSMDLNYVVGNSYGYMEPCRASNADHVLKSSSE 116
               SCOP domains -------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -----------------------------------------------------CVNH-2jzjA01 A:54-116                                           Pfam domains (1)
           Pfam domains (2) -----------------------------------------------------CVNH-2jzjA02 A:54-116                                           Pfam domains (2)
         Sec.struct. author ...hhhh.eeeeeee..eeeeeee.....eeeeeee.hhh.eee..eee.........eeeeeee...eeeeeee.....eeeeeee.hhh.eee..eee................ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------- Transcript
                 2jzj A   1 MQCNFANSCTGVELYGYILRGDCINEDGHPHATSINLNYYIGNDNGRLEYPGESFGSSCVKTALNDGHTLTASCKGADGQYHDSSMDLNYVVGNSYGYMEPCRASNADHVLKSSSE 116
                                    10        20        30        40        50        60        70        80        90       100       110
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2JZJ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2JZJ)

(-) Pfam Domains  (1, 2)

NMR Structure
(-)
Clan: no clan defined [family: CVNH] (11)

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A   (D0VWW7_CERRI | D0VWW7)

Chain A   (CVNH_CERRI | P86326)
molecular function
    GO:0030246    carbohydrate binding    Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
