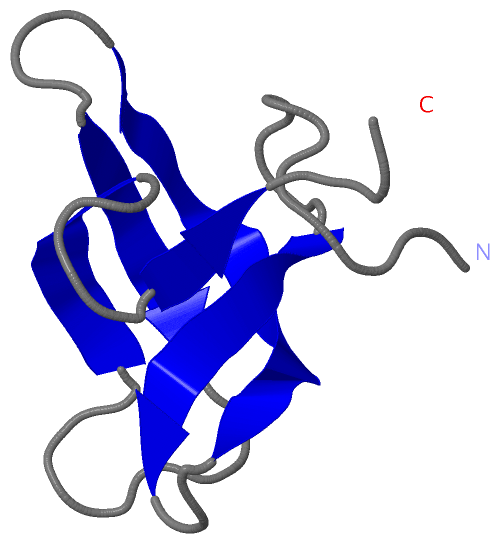

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

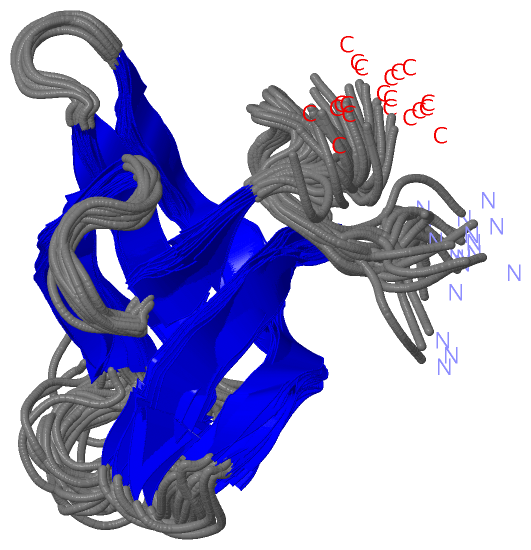

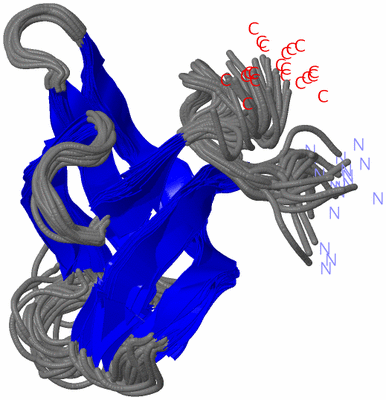

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE PHF20L1 MBT DOMAIN

Authors :  C. Brockmann, A. N. Iberg, K. Rehbein, A. Diehl, M. T. Bedford, H. Oschkinat
Date :  30 Jul 07  (Deposition) - 19 Aug 08  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Histone Binding, Mbt Domain, Solution Nmr, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Brockmann, A. N. Iberg, K. Rehbein, A. Diehl, M. T. Bedford, H. Oschkinat
Structural Analysis Of Histone H4K20 Methyllysine Recognition By The Mbt Domain Of Phf20L1
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PHD FINGER PROTEIN 20-LIKE 1
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEX6-P1
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 1-74
    Gene: PHF20L1
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2JTF)

(-) Sites  (0, 0)

(no "Site" information available for 2JTF)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2JTF)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2JTF)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2JTF)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2JTF)

(-) Exons   (2, 2)

NMR Structure (2, 2)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1cENST000003953861cENSE00001521553chr8:133787630-133787891262P20L1_HUMAN-00--
1.2bENST000003953862bENSE00001675977chr8:133790038-133790157120P20L1_HUMAN1-28281A:7-2822
1.4ENST000003953864ENSE00001707399chr8:133806656-133806827172P20L1_HUMAN28-85581A:28-7043
1.5ENST000003953865ENSE00001734578chr8:133806979-13380706385P20L1_HUMAN86-114290--
1.6bENST000003953866bENSE00001605264chr8:133811018-13381110689P20L1_HUMAN114-143300--
1.6eENST000003953866eENSE00001090009chr8:133811341-13381141878P20L1_HUMAN144-169260--
1.7bENST000003953867bENSE00001089992chr8:133816064-133816277214P20L1_HUMAN170-241720--
1.8cENST000003953868cENSE00001090001chr8:133816860-133816985126P20L1_HUMAN241-283430--
1.9dENST000003953869dENSE00002159454chr8:133823291-13382337383P20L1_HUMAN283-310280--
1.10aENST0000039538610aENSE00001731663chr8:133826882-133827134253P20L1_HUMAN311-395850--
1.10dENST0000039538610dENSE00001708692chr8:133829133-133829321189P20L1_HUMAN395-458640--
1.10fENST0000039538610fENSE00001799713chr8:133829584-133829790207P20L1_HUMAN458-527700--
1.11bENST0000039538611bENSE00002182278chr8:133836249-13383630557P20L1_HUMAN527-546200--
1.11hENST0000039538611hENSE00001613063chr8:133837509-133837616108P20L1_HUMAN546-582370--
1.12ENST0000039538612ENSE00001694370chr8:133844480-133844644165P20L1_HUMAN582-637560--
1.13bENST0000039538613bENSE00001666145chr8:133848785-133848966182P20L1_HUMAN637-697610--
1.14aENST0000039538614aENSE00001607526chr8:133849957-133850056100P20L1_HUMAN698-731340--
1.15ENST0000039538615ENSE00001772894chr8:133851632-133851827196P20L1_HUMAN731-796660--
1.16bENST0000039538616bENSE00001622971chr8:133854760-133855120361P20L1_HUMAN796-9161210--
1.17ENST0000039538617ENSE00001616887chr8:133856401-133856563163P20L1_HUMAN917-971550--
1.18cENST0000039538618cENSE00001719560chr8:133858026-1338610523027P20L1_HUMAN971-1017470--

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:64
 aligned with P20L1_HUMAN | A8MW92 from UniProtKB/Swiss-Prot  Length:1017

    Alignment length:64
                                    16        26        36        46        56        66
           P20L1_HUMAN    7 NRPGITFEIGARLEALDYLQKWYPSRIEKIDYEEGKMLVHFERWSHRYDEWIYWDSNRLRPLER 70
               SCOP domains ---------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........eeeeee...eeeeeeeeeee....eeeee........eeeee.....ee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------- PROSITE
           Transcript 1 (1) Exon 1.2b  PDB: A:7-28------------------------------------------ Transcript 1 (1)
           Transcript 1 (2) ---------------------Exon 1.4  PDB: A:28-70 UniProt: 28-85       Transcript 1 (2)
                  2jtf A  7 NRPGITFEIGARLEALDYLQKWYPSRIEKIDYEEGKMLVHFERWSHRYDEWIYWDSNRLRPLER 70
                                    16        26        36        46        56        66
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2JTF)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2JTF)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2JTF)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (P20L1_HUMAN | A8MW92)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2jtf)

  Sites
(no "Sites" information available for 2jtf)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2jtf)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2jtf
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  P20L1_HUMAN | A8MW92
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  P20L1_HUMAN | A8MW92
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        P20L1_HUMAN | A8MW92: 2eqm 2equ

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2JTF)
