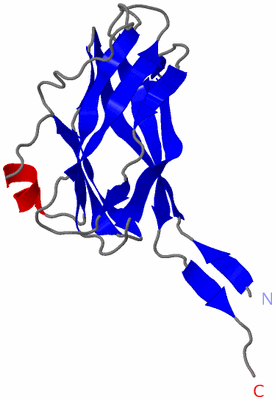

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)
Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF ENVELOPE PROTEIN VP26 FROM WHITE SPOT SYNDROME VIRUS (WSSV)

Authors :  C. L. Hew, X. H. Tang, J. Sivaraman
Date :  14 Feb 07  (Deposition) - 05 Jun 07  (Release) - 23 Apr 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (3x)
Keywords :  Beta Barrel, Beta Sheet Protruding Region, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. H. Tang, J. L. Wu, J. Sivaraman, C. L. Hew
Crystal Structures Of Major Envelope Proteins Vp26 And Vp28 From White Spot Syndrome Virus Shed Light On Their Evolutionary Relationship
J. Virol. V. 81 6709 2007
PubMed-ID: 17409146  |  Reference-DOI: 10.1128/JVI.02505-06

(-) Compounds

Molecule 1 - 22KDA STRUCTURAL PROTEIN VP22
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PGEX6P-1
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 41-201
    Organism Scientific: SHRIMP WHITE SPOT SYNDROME VIRUS
    Organism Taxid: 92652
    Synonym: VP26, VP26 STRUCTURAL PROTEIN, WSSV367, MAJOR VIRION PROTEIN VP26, ORF153, VP26, GENE FAMILY 1, WSV311, P22, 26 KDA STRUCTURAL PROTEIN VP26

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (3x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2EDM)

(-) Sites  (0, 0)

(no "Site" information available for 2EDM)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2EDM)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2EDM)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2EDM)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2EDM)

(-) Exons   (0, 0)

(no "Exon" information available for 2EDM)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:161
 aligned with Q0PW17_WSSV | Q0PW17 from UniProtKB/TrEMBL  Length:204

    Alignment length:161
                                    50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
          Q0PW17_WSSV    41 SVVANYDQMMRVPIQRRAKVMSIRGERSYNTPLGKVAMKNGLSDKDMKDVSADLVISTVTAPRTDPAGTGAENSNMTLKILNNTGVDLLINDITVRPTVIAGNIKGNTMSNTYFSSKDIKSSSSKITLIDVCSKFEDGAAFEATMNIGFTSKNVIDIKDEI 201
               SCOP domains d2edma1 A:41-201 Envelope protein VP26                                                                                                                            SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee..eeeeeeeeeee..eeee..eeeeee..eeeeee.....hhhhhh...eeeee..............eeeeeeeeee.....eeeeeeeee.eee..eee.....eeee...ee.......eeeeeeee......eeeeeeeeeee...eee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2edm A  41 SVVANYDQMMRVPIQRRAKVMSIRGERSYNTPLGKVAMKNGLSDKDMKDVSADLVISTVTAPRTDPAGTGAENSNMTLKILNNTGVDLLINDITVRPTVIAGNIKGNTMSNTYFSSKDIKSSSSKITLIDVCSKFEDGAAFEATMNIGFTSKNVIDIKDEI 201
                                    50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200


Chain A from PDB  Type:PROTEIN  Length:161
 aligned with Q9ICG6_WSSV | Q9ICG6 from UniProtKB/TrEMBL  Length:204

    Alignment length:161
                                    50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
          Q9ICG6_WSSV    41 SVVANYDQMMRVPIQRRAKVMSIRGERSYNTPLGKVAMKNGLSDKDMKDVSADLVISTVTAPRTDPAGTGAENSNMTLKILNNTGVDLLINDITVRPTVIAGNIKGNTMSNTYFSSKDIKSSSSKITLIDVCSKFEDGAAFEATMNIGFTSKNVIDIKDEI 201
               SCOP domains d2edma1 A:41-201 Envelope protein VP26                                                                                                                            SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee..eeeeeeeeeee..eeee..eeeeee..eeeeee.....hhhhhh...eeeee..............eeeeeeeeee.....eeeeeeeee.eee..eee.....eeee...ee.......eeeeeeee......eeeeeeeeeee...eee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2edm A  41 SVVANYDQMMRVPIQRRAKVMSIRGERSYNTPLGKVAMKNGLSDKDMKDVSADLVISTVTAPRTDPAGTGAENSNMTLKILNNTGVDLLINDITVRPTVIAGNIKGNTMSNTYFSSKDIKSSSSKITLIDVCSKFEDGAAFEATMNIGFTSKNVIDIKDEI 201
                                    50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2EDM)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2EDM)

(-) Gene Ontology  (2, 4)

Asymmetric Unit(hide GO term definitions)
Chain A   (Q9ICG6_WSSV | Q9ICG6)
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Chain A   (Q0PW17_WSSV | Q0PW17)
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2edm)

  Sites
(no "Sites" information available for 2edm)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2edm)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2edm
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q0PW17_WSSV | Q0PW17
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL
  Q9ICG6_WSSV | Q9ICG6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q0PW17_WSSV | Q0PW17
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q9ICG6_WSSV | Q9ICG6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2EDM)

(-) Related Entries Specified in the PDB File

2ed6 ENVELOPE PROTEIN VP28 FROM WSSV
