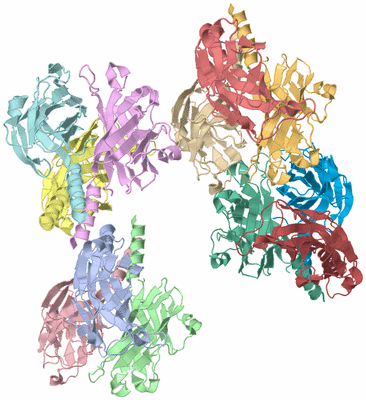

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

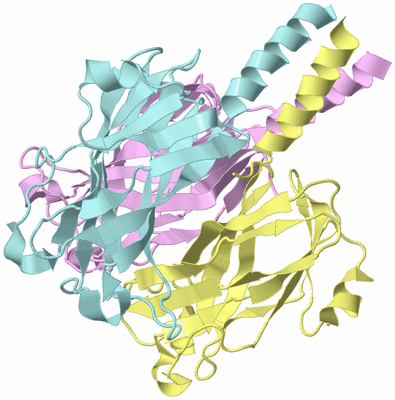

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF ENVELOPE PROTEIN VP28 FROM WHITE SPOT SYNDROME VIRUS (WSSV)

Authors :  C. L. Hew, J. Sivaraman, X. H. Tang
Date :  14 Feb 07  (Deposition) - 05 Jun 07  (Release) - 16 Apr 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1:  A,B,C  (1x)
Biol. Unit 2:  D,E,F  (1x)
Biol. Unit 3:  G,H,I  (1x)
Biol. Unit 4:  J,K,L  (1x)
Keywords :  Beta Barrel, N-Terminal Helix Protruding Region, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Tang, J. Wu, J. Sivaraman, C. L. Hew
Crystal Structures Of Major Envelope Proteins Vp26 And Vp28 From White Spot Syndrome Virus Shed Light On Their Evolutionary Relationship
J. Virol. V. 81 6709 2007
PubMed-ID: 17409146  |  Reference-DOI: 10.1128/JVI.02505-06

(-) Compounds

Molecule 1 - 25KDA STRUCTURAL PROTEIN VP25
    Chains: A, B, C, D, E, F, G, H, I, J, K, L
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PGEX6P-1
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 32-201
    Organism Scientific: SHRIMP WHITE SPOT SYNDROME VIRUS
    Organism Taxid: 92652
    Synonym: MAJOR STRUCTURAL PROTEIN VP28, VP28, ENVELOPE PROTEIN VP28, MAJOR VIRION PROTEIN VP28, VP28 STRUCTURAL PROTEIN, WSSV480, ORF1, VP28, GENE FAMILY 1, WSV421, STRUCTURAL PROTEIN, 28 KDA STRUCTURAL PROTEIN VP28

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric Unit : ABCDEFGHIJKL
Biological Unit 1 (1x): ABC
Biological Unit 2 (1x):    DEF
Biological Unit 3 (1x):       GHI
Biological Unit 4 (1x):          JKL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2ED6)

(-) Sites  (0, 0)

(no "Site" information available for 2ED6)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2ED6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2ED6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2ED6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2ED6)

(-) Exons   (0, 0)

(no "Exon" information available for 2ED6)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6a1 A:32-201 Envelope protein VP28                                                                                                                                     SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......eee..eeeee...eeeee....hhhhhh.....eeeee........hhhhh.eee..eeeee.....eeeeeeeeee............eeeee..eee....eeee.eeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 A  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain B from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6b_ B: Envelope protein VP28                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......eee..eeeee...eeeee....hhhhhh.....eeeee........hhhhh.eee..eeeee.....eeeeeeeeee............eeeee..eee....eeee.eeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 B  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain C from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6c_ C: Envelope protein VP28                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......eee..eeeee...eeeee....hhhhhh.....eeeee........hhhhh.eee..eeeee.....eeeeeeeeee............eeeee..eee....eeee.eeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 C  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain D from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6d_ D: Envelope protein VP28                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......eee..eeeee...eeeee....hhhhhh.....eeeee........hhhhh.eee..eeeee.....eeeeeeeeee............eeeee..eee....eeee.eeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 D  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain E from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6e_ E: Envelope protein VP28                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......eee..eeeee...eeeee....hhhhhh.....eeeee........hhhhh.eee..eeeee.....eeeeeeeeee............eeeee..eee....eeee.eeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 E  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain F from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6f_ F: Envelope protein VP28                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......eee..eeeee...eeeee....hhhhhh.....eeeee........hhhhh.eee..eeeee.....eeeeeeeeee............eeeee..eee....eeee.eeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 F  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain G from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6g_ G: Envelope protein VP28                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......eee..eeeee...eeeee....hhhhhh.....eeeee........hhhhh.eee..eeeee.....eeeeeeeeee............eeeee..eee....eeee.eeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 G  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain H from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6h_ H: Envelope protein VP28                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......eee..eeeee...eeeee....hhhhhh.....eeeee........hhhhh.eee..eeeee.....eeeeeeeeee............eeeee..eee....eeee.eeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 H  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain I from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6i_ I: Envelope protein VP28                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......eee..eeeee...eeeee....hhhhhh.....eeeee........hhhhh.eee..eeeee.....eeeeeeeeee............eeeee..eee....eeee.eeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 I  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain J from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6j_ J: Envelope protein VP28                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......ee...eeeee...eeeee....hhhhhh.....eeeee..............eee..eeeee.....eeeeeeeeee............eeeeee.eee....eeeeeeeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 J  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain K from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6k_ K: Envelope protein VP28                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......ee...eeeee...eeeee....hhhhhh.....eeeee..............eee..eeeee.....eeeeeeeeee............eeeee..eee....eeee.eeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 K  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain L from PDB  Type:PROTEIN  Length:170
 aligned with Q9ICB7_WSSV | Q9ICB7 from UniProtKB/TrEMBL  Length:204

    Alignment length:170
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
          Q9ICB7_WSSV    32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
               SCOP domains d2ed6l_ L: Envelope protein VP28                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeeeeeee......ee...eeeee...eeeee....hhhhhh.....eeeee........hhhhh.eee..eeeee.....eeeeeeeeee............eeeeee.eee....eeeeeeeeee.....hhhhh.eeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ed6 L  32 TVTKTIETHTDNIETNMDENLRIPVTAEVGSGYFKMTDVSFDSDTLGKIKIRNGKSDAQMKEEDADLVITPVEGRALEVTVGQNLTFEGTFKVWNNTSRKINITGMQMVPKINPSKAFVGSSNTSSFTPVSIDEDEVGTFVCGTTFGAPIAATAGGNLFDMYVHVTYSGT 201
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 12)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2ED6)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2ED6)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H,I,J,K,L   (Q9ICB7_WSSV | Q9ICB7)
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0019031    viral envelope    The lipid bilayer of a virion that surrounds the protein capsid. May also contain glycoproteins.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2ed6)

  Sites
(no "Sites" information available for 2ed6)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2ed6)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2ed6
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9ICB7_WSSV | Q9ICB7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9ICB7_WSSV | Q9ICB7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2ED6)

(-) Related Entries Specified in the PDB File

2edm ENVELOPE PROTEIN VP26 FROM WSSV
