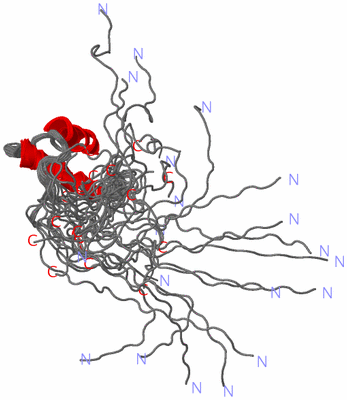

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF SPLICING FACTOR MOTIF IN PRE-MRNA SPLICING FACTOR 18 (HPRP18)

Authors :  F. He, Y. Muto, M. Inoue, T. Kigawa, M. Shirouzu, T. Terada, S. Yokoyama, Structural Genomics/Proteomics Initiative (Rsgi)
Date :  06 Apr 06  (Deposition) - 06 Oct 06  (Release) - 21 Dec 11  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
NMR Structure *:  A  (1x)
Keywords :  Sfm Domain, Pre-Mrna Splicing Factor 18, Hprp18, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Gene Regulation (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  F. He, M. Inoue, T. Kigawa, M. Takahashi, K. Kuwasako, K. Tsuda, N. Kobayashi, T. Terada, M. Shirouzu, P. Guntert, S. Yokoyama, Y. Muto
Solution Structure Of The Splicing Factor Motif (Sfm) Of Th Human Prp18 Protein
Proteins: 2011 Struct. , Funct. , Genet.
PubMed: search  |  Reference-DOI: 10.1002/PROT.24003

(-) Compounds

Molecule 1 - PRE-MRNA-SPLICING FACTOR 18
    ChainsA
    EngineeredYES
    Expression SystemCELL FREE SYNTHESIS
    Expression System PlasmidP050801-10
    Expression System Vector TypePLASMID
    FragmentSFM DOMAIN
    GenePRPF18, HPRP18
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    Other DetailsCELL FREE PROTEIN SYNTHESIS
    SynonymPRP18 HOMOLOG, HPRP18

 Structural Features

(-) Chains, Units

  1
NMR Structure (20x)A
NMR Structure * (1x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2DK4)

(-) Sites  (0, 0)

(no "Site" information available for 2DK4)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2DK4)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2DK4)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2DK4)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2DK4)

(-) Exons   (3, 3)

NMR Structure (3, 3)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1aENST000003785721aENSE00001852793chr10:13628927-13629152226PRP18_HUMAN1-22220--
1.3ENST000003785723ENSE00001094835chr10:13639458-1363953578PRP18_HUMAN23-48260--
1.5ENST000003785725ENSE00001094840chr10:13642244-13642348105PRP18_HUMAN49-83351A:1-3131
1.6ENST000003785726ENSE00001094838chr10:13647631-13647744114PRP18_HUMAN84-121381A:32-6938
1.7ENST000003785727ENSE00001094826chr10:13652039-13652185147PRP18_HUMAN122-170491A:70-76 (gaps)28
1.8bENST000003785728bENSE00001094844chr10:13653615-1365368369PRP18_HUMAN171-193230--
1.9ENST000003785729ENSE00001094845chr10:13655741-13655881141PRP18_HUMAN194-240470--
1.10bENST0000037857210bENSE00001094850chr10:13656015-1365608672PRP18_HUMAN241-264240--
1.11ENST0000037857211ENSE00001402863chr10:13658398-13658553156PRP18_HUMAN265-316520--
1.12cENST0000037857212cENSE00001883918chr10:13672260-13672868609PRP18_HUMAN317-342260--

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:76
 aligned with PRP18_HUMAN | Q99633 from UniProtKB/Swiss-Prot  Length:342

    Alignment length:97
                                    62        72        82        92       102       112       122       132       142
          PRP18_HUMAN    53 EEDQKPLTSSNPVLELELAEEKLPMTLSRQEVIRRLRERGEPIRLFGETDYDAFQRLRKIEILTPEVNKGLRNDLKAALDKIDQQYLNEIVGGQEPG 149
               SCOP domains -------d2dk4a1 A:8-70 Pre-mRNA-splicing factor 18                     --------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............................hhhhhhhhhhh..........hhhhhhhhhhhhhh........---------------------..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.5  PDB: A:1-31          Exon 1.6  PDB: A:32-69 UniProt: 84-121Exon 1.7  PDB: A:70-76 (gaps Transcript 1
                 2dk4 A   1 GSSGSSGTSSNPVLELELAEEKLPMTLSRQEVIRRLRERGEPIRLFGETDYDAFQRLRKIEILTPEVNKGS---------------------GPSSG  76
                                    10        20        30        40        50        60        70|        -         -  |
                                                                                                 71                    72

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2DK4)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2DK4)

(-) Gene Ontology  (11, 11)

NMR Structure(hide GO term definitions)
Chain A   (PRP18_HUMAN | Q99633)
molecular function
    GO:0000386    second spliceosomal transesterification activity    Catalysis of the second transesterification reaction of spliceosomal mRNA splicing. Ligation of the two exons occurs via a transesterification reaction where the free 3'-hydroxyl group of the 5' exon is the nucleophile attacking the 3' splice site. Non-expressed sequences are now detached from the exons. In cis splicing, the intron is in a lariat structure.
biological process
    GO:0008380    RNA splicing    The process of removing sections of the primary RNA transcript to remove sequences not present in the mature form of the RNA and joining the remaining sections to form the mature form of the RNA.
    GO:0000350    generation of catalytic spliceosome for second transesterification step    Conformational rearrangement of the spliceosomal complex containing the RNA products from the 1st step of splicing to form the catalytic site for the second step of splicing.
    GO:0006397    mRNA processing    Any process involved in the conversion of a primary mRNA transcript into one or more mature mRNA(s) prior to translation into polypeptide.
    GO:0071048    nuclear retention of unspliced pre-mRNA at the site of transcription    The process involved in retention of incorrectly or incompletely spliced pre-mRNA within the nucleus at the site of transcription.
cellular component
    GO:0071021    U2-type post-spliceosomal complex    A spliceosomal complex that is formed following the second splicing event and contains the spliced product, the excised intron, and three snRNPs, U5, U2 and U6.
    GO:0046540    U4/U6 x U5 tri-snRNP complex    A ribonucleoprotein complex formed by the association of the U4/U6 and U5 small nuclear ribonucleoproteins.
    GO:0005682    U5 snRNP    A ribonucleoprotein complex that contains small nuclear RNA U5.
    GO:0016607    nuclear speck    A discrete extra-nucleolar subnuclear domain, 20-50 in number, in which splicing factors are seen to be localized by immunofluorescence microscopy.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005681    spliceosomal complex    Any of a series of ribonucleoprotein complexes that contain snRNA(s) and small nuclear ribonucleoproteins (snRNPs), and are formed sequentially during the spliceosomal splicing of one or more substrate RNAs, and which also contain the RNA substrate(s) from the initial target RNAs of splicing, the splicing intermediate RNA(s), to the final RNA products. During cis-splicing, the initial target RNA is a single, contiguous RNA transcript, whether mRNA, snoRNA, etc., and the released products are a spliced RNA and an excised intron, generally as a lariat structure. During trans-splicing, there are two initial substrate RNAs, the spliced leader RNA and a pre-mRNA.
