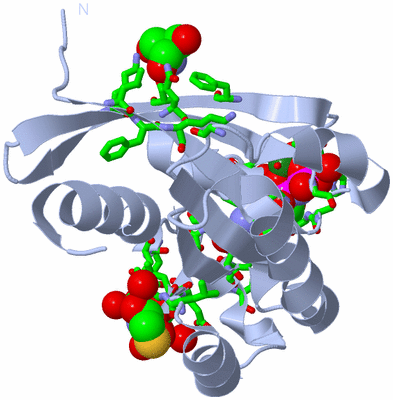

Biol. Unit 1 - sites (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Biological Unit 3 (Jmol Viewer)

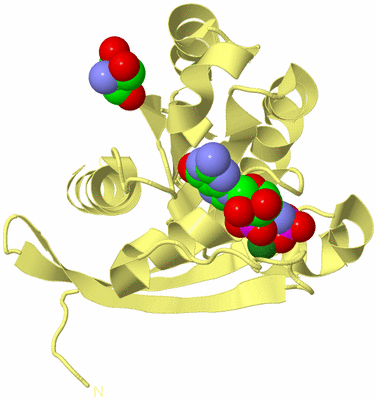

Biological Unit 4 (Jmol Viewer)

Title :   HIGH RESOLUTION STRUCTURE OF GPPNHP-BOUND HUMAN RAB4A

Authors :   A. J. Scheidig, S. K. Huber

Date :   13 Mar 05 (Deposition) - 25 Apr 05 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.57

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)

Keywords :   Gtp-Binding Protein, Vesicular Transport, Endocytosis, Prenylation, Protein Transport, Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. K. Huber, A. J. Scheidig
High Resolution Crystal Structures Of Human Rab4A In Its Active And Inactive Conformations.
Febs Lett. V. 579 2821 2005
PubMed-ID: 15907487 | Reference-DOI: 10.1016/J.FEBSLET.2005.04.020

Molecule 1 - RAS-RELATED PROTEIN RAB4A
	Chains	:	A, B, C, D
	EC Number	:	3.6.5.2
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET19TEV
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Fragment	:	NUCLEOTIDE-BINDING DOMAIN, RESIDUES 1-184
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Synonym	:	RAB4A

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (4, 14)

No.	Name	Count	Type	Full Name
1	BME	2	Ligand/Ion	BETA-MERCAPTOETHANOL
2	GNP	4	Ligand/Ion	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
3	MG	4	Ligand/Ion	MAGNESIUM ION
4	TRS	4	Ligand/Ion	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL

Biological Unit 1 (3, 4)

No.	Name	Count	Type	Full Name
1	BME	1	Ligand/Ion	BETA-MERCAPTOETHANOL
2	GNP	1	Ligand/Ion	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
3	MG	-1	Ligand/Ion	MAGNESIUM ION
4	TRS	2	Ligand/Ion	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	BME	-1	Ligand/Ion	BETA-MERCAPTOETHANOL
2	GNP	1	Ligand/Ion	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
3	MG	-1	Ligand/Ion	MAGNESIUM ION
4	TRS	-1	Ligand/Ion	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL

Biological Unit 3 (3, 3)

No.	Name	Count	Type	Full Name
1	BME	1	Ligand/Ion	BETA-MERCAPTOETHANOL
2	GNP	1	Ligand/Ion	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
3	MG	-1	Ligand/Ion	MAGNESIUM ION
4	TRS	1	Ligand/Ion	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL

Biological Unit 4 (2, 2)

No.	Name	Count	Type	Full Name
1	BME	-1	Ligand/Ion	BETA-MERCAPTOETHANOL
2	GNP	1	Ligand/Ion	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
3	MG	-1	Ligand/Ion	MAGNESIUM ION
4	TRS	1	Ligand/Ion	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL

Asymmetric Unit (14, 14)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	SER A:24 , THR A:42 , GNP A:1180 , HOH A:2032 , HOH A:2063	BINDING SITE FOR RESIDUE MG A1184
02	AC2	SOFTWARE	SER B:24 , THR B:42 , GNP B:1178 , HOH B:2040 , HOH B:2093	BINDING SITE FOR RESIDUE MG B1179
03	AC3	SOFTWARE	SER C:24 , THR C:42 , GNP C:1178 , HOH C:2037 , HOH C:2068	BINDING SITE FOR RESIDUE MG C1181
04	AC4	SOFTWARE	SER D:24 , THR D:42 , GNP D:1179 , HOH D:2036 , HOH D:2066	BINDING SITE FOR RESIDUE MG D1180
05	AC5	SOFTWARE	ALA A:19 , GLY A:20 , THR A:21 , GLY A:22 , LYS A:23 , SER A:24 , CYS A:25 , PHE A:35 , SER A:39 , HIS A:41 , THR A:42 , GLY A:68 , ASN A:123 , LYS A:124 , ASP A:126 , LEU A:127 , SER A:153 , ALA A:154 , LEU A:155 , MG A:1184 , HOH A:2027 , HOH A:2032 , HOH A:2063 , HOH A:2155 , HOH A:2156 , HOH A:2157	BINDING SITE FOR RESIDUE GNP A1180
06	AC6	SOFTWARE	LEU A:150 , GLU A:151 , GLU A:158 , ASN A:159 , HOH A:2134 , HOH A:2158 , HOH A:2159 , HOH A:2160 , LEU C:10 , LYS C:12 , GLN C:62 , GLY C:82 , HOH C:2092	BINDING SITE FOR RESIDUE TRS A1181
07	AC7	SOFTWARE	PHE A:47 , SER A:49 , LYS A:60 , GLN A:62 , ARG B:71	BINDING SITE FOR RESIDUE TRS A1182
08	AC8	SOFTWARE	ALA B:19 , GLY B:20 , THR B:21 , GLY B:22 , LYS B:23 , SER B:24 , CYS B:25 , PHE B:35 , LYS B:36 , SER B:39 , HIS B:41 , THR B:42 , GLY B:68 , ASN B:123 , LYS B:124 , ASP B:126 , LEU B:127 , SER B:153 , ALA B:154 , LEU B:155 , MG B:1179 , HOH B:2035 , HOH B:2040 , HOH B:2093 , HOH B:2209 , HOH B:2210 , HOH B:2211 , HOH B:2212 , HOH B:2213	BINDING SITE FOR RESIDUE GNP B1178
09	AC9	SOFTWARE	ALA C:19 , GLY C:20 , THR C:21 , GLY C:22 , LYS C:23 , SER C:24 , CYS C:25 , PHE C:35 , SER C:39 , HIS C:41 , THR C:42 , GLY C:68 , ASN C:123 , LYS C:124 , ASP C:126 , LEU C:127 , SER C:153 , ALA C:154 , LEU C:155 , MG C:1181 , HOH C:2030 , HOH C:2037 , HOH C:2068 , HOH C:2161 , HOH C:2162 , HOH C:2163 , HOH C:2164 , HOH C:2165 , HOH C:2166 , HOH C:2167	BINDING SITE FOR RESIDUE GNP C1178
10	BC1	SOFTWARE	LEU A:10 , PHE A:11 , LYS A:12 , GLY A:82 , LYS C:125 , PHE C:135 , GLU C:151 , ASN C:159 , HOH C:2146 , HOH C:2168 , HOH C:2169 , HOH C:2170	BINDING SITE FOR RESIDUE TRS C1179
11	BC2	SOFTWARE	LEU D:10 , PHE D:11 , LYS D:12 , GLY D:82 , LYS D:125 , PHE D:135 , GLU D:151 , ASN D:159 , HOH D:2118 , HOH D:2136	BINDING SITE FOR RESIDUE TRS D1178
12	BC3	SOFTWARE	ALA D:19 , GLY D:20 , THR D:21 , GLY D:22 , LYS D:23 , SER D:24 , CYS D:25 , PHE D:35 , SER D:39 , HIS D:41 , THR D:42 , GLY D:68 , ASN D:123 , LYS D:124 , ASP D:126 , LEU D:127 , SER D:153 , ALA D:154 , LEU D:155 , MG D:1180 , HOH D:2033 , HOH D:2036 , HOH D:2038 , HOH D:2066 , HOH D:2137 , HOH D:2138 , HOH D:2139	BINDING SITE FOR RESIDUE GNP D1179
13	BC4	SOFTWARE	LEU A:147 , MET A:148 , HOH A:2132 , HOH A:2162 , ASP C:8	BINDING SITE FOR RESIDUE BME A1183
14	BC5	SOFTWARE	GLN C:69 , GLU C:70 , ARG C:71	BINDING SITE FOR RESIDUE BME C1180

(no "SS Bond" information available for 2BME)

(no "Cis Peptide Bond" information available for 2BME)

(no "SAP(SNP)/Variant" information available for 2BME)

Asymmetric Unit (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RAB	PS51419	small GTPase Rab1 family profile.	RAB4A_HUMAN	9-216	4	A:6-179 B:6-177 C:6-177 D:6-177

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RAB	PS51419	small GTPase Rab1 family profile.	RAB4A_HUMAN	9-216	1	A:6-179 - - -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RAB	PS51419	small GTPase Rab1 family profile.	RAB4A_HUMAN	9-216	1	- B:6-177 - -

Biological Unit 3 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RAB	PS51419	small GTPase Rab1 family profile.	RAB4A_HUMAN	9-216	1	- - C:6-177 -

Biological Unit 4 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RAB	PS51419	small GTPase Rab1 family profile.	RAB4A_HUMAN	9-216	1	- - - D:6-177

Asymmetric Unit (7, 25)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1b	ENST00000366690	1b	ENSE00001429124	chr1:229406879-229407117	239	RAB4A_HUMAN	1-11	11	4	A:4-8 B:5-8 C:4-8 D:4-8	5 4 5 5
1.2b	ENST00000366690	2b	ENSE00001710894	chr1:229422233-229422313	81	RAB4A_HUMAN	11-38	28	4	A:8-35 B:8-35 C:8-35 D:8-35	28 28 28 28
1.3a	ENST00000366690	3a	ENSE00001015822	chr1:229424476-229424590	115	RAB4A_HUMAN	38-76	39	4	A:35-73 B:35-73 C:35-73 D:35-73	39 39 39 39
1.5	ENST00000366690	5	ENSE00001671680	chr1:229431595-229431657	63	RAB4A_HUMAN	76-97	22	4	A:73-94 B:73-94 C:73-94 D:73-94	22 22 22 22
1.6a	ENST00000366690	6a	ENSE00001015820	chr1:229433229-229433383	155	RAB4A_HUMAN	97-149	53	4	A:94-146 B:94-146 C:94-146 D:94-146	53 53 53 53
1.8a	ENST00000366690	8a	ENSE00001442328	chr1:229434724-229434819	96	RAB4A_HUMAN	149-181	33	4	A:146-178 B:146-177 C:146-177 D:146-177	33 32 32 32
1.9	ENST00000366690	9	ENSE00001015815	chr1:229438609-229438736	128	RAB4A_HUMAN	181-218	38	1	A:178-179 - - -	2 - - -
1.10c	ENST00000366690	10c	ENSE00001842622	chr1:229439553-229441641	2089	RAB4A_HUMAN	-	0	0	-	-

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:176
 aligned with RAB4A_HUMAN | P20338 from UniProtKB/Swiss-Prot  Length:218

    Alignment length:176
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176
          RAB4A_HUMAN     7 SETYDFLFKFLVIGNAGTGKSCLLHQFIEKKFKDDSNHTIGVEFGSKIINVGGKYVKLQIWDTAGQERFRSVTRSYYRGAAGALLVYDITSRETYNALTNWLTDARMLASQNIVIILCGNKKDLDADREVTFLEASRFAQENELMFLETSALTGENVEEAFVQCARKILNKIESGE 182
               SCOP domains d2bmea_ A: automated matches                                                                                                                                                     SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeeeeee....hhhhhhhhhhhh..........eeeeeeeeeee..eeeeeeeeee..hhhhhhhhhh......eeeeeee..hhhhhhhhhhhhhhhhhhh....eeeeeeehhhhhhhh..hhhhhhhhhhhh..eeee.......hhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --RAB  PDB: A:6-179 UniProt: 9-216                                                                                                                                               PROSITE
           Transcript 1 (1) 1.1b --------------------------Exon 1.3a  PDB: A:35-73 UniProt: 38-76 --------------------Exon 1.6a  PDB: A:94-146 UniProt: 97-149             -------------------------------1. Transcript 1 (1)
           Transcript 1 (2) ----Exon 1.2b  PDB: A:8-35      -------------------------------------Exon 1.5  PDB: A:73-94---------------------------------------------------Exon 1.8a  PDB: A:146-178        - Transcript 1 (2)
                 2bme A   4 SETYDFLFKFLVIGNAGTGKSCLLHQFIEKKFKDDSNHTIGVEFGSKIINVGGKYVKLQIWDTAGQERFRSVTRSYYRGAAGALLVYDITSRETYNALTNWLTDARMLASQNIVIILCGNKKDLDADREVTFLEASRFAQENELMFLETSALTGENVEEAFVQCARKILNKIESGE 179
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173

Chain B from PDB  Type:PROTEIN  Length:173
 aligned with RAB4A_HUMAN | P20338 from UniProtKB/Swiss-Prot  Length:218

    Alignment length:173
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177
          RAB4A_HUMAN     8 ETYDFLFKFLVIGNAGTGKSCLLHQFIEKKFKDDSNHTIGVEFGSKIINVGGKYVKLQIWDTAGQERFRSVTRSYYRGAAGALLVYDITSRETYNALTNWLTDARMLASQNIVIILCGNKKDLDADREVTFLEASRFAQENELMFLETSALTGENVEEAFVQCARKILNKIES 180
               SCOP domains d2bmeb_ B: automated matches                                                                                                                                                  SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeee....hhhhhhhhhhhh..........eeeeeeeeeee..eeeeeeeeee..hhhhhhhhhh......eeeeeee..hhhhhhhhhhhhhhhhhhh....eeeeeeehhhhhhhh..hhhhhhhhhhhh..eeee.......hhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -RAB  PDB: B:6-177 UniProt: 9-216                                                                                                                                             PROSITE
           Transcript 1 (1) 1.1b--------------------------Exon 1.3a  PDB: B:35-73 UniProt: 38-76 --------------------Exon 1.6a  PDB: B:94-146 UniProt: 97-149             ------------------------------- Transcript 1 (1)
           Transcript 1 (2) ---Exon 1.2b  PDB: B:8-35      -------------------------------------Exon 1.5  PDB: B:73-94---------------------------------------------------Exon 1.8a  PDB: B:146-177        Transcript 1 (2)
                 2bme B   5 ETYDFLFKFLVIGNAGTGKSCLLHQFIEKKFKDDSNHTIGVEFGSKIINVGGKYVKLQIWDTAGQERFRSVTRSYYRGAAGALLVYDITSRETYNALTNWLTDARMLASQNIVIILCGNKKDLDADREVTFLEASRFAQENELMFLETSALTGENVEEAFVQCARKILNKIES 177
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174

Chain C from PDB  Type:PROTEIN  Length:174
 aligned with RAB4A_HUMAN | P20338 from UniProtKB/Swiss-Prot  Length:218

    Alignment length:174
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176
          RAB4A_HUMAN     7 SETYDFLFKFLVIGNAGTGKSCLLHQFIEKKFKDDSNHTIGVEFGSKIINVGGKYVKLQIWDTAGQERFRSVTRSYYRGAAGALLVYDITSRETYNALTNWLTDARMLASQNIVIILCGNKKDLDADREVTFLEASRFAQENELMFLETSALTGENVEEAFVQCARKILNKIES 180
               SCOP domains d2bmec_ C: automated matches                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeeeeeee....hhhhhhhhhhhh...........eeeeeeeeee..eeeeeeeeee..hhhhhhhhhh......eeeeeee..hhhhhhhhhhhhhhhhhhh....eeeeeeehhhhhhhh..hhhhhhhhhhhh..eeee.......hhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --RAB  PDB: C:6-177 UniProt: 9-216                                                                                                                                             PROSITE
           Transcript 1 (1) 1.1b --------------------------Exon 1.3a  PDB: C:35-73 UniProt: 38-76 --------------------Exon 1.6a  PDB: C:94-146 UniProt: 97-149             ------------------------------- Transcript 1 (1)
           Transcript 1 (2) ----Exon 1.2b  PDB: C:8-35      -------------------------------------Exon 1.5  PDB: C:73-94---------------------------------------------------Exon 1.8a  PDB: C:146-177        Transcript 1 (2)
                 2bme C   4 SETYDFLFKFLVIGNAGTGKSCLLHQFIEKKFKDDSNHTIGVEFGSKIINVGGKYVKLQIWDTAGQERFRSVTRSYYRGAAGALLVYDITSRETYNALTNWLTDARMLASQNIVIILCGNKKDLDADREVTFLEASRFAQENELMFLETSALTGENVEEAFVQCARKILNKIES 177
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173

Chain D from PDB  Type:PROTEIN  Length:174
 aligned with RAB4A_HUMAN | P20338 from UniProtKB/Swiss-Prot  Length:218

    Alignment length:174
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176
          RAB4A_HUMAN     7 SETYDFLFKFLVIGNAGTGKSCLLHQFIEKKFKDDSNHTIGVEFGSKIINVGGKYVKLQIWDTAGQERFRSVTRSYYRGAAGALLVYDITSRETYNALTNWLTDARMLASQNIVIILCGNKKDLDADREVTFLEASRFAQENELMFLETSALTGENVEEAFVQCARKILNKIES 180
               SCOP domains d2bmed_ D: automated matches                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeeeeeee....hhhhhhhhhhhh...........eeeeeeeeee..eeeeeeeeee..hhhhhhhhhh......eeeeeee..hhhhhhhhhhhhhhhhhhhh...eeeeeeehhhhhhhh..hhhhhhhhhhhh..eeee.......hhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --RAB  PDB: D:6-177 UniProt: 9-216                                                                                                                                             PROSITE
           Transcript 1 (1) 1.1b --------------------------Exon 1.3a  PDB: D:35-73 UniProt: 38-76 --------------------Exon 1.6a  PDB: D:94-146 UniProt: 97-149             ------------------------------- Transcript 1 (1)
           Transcript 1 (2) ----Exon 1.2b  PDB: D:8-35      -------------------------------------Exon 1.5  PDB: D:73-94---------------------------------------------------Exon 1.8a  PDB: D:146-177        Transcript 1 (2)
                 2bme D   4 SETYDFLFKFLVIGNAGTGKSCLLHQFIEKKFKDDSNHTIGVEFGSKIINVGGKYVKLQIWDTAGQERFRSVTRSYYRGAAGALLVYDITSRETYNALTNWLTDARMLASQNIVIILCGNKKDLDADREVTFLEASRFAQENELMFLETSALTGENVEEAFVQCARKILNKIES 177
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: P-loop containing nucleoside triphosphate hydrolases (2083)

Superfamily: P-loop containing nucleoside triphosphate hydrolases (2083)

Family: G proteins (693)

Protein domain: automated matches (173)

Human (Homo sapiens) [TaxId: 9606] (112)

1a	d2bmea_	A:
1b	d2bmeb_	B:
1c	d2bmec_	C:
1d	d2bmed_	D:

(no "CATH Domain" information available for 2BME)

(no "Pfam Domain" information available for 2BME)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (RAB4A_HUMAN | P20338)

molecular function
	GO:0001671	ATPase activator activity	Binds to and increases the ATP hydrolysis activity of an ATPase.
	GO:0051117	ATPase binding	Interacting selectively and non-covalently with an ATPase, any enzyme that catalyzes the hydrolysis of ATP.
	GO:0019003	GDP binding	Interacting selectively and non-covalently with GDP, guanosine 5'-diphosphate.
	GO:0005525	GTP binding	Interacting selectively and non-covalently with GTP, guanosine triphosphate.
	GO:0003924	GTPase activity	Catalysis of the reaction: GTP + H2O = GDP + phosphate.
	GO:0035255	ionotropic glutamate receptor binding	Interacting selectively and non-covalently with an ionotropic glutamate receptor. Ionotropic glutamate receptors bind glutamate and exert an effect through the regulation of ion channels.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0008565	protein transporter activity	Enables the directed movement of proteins into, out of or within a cell, or between cells.
	GO:0019905	syntaxin binding	Interacting selectively and non-covalently with a syntaxin, a SNAP receptor involved in the docking of synaptic vesicles at the presynaptic zone of a synapse.
biological process
	GO:0032482	Rab protein signal transduction	A series of molecular signals within the cell that are mediated by a member of the Rab family of proteins switching to a GTP-bound active state.
	GO:0019882	antigen processing and presentation	The process in which an antigen-presenting cell expresses antigen (peptide or lipid) on its cell surface in association with an MHC protein complex.
	GO:0032781	positive regulation of ATPase activity	Any process that activates or increases the rate of ATP hydrolysis by an ATPase.
	GO:0015031	protein transport	The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0030100	regulation of endocytosis	Any process that modulates the frequency, rate or extent of endocytosis.
	GO:0007264	small GTPase mediated signal transduction	Any series of molecular signals in which a small monomeric GTPase relays one or more of the signals.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0005768	endosome	A vacuole to which materials ingested by endocytosis are delivered.
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0032593	insulin-responsive compartment	A small membrane-bounded vesicle that releases its contents by exocytosis in response to insulin stimulation; the contents are enriched in GLUT4, IRAP and VAMP2.
	GO:0043231	intracellular membrane-bounded organelle	Organized structure of distinctive morphology and function, bounded by a single or double lipid bilayer membrane and occurring within the cell. Includes the nucleus, mitochondria, plastids, vacuoles, and vesicles. Excludes the plasma membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0048471	perinuclear region of cytoplasm	Cytoplasm situated near, or occurring around, the nucleus.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
	GO:0055037	recycling endosome	An organelle consisting of a network of tubules that functions in targeting molecules, such as receptors transporters and lipids, to the plasma membrane.
	GO:0031982	vesicle	Any small, fluid-filled, spherical organelle enclosed by membrane.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		BME	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		GNP	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		TRS	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2bme)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2bme
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RAB4A_HUMAN \| P20338
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.6.5.2
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RAB4A_HUMAN \| P20338
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	RAB4A_HUMAN \| P20338	:	1yu9 1z0k 2bmd

2bmd	HIGH RESOLUTION STRUCTURE OF GDP-BOUND HUMAN RAB4A

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (4, 14)

Sites (14, 14)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 4)

Exons (7, 25)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (28, 28)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
