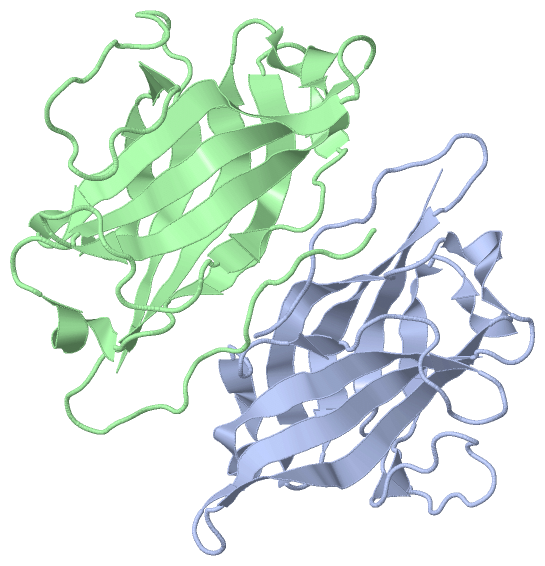

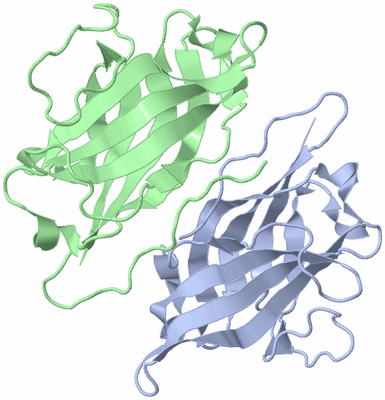

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

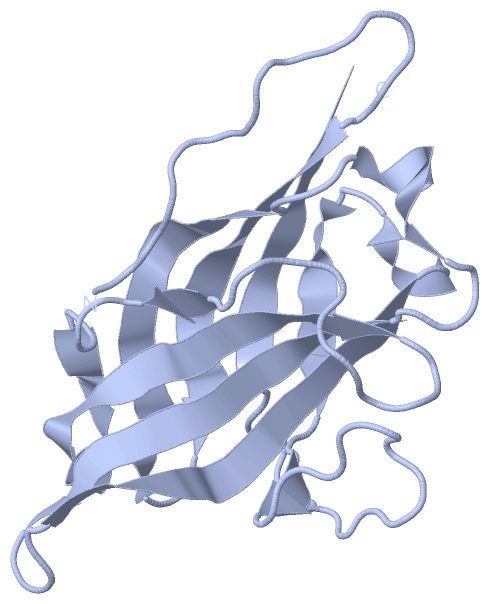

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

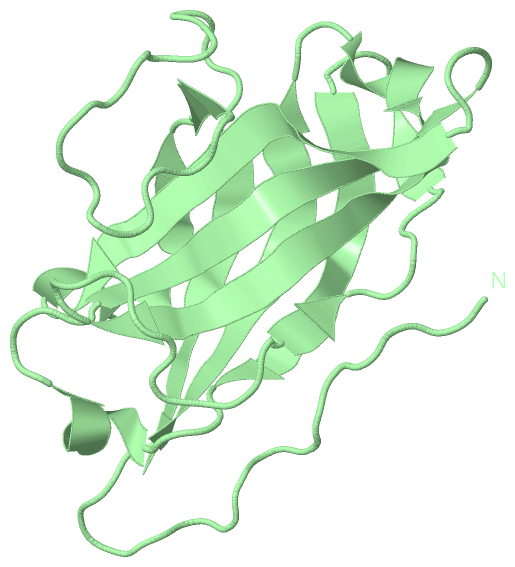

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE C-TERMINAL DOMAIN OF AIDA

Authors :  L. S. Zheng
Date :  16 Aug 07  (Deposition) - 23 Sep 08  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Crystal Structure, Aida, Signaling Protein, Lipid Binding Protein, Alternative Splicing, Coiled Coil, Developmental Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. S. Zheng
Crystal Structure Of The C-Terminal Domain Of Aida
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - AXIN INTERACTOR, DORSALIZATION ASSOCIATED PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET15B
    Expression System Strain: BL21
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: C-TERMINAL DOMAIN
    Gene: AIDA
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: AXIN INTERACTION PARTNER AND DORSALIZATION ANTAGONIST

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2QZ5)

(-) Sites  (0, 0)

(no "Site" information available for 2QZ5)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2QZ5)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Lys A:143 -Pro A:144
2Lys B:143 -Pro B:144

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2QZ5)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2QZ5)

(-) Exons   (0, 0)

(no "Exon" information available for 2QZ5)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:152
 aligned with AIDA_MOUSE | Q8C4Q6 from UniProtKB/Swiss-Prot  Length:305

    Alignment length:152
                                   162       172       182       192       202       212       222       232       242       252       262       272       282       292       302
           AIDA_MOUSE   153 GTLLPRLPSEPGMTLLTIRIEKIGLKDAGQCIDPYITVSVKDLNGIDLTPVQDTPVASRKEDTYVHFNVDIELQKHVERLTKGAAIFFEFKHYKPKKRFTSTKCFAFMEMDEIKPGPIVIELYKKPTDFKRKKLQLLTKKPLYLHLHQSLHK 304
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..............eeeeeeeeee..hhhhheeeeeeeeee..........ee.....eee..eeeeeeeee...hhhhh....eeeeeeeeee....eeeeeeeeeee.hhh..eeeee..ee...................eeeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2qz5 A  19 GTLLPRLPSEPGMTLLTIRIEKIGLKDAGQCIDPYITVSVKDLNGIDLTPVQDTPVASRKEDTYVHFNVDIELQKHVEKLTKGAAIFFEFKHYKPKKRFTSTKCFAFMEMDEIKPGPIVIELYKKPTDFKRKKLQLLTKKPLYLHLHQSLHK 170
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168


Chain B from PDB  Type:PROTEIN  Length:154
 aligned with AIDA_MOUSE | Q8C4Q6 from UniProtKB/Swiss-Prot  Length:305

    Alignment length:154
                                   160       170       180       190       200       210       220       230       240       250       260       270       280       290       300
           AIDA_MOUSE   151 VPGTLLPRLPSEPGMTLLTIRIEKIGLKDAGQCIDPYITVSVKDLNGIDLTPVQDTPVASRKEDTYVHFNVDIELQKHVERLTKGAAIFFEFKHYKPKKRFTSTKCFAFMEMDEIKPGPIVIELYKKPTDFKRKKLQLLTKKPLYLHLHQSLHK 304
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) --Aida_C2-2qz5B01 B:19-167                                                                                                                             --- Pfam domains (1)
           Pfam domains (2) --Aida_C2-2qz5B02 B:19-167                                                                                                                             --- Pfam domains (2)
         Sec.struct. author ................eeeeeeeeee..hhhhheeeeeeeeee..........ee.....ee...eeeeeeeee...hhhhh....eeeeeeeeee....eeeeeeeeeee.hhh..eeeee..ee...................eeeeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2qz5 B  17 VPGTLLPRLPSEPGMTLLTIRIEKIGLKDAGQCIDPYITVSVKDLNGIDLTPVQDTPVASRKEDTYVHFNVDIELQKHVEKLTKGAAIFFEFKHYKPKKRFTSTKCFAFMEMDEIKPGPIVIELYKKPTDFKRKKLQLLTKKPLYLHLHQSLHK 170
                                    26        36        46        56        66        76        86        96       106       116       126       136       146       156       166
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2QZ5)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2QZ5)

(-) Pfam Domains  (1, 2)

Asymmetric Unit
(-)
Clan: C2 (71)

(-) Gene Ontology  (11, 11)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (AIDA_MOUSE | Q8C4Q6)
molecular function
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0019904    protein domain specific binding    Interacting selectively and non-covalently with a specific domain of a protein.
biological process
    GO:0048264    determination of ventral identity    The regionalization process that results in the determination of the identity of part of an organism or organ where those parts are of the type that occur in the ventral region. Identity is considered to be the aggregate of characteristics by which a structure is recognized.
    GO:0009953    dorsal/ventral pattern formation    The regionalization process in which the areas along the dorsal/ventral axis are established that will lead to differences in cell differentiation. The dorsal/ventral axis is defined by a line that runs orthogonal to both the anterior/posterior and left/right axes. The dorsal end is defined by the upper or back side of an organism. The ventral end is defined by the lower or front side of an organism.
    GO:0007275    multicellular organism development    The biological process whose specific outcome is the progression of a multicellular organism over time from an initial condition (e.g. a zygote or a young adult) to a later condition (e.g. a multicellular animal or an aged adult).
    GO:0046329    negative regulation of JNK cascade    Any process that stops, prevents, or reduces the frequency, rate or extent of signal transduction mediated by the JNK cascade.
    GO:0043508    negative regulation of JUN kinase activity    Any process that stops, prevents, or reduces the frequency, rate or extent of JUN kinase activity.
    GO:0030178    negative regulation of Wnt signaling pathway    Any process that stops, prevents, or reduces the frequency, rate or extent of the Wnt signaling pathway.
    GO:2000016    negative regulation of determination of dorsal identity    Any process that stops, prevents, or reduces the frequency, rate or extent of determination of dorsal identity.
    GO:0043496    regulation of protein homodimerization activity    Any process that modulates the frequency, rate or extent of protein homodimerization, interacting selectively with an identical protein to form a homodimer.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2qz5)

  Sites
(no "Sites" information available for 2qz5)

  Cis Peptide Bonds
    Lys A:143 - Pro A:144   [ RasMol ]
    Lys B:143 - Pro B:144   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2qz5
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  AIDA_MOUSE | Q8C4Q6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  AIDA_MOUSE | Q8C4Q6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        AIDA_MOUSE | Q8C4Q6: 1ug7

(-) Related Entries Specified in the PDB File

1ug7 THE N-TERMINAL DOMAIN OF THE SAME PROTEIN
