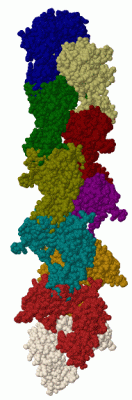

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

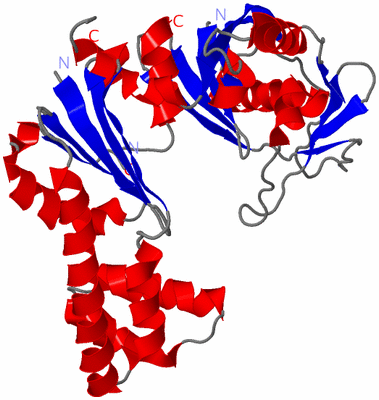

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

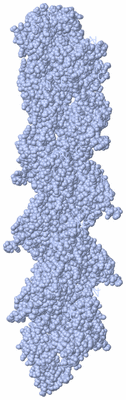

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  MODEL FOR BACTERIAL PARM FILAMENT

Authors :  A. Orlova, E. C. Garner, V. E. Galkin, J. Heuser, R. D. Mullins, E. H. Egelman
Date :  03 Aug 07  (Deposition) - 18 Sep 07  (Release) - 24 Feb 09  (Revision)
Method :  ELECTRON MICROSCOPY
Resolution :  16.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (10x)
Keywords :  Filament Model, Actin-Like Protein, Helical Polymer, Plasmid, Plasmid Partition, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Orlova, E. C. Garner, V. E. Galkin, J. Heuser, R. D. Mullins, E. H. Egelman
The Structure Of Bacterial Parm Filaments.
Nat. Struct. Mol. Biol. V. 14 921 2007
PubMed-ID: 17873883  |  Reference-DOI: 10.1038/NSMB1300
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PLASMID SEGREGATION PROTEIN PARM
    Chains: A
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: PROTEIN STBA, PARA LOCUS 36 KDA PROTEIN

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (10x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2QU4)

(-) Sites  (0, 0)

(no "Site" information available for 2QU4)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2QU4)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2QU4)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2QU4)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2QU4)

(-) Exons   (0, 0)

(no "Exon" information available for 2QU4)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:320
 aligned with PARM_ECOLX | P11904 from UniProtKB/Swiss-Prot  Length:320

    Alignment length:320
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320
           PARM_ECOLX     1 MLVFIDDGSTNIKLQWQESDGTIKQHISPNSFKREWAVSFGDKKVFNYTLNGEQYSFDPISPDAVVTTNIAWQYSDVNVVAVHHALLTSGLPVSEVDIVCTLPLTEYYDRNNQPNTENIERKKANFRKKITLNGGDTFTIKDVKVMPESIPAGYEVLQELDELDSLLIIDLGGTTLDISQVMGKLSGISKIYGDSSLGVSLVTSAVKDALSLARTKGSSYLADDIIIHRKDNNYLKQRINDENKISIVTEAMNEALRKLEQRVLNTLNEFSGYTHVMVIGGGAELICDAVKKHTQIRDERFFKTNNSQYDLVNGMYLIGN 320
               SCOP domains d2qu4a1 A:1-157 Plasmid segregation protein ParM                                                                                                             d2qu4a2 A:158-320 Plasmid segregation protein ParM                                                                                                                  SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains StbA-2qu4A01 A:1-318                                                                                                                                                                                                                                                                                                          -- Pfam domains
         Sec.struct. author .eeeeee....eeeeee.....eeeeee...ee.............eee....eeee...........hhhhhhhhhhhhhhhhhhhhhh....eeeeeeeehhhhhh......hhhhhhhhhhhh....ee......eeeeeeeee.hhhhhhhhhhh.....eeeeeee....eeeeeee.hhh.eeeeeee....hhhhhhhhhhhhh...hhhhhhhhhhhhhh..hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh......eeeee..hhhhhhhhhhhhhh.hhh.ee......hhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2qu4 A   1 MLVFIDDGSTNIKLQWQESDGTIKQHISPNSFKREWAVSFGDKKVFNYTLNGEQYSFDPISPDAVVTTNIAWQYSDVNVVAVHHALLTSGLPVSEVDIVCTLPLTEYYDRNNQPNTENIERKKANFRKKITLNGGDTFTIKDVKVMPESIPAGYEVLQELDELDSLLIIDLGGTTLDISQVMGKLSGISKIYGDSSLGVSLVTSAVKDALSLARTKGSSYLADDIIIHRKDNNYLKQRINDENKISIVTEAMNEALRKLEQRVLNTLNEFSGYTHVMVIGGGAELICDAVKKHTQIRDERFFKTNNSQYDLVNGMYLIGN 320
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2QU4)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: Actin_ATPase (173)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)
Chain A   (PARM_ECOLX | P11904)
biological process
    GO:0030541    plasmid partitioning    Any process in which plasmids are segregated or distributed into daughter cells upon cell division.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2qu4)

  Sites
(no "Sites" information available for 2qu4)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2qu4)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

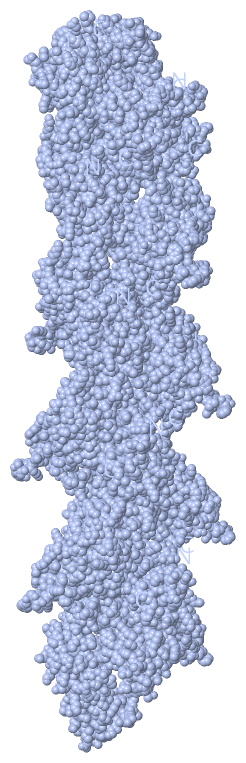

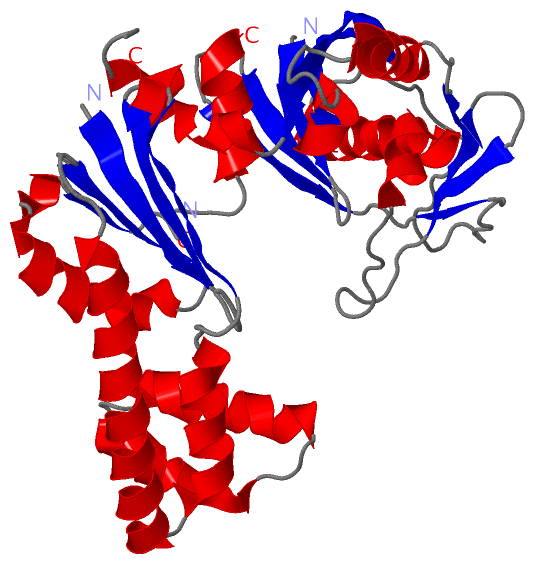

[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2qu4
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PARM_ECOLX | P11904
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PARM_ECOLX | P11904
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PARM_ECOLX | P11904: 1mwk 1mwm 2zgy 2zgz 2zhc 3iku 3iky 4a61 4a62 4a6j 5aey 5ai7

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2QU4)
