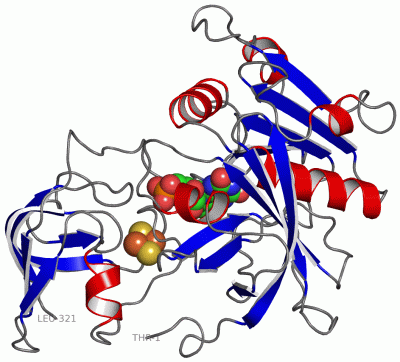

Asym./Biol. Unit - manually (Jmol Viewer)

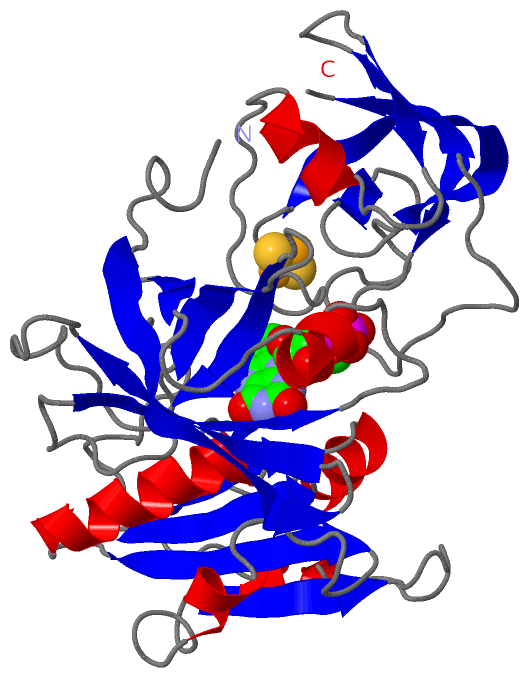

Asym./Biol. Unit (Jmol Viewer)

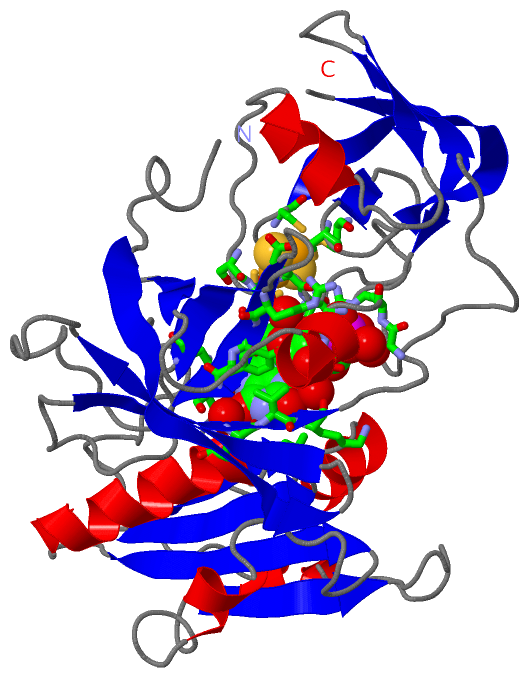

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   PHTHALATE DIOXYGENASE REDUCTASE: A MODULAR STRUCTURE FOR ELECTRON TRANSFER FROM PYRIDINE NUCLEOTIDES TO [2FE-2S]

Authors :   C. C. Correll, C. J. Batie, D. P. Ballou, M. L. Ludwig

Date :   15 Feb 93 (Deposition) - 15 Apr 93 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym./Biol. Unit : A

Keywords :   Reductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. C. Correll, C. J. Batie, D. P. Ballou, M. L. Ludwig
Phthalate Dioxygenase Reductase: A Modular Structure For Electron Transfer From Pyridine Nucleotides To [2Fe-2S].
Science V. 258 1604 1992
PubMed-ID: 1280857
(for further references see the PDB file header)

Molecule 1 - PHTHALATE DIOXYGENASE REDUCTASE
	Chains	:	A
	EC Number	:	1.18.1.-
	Engineered	:	YES
	Organism Scientific	:	BURKHOLDERIA CEPACIA
	Organism Taxid	:	292

		1
Asymmetric/Biological Unit	:	A

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (2, 2)

No.	Name	Count	Type	Full Name
1	FES	1	Ligand/Ion	FE2/S2 (INORGANIC) CLUSTER
2	FMN	1	Ligand/Ion	FLAVIN MONONUCLEOTIDE

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASN A:44 , ARG A:55 , THR A:56 , TYR A:57 , SER A:58 , ALA A:72 , VAL A:73 , LYS A:74 , GLY A:79 , ARG A:80 , GLY A:82 , SER A:83 , ILE A:121 , THR A:124 , GLU A:223 , PHE A:225 , SER A:274 , HOH A:327 , HOH A:329 , HOH A:331 , HOH A:332 , HOH A:354 , HOH A:368	BINDING SITE FOR RESIDUE FMN A 322
2	AC2	SOFTWARE	SER A:271 , CYS A:272 , GLU A:273 , GLY A:275 , THR A:276 , CYS A:277 , GLY A:278 , CYS A:280 , MET A:306 , CYS A:308	BINDING SITE FOR RESIDUE FES A 323

(no "SS Bond" information available for 2PIA)

(no "Cis Peptide Bond" information available for 2PIA)

(no "SAP(SNP)/Variant" information available for 2PIA)

Asymmetric/Biological Unit (3, 3)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FAD_FR	PS51384	Ferredoxin reductase-type FAD binding domain profile.	PDR_BURCE	7-109	1	A:6-108
2	2FE2S_FER_2	PS51085	2Fe-2S ferredoxin-type iron-sulfur binding domain profile.	PDR_BURCE	239-322	1	A:238-321
3	2FE2S_FER_1	PS00197	2Fe-2S ferredoxin-type iron-sulfur binding region signature.	PDR_BURCE	273-281	1	A:272-280

(no "Exon" information available for 2PIA)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:321
 aligned with PDR_BURCE | P33164 from UniProtKB/Swiss-Prot  Length:322

    Alignment length:321
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321
            PDR_BURCE     2 TTPQEDGFLRLKIASKEKIARDIWSFELTDPQGAPLPPFEAGANLTVAVPNGSRRTYSLCNDSQERNRYVIAVKRDSNGRGGSISFIDDTSEGDAVEVSLPRNEFPLDKRAKSFILVAGGIGITPMLSMARQLRAEGLRSFRLYYLTRDPEGTAFFDELTSDEWRSDVKIHHDHGDPTKAFDFWSVFEKSKPAQHVYCCGPQALMDTVRDMTGHWPSGTVHFESFGATNTNARENTPFTVRLSRSGTSFEIPANRSILEVLRDANVRVPSSCESGTCGSCKTALCSGEADHRDMVLRDDEKGTQIMVCVSRAKSAELVLDL 322
               SCOP domains d2piaa1 A:1-103 Phthalate dioxygenase reductase                                                        d2piaa2 A:104-223 Phthalate dioxygenase reductase                                                                       d2piaa3 A:224-321 Phthalate dioxygenase reductase, C-terminal domain                               SCOP domains
               CATH domains 2piaA01 A:1-104 Translation factors                                                                     2piaA02 A:105-225 Nucleotide-binding domain of ferredoxin-NADP reductase (FNR) module                                    2piaA03 A:226-321  [code=3.10.20.30, no name defined]                                            CATH domains
               Pfam domains ---------FAD_binding_6-2piaA01 A:10-107                                                                    --------NAD_binding_1-2piaA03 A:116-210                                                                -----------------------------Fer2-2piaA02 A:240-313                                                    -------- Pfam domains
         Sec.struct. author ........eeeeeeeeeeee..eeeeeee..............eeeee.....eeeee.........eeeeeee.......hhhhhhh......eeee..............eeeeeee...hhhhhhhhhhhhhh...eeeeeeee........hhhhh.......eeeee..........hhhhh......eeeeee..hhhhhhhhhh........eeee..............eeeee.....eeee.....hhhhhhh.................eeeeeeeeee.............eee....eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -----FAD_FR  PDB: A:6-108 UniProt: 7-109                                                                    ---------------------------------------------------------------------------------------------------------------------------------2FE2S_FER_2  PDB: A:238-321 UniProt: 239-322                                         PROSITE (1)
                PROSITE (2) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------2FE2S_FER----------------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2pia A   1 TTPQEDGFLRLKIASKEKIARDIWSFELTDPQGAPLPPFEAGANLTVAVPNGSRRTYSLCNDSQERNRYVIAVKRDSNGRGGSISFIDDTSEGDAVEVSLPRNEFPLDKRAKSFILVAGGIGITPMLSMARQLRAEGLRSFRLYYLTRDPEGTAFFDELTSDEWRSDVKIHHDHGDPTKAFDFWSVFEKSKPAQHVYCCGPQALMDTVRDMTGHWPSGTVHFESFGATNTNARENTPFTVRLSRSGTSFEIPANRSILEVLRDANVRVPSSCESGTCGSCKTALCSGEADHRDMVLRDDEKGTQIMVCVSRAKSAELVLDL 321
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: FAD_Lum_binding (30)

Family: FAD_binding_6 (24)

Burkholderia cepacia (Pseudomonas cepacia) (1)

FAD_binding_6-2piaA01

A:10-107

Clan: Fer2 (69)

Family: Fer2 (60)

Burkholderia cepacia (Pseudomonas cepacia) (1)

Fer2-2piaA02

A:240-313

Clan: NAD_Ferredoxin (30)

Family: NAD_binding_1 (30)

Burkholderia cepacia (Pseudomonas cepacia) (1)

NAD_binding_1-2piaA03

A:116-210

Asymmetric/Biological Unit(hide GO term definitions)

Chain A (PDR_BURCE | P33164)

molecular function
	GO:0051537	2 iron, 2 sulfur cluster binding	Interacting selectively and non-covalently with a 2 iron, 2 sulfur (2Fe-2S) cluster; this cluster consists of two iron atoms, with two inorganic sulfur atoms found between the irons and acting as bridging ligands.
	GO:0009055	electron carrier activity	Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0051536	iron-sulfur cluster binding	Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FES	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		FMN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2pia)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
