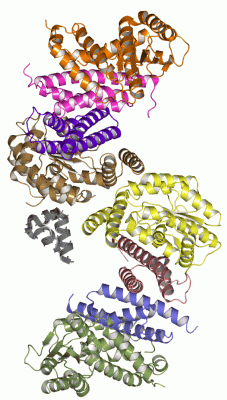

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

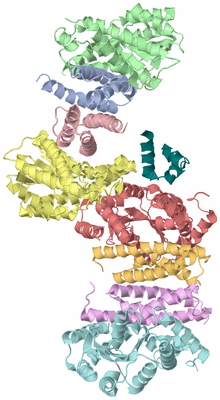

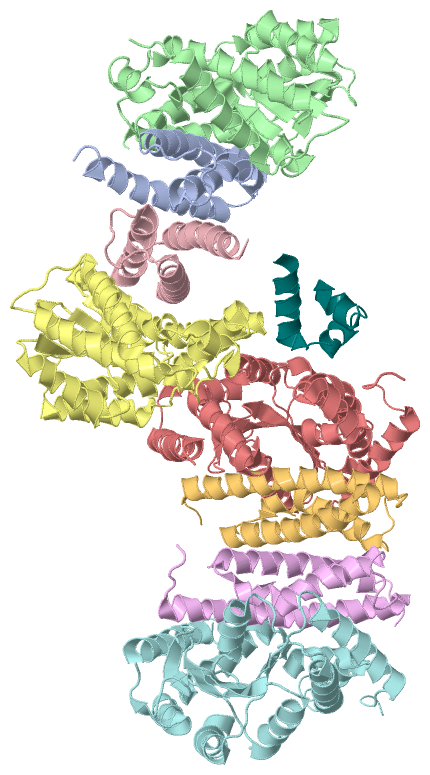

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

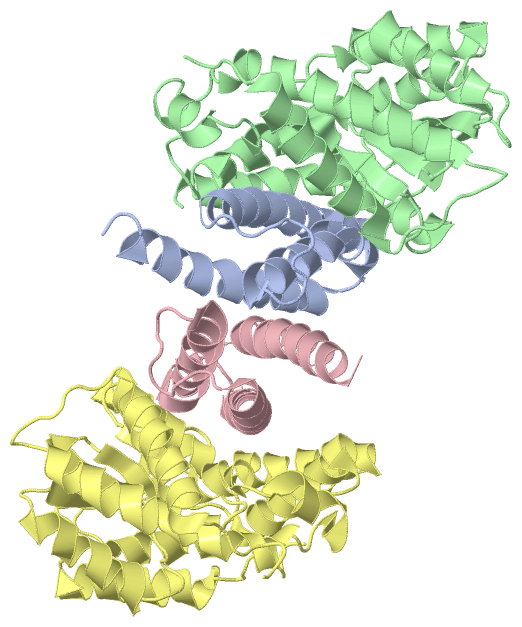

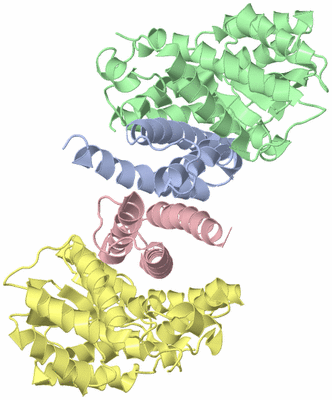

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

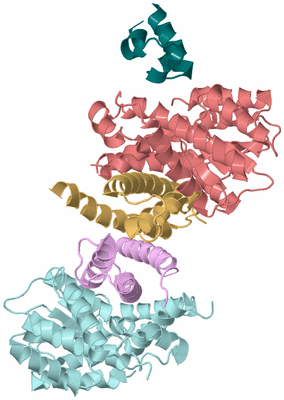

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

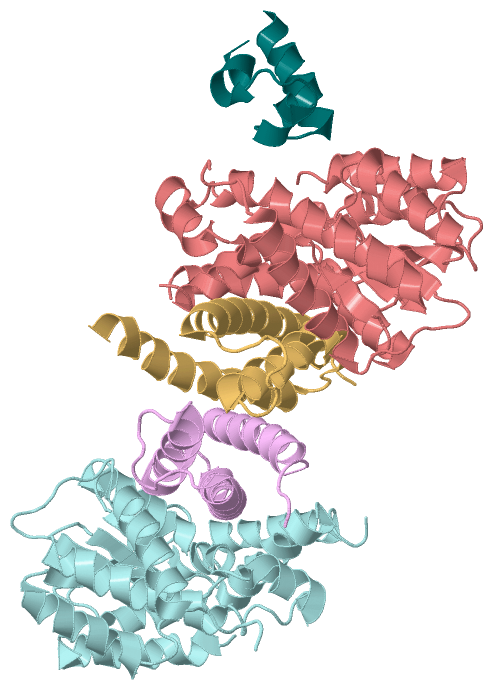

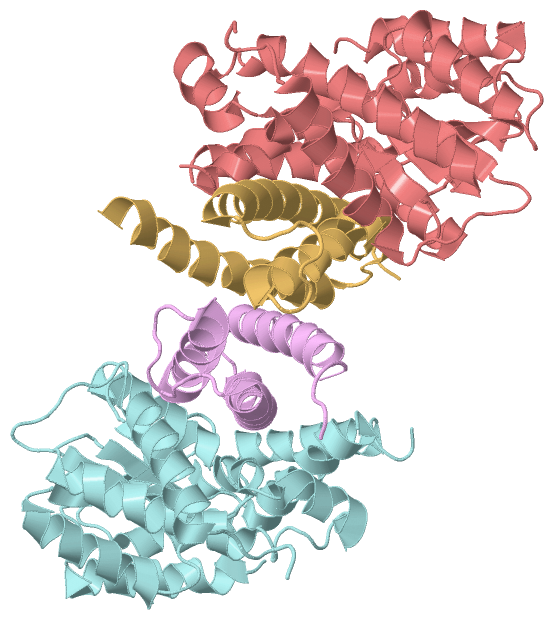

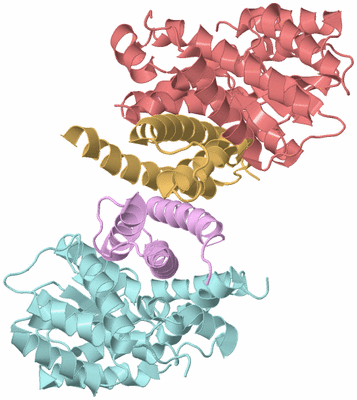

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  MOLECULAR AND STRUCTURAL CHARACTERIZATION OF THE PEZAT CHROMOSOMAL TOXIN-ANTITOXIN SYSTEM OF THE HUMAN PATHOGEN STREPTOCOCCUS PNEUMONIAE

Authors :  B. Loll, A. Meinhart
Date :  16 Mar 07  (Deposition) - 15 May 07  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.20
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,X
Biol. Unit 1:  A,B,C,D  (1x)
Biol. Unit 2:  E,F,G,H,X  (1x)
Biol. Unit 3:  E,F,G,H  (1x)
Keywords :  Postsegregational Killing System, Phosphoryltransferase, Helix-Turn- Helix Motif, Transcription Regulator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. K. Khoo, B. Loll, W. T. Chan, R. L. Shoeman, L. Ngoo, C. C. Yeo, A. Meinhart
Molecular And Structural Characterization Of The Pezat Chromosomal Toxin-Antitoxin System Of The Human Pathogen Streptococcus Pneumoniae.
J. Biol. Chem. V. 282 19606 2007
PubMed-ID: 17488720  |  Reference-DOI: 10.1074/JBC.M701703200

(-) Compounds

Molecule 1 - FRAGMENT OF PEZA HELIX-TURN-HELIX MOTIF
    Chains: X
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28B
    Expression System Strain: BL21(DE3)/CODON PLUS-RIL
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: STREPTOCOCCUS PNEUMONIAE
    Organism Taxid: 1313

Molecule 2 - PUTATIVE TRANSCRIPTIONAL REGULATOR PEZA
    Chains: A, C, E, G
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28B
    Expression System Strain: BL21(DE3)/CODON PLUS-RIL
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: STREPTOCOCCUS PNEUMONIAE
    Organism Taxid: 170187
    Strain: TIGR4

Molecule 3 - PEZT
    Chains: B, D, F, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28B
    Expression System Strain: BL21(DE3)/CODON PLUS-RIL
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: STREPTOCOCCUS PNEUMONIAE
    Organism Taxid: 1313

 Structural Features

(-) Chains, Units

  123456789
Asymmetric Unit : ABCDEFGHX
Biological Unit 1 (1x): ABCD
Biological Unit 2 (1x):     EFGHX
Biological Unit 3 (1x):     EFGH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 33)

Asymmetric Unit (1, 33)
No.NameCountTypeFull Name
1UNK33Mod. Amino Acid
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1UNK-1Mod. Amino Acid
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1UNK-1Mod. Amino Acid
Biological Unit 3 (0, 0)
No.NameCountTypeFull Name
1UNK-1Mod. Amino Acid

(-) Sites  (0, 0)

(no "Site" information available for 2P5T)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2P5T)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2P5T)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2P5T)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2P5T)

(-) Exons   (0, 0)

(no "Exon" information available for 2P5T)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:92
 aligned with PEZA_STRPN | Q97QZ2 from UniProtKB/Swiss-Prot  Length:158

    Alignment length:92
                                    76        86        96       106       116       126       136       146       156
           PEZA_STRPN    67 LNPVEDYELTLKIEIVKERGANLLSRLYRYQDSQGISIDDESNPWILMSDDLSDLIHTNIYLVETFDEIERYSGYLDGIERMLEISEKRMVA 158
               SCOP domains -------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhh.hhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------- Transcript
                 2p5t A  67 LNPVEDYELTLKIEIVKERGANLLSRLYRYQDSQGISIDDESNPWILMSDDLSDLIHTNIYLVETFDEIERYSGYLDGIERMLEISEKRMVA 158
                                    76        86        96       106       116       126       136       146       156


Chain B from PDB  Type:PROTEIN  Length:244
 aligned with PEZT_STRPN | Q97QZ1 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:251
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252
           PEZT_STRPN     3 IQDYTDSEFKHALARNLRSLTRGKKSSKQPIAILLGGQSGAGKTTIHRIKQKEFQGNIVIIDGDSFRSQHPHYLELQQEYGKDSVEYTKDFAGKMVESLVTKLSSLRYNLLIEGTLRTVDVPKKTAQLLKNKGYEVQLALIATKPELSYLSTLIRYEELYIINPNQARATPKEHHDFIVNHLVDNTRKLEELAIFERIQIYQRDRSCVYDSKENTTSAADVLQELLFGEWSQVEKEMLQVGEKRLNELLEK 253
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhh........eeeeee.hhhhhhhhhhhhhhhhh....eeehhhhhhh...hhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhh...eeee.....hhhhhhhhhhhhhh..eeeeeee..hhhhhhhhhhhhhhhh.......-------....hhhhhhhhhhhhhhh....eeeee.....eeee......hhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2p5t B   3 IQDYTDSEFKHALARNLRSLTRGKKSSKQPIAILLGGQSGAGKTTIHRIKQKEFQGNIVIIDGDSFRSQHPHYLELQQEYGKDSVEYTKDFAGKMVESLVTKLSSLGYNLLIEGTLRTVDVPKKTAQLLKNKGYEVQLALIATKPELSYLSTLIRYEELYIINPNQ-------HHDFIVNHLVDNTRKLEELAIFERIQIYQRDRSCVYDSKENTTSAADVLQELFFGEWSQVEKEMLQVGEKRLNELLEK 253
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162     |   -   |   182       192       202       212       222       232       242       252
                                                                                                                                                                                               168     176


Chain C from PDB  Type:PROTEIN  Length:93
 aligned with PEZA_STRPN | Q97QZ2 from UniProtKB/Swiss-Prot  Length:158

    Alignment length:93
                                    75        85        95       105       115       125       135       145       155
           PEZA_STRPN    66 MLNPVEDYELTLKIEIVKERGANLLSRLYRYQDSQGISIDDESNPWILMSDDLSDLIHTNIYLVETFDEIERYSGYLDGIERMLEISEKRMVA 158
               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 2p5t C  66 MLNPVEDYELTLKIEIVKERGANLLSRLYRYQDSQGISIDDESNPWILMSDDLSDLIHTNIYLVETFDEIERYSGYLDGIERMLEISEKRMVA 158
                                    75        85        95       105       115       125       135       145       155


Chain D from PDB  Type:PROTEIN  Length:247
 aligned with PEZT_STRPN | Q97QZ1 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:251
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           PEZT_STRPN     1 MEIQDYTDSEFKHALARNLRSLTRGKKSSKQPIAILLGGQSGAGKTTIHRIKQKEFQGNIVIIDGDSFRSQHPHYLELQQEYGKDSVEYTKDFAGKMVESLVTKLSSLRYNLLIEGTLRTVDVPKKTAQLLKNKGYEVQLALIATKPELSYLSTLIRYEELYIINPNQARATPKEHHDFIVNHLVDNTRKLEELAIFERIQIYQRDRSCVYDSKENTTSAADVLQELLFGEWSQVEKEMLQVGEKRLNELL 251
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhhhhhh........eeeeee......hhhhhhhhhhhh....eeehhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhh...eeeeeee..hhhhhhhhhhhhhhhhhhhh...----.......hhhhhhhhhhhhhhh....eeeee.....eeee......hhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2p5t D   1 MEIQDYTDSEFKHALARNLRSLTRGKKSSKQPIAILLGGQSGAGKTTIHRIKQKEFQGNIVIIDGDSFRSQHPHYLELQQEYGKDSVEYTKDFAGKMVESLVTKLSSLGYNLLIEGTLRTVDVPKKTAQLLKNKGYEVQLALIATKPELSYLSTLIRYEELYIINPNQ----PKEHHDFIVNHLVDNTRKLEELAIFERIQIYQRDRSCVYDSKENTTSAADVLQELFFGEWSQVEKEMLQVGEKRLNELL 251
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       | -  |    180       190       200       210       220       230       240       250
                                                                                                                                                                                                 168  173


Chain E from PDB  Type:PROTEIN  Length:95
 aligned with PEZA_STRPN | Q97QZ2 from UniProtKB/Swiss-Prot  Length:158

    Alignment length:95
                                    73        83        93       103       113       123       133       143       153
           PEZA_STRPN    64 DKMLNPVEDYELTLKIEIVKERGANLLSRLYRYQDSQGISIDDESNPWILMSDDLSDLIHTNIYLVETFDEIERYSGYLDGIERMLEISEKRMVA 158
               SCOP domains ----------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------- Transcript
                 2p5t E  64 DKMLNPVEDYELTLKIEIVKERGANLLSRLYRYQDSQGISIDDESNPWILMSDDLSDLIHTNIYLVETFDEIERYSGYLDGIERMLEISEKRMVA 158
                                    73        83        93       103       113       123       133       143       153


Chain F from PDB  Type:PROTEIN  Length:240
 aligned with PEZT_STRPN | Q97QZ1 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:252
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251
           PEZT_STRPN     2 EIQDYTDSEFKHALARNLRSLTRGKKSSKQPIAILLGGQSGAGKTTIHRIKQKEFQGNIVIIDGDSFRSQHPHYLELQQEYGKDSVEYTKDFAGKMVESLVTKLSSLRYNLLIEGTLRTVDVPKKTAQLLKNKGYEVQLALIATKPELSYLSTLIRYEELYIINPNQARATPKEHHDFIVNHLVDNTRKLEELAIFERIQIYQRDRSCVYDSKENTTSAADVLQELLFGEWSQVEKEMLQVGEKRLNELLEK 253
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhh.........eeeeee......hhhhhhhhhhhh....eeehhhhhhhhh.hhhhhhhhh.......hhhhhhhhhhhhhhhhhh....eee......hhhhhhhhhhhhhh..eeeeeee..hhhhhhhhhhhhhhhhhh..------------.hhhhhhhhhhhhhhhh....eeeee.....eeee......hhhhhhhhhhhh..hhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2p5t F   2 EIQDYTDSEFKHALARNLRSLTRGKKSSKQPIAILLGGQSGAGKTTIHRIKQKEFQGNIVIIDGDSFRSQHPHYLELQQEYGKDSVEYTKDFAGKMVESLVTKLSSLGYNLLIEGTLRTVDVPKKTAQLLKNKGYEVQLALIATKPELSYLSTLIRYEELYIIN------------DFIVNHLVDNTRKLEELAIFERIQIYQRDRSCVYDSKENTTSAADVLQELFFGEWSQVEKEMLQVGEKRLNELLEK 253
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161   |     -      |181       191       201       211       221       231       241       251
                                                                                                                                                                                             165          178


Chain G from PDB  Type:PROTEIN  Length:93
 aligned with PEZA_STRPN | Q97QZ2 from UniProtKB/Swiss-Prot  Length:158

    Alignment length:93
                                    75        85        95       105       115       125       135       145       155
           PEZA_STRPN    66 MLNPVEDYELTLKIEIVKERGANLLSRLYRYQDSQGISIDDESNPWILMSDDLSDLIHTNIYLVETFDEIERYSGYLDGIERMLEISEKRMVA 158
               SCOP domains --------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------- Transcript
                 2p5t G  66 MLNPVEDYELTLKIEIVKERGANLLSRLYRYQDSQGISIDDESNPWILMSDDLSDLIHTNIYLVETFDEIERYSGYLDGIERMLEISEKRMVA 158
                                    75        85        95       105       115       125       135       145       155


Chain H from PDB  Type:PROTEIN  Length:242
 aligned with PEZT_STRPN | Q97QZ1 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           PEZT_STRPN     1 MEIQDYTDSEFKHALARNLRSLTRGKKSSKQPIAILLGGQSGAGKTTIHRIKQKEFQGNIVIIDGDSFRSQHPHYLELQQEYGKDSVEYTKDFAGKMVESLVTKLSSLRYNLLIEGTLRTVDVPKKTAQLLKNKGYEVQLALIATKPELSYLSTLIRYEELYIINPNQARATPKEHHDFIVNHLVDNTRKLEELAIFERIQIYQRDRSCVYDSKENTTSAADVLQELLFGEWSQVEKEMLQVGEKRLNELLEK 253
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhhhhhh........eeeeeee.....hhhhhhhhhhhhh...eee.hhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhh..eee......hhhhhhhhhhhhhh..eeeeeee..hhhhhhhhhhhhhhhhhh...-----------..hhhhhhhhhhhhhhh....eeeee.....eeee......hhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2p5t H   1 MEIQDYTDSEFKHALARNLRSLTRGKKSSKQPIAILLGGQSGAGKTTIHRIKQKEFQGNIVIIDGDSFRSQHPHYLELQQEYGKDSVEYTKDFAGKMVESLVTKLSSLGYNLLIEGTLRTVDVPKKTAQLLKNKGYEVQLALIATKPELSYLSTLIRYEELYIINP-----------DFIVNHLVDNTRKLEELAIFERIQIYQRDRSCVYDSKENTTSAADVLQELFFGEWSQVEKEMLQVGEKRLNELLEK 253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160     |   -       180       190       200       210       220       230       240       250
                                                                                                                                                                                               166         178


Chain X from PDB  Type:PROTEIN  Length:33

               SCOP domains --------------------------------- SCOP domains
               CATH domains --------------------------------- CATH domains
               Pfam domains --------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhh...hhhhh....hhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------- PROSITE
                 Transcript --------------------------------- Transcript
                 2p5t X   1 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  33
                            ||||||||10||||||||20||||||||30|||
                            1-UNK|||10-UNK|||19-UNK|||28-UNK|
                             2-UNK|||11-UNK|||20-UNK|||29-UNK
                              3-UNK|| 12-UNK|| 21-UNK|| 30-UNK
                               4-UNK|  13-UNK|  22-UNK|  31-UNK
                                5-UNK   14-UNK   23-UNK   32-UNK
                                 6-UNK   15-UNK   24-UNK   33-UNK
                                  7-UNK   16-UNK   25-UNK
                                   8-UNK   17-UNK   26-UNK
                                    9-UNK   18-UNK   27-UNK
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2P5T)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2P5T)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2P5T)

(-) Gene Ontology  (10, 10)

Asymmetric Unit(hide GO term definitions)
Chain A,C,E,G   (PEZA_STRPN | Q97QZ2)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

Chain B,D,F,H   (PEZT_STRPN | Q97QZ1)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    UNK  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2p5t)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2p5t)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2p5t
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PEZA_STRPN | Q97QZ2
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  PEZT_STRPN | Q97QZ1
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PEZA_STRPN | Q97QZ2
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  PEZT_STRPN | Q97QZ1
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2P5T)

(-) Related Entries Specified in the PDB File

1gvn
