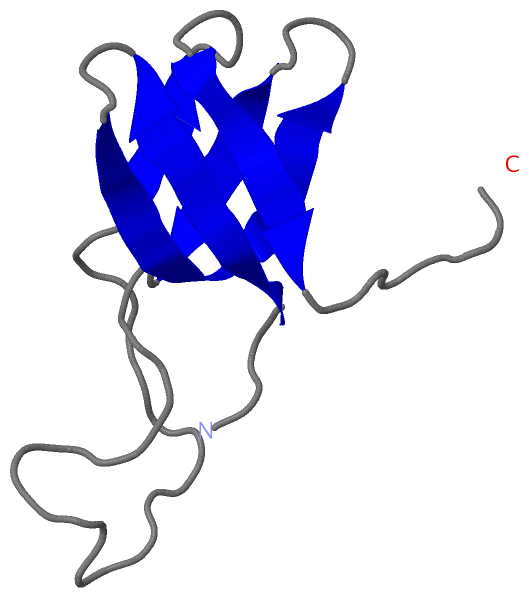

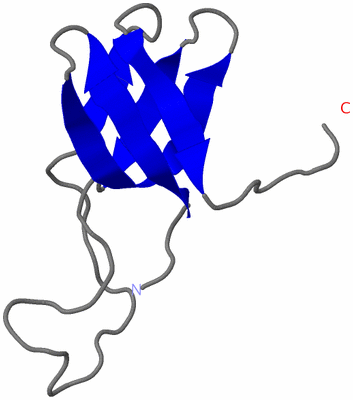

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

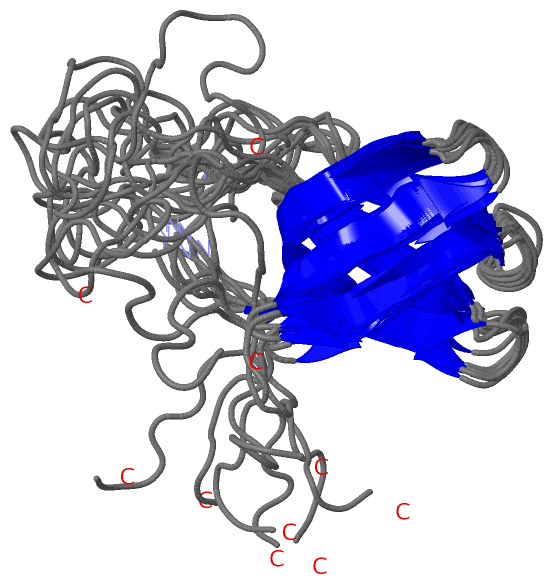

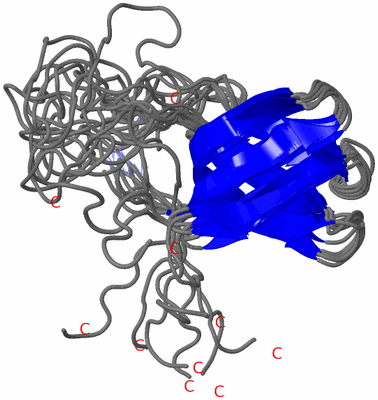

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR SOLUTION STRUCTURE OF PROTEIN FROM ZEBRA FISH DR.13312

Authors :  R. C. Tyler, J. Song, J. L. Markley, Center For Eukaryotic Structural Genomics (Cesg)
Date :  08 Dec 05  (Deposition) - 27 Dec 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Dr. 13312, Bc055387, Aah55387, Lsm14_n, Rap55, Sm-Like Protein, Strongly Bent Five-Stranded Antiparallel Beta- Sheet, Structural Genomics, Psi, Protein Structure Initiative, Center For Eukaryotic Structural Genomics, Cesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. C. Tyler, J. Song, J. L. Markley
Nmr Solution Structure Of Protein From Zebra Fish Dr. 13312
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SM-LIKE PROTEIN, LSM-14_N (RAP55)
    Chains: A
    Engineered: YES
    Expression System: CELL-FREE SYNTHESIS
    Expression System Plasmid: PEU-HIS
    Expression System Vector Type: PLASMID
    Gene: BC055387
    Organism Common: ZEBRAFISH
    Organism Scientific: DANIO RERIO
    Organism Taxid: 7955
    Other Details: WHEAT GERM CELL-FREE, IN VITRO EXPRESSION

 Structural Features

(-) Chains, Units


NMR Structure (10x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2FB7)

(-) Sites  (0, 0)

(no "Site" information available for 2FB7)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2FB7)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2FB7)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2FB7)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2FB7)

(-) Exons   (0, 0)

(no "Exon" information available for 2FB7)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:80
 aligned with Q6P111_DANRE | Q6P111 from UniProtKB/TrEMBL  Length:443

    Alignment length:89
                                    15        25        35        45        55        65        75        85
          Q6P111_DANRE    6 PYIGSKISLISKAEIRYEGILYTIDTENSTVALAKVRSFGTEDRPTDRPIAPRDETFEYIIFRGSDIKDLTVCEPPKPTCSLPQDPAIV 94
               SCOP domains d2fb7a1 A:16-95 LSM14 homolog A (Lsm14a)                                                  SCOP domains
               CATH domains ----------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeee...eeeeeeeeeee....eeeee.........................eee....eeeeee......---------.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                  2fb7 A 16 PYIGSKISLISKAEIRYEGILYTIDTENSTVALAKVRSFGTEDRPTDRPIAPRDETFEYIIFRGSDIKDLTVCEPPKP---------IM 95
                                    25        35        45        55        65        75        85       | -       |
                                                                                                        93        94


Chain A from PDB  Type:PROTEIN  Length:80
 aligned with Q7SXR4_DANRE | Q7SXR4 from UniProtKB/TrEMBL  Length:85

    Alignment length:80
                                    15        25        35        45        55        65        75        85
          Q7SXR4_DANRE    6 PYIGSKISLISKAEIRYEGILYTIDTENSTVALAKVRSFGTEDRPTDRPIAPRDETFEYIIFRGSDIKDLTVCEPPKPIM 85
               SCOP domains d2fb7a1 A:16-95 LSM14 homolog A (Lsm14a)                                         SCOP domains
               CATH domains -------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeee...eeeeeeeeeee....eeeee.........................eee....eeeeee........ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------- Transcript
                  2fb7 A 16 PYIGSKISLISKAEIRYEGILYTIDTENSTVALAKVRSFGTEDRPTDRPIAPRDETFEYIIFRGSDIKDLTVCEPPKPIM 95
                                    25        35        45        55        65        75        85        95
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2FB7)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2FB7)

(-) Gene Ontology  (3, 6)

NMR Structure(hide GO term definitions)
Chain A   (Q7SXR4_DANRE | Q7SXR4)
molecular function
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
cellular component
    GO:0005575    cellular_component    The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.

Chain A   (Q6P111_DANRE | Q6P111)
molecular function
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
cellular component
    GO:0005575    cellular_component    The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2fb7)

  Sites
(no "Sites" information available for 2fb7)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2fb7)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2fb7
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q6P111_DANRE | Q6P111
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL
  Q7SXR4_DANRE | Q7SXR4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q6P111_DANRE | Q6P111
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q7SXR4_DANRE | Q7SXR4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q7SXR4_DANRE | Q7SXR4: 2vxf

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2FB7)
