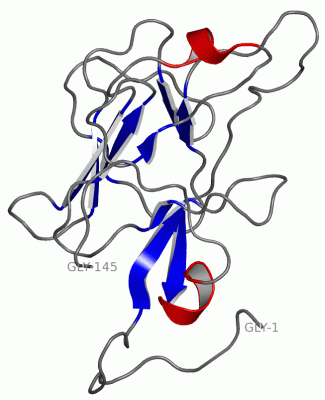

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

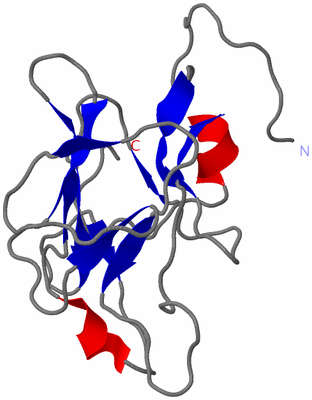

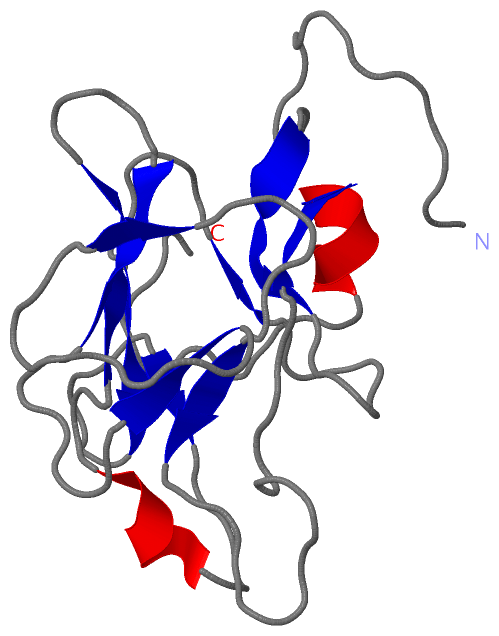

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

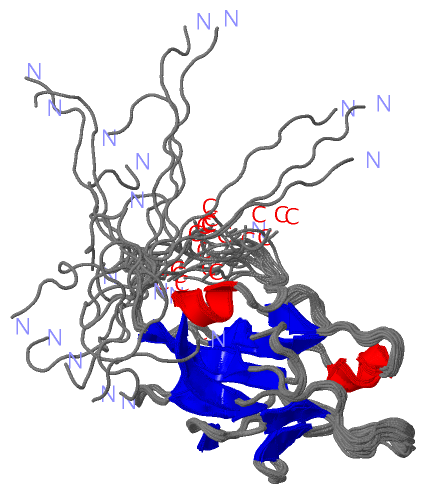

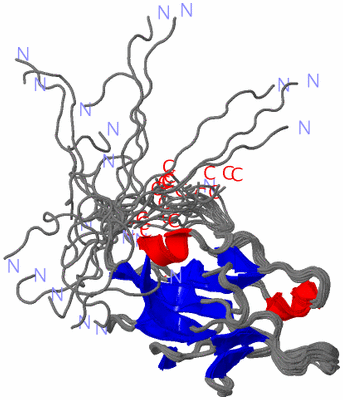

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE FHA DOMAIN OF HUMAN UBIQUITIN LIGASE PROTEIN RNF8

Authors :  F. Hayashi, T. Nagashima, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  23 May 05  (Deposition) - 23 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  11-Stranded Beta Sandwich, Ring Finger Protein 8, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Ligase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  F. Hayashi, T. Nagashima, S. Yokoyama
Solution Structure Of The Fha Domain Of Human Ubiquitin Ligase Protein Rnf8
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - UBIQUITIN LIGASE PROTEIN RNF8
    ChainsA
    EC Number6.3.2.-
    EngineeredYES
    Expression System PlasmidP040322-86
    Expression System Vector TypePLASMID
    FragmentFHA DOMAIN
    GeneRNF8
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    Other DetailsCELL-FREE PROTEIN SYNTHESIS
    SynonymRING FINGER PROTEIN 8

 Structural Features

(-) Chains, Units


NMR Structure (20x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2CSW)

(-) Sites  (0, 0)

(no "Site" information available for 2CSW)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2CSW)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2CSW)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2CSW)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1FHA_DOMAINPS50006 Forkhead-associated (FHA) domain profile.RNF8_HUMAN38-92  1A:38-92

(-) Exons   (3, 3)

NMR Structure (3, 3)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1aENST000003734791aENSE00001556351chr6:37321748-37322051304RNF8_HUMAN1-37371A:1-3737
1.3ENST000003734793ENSE00002143174chr6:37328222-37328350129RNF8_HUMAN38-80431A:38-8043
1.5eENST000003734795eENSE00002173345chr6:37336260-37336994735RNF8_HUMAN81-3252451A:81-145 (gaps)104
1.7ENST000003734797ENSE00002172935chr6:37339288-3733935063RNF8_HUMAN326-346210--
1.8ENST000003734798ENSE00002175649chr6:37342396-3734248590RNF8_HUMAN347-376300--
1.9ENST000003734799ENSE00002175385chr6:37344702-37344809108RNF8_HUMAN377-412360--
1.10ENST0000037347910ENSE00002179660chr6:37348926-37349130205RNF8_HUMAN413-481690--
1.11dENST0000037347911dENSE00001884472chr6:37358518-373625143997RNF8_HUMAN481-48550--

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:145
 aligned with RNF8_HUMAN | O76064 from UniProtKB/Swiss-Prot  Length:485

    Alignment length:184
                               5 6
                               | |  10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
           RNF8_HUMAN     2 GEPG-FFVTGDRAGGRSWCLRRVGMSAGWLLLEDGCEVTVGRGFGVTYQLVSKICPLMISRNHCVLKQNPEGQWTIMDNKSLNGVWLNRARLEPLRVYSIHQGDYIQLGVPLENKENAEYEYEVTEEDWETIYPCLSPKNDQMIEKNKELRTKRKFSLDELAGPGAEGPSNLKSKINKVSCESG 184
               SCOP domains -------d2cswa1 A:8-139 Ubiquitin ligase protein RNF8                                                                                       --------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...............eeeee.........ee......eeee......ee.....hhhhh....eeeee.....eeee.......eee..........ee......eee...............eeeeehhhhh.......---------------------------...------------.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------FHA_DOMAIN  PDB: A:38-92 UniProt: 38-92                -------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.1a  PDB: A:1-37 UniProt: 1-37 Exon 1.3  PDB: A:38-80 UniProt: 38-80      Exon 1.5e  PDB: A:81-145 (gaps) UniProt: 81-325 [INCOMPLETE]                                             Transcript 1
                 2csw A   1 GSSGSSGVTGDRAGGRSWCLRRVGMSAGWLLLEDGCEVTVGRGFGVTYQLVSKICPLMISRNHCVLKQNPEGQWTIMDNKSLNGVWLNRARLEPLRVYSIHQGDYIQLGVPLENKENAEYEYEVTEEDWETIYPCLSPKS---------------------------GPS------------SG 145
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140         -         -       143         -  |
                                                                                                                                                                     140                         141 |          144
                                                                                                                                                                                                   143

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2CSW)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2CSW)

(-) Gene Ontology  (38, 38)

NMR Structure(hide GO term definitions)
Chain A   (RNF8_HUMAN | O76064)
molecular function
    GO:0003682    chromatin binding    Interacting selectively and non-covalently with chromatin, the network of fibers of DNA, protein, and sometimes RNA, that make up the chromosomes of the eukaryotic nucleus during interphase.
    GO:0042393    histone binding    Interacting selectively and non-covalently with a histone, any of a group of water-soluble proteins found in association with the DNA of eukaroytic chromosomes. They are involved in the condensation and coiling of chromosomes during cell division and have also been implicated in nonspecific suppression of gene activity.
    GO:0016874    ligase activity    Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0042803    protein homodimerization activity    Interacting selectively and non-covalently with an identical protein to form a homodimer.
    GO:0031625    ubiquitin protein ligase binding    Interacting selectively and non-covalently with a ubiquitin protein ligase enzyme, any of the E3 proteins.
    GO:0004842    ubiquitin-protein transferase activity    Catalysis of the transfer of ubiquitin from one protein to another via the reaction X-Ub + Y --> Y-Ub + X, where both X-Ub and Y-Ub are covalent linkages.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0006281    DNA repair    The process of restoring DNA after damage. Genomes are subject to damage by chemical and physical agents in the environment (e.g. UV and ionizing radiations, chemical mutagens, fungal and bacterial toxins, etc.) and by free radicals or alkylating agents endogenously generated in metabolism. DNA is also damaged because of errors during its replication. A variety of different DNA repair pathways have been reported that include direct reversal, base excision repair, nucleotide excision repair, photoreactivation, bypass, double-strand break repair pathway, and mismatch repair pathway.
    GO:0007049    cell cycle    The progression of biochemical and morphological phases and events that occur in a cell during successive cell replication or nuclear replication events. Canonically, the cell cycle comprises the replication and segregation of genetic material followed by the division of the cell, but in endocycles or syncytial cells nuclear replication or nuclear division may not be followed by cell division.
    GO:0051301    cell division    The process resulting in division and partitioning of components of a cell to form more cells; may or may not be accompanied by the physical separation of a cell into distinct, individually membrane-bounded daughter cells.
    GO:0006974    cellular response to DNA damage stimulus    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating damage to its DNA from environmental insults or errors during metabolism.
    GO:0006302    double-strand break repair    The repair of double-strand breaks in DNA via homologous and nonhomologous mechanisms to reform a continuous DNA helix.
    GO:0006303    double-strand break repair via nonhomologous end joining    The repair of a double-strand break in DNA in which the two broken ends are rejoined with little or no sequence complementarity. Information at the DNA ends may be lost due to the modification of broken DNA ends. This term covers instances of separate pathways, called classical (or canonical) and alternative nonhomologous end joining (C-NHEJ and A-NHEJ). These in turn may further branch into sub-pathways, but evidence is still unclear.
    GO:0070535    histone H2A K63-linked ubiquitination    A histone ubiquitination process in which a polymer of ubiquitin, formed by linkages between lysine residues at position 63 of the ubiquitin monomers, is added to a lysine residue in histone H2A or the variant H2AX.
    GO:0033522    histone H2A ubiquitination    The modification of histone H2A by addition of one or more ubiquitin groups.
    GO:0033523    histone H2B ubiquitination    The modification of histone H2B by addition of ubiquitin groups.
    GO:0043486    histone exchange    The replacement, within chromatin, of resident histones or histone subunits with alternative, sometimes variant, histones or subunits.
    GO:0036297    interstrand cross-link repair    Removal of a DNA interstrand crosslink (a covalent attachment of DNA bases on opposite strands of the DNA) and restoration of the DNA. DNA interstrand crosslinks occur when both strands of duplex DNA are covalently tethered together (e.g. by an exogenous or endogenous agent), thus preventing the strand unwinding necessary for essential DNA functions such as transcription and replication.
    GO:0045190    isotype switching    The switching of activated B cells from IgM biosynthesis to biosynthesis of other isotypes of immunoglobulin, accomplished through a recombination process involving an intrachromosomal deletion involving switch regions that reside 5' of each constant region gene segment in the immunoglobulin heavy chain locus.
    GO:0034244    negative regulation of transcription elongation from RNA polymerase II promoter    Any process that stops, prevents, or reduces the frequency, rate or extent of transcription elongation, the extension of an RNA molecule after transcription initiation and promoter clearance by the addition of ribonucleotides, catalyzed by RNA polymerase II.
    GO:0045739    positive regulation of DNA repair    Any process that activates or increases the frequency, rate or extent of DNA repair.
    GO:0070936    protein K48-linked ubiquitination    A protein ubiquitination process in which a polymer of ubiquitin, formed by linkages between lysine residues at position 48 of the ubiquitin monomers, is added to a protein. K48-linked ubiquitination targets the substrate protein for degradation.
    GO:0070534    protein K63-linked ubiquitination    A protein ubiquitination process in which a polymer of ubiquitin, formed by linkages between lysine residues at position 63 of the ubiquitin monomers, is added to a protein. K63-linked ubiquitination does not target the substrate protein for degradation, but is involved in several pathways, notably as a signal to promote error-free DNA postreplication repair.
    GO:0051865    protein autoubiquitination    The ubiquitination by a protein of one or more of its own amino acid residues, or residues on an identical protein. Ubiquitination occurs on the lysine residue by formation of an isopeptide crosslink.
    GO:0016567    protein ubiquitination    The process in which one or more ubiquitin groups are added to a protein.
    GO:0010212    response to ionizing radiation    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a ionizing radiation stimulus. Ionizing radiation is radiation with sufficient energy to remove electrons from atoms and may arise from spontaneous decay of unstable isotopes, resulting in alpha and beta particles and gamma rays. Ionizing radiation also includes X-rays.
    GO:0007286    spermatid development    The process whose specific outcome is the progression of a spermatid over time, from its formation to the mature structure.
    GO:0006511    ubiquitin-dependent protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds, initiated by the covalent attachment of a ubiquitin group, or multiple ubiquitin groups, to the protein.
cellular component
    GO:0005694    chromosome    A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
    GO:0000781    chromosome, telomeric region    The terminal region of a linear chromosome that includes the telomeric DNA repeats and associated proteins.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0030496    midbody    A thin cytoplasmic bridge formed between daughter cells at the end of cytokinesis. The midbody forms where the contractile ring constricts, and may persist for some time before finally breaking to complete cytokinesis.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0035861    site of double-strand break    A region of a chromosome at which a DNA double-strand break has occurred. DNA damage signaling and repair proteins accumulate at the lesion to respond to the damage and repair the DNA to form a continuous DNA helix.
    GO:0000151    ubiquitin ligase complex    A protein complex that includes a ubiquitin-protein ligase and enables ubiquitin protein ligase activity. The complex also contains other proteins that may confer substrate specificity on the complex.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2csw)

  Sites
(no "Sites" information available for 2csw)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2csw)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2csw
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RNF8_HUMAN | O76064
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  6.3.2.-
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  RNF8_HUMAN | O76064
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RNF8_HUMAN | O760642pie 4ayc 4orh 4whv
