2BI4 - JenaLib

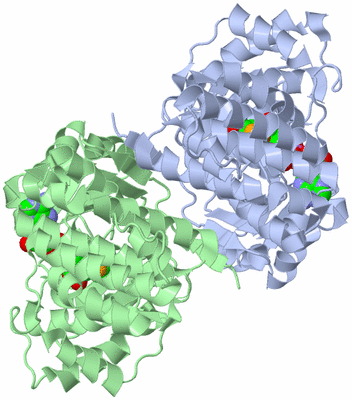

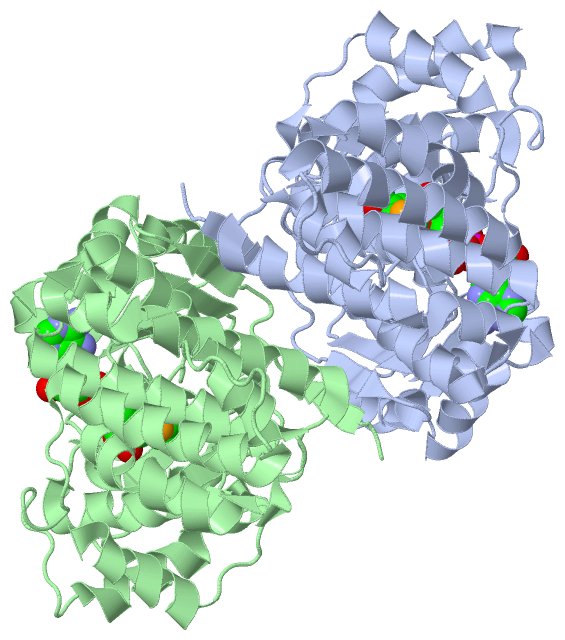

Asym./Biol. Unit (Jmol Viewer)

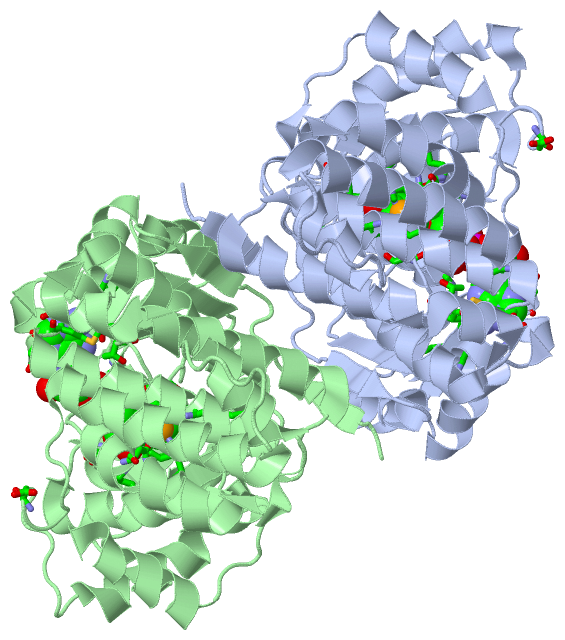

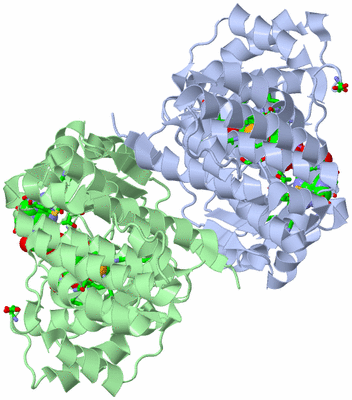

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   LACTALDEHYDE:1,2-PROPANEDIOL OXIDOREDUCTASE OF ESCHERICHIA COLI

Authors :   C. Montella, L. Bellsolell, J. Badia, L. Baldoma, R. Perez, M. Coll, J. Aguilar

Date :   20 Jan 05 (Deposition) - 06 Jul 05 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.85

Chains :   Asym./Biol. Unit : A,B

Keywords :   Fuco, Group Iii Dehydrogenase, Metalo-Enzymes, Dinucleotide Cofactor Specificity, Oxidoreductase, Iron, Nad (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. Montella, L. Bellsolell, R. Perez-Luque, J. Badia, L. Baldoma, M. Coll, J. Aguilar
Crystal Structure Of An Iron-Dependent Group Iii Dehydrogenase That Interconverts L-Lactaldehyde And L-1, 2-Propanediol In Escherichia Coli
J. Bacteriol. V. 187 4957 2005
PubMed-ID: 15995211 | Reference-DOI: 10.1128/JB.187.14.4957-4966.2005

Molecule 1 - LACTALDEHYDE REDUCTASE
	Chains	:	A, B
	EC Number	:	1.1.1.77
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PQE32
	Expression System Strain	:	M15(PREP4)
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562
	Strain	:	ECL1
	Synonym	:	PROPANEDIOL OXIDOREDUCTASE

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (3, 5)

No.	Name	Count	Type	Full Name
1	CL	1	Ligand/Ion	CHLORIDE ION
2	FE	2	Ligand/Ion	FE (III) ION
3	NAD	2	Ligand/Ion	NICOTINAMIDE-ADENINE-DINUCLEOTIDE

Asymmetric Unit (5, 5)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP A:196 , HIS A:200 , HIS A:263 , HIS A:277 , ASN A:281 , NAD A:1385	BINDING SITE FOR RESIDUE FE A1384
2	AC2	SOFTWARE	LYS A:33	BINDING SITE FOR RESIDUE CL B 500
3	AC3	SOFTWARE	ASP B:1196 , HIS B:1200 , HIS B:1263 , HIS B:1277 , ASN B:1281 , NAD B:2385	BINDING SITE FOR RESIDUE FE B2384
4	AC4	SOFTWARE	ASP A:39 , THR A:41 , LEU A:42 , GLY A:97 , GLY A:98 , SER A:99 , THR A:140 , THR A:141 , THR A:144 , VAL A:153 , LYS A:162 , MET A:181 , GLY A:184 , MET A:185 , LEU A:189 , ASP A:196 , HIS A:200 , PHE A:254 , LEU A:259 , HIS A:263 , HIS A:277 , FE A:1384 , ASP B:1342	BINDING SITE FOR RESIDUE NAD A1385
5	AC5	SOFTWARE	ASP A:342 , ASP B:1039 , THR B:1041 , LEU B:1042 , ASN B:1071 , GLY B:1097 , GLY B:1098 , SER B:1099 , PRO B:1100 , THR B:1140 , THR B:1141 , THR B:1144 , ASN B:1151 , VAL B:1153 , LYS B:1162 , MET B:1181 , GLY B:1184 , MET B:1185 , LEU B:1189 , ASP B:1196 , HIS B:1200 , PHE B:1254 , HIS B:1263 , HIS B:1277 , FE B:2384	BINDING SITE FOR RESIDUE NAD B2385

(no "SS Bond" information available for 2BI4)

(no "Cis Peptide Bond" information available for 2BI4)

(no "SAP(SNP)/Variant" information available for 2BI4)

Asymmetric/Biological Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	ADH_IRON_1	PS00913	Iron-containing alcohol dehydrogenases signature 1.	FUCO_ECO57	174-202	2	A:175-203 B:1175-1203
1	ADH_IRON_1	PS00913	Iron-containing alcohol dehydrogenases signature 1.	FUCO_ECOLI	174-202	2	A:175-203 B:1175-1203
2	ADH_IRON_2	PS00060	Iron-containing alcohol dehydrogenases signature 2.	FUCO_ECO57	259-279	2	A:260-280 B:1260-1280
2	ADH_IRON_2	PS00060	Iron-containing alcohol dehydrogenases signature 2.	FUCO_ECOLI	259-279	2	A:260-280 B:1260-1280

(no "Exon" information available for 2BI4)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:382
 aligned with FUCO_ECO57 | P0A9S2 from UniProtKB/Swiss-Prot  Length:382

    Alignment length:382
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380
          FUCO_ECO57      1 MANRMILNETAWFGRGAVGALTDEVKRRGYQKALIVTDKTLVQCGVVAKVTDKMDAAGLAWAIYDGVVPNPTITVVKEGLGVFQNSGADYLIAIGGGSPQDTCKAIGIISNNPEFADVRSLEGLSPTNKPSVPILAIPTTAGTAAEVTINYVITDEEKRRKFVCVDPHDIPQVAFIDADMMDGMPPALKAATGVDALTHAIEGYITRGAWALTDALHIKAIEIIAGALRGSVAGDKDAGEEMALGQYVAGMGFSNVGLGLVHGMAHPLGAFYNTPHGVANAILLPHVMRYNADFTGEKYRDIARVMGVKVEGMSLEEARNAAVEAVFALNRDVGIPPHLRDVGVRKEDIPALAQAALDDVCTGGNPREATLEDIVELYHTAW  382
               SCOP domains d2bi4a_ A: automated matches                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 2bi4A01 A:2-186  [code=3.40.50.1970, no name defined]                                                                                                                                    2bi4A02 A:187-383 Dehydroquinate synthase-like - alpha domain                                                                                                                                         CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eee.....eee..hhhhhhhhhhhhh...eeeee.hhhhhhh..hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhh....eeeee.hhhhhhhhhhhhhhh.hhhhh......ee.........eeee............eeeee......eeeee.......eeeehhhhhh..hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh........hhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------ADH_IRON_1  PDB: A:175-203   --------------------------------------------------------ADH_IRON_2           ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bi4 A    2 MANRMILNETAWFGRGAVGALTDEVKRRGYQKALIVTDKTLVQCGVVAKVTDKMDAAGLAWAIYDGVVPNPTITVVKEGLGVFQNSGADYLIAIGGGSPQDTCKAIGIISNNPEFADVRSLEGLSPTNKPSVPILAIPTTAGTAAEVTINYVITDEEKRRKFVCVDPHDIPQVAFIDADMMDGMPPALKAATGVDALTHAIEGYITRGAWALTDALHIKAIEIIAGALRGSVAGDKDAGEEMALGQYVAGMGFSNVGLGLVHGMAHPLGAFYNTPHGVANAILLPHVMRYNADFTGEKYRDIARVMGVKVEGMSLEEARNAAVEAVFALNRDVGIPPHLRDVGVRKEDIPALAQAALDDVCTGGNPREATLEDIVELYHTAW  383
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381

Chain A from PDB  Type:PROTEIN  Length:382
 aligned with FUCO_ECOLI | P0A9S1 from UniProtKB/Swiss-Prot  Length:382

    Alignment length:382
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380
          FUCO_ECOLI      1 MANRMILNETAWFGRGAVGALTDEVKRRGYQKALIVTDKTLVQCGVVAKVTDKMDAAGLAWAIYDGVVPNPTITVVKEGLGVFQNSGADYLIAIGGGSPQDTCKAIGIISNNPEFADVRSLEGLSPTNKPSVPILAIPTTAGTAAEVTINYVITDEEKRRKFVCVDPHDIPQVAFIDADMMDGMPPALKAATGVDALTHAIEGYITRGAWALTDALHIKAIEIIAGALRGSVAGDKDAGEEMALGQYVAGMGFSNVGLGLVHGMAHPLGAFYNTPHGVANAILLPHVMRYNADFTGEKYRDIARVMGVKVEGMSLEEARNAAVEAVFALNRDVGIPPHLRDVGVRKEDIPALAQAALDDVCTGGNPREATLEDIVELYHTAW  382
               SCOP domains d2bi4a_ A: automated matches                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 2bi4A01 A:2-186  [code=3.40.50.1970, no name defined]                                                                                                                                    2bi4A02 A:187-383 Dehydroquinate synthase-like - alpha domain                                                                                                                                         CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eee.....eee..hhhhhhhhhhhhh...eeeee.hhhhhhh..hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhh....eeeee.hhhhhhhhhhhhhhh.hhhhh......ee.........eeee............eeeee......eeeee.......eeeehhhhhh..hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh........hhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------ADH_IRON_1  PDB: A:175-203   --------------------------------------------------------ADH_IRON_2           ------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bi4 A    2 MANRMILNETAWFGRGAVGALTDEVKRRGYQKALIVTDKTLVQCGVVAKVTDKMDAAGLAWAIYDGVVPNPTITVVKEGLGVFQNSGADYLIAIGGGSPQDTCKAIGIISNNPEFADVRSLEGLSPTNKPSVPILAIPTTAGTAAEVTINYVITDEEKRRKFVCVDPHDIPQVAFIDADMMDGMPPALKAATGVDALTHAIEGYITRGAWALTDALHIKAIEIIAGALRGSVAGDKDAGEEMALGQYVAGMGFSNVGLGLVHGMAHPLGAFYNTPHGVANAILLPHVMRYNADFTGEKYRDIARVMGVKVEGMSLEEARNAAVEAVFALNRDVGIPPHLRDVGVRKEDIPALAQAALDDVCTGGNPREATLEDIVELYHTAW  383
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381

Chain B from PDB  Type:PROTEIN  Length:382
 aligned with FUCO_ECO57 | P0A9S2 from UniProtKB/Swiss-Prot  Length:382

    Alignment length:382
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380
          FUCO_ECO57      1 MANRMILNETAWFGRGAVGALTDEVKRRGYQKALIVTDKTLVQCGVVAKVTDKMDAAGLAWAIYDGVVPNPTITVVKEGLGVFQNSGADYLIAIGGGSPQDTCKAIGIISNNPEFADVRSLEGLSPTNKPSVPILAIPTTAGTAAEVTINYVITDEEKRRKFVCVDPHDIPQVAFIDADMMDGMPPALKAATGVDALTHAIEGYITRGAWALTDALHIKAIEIIAGALRGSVAGDKDAGEEMALGQYVAGMGFSNVGLGLVHGMAHPLGAFYNTPHGVANAILLPHVMRYNADFTGEKYRDIARVMGVKVEGMSLEEARNAAVEAVFALNRDVGIPPHLRDVGVRKEDIPALAQAALDDVCTGGNPREATLEDIVELYHTAW  382
               SCOP domains d2bi4b_ B: automated matches                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 2bi4B01 B:1002-1186  [code=3.40.50.1970, no name defined]                                                                                                                                2bi4B02 B:1187-1383 Dehydroquinate synthase-like - alpha domain                                                                                                                                       CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eee.....eee..hhhhhhhhhhhhh...eeeee..hhhhhh..hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhh....eeeee.hhhhhhhhhhhhhhh.hhhhh......ee.........eeee............eeeee......eeeee.......eeeehhhhhh..hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh........hhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------ADH_IRON_1  PDB: B:1175-1203 --------------------------------------------------------ADH_IRON_2           ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bi4 B 1002 MANRMILNETAWFGRGAVGALTDEVKRRGYQKALIVTDKTLVQCGVVAKVTDKMDAAGLAWAIYDGVVPNPTITVVKEGLGVFQNSGADYLIAIGGGSPQDTCKAIGIISNNPEFADVRSLEGLSPTNKPSVPILAIPTTAGTAAEVTINYVITDEEKRRKFVCVDPHDIPQVAFIDADMMDGMPPALKAATGVDALTHAIEGYITRGAWALTDALHIKAIEIIAGALRGSVAGDKDAGEEMALGQYVAGMGFSNVGLGLVHGMAHPLGAFYNTPHGVANAILLPHVMRYNADFTGEKYRDIARVMGVKVEGMSLEEARNAAVEAVFALNRDVGIPPHLRDVGVRKEDIPALAQAALDDVCTGGNPREATLEDIVELYHTAW 1383
                                  1011      1021      1031      1041      1051      1061      1071      1081      1091      1101      1111      1121      1131      1141      1151      1161      1171      1181      1191      1201      1211      1221      1231      1241      1251      1261      1271      1281      1291      1301      1311      1321      1331      1341      1351      1361      1371      1381

Chain B from PDB  Type:PROTEIN  Length:382
 aligned with FUCO_ECOLI | P0A9S1 from UniProtKB/Swiss-Prot  Length:382

    Alignment length:382
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380
          FUCO_ECOLI      1 MANRMILNETAWFGRGAVGALTDEVKRRGYQKALIVTDKTLVQCGVVAKVTDKMDAAGLAWAIYDGVVPNPTITVVKEGLGVFQNSGADYLIAIGGGSPQDTCKAIGIISNNPEFADVRSLEGLSPTNKPSVPILAIPTTAGTAAEVTINYVITDEEKRRKFVCVDPHDIPQVAFIDADMMDGMPPALKAATGVDALTHAIEGYITRGAWALTDALHIKAIEIIAGALRGSVAGDKDAGEEMALGQYVAGMGFSNVGLGLVHGMAHPLGAFYNTPHGVANAILLPHVMRYNADFTGEKYRDIARVMGVKVEGMSLEEARNAAVEAVFALNRDVGIPPHLRDVGVRKEDIPALAQAALDDVCTGGNPREATLEDIVELYHTAW  382
               SCOP domains d2bi4b_ B: automated matches                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 2bi4B01 B:1002-1186  [code=3.40.50.1970, no name defined]                                                                                                                                2bi4B02 B:1187-1383 Dehydroquinate synthase-like - alpha domain                                                                                                                                       CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eee.....eee..hhhhhhhhhhhhh...eeeee..hhhhhh..hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhh....eeeee.hhhhhhhhhhhhhhh.hhhhh......ee.........eeee............eeeee......eeeee.......eeeehhhhhh..hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh........hhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------ADH_IRON_1  PDB: B:1175-1203 --------------------------------------------------------ADH_IRON_2           ------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bi4 B 1002 MANRMILNETAWFGRGAVGALTDEVKRRGYQKALIVTDKTLVQCGVVAKVTDKMDAAGLAWAIYDGVVPNPTITVVKEGLGVFQNSGADYLIAIGGGSPQDTCKAIGIISNNPEFADVRSLEGLSPTNKPSVPILAIPTTAGTAAEVTINYVITDEEKRRKFVCVDPHDIPQVAFIDADMMDGMPPALKAATGVDALTHAIEGYITRGAWALTDALHIKAIEIIAGALRGSVAGDKDAGEEMALGQYVAGMGFSNVGLGLVHGMAHPLGAFYNTPHGVANAILLPHVMRYNADFTGEKYRDIARVMGVKVEGMSLEEARNAAVEAVFALNRDVGIPPHLRDVGVRKEDIPALAQAALDDVCTGGNPREATLEDIVELYHTAW 1383
                                  1011      1021      1031      1041      1051      1061      1071      1081      1091      1101      1111      1121      1131      1141      1151      1161      1171      1181      1191      1201      1211      1221      1231      1241      1251      1261      1271      1281      1291      1301      1311      1321      1331      1341      1351      1361      1371      1381

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Multi-domain proteins (alpha and beta) (2421)

Fold: Dehydroquinate synthase-like (30)

Superfamily: Dehydroquinate synthase-like (30)

Family: Iron-containing alcohol dehydrogenase (11)

Protein domain: automated matches (2)

Escherichia coli [TaxId: 562] (2)

1a	d2bi4a_	A:
1b	d2bi4b_	B:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.1970, no name defined] (28)

Escherichia coli. Organism_taxid: 562. Strain: ecl1. (2)

1a	2bi4A01	A:2-186
1b	2bi4B01	B:1002-1186

Class: Mainly Alpha (13335)

Architecture: Up-down Bundle (3216)

Topology: Dehydroquinate synthase-like, alpha domain (24)

Homologous Superfamily: Dehydroquinate synthase-like - alpha domain (24)

Escherichia coli. Organism_taxid: 562. Strain: ecl1. (2)

2a	2bi4A02	A:187-383
2b	2bi4B02	B:1187-1383

(no "Pfam Domain" information available for 2BI4)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (FUCO_ECO57 | P0A9S2)

molecular function
	GO:0008912	lactaldehyde reductase activity	Catalysis of the reaction: propane-1,2-diol + NAD+ = lactaldehyde + NADH + H+.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
	GO:0005975	carbohydrate metabolic process	The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
	GO:0019317	fucose catabolic process	The chemical reactions and pathways resulting in the breakdown of fucose (6-deoxygalactose).
	GO:0006004	fucose metabolic process	The chemical reactions and pathways involving fucose, or 6-deoxygalactose, which has two enantiomers, D-fucose and L-fucose.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Chain A,B (FUCO_ECOLI | P0A9S1)

molecular function
	GO:0008198	ferrous iron binding	Interacting selectively and non-covalently with ferrous iron, Fe(II).
	GO:0008912	lactaldehyde reductase activity	Catalysis of the reaction: propane-1,2-diol + NAD+ = lactaldehyde + NADH + H+.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
	GO:0042355	L-fucose catabolic process	The chemical reactions and pathways resulting in the breakdown of L-fucose (6-deoxy-Lgalactose).
	GO:0005975	carbohydrate metabolic process	The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
	GO:0019317	fucose catabolic process	The chemical reactions and pathways resulting in the breakdown of fucose (6-deoxygalactose).
	GO:0006004	fucose metabolic process	The chemical reactions and pathways involving fucose, or 6-deoxygalactose, which has two enantiomers, D-fucose and L-fucose.
	GO:0042846	glycol catabolic process	The chemical reactions and pathways resulting in the breakdown of glycol, a diol in which the two hydroxy groups are on different carbon atoms, usually but not necessarily adjacent.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:0051143	propanediol metabolic process	The chemical reactions and pathways involving propanediol, CH3-CHOH-CH2OH, a sweet, colorless, viscous, hygroscopic liquid used as an antifreeze, in brake fluid and as a humectant in cosmetics and personal care items.
	GO:0019301	rhamnose catabolic process	The chemical reactions and pathways resulting in the breakdown of rhamnose, the hexose 6-deoxy-L-mannose.
cellular component
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		FE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		NAD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2bi4)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2bi4
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	FUCO_ECO57 \| P0A9S2
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	FUCO_ECOLI \| P0A9S1
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.1.1.77
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	FUCO_ECO57 \| P0A9S2
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	FUCO_ECOLI \| P0A9S1
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	FUCO_ECO57 \| P0A9S2	:	2bl4 5br4
	FUCO_ECOLI \| P0A9S1	:	1rrm 2bl4 5br4

1rrm	CRYSTAL STRUCTURE OF LACTALDEHYDE REDUCTASE

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 5)

Sites (5, 5)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 4)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (2, 4)

Pfam Domains (0, 0)

Gene Ontology (13, 20)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
