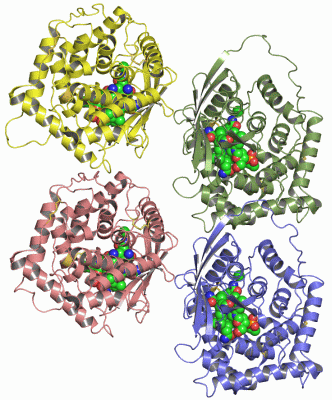

Asym.Unit - manually (Jmol Viewer)

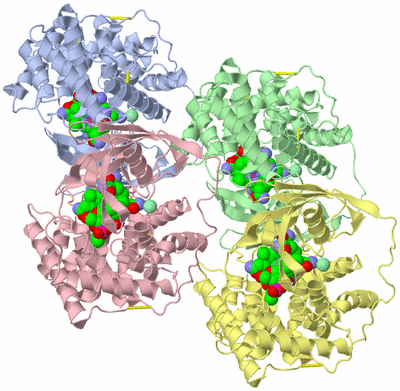

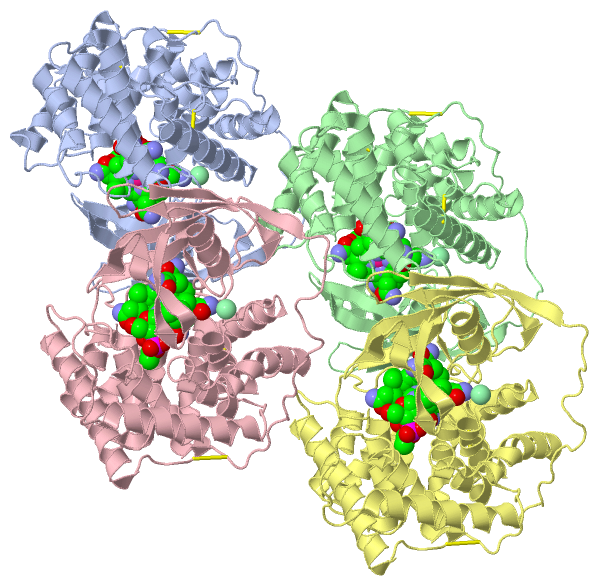

Asymmetric Unit (Jmol Viewer)

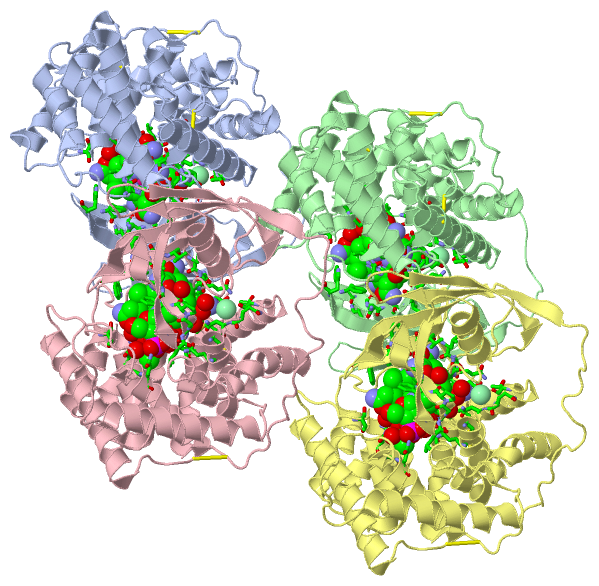

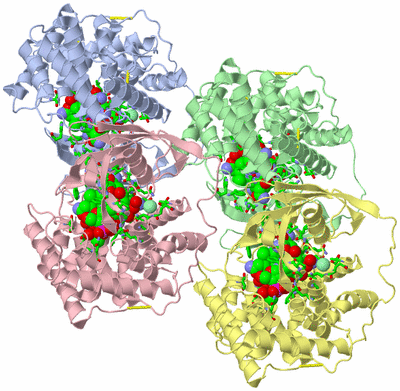

Asym. Unit - sites (Jmol Viewer)

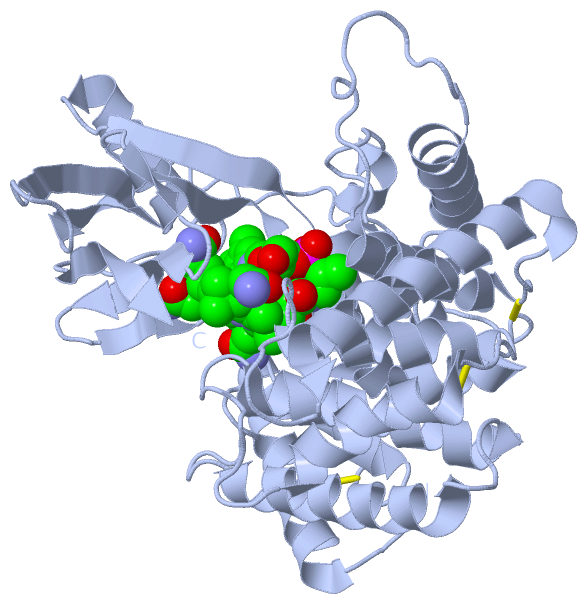

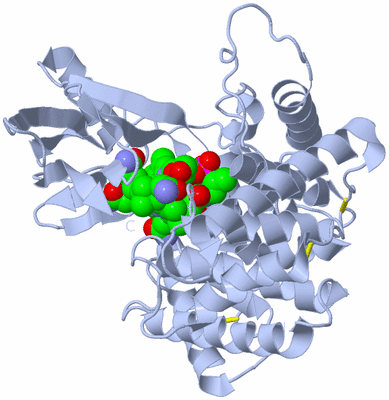

Biological Unit 1 (Jmol Viewer)

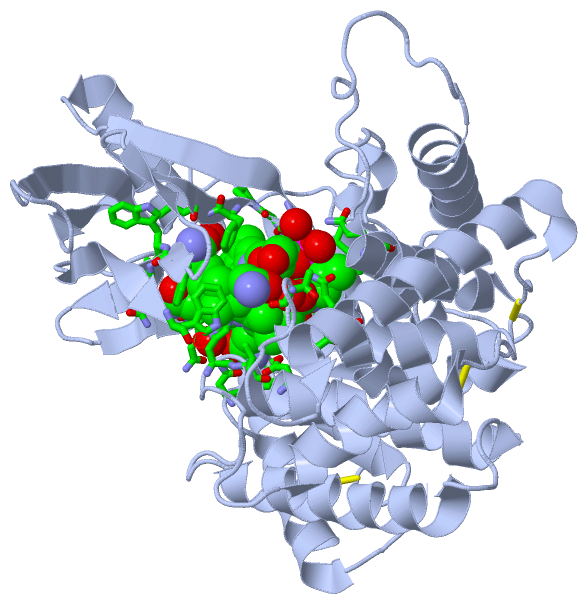

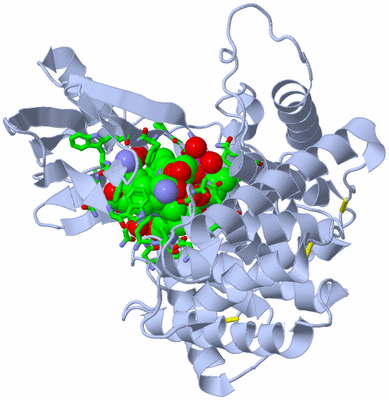

Biol. Unit 1 - sites (Jmol Viewer)

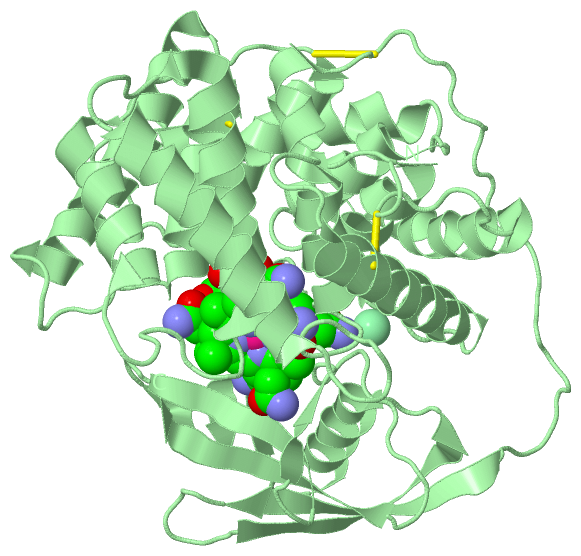

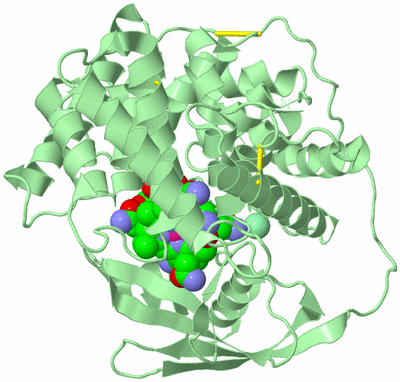

Biological Unit 2 (Jmol Viewer)

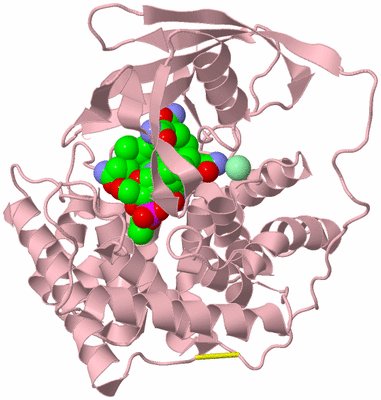

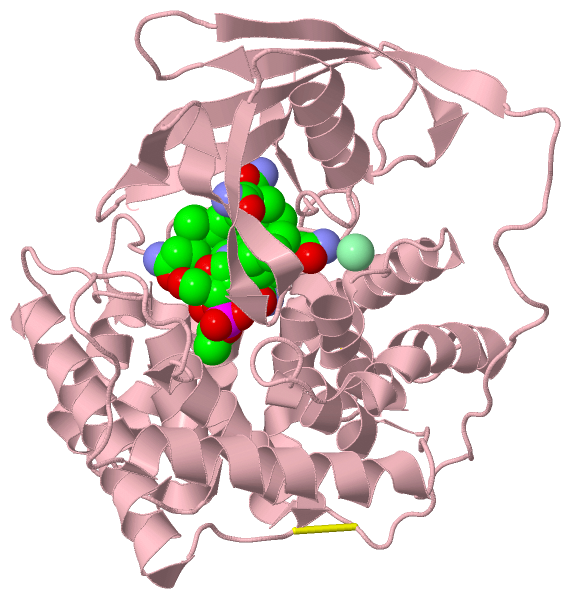

Biological Unit 3 (Jmol Viewer)

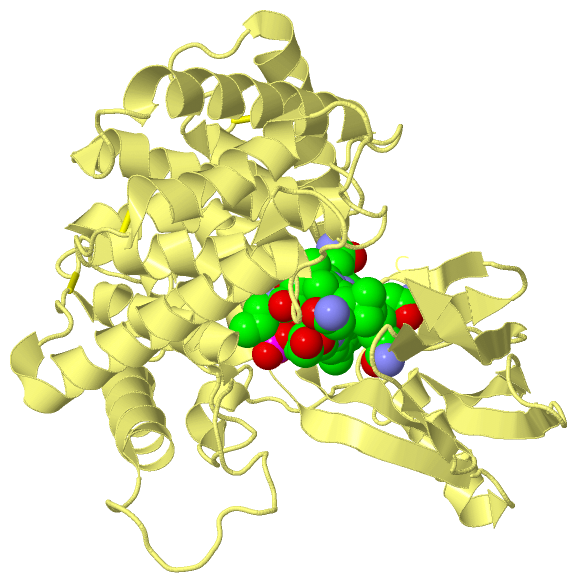

Biological Unit 4 (Jmol Viewer)

Title :   STRUCTURE OF COBALAMIN-COMPLEXED BOVINE TRANSCOBALAMIN IN MONOCLINIC CRYSTAL FORM

Authors :   J. Wuerges, G. Garau, S. Geremia, S. N. Fedosov, T. E. Petersen, L. Randa

Date :   17 Oct 05 (Deposition) - 04 Apr 06 (Release) - 24 Oct 12 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)

Keywords :   Alpha_6 - Alpha_6 Barrel, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. Wuerges, G. Garau, S. Geremia, S. N. Fedosov, T. E. Petersen, L. Randaccio
Structural Basis For Mammalian Vitamin B12 Transport By Transcobalamin.
Proc. Natl. Acad. Sci. Usa V. 103 4386 2006
PubMed-ID: 16537422 | Reference-DOI: 10.1073/PNAS.0509099103

Molecule 1 - TRANSCOBALAMIN II
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	PICHIA PASTORIS
	Expression System Strain	:	SMD 1168
	Expression System Taxid	:	4922
	Expression System Vector	:	PPICZ(ALPHA)-LB
	Expression System Vector Type	:	PLASMID
	Gene	:	TCN2, TC2
	Organism Common	:	CATTLE
	Organism Scientific	:	BOS TAURUS
	Organism Taxid	:	9913
	Synonym	:	TCII, TC II

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 8)

No.	Name	Count	Type	Full Name
1	B12	4	Ligand/Ion	COBALAMIN
2	CL	4	Ligand/Ion	CHLORIDE ION

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	B12	1	Ligand/Ion	COBALAMIN
2	CL	-1	Ligand/Ion	CHLORIDE ION

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	B12	1	Ligand/Ion	COBALAMIN
2	CL	-1	Ligand/Ion	CHLORIDE ION

Biological Unit 3 (1, 1)

No.	Name	Count	Type	Full Name
1	B12	1	Ligand/Ion	COBALAMIN
2	CL	-1	Ligand/Ion	CHLORIDE ION

Biological Unit 4 (1, 1)

No.	Name	Count	Type	Full Name
1	B12	1	Ligand/Ion	COBALAMIN
2	CL	-1	Ligand/Ion	CHLORIDE ION

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	B12 A:0 , TYR A:229 , THR A:267 , GLN A:269 , ASN A:270 , GLN A:394	BINDING SITE FOR RESIDUE CL A 901
2	AC2	SOFTWARE	B12 B:0 , TYR B:229 , THR B:267 , GLN B:269 , ASN B:270 , GLN B:394	BINDING SITE FOR RESIDUE CL B 902
3	AC3	SOFTWARE	B12 C:0 , TYR C:229 , THR C:267 , GLN C:269 , ASN C:270 , GLN C:394	BINDING SITE FOR RESIDUE CL C 904
4	AC4	SOFTWARE	B12 D:0 , TYR D:229 , THR D:267 , GLN D:269 , ASN D:270 , GLN D:394	BINDING SITE FOR RESIDUE CL D 903
5	AC5	SOFTWARE	GLY A:85 , GLN A:86 , THR A:134 , TYR A:137 , GLN A:138 , HIS A:175 , VAL A:176 , ASP A:179 , ASN A:227 , TYR A:229 , SER A:230 , ASN A:270 , MET A:273 , GLN A:276 , SER A:362 , LEU A:363 , SER A:364 , GLY A:365 , PRO A:366 , PHE A:367 , LEU A:368 , PHE A:381 , TRP A:382 , GLN A:383 , VAL A:384 , LEU A:392 , GLN A:393 , GLY A:395 , TRP A:414 , CL A:901 , HOH A:904 , HOH A:905 , HOH A:906 , HOH A:913 , HOH A:917 , HOH A:918 , HOH A:991 , HOH A:1038 , HOH A:1051	BINDING SITE FOR RESIDUE B12 A 0
6	AC6	SOFTWARE	GLY B:85 , GLN B:86 , THR B:134 , TYR B:137 , GLN B:138 , HIS B:175 , VAL B:176 , ASP B:179 , ASN B:227 , TYR B:229 , SER B:230 , ASN B:270 , MET B:273 , GLN B:276 , SER B:362 , LEU B:363 , SER B:364 , GLY B:365 , PRO B:366 , PHE B:367 , LEU B:368 , PHE B:381 , TRP B:382 , GLN B:383 , VAL B:384 , LEU B:392 , GLN B:393 , GLN B:394 , GLY B:395 , TRP B:414 , CL B:902 , HOH B:904 , HOH B:906 , HOH B:910 , HOH B:912 , HOH B:913 , HOH B:921 , HOH B:988 , HOH B:1002 , HOH B:1083	BINDING SITE FOR RESIDUE B12 B 0
7	AC7	SOFTWARE	GLY C:85 , GLN C:86 , THR C:134 , TYR C:137 , GLN C:138 , HIS C:175 , ASP C:179 , ASN C:227 , TYR C:229 , SER C:230 , LEU C:233 , ASN C:270 , MET C:273 , GLN C:276 , SER C:362 , LEU C:363 , SER C:364 , GLY C:365 , PRO C:366 , PHE C:367 , LEU C:368 , PHE C:381 , TRP C:382 , GLN C:383 , VAL C:384 , LEU C:392 , GLN C:393 , GLN C:394 , GLY C:395 , TRP C:414 , CL C:904 , HOH C:907 , HOH C:909 , HOH C:914 , HOH C:918 , HOH C:930 , HOH C:948 , HOH C:964 , HOH C:986	BINDING SITE FOR RESIDUE B12 C 0
8	AC8	SOFTWARE	GLY D:85 , GLN D:86 , THR D:134 , TYR D:137 , GLN D:138 , HIS D:175 , ASP D:179 , ASN D:227 , TYR D:229 , SER D:230 , LEU D:233 , ASN D:270 , MET D:273 , GLN D:276 , SER D:362 , LEU D:363 , SER D:364 , GLY D:365 , PRO D:366 , PHE D:367 , LEU D:368 , PHE D:381 , TRP D:382 , GLN D:383 , VAL D:384 , LEU D:392 , GLN D:393 , GLY D:395 , TRP D:414 , CL D:903 , HOH D:904 , HOH D:906 , HOH D:907 , HOH D:912 , HOH D:919 , HOH D:945 , HOH D:964 , HOH D:966	BINDING SITE FOR RESIDUE B12 D 0

Asymmetric Unit

No.	Residues
1	A:3	-	A:252
2	A:98	-	A:294
3	A:147	-	A:190
4	B:3	-	B:252
5	B:98	-	B:294
6	B:147	-	B:190
7	C:3	-	C:252
8	C:98	-	C:294
9	C:147	-	C:190
10	D:3	-	D:252
11	D:98	-	D:294
12	D:147	-	D:190

Asymmetric Unit

No.	Residues
1	Asp A:387	-	Pro A:388
2	Asp B:387	-	Pro B:388
3	Asp C:387	-	Pro C:388
4	Asp D:387	-	Pro D:388

Asymmetric Unit (1, 4)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_TCO2_BOVIN_001 *	Q	47	P	TCO2_BOVIN	---	---	A/B/C/D	Q	29	P
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 1 (1, 1)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_TCO2_BOVIN_001 *	Q	47	P	TCO2_BOVIN	---	---	A	Q	29	P
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 2 (1, 1)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_TCO2_BOVIN_001 *	Q	47	P	TCO2_BOVIN	---	---	B	Q	29	P
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 3 (1, 1)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_TCO2_BOVIN_001 *	Q	47	P	TCO2_BOVIN	---	---	C	Q	29	P
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 4 (1, 1)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_TCO2_BOVIN_001 *	Q	47	P	TCO2_BOVIN	---	---	D	Q	29	P
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Asymmetric Unit (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	COBALAMIN_BINDING	PS00468	Eukaryotic cobalamin-binding proteins signature.	TCO2_BOVIN	195-208	4	A:177-190 B:177-190 C:177-190 D:177-190

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	COBALAMIN_BINDING	PS00468	Eukaryotic cobalamin-binding proteins signature.	TCO2_BOVIN	195-208	1	A:177-190 - - -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	COBALAMIN_BINDING	PS00468	Eukaryotic cobalamin-binding proteins signature.	TCO2_BOVIN	195-208	1	- B:177-190 - -

Biological Unit 3 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	COBALAMIN_BINDING	PS00468	Eukaryotic cobalamin-binding proteins signature.	TCO2_BOVIN	195-208	1	- - C:177-190 -

Biological Unit 4 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	COBALAMIN_BINDING	PS00468	Eukaryotic cobalamin-binding proteins signature.	TCO2_BOVIN	195-208	1	- - - D:177-190

Asymmetric Unit (9, 36)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1a	ENSBTAT00000029446	1a	ENSBTAE00000240311	chr17:73063952-73064468	517	TCO2_BOVIN	1-22	22	4	A:1-4 B:1-4 C:1-4 D:1-4	4 4 4 4
1.2	ENSBTAT00000029446	2	ENSBTAE00000240310	chr17:73067760-73067952	193	TCO2_BOVIN	22-86	65	4	A:4-68 B:4-68 C:4-68 D:4-68	65 65 65 65
1.3	ENSBTAT00000029446	3	ENSBTAE00000029032	chr17:73068679-73068848	170	TCO2_BOVIN	86-143	58	4	A:68-125 B:68-125 C:68-125 D:68-125	58 58 58 58
1.4	ENSBTAT00000029446	4	ENSBTAE00000029042	chr17:73071499-73071660	162	TCO2_BOVIN	143-197	55	4	A:125-179 B:125-179 C:125-179 D:125-179	55 55 55 55
1.5a	ENSBTAT00000029446	5a	ENSBTAE00000408560	chr17:73072795-73072970	176	TCO2_BOVIN	197-255	59	4	A:179-237 B:179-237 C:179-237 D:179-237	59 59 59 59
1.6b	ENSBTAT00000029446	6b	ENSBTAE00000240308	chr17:73073094-73073280	187	TCO2_BOVIN	256-318	63	4	A:238-300 B:238-300 C:238-300 D:238-300	63 63 63 63
1.7	ENSBTAT00000029446	7	ENSBTAE00000398838	chr17:73074713-73074884	172	TCO2_BOVIN	318-375	58	4	A:300-357 B:300-357 C:300-357 D:300-357	58 58 58 58
1.8	ENSBTAT00000029446	8	ENSBTAE00000408006	chr17:73077140-73077255	116	TCO2_BOVIN	375-414	40	4	A:357-396 B:357-396 C:357-396 D:357-396	40 40 40 40
1.9	ENSBTAT00000029446	9	ENSBTAE00000385103	chr17:73079390-73079935	546	TCO2_BOVIN	414-433	20	4	A:396-414 B:396-414 C:396-414 D:396-414	19 19 19 19

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:414
 aligned with TCO2_BOVIN | Q9XSC9 from UniProtKB/Swiss-Prot  Length:432

    Alignment length:414
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428
           TCO2_BOVIN    19 NICEITEVDSTLVERLGQRLLPWMDRLSQEQLNPSIYVGLRLSSLQAGAKEAHYLHSLKLSYQQSLLRPASNKDDNDSEAKPSMGQLALYLLALRANCEFIGGRKGDRLVSQLKRFLEDEKRAIGHNHQGHPRTSYYQYSLGILALCVHQKRVHDSVVGKLLYAVEHKPHLLQDHVSVDTMAMAGMAFSCLELSNLNPKQRNRINLALKRVQEKILKAQTPEGYFGNVYSTPLALQLLMGSLRPSVELGTACLKAKAALQASLQHKTFQNPLMISQLLPVLNQKSYVDLISPDCQAPRALLEPALETPPQAKVPKFIDVLLKVSGISPSYRHSVSVPAGSSLEDILKNAQEHGRFRFRTQASLSGPFLTSVLGRKAGEREFWQVLRDPDTPLQQGIADYRPKDGETIELRLVGW 432
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhhh......hhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh...............hhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhh....hhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh...........hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh..hhhhhhh.......................eeeeeeeee......eeeeeeeee..hhhhhhhhhhhh...eeeeeee..eeeeeee..eee...eeeeeee...eee............eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------P------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------COBALAMIN_BIND-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) 1.1a---------------------------------------------------------------Exon 1.3  PDB: A:68-125 UniProt: 86-143                   -----------------------------------------------------Exon 1.5a  PDB: A:179-237 UniProt: 197-255                 Exon 1.6b  PDB: A:238-300 UniProt: 256-318                     --------------------------------------------------------Exon 1.8  PDB: A:357-396                ------------------ Transcript 1 (1)
           Transcript 1 (2) ---Exon 1.2  PDB: A:4-68 UniProt: 22-86                             --------------------------------------------------------Exon 1.4  PDB: A:125-179 UniProt: 143-197              ------------------------------------------------------------------------------------------------------------------------Exon 1.7  PDB: A:300-357 UniProt: 318-375                 --------------------------------------Exon 1.9            Transcript 1 (2)
                 2bb6 A   1 NICEITEVDSTLVERLGQRLLPWMDRLSQEQLNPSIYVGLRLSSLQAGAKEAHYLHSLKLSYQQSLLRPASNKDDNDSEAKPSMGQLALYLLALRANCEFIGGRKGDRLVSQLKRFLEDEKRAIGHNHQGHPRTSYYQYSLGILALCVHQKRVHDSVVGKLLYAVEHKPHLLQDHVSVDTMAMAGMAFSCLELSNLNPKQRNRINLALKRVQEKILKAQTPEGYFGNVYSTPLALQLLMGSLRPSVELGTACLKAKAALQASLQHKTFQNPLMISQLLPVLNQKSYVDLISPDCQAPRALLEPALETPPQAKVPKFIDVLLKVSGISPSYRHSVSVPAGSSLEDILKNAQEHGRFRFRTQASLSGPFLTSVLGRKAGEREFWQVLRDPDTPLQQGIADYRPKDGETIELRLVGW 414
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410

Chain B from PDB  Type:PROTEIN  Length:414
 aligned with TCO2_BOVIN | Q9XSC9 from UniProtKB/Swiss-Prot  Length:432

    Alignment length:414
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428
           TCO2_BOVIN    19 NICEITEVDSTLVERLGQRLLPWMDRLSQEQLNPSIYVGLRLSSLQAGAKEAHYLHSLKLSYQQSLLRPASNKDDNDSEAKPSMGQLALYLLALRANCEFIGGRKGDRLVSQLKRFLEDEKRAIGHNHQGHPRTSYYQYSLGILALCVHQKRVHDSVVGKLLYAVEHKPHLLQDHVSVDTMAMAGMAFSCLELSNLNPKQRNRINLALKRVQEKILKAQTPEGYFGNVYSTPLALQLLMGSLRPSVELGTACLKAKAALQASLQHKTFQNPLMISQLLPVLNQKSYVDLISPDCQAPRALLEPALETPPQAKVPKFIDVLLKVSGISPSYRHSVSVPAGSSLEDILKNAQEHGRFRFRTQASLSGPFLTSVLGRKAGEREFWQVLRDPDTPLQQGIADYRPKDGETIELRLVGW 432
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhhh......hhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh...............hhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhh....hhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh...........hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh..hhhhhhh.......................eeeeeeeee......eeeeeeeee..hhhhhhhhhhhh...eeeeeee..eeeeeee..eee...eeeeeee...eee............eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------P------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------COBALAMIN_BIND-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) 1.1a---------------------------------------------------------------Exon 1.3  PDB: B:68-125 UniProt: 86-143                   -----------------------------------------------------Exon 1.5a  PDB: B:179-237 UniProt: 197-255                 Exon 1.6b  PDB: B:238-300 UniProt: 256-318                     --------------------------------------------------------Exon 1.8  PDB: B:357-396                ------------------ Transcript 1 (1)
           Transcript 1 (2) ---Exon 1.2  PDB: B:4-68 UniProt: 22-86                             --------------------------------------------------------Exon 1.4  PDB: B:125-179 UniProt: 143-197              ------------------------------------------------------------------------------------------------------------------------Exon 1.7  PDB: B:300-357 UniProt: 318-375                 --------------------------------------Exon 1.9            Transcript 1 (2)
                 2bb6 B   1 NICEITEVDSTLVERLGQRLLPWMDRLSQEQLNPSIYVGLRLSSLQAGAKEAHYLHSLKLSYQQSLLRPASNKDDNDSEAKPSMGQLALYLLALRANCEFIGGRKGDRLVSQLKRFLEDEKRAIGHNHQGHPRTSYYQYSLGILALCVHQKRVHDSVVGKLLYAVEHKPHLLQDHVSVDTMAMAGMAFSCLELSNLNPKQRNRINLALKRVQEKILKAQTPEGYFGNVYSTPLALQLLMGSLRPSVELGTACLKAKAALQASLQHKTFQNPLMISQLLPVLNQKSYVDLISPDCQAPRALLEPALETPPQAKVPKFIDVLLKVSGISPSYRHSVSVPAGSSLEDILKNAQEHGRFRFRTQASLSGPFLTSVLGRKAGEREFWQVLRDPDTPLQQGIADYRPKDGETIELRLVGW 414
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410

Chain C from PDB  Type:PROTEIN  Length:414
 aligned with TCO2_BOVIN | Q9XSC9 from UniProtKB/Swiss-Prot  Length:432

    Alignment length:414
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428
           TCO2_BOVIN    19 NICEITEVDSTLVERLGQRLLPWMDRLSQEQLNPSIYVGLRLSSLQAGAKEAHYLHSLKLSYQQSLLRPASNKDDNDSEAKPSMGQLALYLLALRANCEFIGGRKGDRLVSQLKRFLEDEKRAIGHNHQGHPRTSYYQYSLGILALCVHQKRVHDSVVGKLLYAVEHKPHLLQDHVSVDTMAMAGMAFSCLELSNLNPKQRNRINLALKRVQEKILKAQTPEGYFGNVYSTPLALQLLMGSLRPSVELGTACLKAKAALQASLQHKTFQNPLMISQLLPVLNQKSYVDLISPDCQAPRALLEPALETPPQAKVPKFIDVLLKVSGISPSYRHSVSVPAGSSLEDILKNAQEHGRFRFRTQASLSGPFLTSVLGRKAGEREFWQVLRDPDTPLQQGIADYRPKDGETIELRLVGW 432
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhhh......hhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh...............hhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhh....hhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh...........hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh..hhhhhhh.......................eeeeeeeee......eeeeeeeee..hhhhhhhhhhhh...eeeeeee..eeeeeee..eee...eeeeeee...eee............eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------P------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------COBALAMIN_BIND-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) 1.1a---------------------------------------------------------------Exon 1.3  PDB: C:68-125 UniProt: 86-143                   -----------------------------------------------------Exon 1.5a  PDB: C:179-237 UniProt: 197-255                 Exon 1.6b  PDB: C:238-300 UniProt: 256-318                     --------------------------------------------------------Exon 1.8  PDB: C:357-396                ------------------ Transcript 1 (1)
           Transcript 1 (2) ---Exon 1.2  PDB: C:4-68 UniProt: 22-86                             --------------------------------------------------------Exon 1.4  PDB: C:125-179 UniProt: 143-197              ------------------------------------------------------------------------------------------------------------------------Exon 1.7  PDB: C:300-357 UniProt: 318-375                 --------------------------------------Exon 1.9            Transcript 1 (2)
                 2bb6 C   1 NICEITEVDSTLVERLGQRLLPWMDRLSQEQLNPSIYVGLRLSSLQAGAKEAHYLHSLKLSYQQSLLRPASNKDDNDSEAKPSMGQLALYLLALRANCEFIGGRKGDRLVSQLKRFLEDEKRAIGHNHQGHPRTSYYQYSLGILALCVHQKRVHDSVVGKLLYAVEHKPHLLQDHVSVDTMAMAGMAFSCLELSNLNPKQRNRINLALKRVQEKILKAQTPEGYFGNVYSTPLALQLLMGSLRPSVELGTACLKAKAALQASLQHKTFQNPLMISQLLPVLNQKSYVDLISPDCQAPRALLEPALETPPQAKVPKFIDVLLKVSGISPSYRHSVSVPAGSSLEDILKNAQEHGRFRFRTQASLSGPFLTSVLGRKAGEREFWQVLRDPDTPLQQGIADYRPKDGETIELRLVGW 414
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410

Chain D from PDB  Type:PROTEIN  Length:414
 aligned with TCO2_BOVIN | Q9XSC9 from UniProtKB/Swiss-Prot  Length:432

    Alignment length:414
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428
           TCO2_BOVIN    19 NICEITEVDSTLVERLGQRLLPWMDRLSQEQLNPSIYVGLRLSSLQAGAKEAHYLHSLKLSYQQSLLRPASNKDDNDSEAKPSMGQLALYLLALRANCEFIGGRKGDRLVSQLKRFLEDEKRAIGHNHQGHPRTSYYQYSLGILALCVHQKRVHDSVVGKLLYAVEHKPHLLQDHVSVDTMAMAGMAFSCLELSNLNPKQRNRINLALKRVQEKILKAQTPEGYFGNVYSTPLALQLLMGSLRPSVELGTACLKAKAALQASLQHKTFQNPLMISQLLPVLNQKSYVDLISPDCQAPRALLEPALETPPQAKVPKFIDVLLKVSGISPSYRHSVSVPAGSSLEDILKNAQEHGRFRFRTQASLSGPFLTSVLGRKAGEREFWQVLRDPDTPLQQGIADYRPKDGETIELRLVGW 432
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhhh......hhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh...............hhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhh....hhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh...........hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh..hhhhhhh.......................eeeeeeeee......eeeeeeeee..hhhhhhhhhhhh...eeeeeee..eeeeeee..eee...eeeeeee...eee............eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------P------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------COBALAMIN_BIND-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
           Transcript 1 (1) 1.1a---------------------------------------------------------------Exon 1.3  PDB: D:68-125 UniProt: 86-143                   -----------------------------------------------------Exon 1.5a  PDB: D:179-237 UniProt: 197-255                 Exon 1.6b  PDB: D:238-300 UniProt: 256-318                     --------------------------------------------------------Exon 1.8  PDB: D:357-396                ------------------ Transcript 1 (1)
           Transcript 1 (2) ---Exon 1.2  PDB: D:4-68 UniProt: 22-86                             --------------------------------------------------------Exon 1.4  PDB: D:125-179 UniProt: 143-197              ------------------------------------------------------------------------------------------------------------------------Exon 1.7  PDB: D:300-357 UniProt: 318-375                 --------------------------------------Exon 1.9            Transcript 1 (2)
                 2bb6 D   1 NICEITEVDSTLVERLGQRLLPWMDRLSQEQLNPSIYVGLRLSSLQAGAKEAHYLHSLKLSYQQSLLRPASNKDDNDSEAKPSMGQLALYLLALRANCEFIGGRKGDRLVSQLKRFLEDEKRAIGHNHQGHPRTSYYQYSLGILALCVHQKRVHDSVVGKLLYAVEHKPHLLQDHVSVDTMAMAGMAFSCLELSNLNPKQRNRINLALKRVQEKILKAQTPEGYFGNVYSTPLALQLLMGSLRPSVELGTACLKAKAALQASLQHKTFQNPLMISQLLPVLNQKSYVDLISPDCQAPRALLEPALETPPQAKVPKFIDVLLKVSGISPSYRHSVSVPAGSSLEDILKNAQEHGRFRFRTQASLSGPFLTSVLGRKAGEREFWQVLRDPDTPLQQGIADYRPKDGETIELRLVGW 414
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 2BB6)

(no "CATH Domain" information available for 2BB6)

(no "Pfam Domain" information available for 2BB6)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (TCO2_BOVIN | Q9XSC9)

molecular function
	GO:0031419	cobalamin binding	Interacting selectively and non-covalently with cobalamin (vitamin B12), a water-soluble vitamin characterized by possession of a corrin nucleus containing a cobalt atom.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0015889	cobalamin transport	The directed movement of cobalamin (vitamin B12), a water-soluble vitamin characterized by possession of a corrin nucleus containing a cobalt atom, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006824	cobalt ion transport	The directed movement of cobalt (Co) ions into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006811	ion transport	The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0070062	extracellular exosome	A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		B12	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		CL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Asp A:387 - Pro A:388	[ RasMol ]
		Asp B:387 - Pro B:388	[ RasMol ]
		Asp C:387 - Pro C:388	[ RasMol ]
		Asp D:387 - Pro D:388	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2bb6
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	TCO2_BOVIN \| Q9XSC9
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	TCO2_BOVIN \| Q9XSC9
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	TCO2_BOVIN \| Q9XSC9	:	2bbc 2v3n 2v3p

2bb5	STRUCTURE OF COBALAMIN-COMPLEXED HUMAN TRANSCOBALAMIN
2bbc	STRUCTURE OF COBALAMIN-COMPLEXED BOVINE TRANSCOBALAMIN IN TRIGONAL CRYSTAL FORM

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 8)

Sites (8, 8)

SS Bonds (12, 12)

Cis Peptide Bonds (4, 4)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (1, 4)

PROSITE Motifs (1, 4)

Exons (9, 36)

Sequences/Alignments

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (8, 8)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
