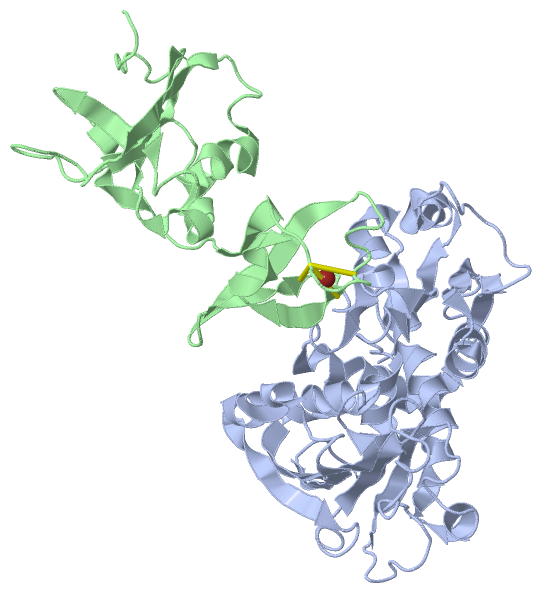

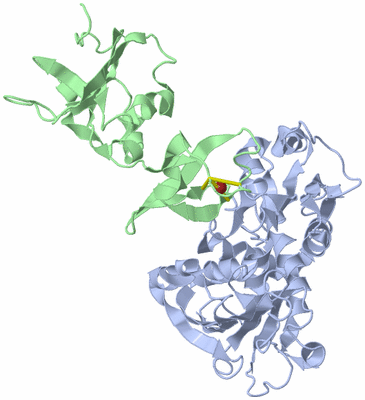

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

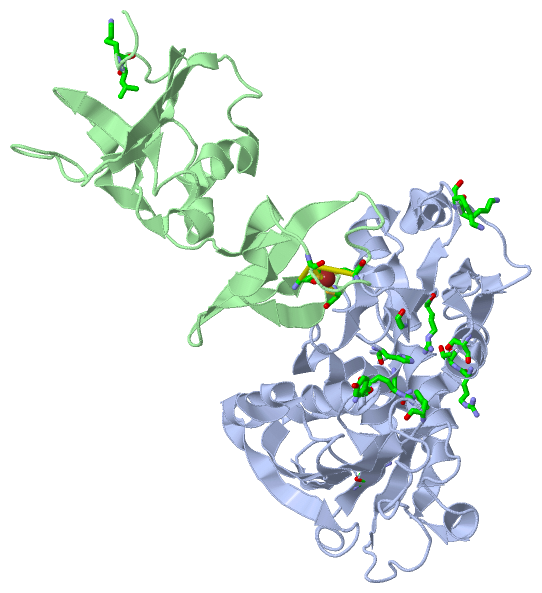

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

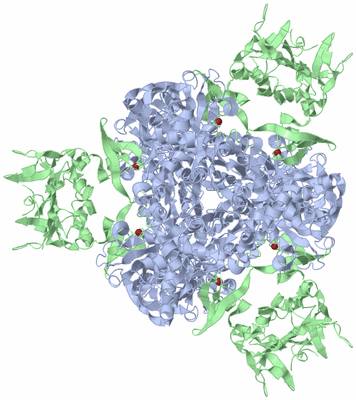

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL AND MOLECULAR STRUCTURES OF NATIVE AND CTP-LIGANDED ASPARTATE CARBAMOYLTRANSFERASE FROM ESCHERICHIA COLI

Authors :  R. B. Honzatko, J. L. Crawford, H. L. Monaco, J. E. Ladner, B. F. P. Edward D. R. Evans, S. G. Warren, D. C. Wiley, R. C. Ladner, W. N. Lipscomb
Date :  24 Mar 82  (Deposition) - 07 Dec 82  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (6x)
Keywords :  Transferase (Carbamoyl-P, Aspartate) (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  R. B. Honzatko, J. L. Crawford, H. L. Monaco, J. E. Ladner, B. F. Ewards, D. R. Evans, S. G. Warren, D. C. Wiley, R. C. Ladner, W. N. Lipscomb
Crystal And Molecular Structures Of Native And Ctp-Liganded Aspartate Carbamoyltransferase From Escherichia Coli.
J. Mol. Biol. V. 160 219 1982
PubMed-ID: 6757446  |  Reference-DOI: 10.1016/0022-2836(82)90175-9
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ASPARTATE CARBAMOYLTRANSFERASE, CATALYTIC CHAIN
    ChainsA
    EC Number2.1.3.2
    EngineeredYES
    Organism ScientificESCHERICHIA COLI
    Organism Taxid562

Molecule 2 - ASPARTATE CARBAMOYLTRANSFERASE, REGULATORY CHAIN
    ChainsB
    EngineeredYES
    Organism ScientificESCHERICHIA COLI
    Organism Taxid562

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit AB
Biological Unit 1 (6x)AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric Unit (2, 2)
No.NameCountTypeFull Name
1ASX1Mod. Amino Acid
2ZN1Ligand/IonZINC ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1ASX-1Mod. Amino Acid
2ZN-1Ligand/IonZINC ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS B:109 , CYS B:114 , CYS B:137 , CYS B:140BINDING SITE FOR RESIDUE ZN B 153
2CTAAUTHORSER A:52 , ARG A:54 , THR A:55 , LYS A:83 , LYS A:84 , ARG A:105 , GLY A:128 , HIS A:134 , GLN A:137 , TYR A:165 , ARG A:167 , LYS A:224 , TYR A:232RESIDUES BELIEVED TO BE INVOLVED IN THE BINDING OF SUBSTRATES
3RGBAUTHORLYS B:6 , LEU B:7RESIDUES WHICH BIND EFFECTOR MOLECULES

(-) SS Bonds  (3, 3)

Asymmetric Unit
No.Residues
1B:109 -B:137
2B:109 -B:140
3B:109 -B:114

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Leu A:262 -Pro A:263

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2ATC)

(-) PROSITE Motifs  (1, 1)

Asymmetric Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CARBAMOYLTRANSFERASEPS00097 Aspartate and ornithine carbamoyltransferases signature.PYRB_ECOLI49-56  1A:48-55
Biological Unit 1 (1, 6)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1CARBAMOYLTRANSFERASEPS00097 Aspartate and ornithine carbamoyltransferases signature.PYRB_ECOLI49-56  6A:48-55

(-) Exons   (0, 0)

(no "Exon" information available for 2ATC)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:305
 aligned with PYRB_ECOLI | P0A786 from UniProtKB/Swiss-Prot  Length:311

    Alignment length:313
                                                                                                                                                                                                                                                                                     253 254
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251 |   | 258       268       278       288       298       308
           PYRB_ECOLI     2 ANPLYQKHIISINDLSRDDLNLVLATAAKLKANPQPELLKHKVIASCFFEASTRTRLSFETSMHRLGASVVGFSDSANTSLGKKGETLADTISVISTYVDAIVMRHPQEGAARLATEFSGNVPVLNAGDGSNQHPTQTLLDLFTIQETQGRLDNLHVAMVGDLKYGRTVHSLTQALAKFDGNRFYFIAPDALAMPQYILDMLDEKGIAWSLHSSIEEVMAEVDILYMTRVQKERLDPSEYANVKAQFVLRAS---DLHNAKANMKVLHPLPRVDEIATDVDKTPHAWYFQQAGNGIFARQALLALVLNRDLVL 311
               SCOP domains d2atca1 A:1-150 Aspartate carbamoyltransferase catalytic subunit                                                                                      d2atca2 A:151-305 Aspartate carbamoyltransferase catalytic subunit                                                                                                  SCOP domains
               CATH domains 2atcA01 A:1-133,A:287-305  [code=3.40.50.1370, no name defined]                                                                      2atcA02 A:134-286  [code=3.40.50.1370, no name defined]                                                                                                          2atcA01             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeee....hhhhhhhhhhhhhhhhhhh......eeeeeeeeee.hhhhhhhhhhhhhheeeeeeeee............hhhhhhhhhhhh.eeeeeeee..hhhhhhhhhh...eeeeee.......hhhhhhhhhhhhhh....eeeeeeeee...hhhhhhhhhhhhhheeeeeeeeee.....hhhhhhhhhh.eeeeeeee......--------...eeeeeee.........................eeeeeee.........hhhhh.eeehhhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------CARBAMOY------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2atc A   1 ANPLYQSHIISINDLSRDDLNLVLATAAKLKANPQPELLKHKVIASCFFEASTRTRLSFQTSMHRLGASVVGFSDSANTSLGKKGQTLANTISVISTYVDAIVMRHPQEGAARLATEFSGNVPVLNAGDGSNQHPTQTLLDLFTIQQTEGRLNNLHVAMVGDLKYGRTVHSLTQALAKFDGNRFYFIAPDALAMPEYILDMLDEKGIAWSLHSSIEEVM--------TRVQKERLDPSEYAxVKAQFLVRANSLGGLHNAKMNAKVLHPLPRVDEIATDVDKTPHAWYFQQAGNGIFARQALLALVLNRDLVL 305
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210        |-       222       232 |     242       252       262       272       282       292       302
                                                                                                                                                                                                                                                    219      220           234-ASX

Chain B from PDB  Type:PROTEIN  Length:152
 aligned with PYRI_ECOLI | P0A7F3 from UniProtKB/Swiss-Prot  Length:153

    Alignment length:153
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150
           PYRI_ECOLI     1 MTHDNKLQVEAIKRGTVIDHIPAQIGFKLLSLFKLTETDQRITIGLNLPSGEMGRKDLIKIENTFLSEDQVDQLALYAPQATVNRIDNYEVVGKSRPSLPERIDNVLVCPNSNCISHAEPVSSSFAVRKRANDIALKCKYCEKEFSHNVVLAN 153
               SCOP domains d2atcb1 B:1-100 Aspartate carbamoyltransferase                                                      d2atcb2 B:101-152                                     SCOP domains
               CATH domains 2atcB01 B:1-100  [code=3.30.70.140, no name defined]                                                2atcB02 B:101-152                                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............eeeeeeee....hhhhhhhhhh.....eeeeeeee............eeeee...hhhhhhhhhhhh..eeeeee...eeeeeee...eeeee...............eeeeeeee-e...eeeee..eeeee.hhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2atc B   1 MTHNDKLQVAEIKRGTVINHIPAEIGFKLLSLFKLTETQDRITIGLNLPSGEMGRKDLIKIENTFLSEDEVDELALYAPQATVNRINDYEVVGKSRPSLPERNIDVLVCPDSNCISHAEPVSSSFAVR-RADDIALKCKYCEKEFSHNVVLAN 152
                                    10        20        30        40        50        60        70        80        90       100       110       120       129       139       149
                                                                                                                                                         128 |
                                                                                                                                                           129

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 4)

Asymmetric Unit

(-) CATH Domains  (3, 4)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2ATC)

(-) Gene Ontology  (16, 20)

Asymmetric Unit(hide GO term definitions)
Chain A   (PYRB_ECOLI | P0A786)
molecular function
    GO:0016597    amino acid binding    Interacting selectively and non-covalently with an amino acid, organic acids containing one or more amino substituents.
    GO:0004070    aspartate carbamoyltransferase activity    Catalysis of the reaction: L-aspartate + carbamoyl phosphate = N-carbamoyl-L-aspartate + H(+) + phosphate.
    GO:0016743    carboxyl- or carbamoyltransferase activity    Catalysis of the transfer of a carboxyl- or carbamoyl group from one compound (donor) to another (acceptor).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0044205    'de novo' UMP biosynthetic process    The chemical reactions and pathways resulting in the formation of UMP, uridine monophosphate, starting with the synthesis of (S)-dihydroorotate from bicarbonate; UMP biosynthesis may either occur via reduction by quinone, NAD(+) or oxygen.
    GO:0006207    'de novo' pyrimidine nucleobase biosynthetic process    The chemical reactions and pathways resulting in the formation of pyrimidine nucleobases, 1,3-diazine, organic nitrogenous bases, beginning with the synthesis of a pyrimidine ring from simpler precursors.
    GO:0006520    cellular amino acid metabolic process    The chemical reactions and pathways involving amino acids, carboxylic acids containing one or more amino groups, as carried out by individual cells.
    GO:0006221    pyrimidine nucleotide biosynthetic process    The chemical reactions and pathways resulting in the formation of a pyrimidine nucleotide, a compound consisting of nucleoside (a pyrimidine base linked to a deoxyribose or ribose sugar) esterified with a phosphate group at either the 3' or 5'-hydroxyl group of the sugar.
    GO:0009220    pyrimidine ribonucleotide biosynthetic process    The chemical reactions and pathways resulting in the formation of a pyrimidine ribonucleotide, a compound consisting of nucleoside (a pyrimidine base linked to a ribose sugar) esterified with a phosphate group at either the 3' or 5'-hydroxyl group of the sugar.
    GO:0000050    urea cycle    The sequence of reactions by which arginine is synthesized from ornithine, then cleaved to yield urea and regenerate ornithine. The overall reaction equation is NH3 + CO2 + aspartate + 3 ATP + 2 H2O = urea + fumarate + 2 ADP + 2 phosphate + AMP + diphosphate.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

Chain B   (PYRI_ECOLI | P0A7F3)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0006207    'de novo' pyrimidine nucleobase biosynthetic process    The chemical reactions and pathways resulting in the formation of pyrimidine nucleobases, 1,3-diazine, organic nitrogenous bases, beginning with the synthesis of a pyrimidine ring from simpler precursors.
    GO:0006221    pyrimidine nucleotide biosynthetic process    The chemical reactions and pathways resulting in the formation of a pyrimidine nucleotide, a compound consisting of nucleoside (a pyrimidine base linked to a deoxyribose or ribose sugar) esterified with a phosphate group at either the 3' or 5'-hydroxyl group of the sugar.
cellular component
    GO:0009347    aspartate carbamoyltransferase complex    A multienzyme complex that catalyzes the formation N-carbamoyl-L-aspartate from carbamoyl phosphate and L-aspartate. It exhibits a variety of architectural organizations, but in all microorganisms the core catalytic component is a homotrimer of approximately 34 kDa polypeptides.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
