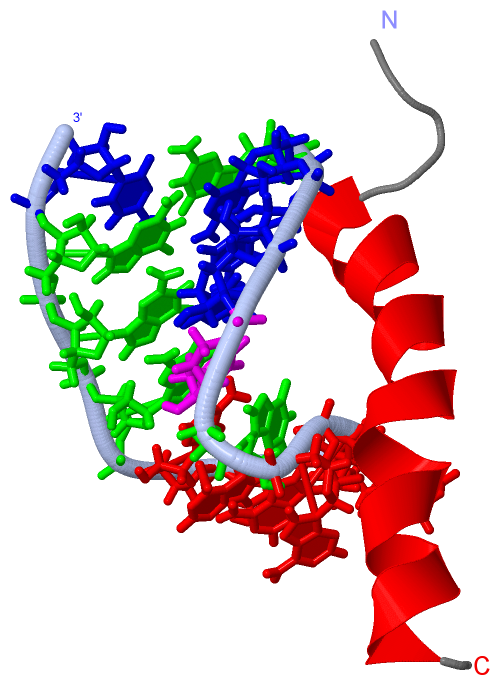

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

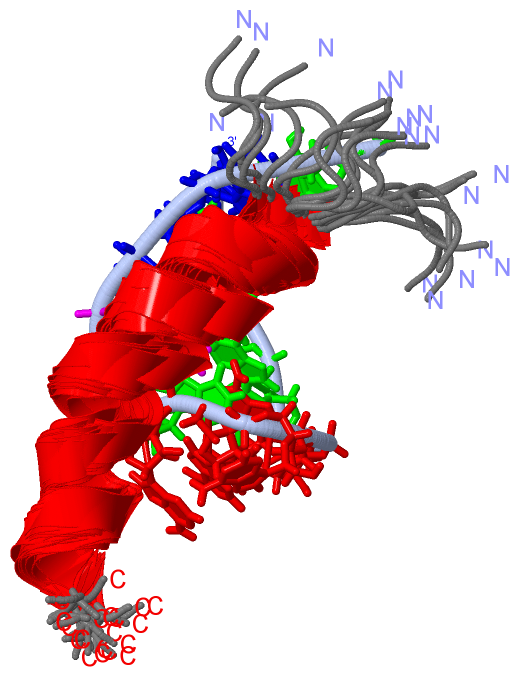

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  BACTERIOPHAGE HK022 NUN-PROTEIN-NUTBOXB-RNA COMPLEX

Authors :  C. Faber, M. Schaerpf, T. Becker, H. Sticht, P. Roesch
Date :  15 Jan 01  (Deposition) - 29 Jan 02  (Release) - 14 Jun 17  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A,B  (20x)
NMR Structure *:  A,B  (1x)
Keywords :  Bacteriophage Hk022, Termination, Peptide-Rna-Complex, Peptide-Rna- Recognition, Protein/Rna (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Faber, M. Schaerpf, T. Becker, H. Sticht, P. Roesch
The Structure Of The Coliphage Hk022 Nun Protein-Lambda-Phage Boxb Rna Complex. Implications For The Mechanism Of Transcription Termination
J. Biol. Chem. V. 276 32064 2001
PubMed-ID: 11356847  |  Reference-DOI: 10.1074/JBC.M102975200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - RNA (5-R(P*GP*CP*CP*CP*UP*GP*AP*AP*AP*AP*AP*GP*GP*GP*C)-3)
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: BACTERIOPHAGE LAMBDA NUTBOXB-RNA
    Organism Scientific: BACTERIOPHAGE LAMBDA
    Organism Taxid: 10710
    Other Details: NUTBOXB-RNA FROM THE NUTR-SEQUENCE

Molecule 2 - NUN-PROTEIN
    Chains: B
    Engineered: YES
    Fragment: N-TERMINAL BINDING-DOMAIN, RESIDUES 19-44
    Organism Scientific: BACTERIOPHAGE HK022
    Organism Taxid: 10742
    Synthetic: YES

 Structural Features

(-) Chains, Units

  12
NMR Structure (20x): AB
NMR Structure * (1x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1HJI)

(-) Sites  (0, 0)

(no "Site" information available for 1HJI)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1HJI)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1HJI)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HJI)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1HJI)

(-) Exons   (0, 0)

(no "Exon" information available for 1HJI)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:RNA  Length:15

                  1hji A  1 GCCCUGAAAAAGGGC 15
                                    10


Chain B from PDB  Type:PROTEIN  Length:26
 aligned with VNUN_BPHK0 | P18683 from UniProtKB/Swiss-Prot  Length:112

    Alignment length:26
                                    31        41
            VNUN_BPHK0   22 DRGLTSRDRRRIARWEKRIAYALKNG 47
               SCOP domains d1hjib_ B:                 SCOP domains
               CATH domains -------------------------- CATH domains
               Pfam domains -------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------- SAPs(SNPs)
                    PROSITE -------------------------- PROSITE
                 Transcript -------------------------- Transcript
                  1hji B 19 DRGLTSRDRRRIARWEKRIAYALKNG 44
                                    28        38
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Peptides (792)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1HJI)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HJI)

(-) Gene Ontology  (3, 3)

NMR Structure(hide GO term definitions)
Chain B   (VNUN_BPHK0 | P18683)
biological process
    GO:0006353    DNA-templated transcription, termination    The cellular process that completes DNA-templated transcription; the formation of phosphodiester bonds ceases, the RNA-DNA hybrid dissociates, and RNA polymerase releases the DNA.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1hji)

  Sites
(no "Sites" information available for 1hji)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1hji)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1hji
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  VNUN_BPHK0 | P18683
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  VNUN_BPHK0 | P18683
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        VNUN_BPHK0 | P18683: 1e4z 5up6

(-) Related Entries Specified in the PDB File

1e4z BACTERIOPHAGE HK022 NUN-PROTEIN-NUTBOXB-RNA COMPLEX
