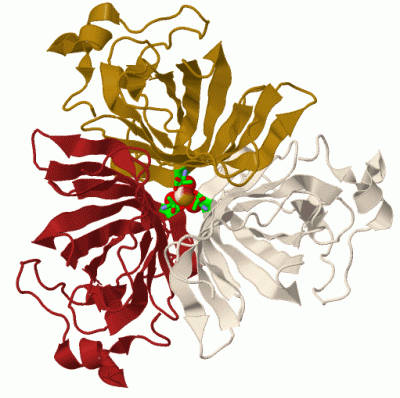

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

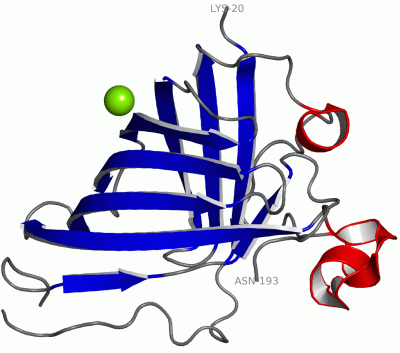

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

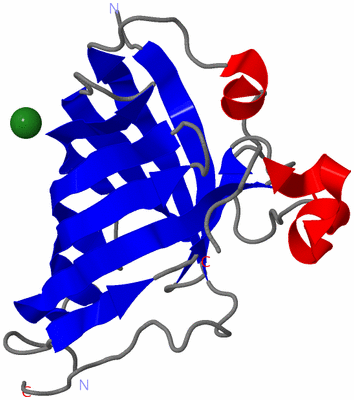

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

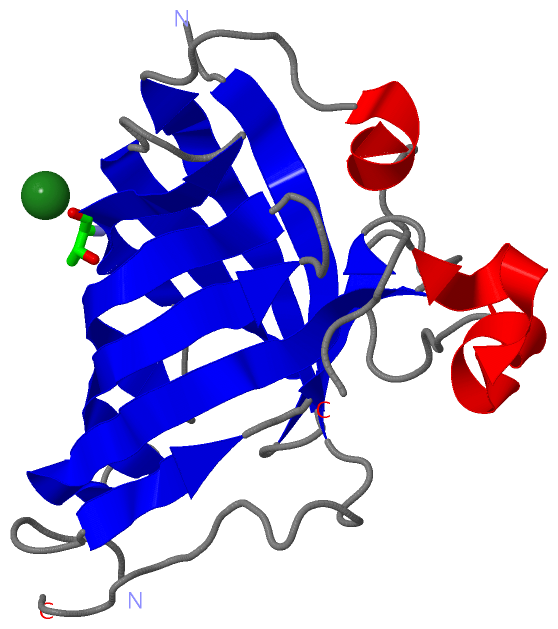

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

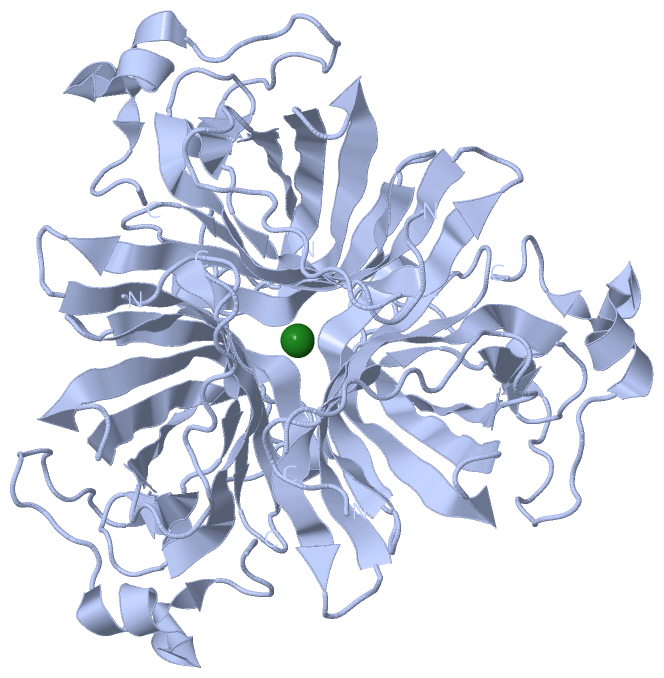

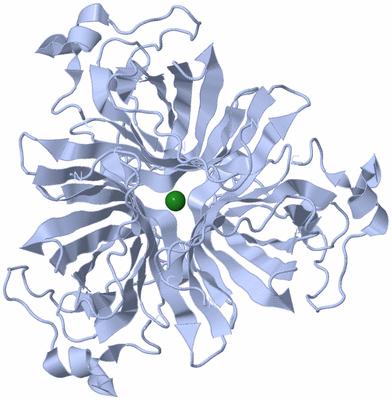

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

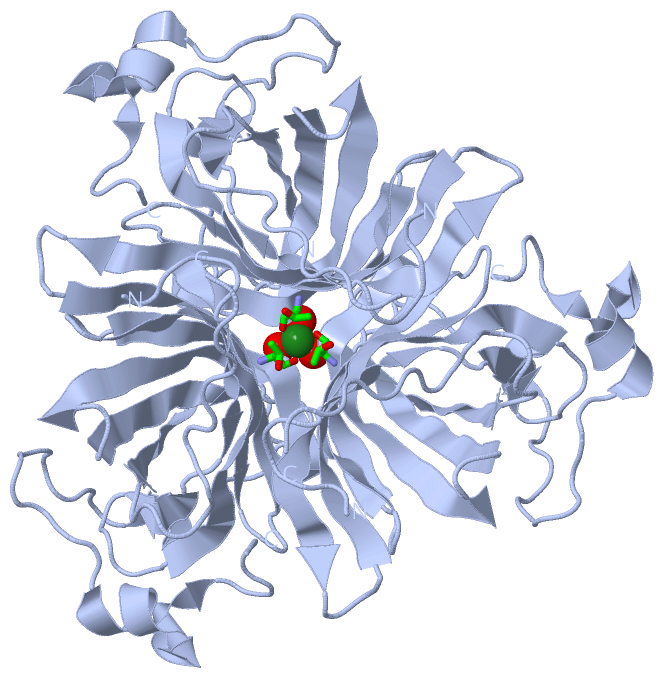

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  X-RAY STRUCTURE OF ALLENE OXIDE CYCLASE FROM ARABIDOPSIS THALIANA AT3G25760

Authors :  G. E. Wesenberg, G. N. Phillips Jr. , B. W. Han, E. Bitto, C. A. Bingman, S. T. M. Allard, Center For Eukaryotic Structural Genomics (Ces
Date :  01 Jun 05  (Deposition) - 14 Jun 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.79
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (3x)
Keywords :  Structural Genomics, Protein Structure Initiative, Psi, At3G25760, Center For Eukaryotic Structural Genomics, Cesg, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Center For Eukaryotic Structural Genomics (Cesg)
X-Ray Structure Of Allene Oxide Cyclase From Arabidopsis Thaliana At3G25760
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - ALLENE OXIDE CYCLASE
    Chains: A
    EC Number: 5.3.99.6
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PVP-27
    Expression System Strain: B834 P(RARE2)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: AT3G25760
    Organism Common: THALE CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (3x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1MG1Ligand/IonMAGNESIUM ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1MG-1Ligand/IonMAGNESIUM ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETHR A:121 , HOH A:209BINDING SITE FOR RESIDUE MG A 201

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ZVC)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Ser A:36 -Pro A:37
2Tyr A:141 -Pro A:142

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ZVC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1ZVC)

(-) Exons   (0, 0)

(no "Exon" information available for 1ZVC)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:171
 aligned with AOC1_ARATH | Q9LS03 from UniProtKB/Swiss-Prot  Length:254

    Alignment length:174
                                    90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
           AOC1_ARATH    81 KVQELSVYEINDLDRHSPKILKNAFSFRFGLGDLVPFTNKLYTGDLKKRVGITAGLCVVIEHVPEKNGDRFEATYSFYFGDYGHLSVQGPYLTYEDSFLAITGGAGIFEGAYGQVKLQQLVYPTKLFYTFYLKGLANDLPLELIGTPVPPSKDVEPAPEAKALKPSGVVSNFTN 254
               SCOP domains d1zvca1 A:20-193 Allene    oxide cyclase, AOC                                                                                                                                  SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains Allene_ox_cyc-1zvcA01 A:   20-191                                                                                                                                           -- Pfam domains
         Sec.struct. author ..eeeeeeee..............---......eeee..eeee.....eeeeeeeeeeeeeee....eeeeeeeeeee....eeeeeeeeee....eeeeeeeeee.....eeeeeeeeee...eeeeeeeee......hhhhh............hhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1zvc A  20 KVQELSVYEINDLDRHSPKILKNA---RFGLGDLVPFTNKLYTGDLKKRVGITAGLCVVIEHVPEKNGDRFEATYSFYFGDYGHLSVQGPYLTYEDSFLAITGGAGIFEGAYGQVKLQQLVYPTKLFYTFYLKGLANDLPLELIGTPVPPSKDVEPAPEAKALKPSGVVSNFTN 193
                                    29        39   |   |49        59        69        79        89        99       109       119       129       139       149       159       169       179       189
                                                  43  47
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 1ZVC)

(-) Pfam Domains  (1, 1)

Asymmetric Unit
(-)
Clan: no clan defined [family: Allene_ox_cyc] (3)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)
Chain A   (AOC1_ARATH | Q9LS03)
molecular function
    GO:0046423    allene-oxide cyclase activity    Catalysis of the reaction: (9Z,13S,15Z)-12,13-epoxyoctadeca-9,11,15-trienoate = (15Z)-12-oxophyto-10,15-dienoate.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
biological process
    GO:0009695    jasmonic acid biosynthetic process    The chemical reactions and pathways resulting in the formation of jasmonic acid, a fatty acid derivative.
cellular component
    GO:0009507    chloroplast    A chlorophyll-containing plastid with thylakoids organized into grana and frets, or stroma thylakoids, and embedded in a stroma.
    GO:0009941    chloroplast envelope    The double lipid bilayer enclosing the chloroplast and separating its contents from the rest of the cytoplasm; includes the intermembrane space.
    GO:0009535    chloroplast thylakoid membrane    The pigmented membrane of a chloroplast thylakoid. An example of this component is found in Arabidopsis thaliana.
    GO:0009536    plastid    Any member of a family of organelles found in the cytoplasm of plants and some protists, which are membrane-bounded and contain DNA. Plant plastids develop from a common type, the proplastid.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ser A:36 - Pro A:37   [ RasMol ]
    Tyr A:141 - Pro A:142   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1zvc
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  AOC1_ARATH | Q9LS03
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  5.3.99.6
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  AOC1_ARATH | Q9LS03
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 1ZVC)

(-) Related Entries Specified in the PDB File

1z8k HOMOLOG RELATED ID: GO.15838 RELATED DB: TARGETDB
