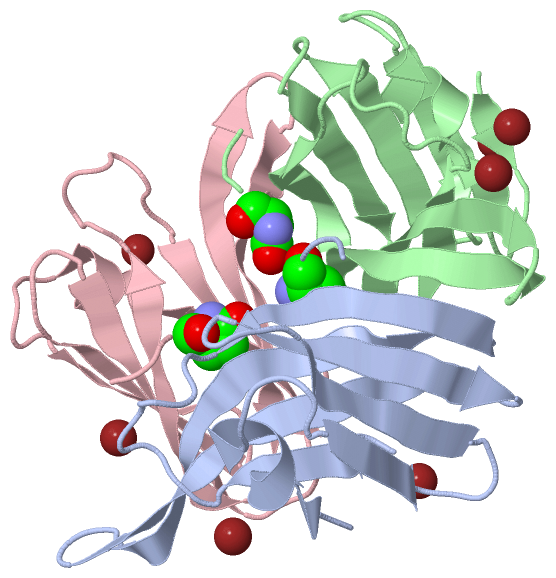

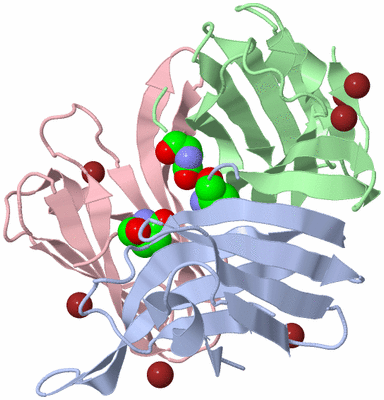

Asymmetric Unit (Jmol Viewer)

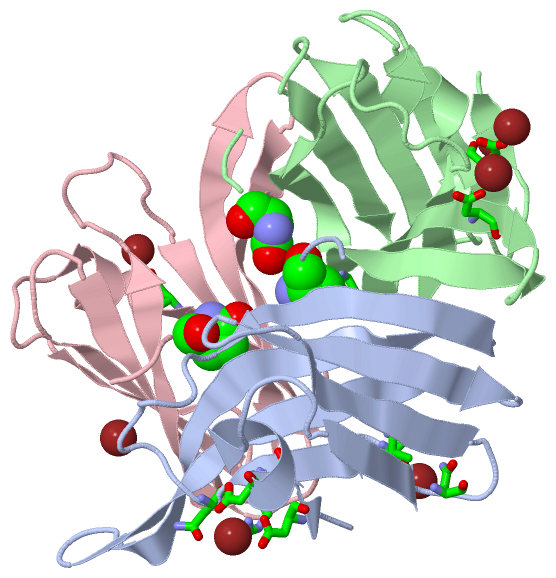

Asym. Unit - sites (Jmol Viewer)

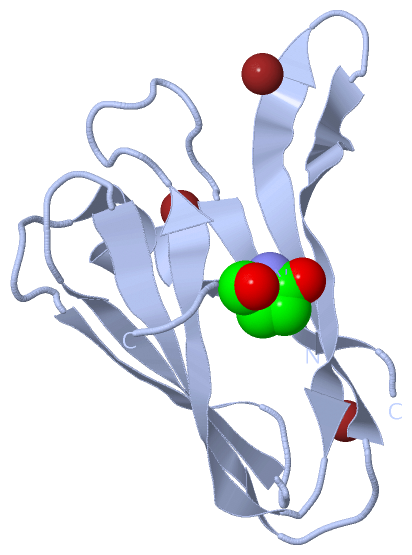

Biological Unit 1 (Jmol Viewer)

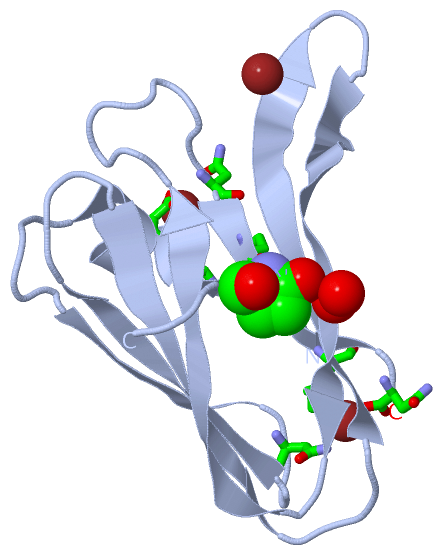

Biol. Unit 1 - sites (Jmol Viewer)

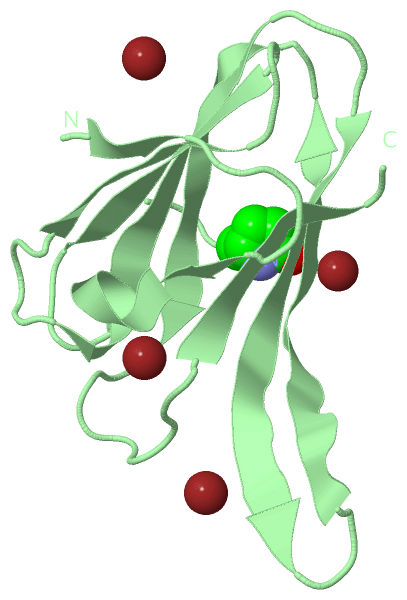

Biological Unit 2 (Jmol Viewer)

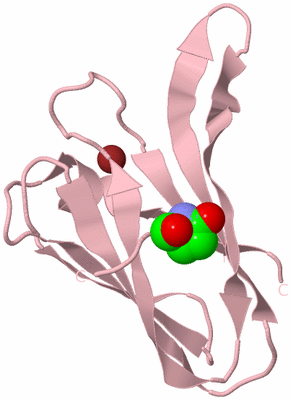

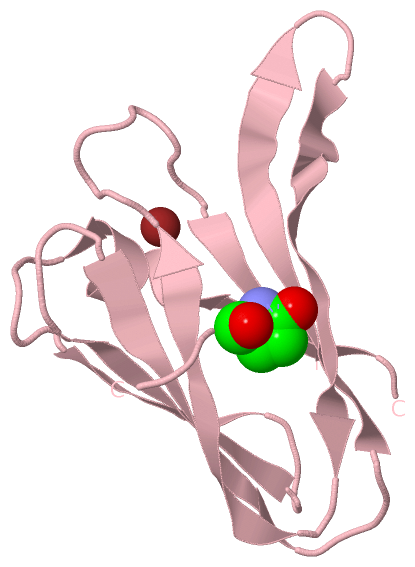

Biological Unit 3 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF A RGD-CONTAINING HOST-SELECTIVE TOXIN: PYRENOPHORA TRITICI-REPENTIS PTR TOXA

Authors :   G. N. Sarma, V. A. Manning, L. M. Ciuffetti, P. A. Karplus

Date :   06 May 05 (Deposition) - 16 Aug 05 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.90

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)

Keywords :   Beta-Sandwich; Rgd-Motif, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   G. N. Sarma, V. A. Manning, L. M. Ciuffetti, P. A. Karplus
Structure Of Ptr Toxa: An Rgd-Containing Host-Selective Toxin From Pyrenophora Tritici-Repentis
Plant Cell V. 17 3190 2005
PubMed-ID: 16214901 | Reference-DOI: 10.1105/TPC.105.034918
(for further references see the PDB file header)

Molecule 1 - PTR NECROSIS TOXIN
	Chains	:	A, B, C
	Fragment	:	C-TERMINAL DOMAIN
	Organism Scientific	:	PYRENOPHORA TRITICI-REPENTIS
	Organism Taxid	:	45151
	Synonym	:	PTR TOXA

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 11)

No.	Name	Count	Type	Full Name
1	NI	8	Ligand/Ion	NICKEL (II) ION
2	PCA	3	Mod. Amino Acid	PYROGLUTAMIC ACID

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	NI	-1	Ligand/Ion	NICKEL (II) ION
2	PCA	1	Mod. Amino Acid	PYROGLUTAMIC ACID

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	NI	-1	Ligand/Ion	NICKEL (II) ION
2	PCA	1	Mod. Amino Acid	PYROGLUTAMIC ACID

Biological Unit 3 (1, 1)

No.	Name	Count	Type	Full Name
1	NI	-1	Ligand/Ion	NICKEL (II) ION
2	PCA	1	Mod. Amino Acid	PYROGLUTAMIC ACID

Asymmetric Unit (7, 7)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP B:83 , HOH B:1019	BINDING SITE FOR RESIDUE NI B 1001
2	AC2	SOFTWARE	ASP C:83	BINDING SITE FOR RESIDUE NI C 1002
3	AC3	SOFTWARE	ASP A:83 , ASP A:85 , ASN A:171 , ARG A:173	BINDING SITE FOR RESIDUE NI A 1003
4	AC4	SOFTWARE	GLU B:99	BINDING SITE FOR RESIDUE NI B 1004
5	AC5	SOFTWARE	HOH A:1027 , HOH A:1050 , ASP B:149 , HOH C:1034	BINDING SITE FOR RESIDUE NI B 1006
6	AC6	SOFTWARE	ASP B:135	BINDING SITE FOR RESIDUE NI B 1007
7	AC7	SOFTWARE	ASN A:101 , LEU A:176 , ASN A:178	BINDING SITE FOR RESIDUE NI A 1008

(no "SS Bond" information available for 1ZLE)

(no "Cis Peptide Bond" information available for 1ZLE)

(no "SAP(SNP)/Variant" information available for 1ZLE)

(no "PROSITE Motif" information available for 1ZLE)

(no "Exon" information available for 1ZLE)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:103
 aligned with P78737_9PLEO | P78737 from UniProtKB/TrEMBL  Length:178

    Alignment length:118
                                    70        80        90       100       110       120       130       140       150       160       170
         P78737_9PLEO    61 QGSCMSITINPSRPSVNNIGQVDIDSVILGRPGAIGSWELNNFITIGLNRVNADTVRVNIRNTGRTNRLIITQWDNTVTRGDVYELFGDYALIQGRGSFCLNIRSDTGRENWRMQLEN 178
               SCOP domains ---------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....---------------..eehhhhhh.....eeeee....eeeeeee....eeeeeeee....eeeeeeeeeee...eeeeeeeeeeee..eeeeeeee.........eeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------- Transcript
                 1zle A  61 xGSC---------------GQVDIDSVILGRPGAIGSWELNNFITIGLNRVNADTVRVNIRNTGRTNRLIITQWDNTVTRGDVYELFGDYALIQGRGSFCLNIRSDTGRENWRMQLEN 178
                            |  |     -        80        90       100       110       120       130       140       150       160       170
                            | 64              80
                           61-PCA

Chain B from PDB  Type:PROTEIN  Length:109
 aligned with P78737_9PLEO | P78737 from UniProtKB/TrEMBL  Length:178

    Alignment length:118
                                    70        80        90       100       110       120       130       140       150       160       170
         P78737_9PLEO    61 QGSCMSITINPSRPSVNNIGQVDIDSVILGRPGAIGSWELNNFITIGLNRVNADTVRVNIRNTGRTNRLIITQWDNTVTRGDVYELFGDYALIQGRGSFCLNIRSDTGRENWRMQLEN 178
               SCOP domains ---------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....---------.ee.....eehhhhhh.....eeeee....eeeeeee....eeeeeeee....eeeeeeeeeee...eeeeeeeeeeee..eeeeeeee.........eeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------- Transcript
                 1zle B  61 xGSC---------PSVNNIGQVDIDSVILGRPGAIGSWELNNFITIGLNRVNADTVRVNIRNTGRTNRLIITQWDNTVTRGDVYELFGDYALIQGRGSFCLNIRSDTGRENWRMQLEN 178
                            |  |     -   |    80        90       100       110       120       130       140       150       160       170
                           61-PCA       74

Chain C from PDB  Type:PROTEIN  Length:103
 aligned with P78737_9PLEO | P78737 from UniProtKB/TrEMBL  Length:178

    Alignment length:118
                                    70        80        90       100       110       120       130       140       150       160       170
         P78737_9PLEO    61 QGSCMSITINPSRPSVNNIGQVDIDSVILGRPGAIGSWELNNFITIGLNRVNADTVRVNIRNTGRTNRLIITQWDNTVTRGDVYELFGDYALIQGRGSFCLNIRSDTGRENWRMQLEN 178
               SCOP domains ---------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -Tox               in_ToxA-1zleC01 C:62-178                                                                            Pfam domains (1)
           Pfam domains (2) -Tox               in_ToxA-1zleC02 C:62-178                                                                            Pfam domains (2)
           Pfam domains (3) -Tox               in_ToxA-1zleC03 C:62-178                                                                            Pfam domains (3)
         Sec.struct. author ....---------------..eehhhhhh.....eeeee....eeeeeee....eeeeeeee....eeeeeeeeeee...eeeeeeeeeeee..eeeeeeee.........eeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------- Transcript
                 1zle C  61 xGSC---------------GQVDIDSVILGRPGAIGSWELNNFITIGLNRVNADTVRVNIRNTGRTNRLIITQWDNTVTRGDVYELFGDYALIQGRGSFCLNIRSDTGRENWRMQLEN 178
                            |  |     -        80        90       100       110       120       130       140       150       160       170
                           61-PCA             80

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 1ZLE)

(no "CATH Domain" information available for 1ZLE)

Asymmetric Unit

Clans(

)

Families(

)

Organisms( (-)

)

Clan: no clan defined [family: Toxin_ToxA] (2)

Family: Toxin_ToxA (2)

Pyrenophora tritici-repentis (2)

1a	Toxin_ToxA-1zleC01	C:62-178
1b	Toxin_ToxA-1zleC02	C:62-178
1c	Toxin_ToxA-1zleC03	C:62-178

Asymmetric Unit(hide GO term definitions)

(no "Gene Ontology" information available for 1ZLE)

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		NI	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PCA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1zle)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1zle
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	P78737_9PLEO \| P78737
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	P78737_9PLEO \| P78737
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/TrEMBL
	P78737_9PLEO \| P78737	:	1zld

1zld	SAME PROTEIN IN A DIFFERENT CRYSTAL FORM
